AXDIS-LR92
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/8/24 INSTAXDIS-LR92
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.

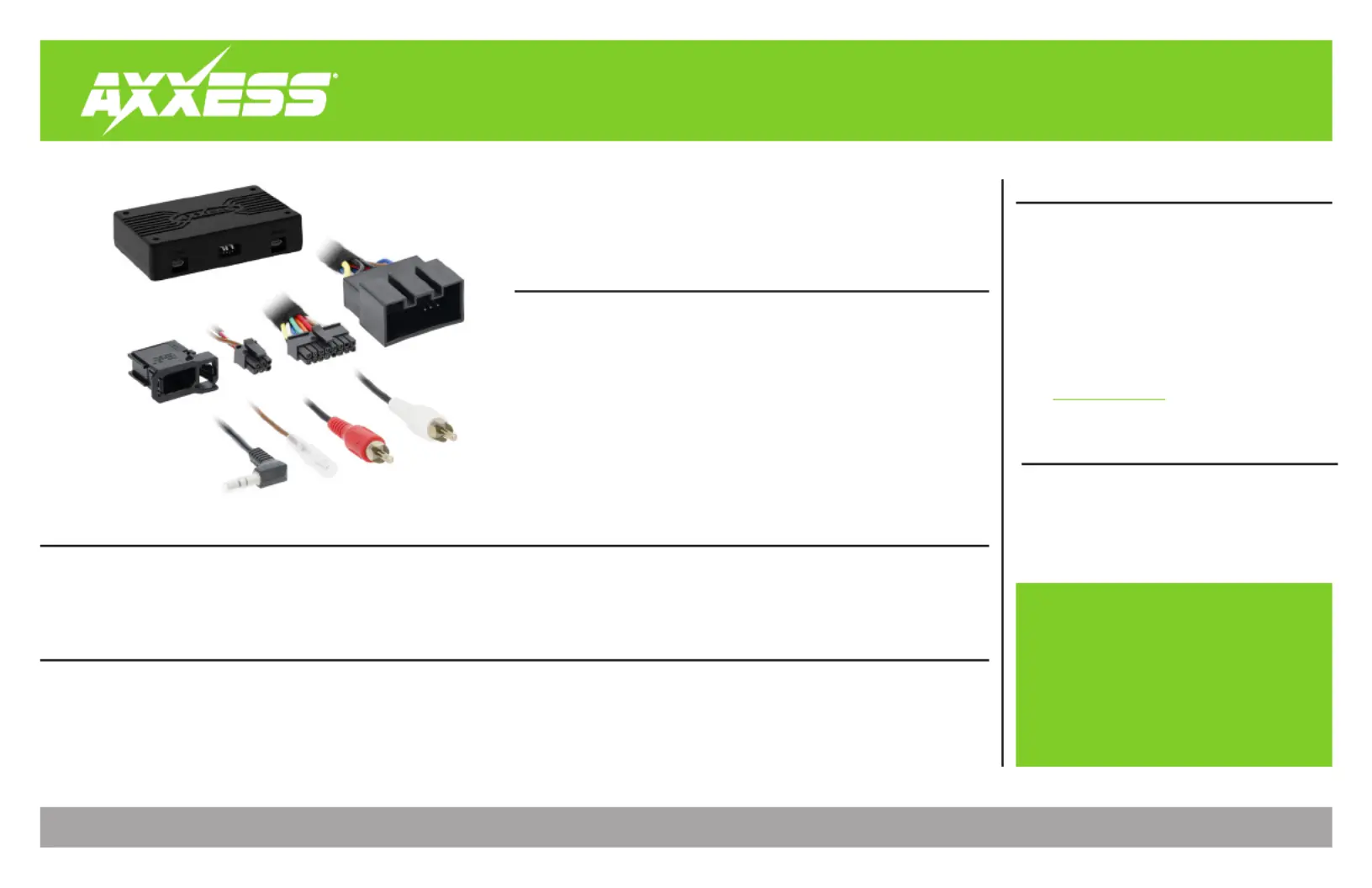

INTERFACE COMPONENTS
Range Rover Land Rover 2004-2009
(with MOST25 amplifiers) Data Interface with SWC
• AXDIS-LR92 harness
• AXDIS-LR92 interface
• SWC harness
• Fiber cap
TOOLS REQUIRED
• Wire cutter • Crimp tool and connectors
(example: butt-connectors, bell caps, etc.) or
• Solder gun, solder, heat shrink
• Tape • Zip-ties
INTERFACE FEATURES
Designed for MOST*25 amplified systems
Provides accessory power (12-volt)
Retains audio controls on the steering wheel controls
Easy to set Dipswitches for SWC configuration
Provides NAV outputs (parking brake, reverse, and speed sense)
Micro B USB updatable
Note: Backup Camera not retained if equipped.
* Media Oriented System Transport
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
APPLICATIONS
US Applications: Range Rover
Range Rover Sport (L320) 2006-2009 ............................................
Land Rover LR3 (L319) 2005-2009 .................................................
World Applications: Range Rover
Range Rover Sport (L320) 2005-2009 ............................................
Land Rover LR3 (L319) 2004-2009 ..................................................
TABLE OF CONTENTS
Connections: BLK-AXDIS-LR92 harness 2 ................
Installing the AXDIS-LR92 interface 3 .....................
Steering Wheel Control Chart (SWC) 4 ...................
Installing the Fiber Optic Cable.............................5
Applicable Radio 5 ....................................................
2
CONNECTIONS: BLK-AXDIS-LR92 HARNESS
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Reverse
Orange - Illumination
Blue - AMP Turn On
Purple - E-Brake
Pink - VSS
Front
Rear
u
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
6-Pin
16-Pin
Vehicle Connector
Radio Connections
BLK-AXDIS-LR92
Brown - Wired SWC
“Kenwood/JVC”
3
REV. 4/8/24 INSTAXDIS-LR92
O
N
1
2
3
4
5
K
E
Interface Front View
Dipswitch Detail
O
N
1
2
3
4
5
K
E
With the key in the off position:
1. Connect male 3.5mm jack to the steering wheel control port on the radio.
2. SWC Chart Ensure that the dipswitches are set to the desired radio type. Refer to at right.
3. AXDIS-LR92 harness AXDIS-LR92 interface. Connect the to the
4. dust cover AXDIS-LR92 interface.Remove the from the optic port on the
5. fiber optic cable AXDIS-LR92 interface. Connect the factory to the
6. AXDIS-LR92 harness wiring harnessConnect the to the in the vehicle.
7. Turn on the ignition and test all features.
INSTALLING THE AXDIS-LR92 INTERFACE
NOTE: SWC Chart For Dipswitch Settings for your Radio Type, refer to on page 4.
