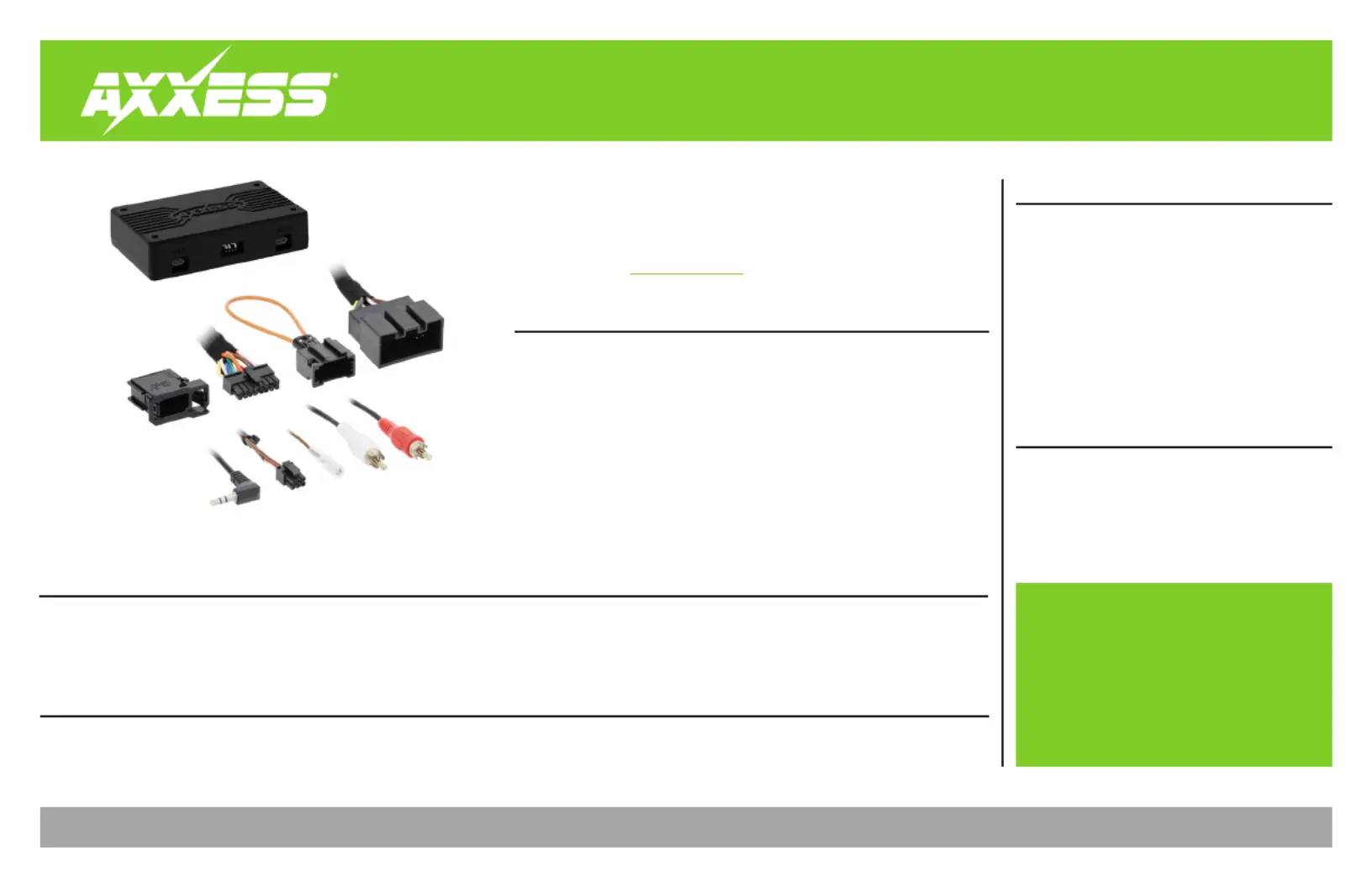

AXDIS-LR82
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/8/24 INSTAXDIS-LR82
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
INTERFACE FEATURES
INTERFACE COMPONENTS
TABLE OF CONTENTS
Connections: BLK-AXDIS-LR82 harness 2 ................
Applicable Radios 3 ..................................................
Steering Wheel Control Chart (SWC) 3 ...................
Installing the Fiber Optic Cable.............................4
Installing the AXDIS-LR82 interface 4 .....................
Land Rover Range Rover Vogue (with MOST25
amplifier) Data Interface with SWC 2002-2012
• Designed for MOST*25 amplified systems
• Provides accessory power (12-volt)
• Retains audio controls on the steering wheel controls
• Easy to set Dipswitches for SWC configuration
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Micro B USB updatable
Note: Backup Camera not retained if equipped.
* Media Oriented System Transport
• AXDIS-LR82 harness
• AXDIS-LR82 interface
• MOST jumper harness
• SWC harness
TOOLS REQUIRED
• Wire cutter
• Crimp tool and connectors
(example: butt-connectors, bell caps, etc.) or
• Solder gun, solder, heat shrink
• Tape • Zip-ties
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
APPLICATIONS
US Applications: Range Rover
Vogue (L322) 2007-2012 ...................................................................
World Applications: Range Rover
Vogue (L322) 2002-2012 ...................................................................
2
CONNECTIONS: BLK-AXDIS-LR82 HARNESS
Front
Rear
ub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Reverse
Orange - Illumination
Blue - AMP Turn On
Purple - E-Brake
Pink - VSS
6-Pin
16-Pin
Vehicle Connector
Radio Connections
BLK-AXDIS-LR82
Brown - Wired SWC
“Kenwood/JVC”
NOTE: This loop is to be placed
at the factory screen location.
3
REV. 4/8/24 INSTAXDIS-LR82
SWC CHART
Alpine Premium Sound Systems: 05-09 Radio W/NAV & 10-12 Radio W/NAV
APPLICABLE RADIOS
Metra MOST Interface Dipswitch Table
MFR System
DIP Switch Sengs
Addional
Comments
1 2 3 4 5
RESERVED NA OFF OFF OFF OFF OFF SW UPDATE MODE
ALPINE IR DATA OFF OFF OFF OFFON
AXXERA 2 IR DATA OFF OFF OFFON ON
CLARION 1 IR DATA OFF OFF OFFON ON
CLARION 2 IR DATA OFF OFFON ON ON
DUAL Analog OFF OFF OFFON ON
GRUNDIG IR DATA OFF OFF OFFON ON
JENSEN Analog OFF OFF OFF ON ON
JVC IR DATA OFF OFF OFF OFF BROWN WIRED SWCON
KENWOOD 1 IR DATA OFF OFF OFF OFF BROWN WIRED SWCON
KENWOOD 2 IR DATA OFF OFF OFF BROWN WIRED SWCON ON
LG 1 Analog OFF OFF OFFON ON
LG 2 IR DATA OFF OFF OFFON ON
PHILIPS 1 IR DATA OFF OFFON ON ON
PHILIPS 2 IR DATA OFF OFF OFFON ON
PIONEER 1 Analog OFF OFF OFF MALE 3.5MM JACKON ON
PIONEER 2 Analog OFF OFF OFF OFF MALE 3.5MM JACKON
SONY Analog OFF OFF OFF MALE 3.5MM JACKON ON
VALOR IR DATA OFF OFF OFFON ON
SPARE IR DATA OFF OFFON ON ON
SPARE Analog OFF OFFON ON ON
SPARE Analog OFFON ON ON ON
Press dipswitch in to the down position to turn ON.
Pioneer 1 example shown in the diagram.
