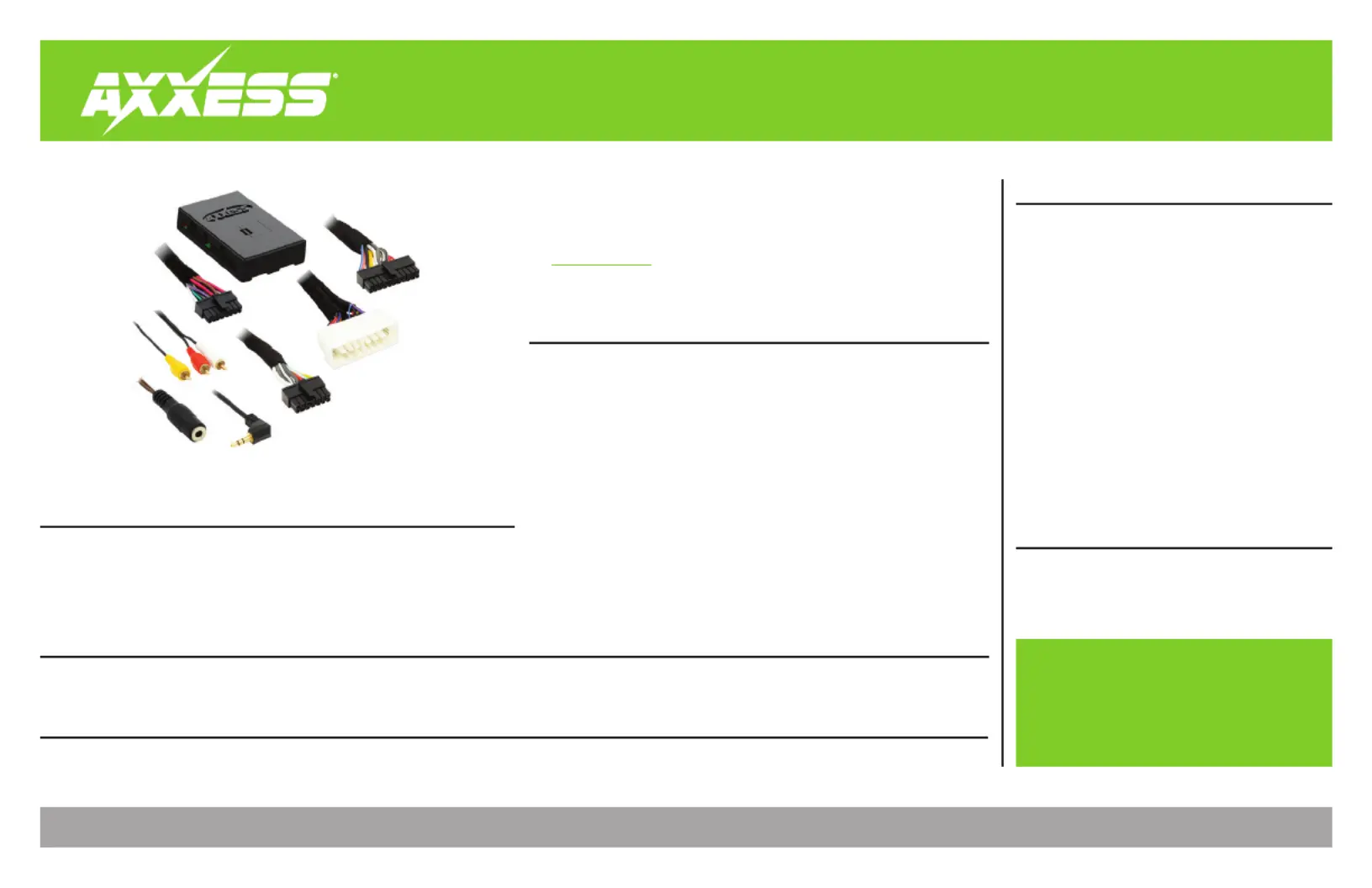

AXDIS-HK3

I N S TA L L AT I O N I N S T R U C T I O N S

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

INTERFACE FEATURES

INTERFACE COMPONENTS

OPTIONAL ACCESSORIES

(sold separately)

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Small ﬂat-blade screwdriver

TABLE OF CONTENTS

Connections .........................................................2-3

Installation .............................................................4

Programming .........................................................4

Audio Level Adjustment ........................................4

Steering Wheel Control Settings

- L.E.D. feedback ....................................................5

- Changing radio type ...........................................5

- Remapping the steering wheel control buttons 5-6

- Dual assignment instructions (long button press) .7-8

Troubleshooting .....................................................8

Hyundai/Kia Data Interface with SWC 2016-Up*

*2016 Nav models

• Provides accessory power (12-

volt 10-amp)

• Provides NAV outputs (park

brake, reverse, speed sense)

• Retains audio controls on the

steering wheel

• Designed for ampliﬁed‡ and

non-ampliﬁed models

• Retains the factory AUX-IN jack

• Retains the factory backup camera

• Includes an AXCSD-6V 12-to-6V

step-down for the factory camera

• Retains balance and fade†

• Micro-B USB updatable

• AXDIS-HK3 interface • AXDIS-HK3 harness

• AXCSD-6V • 16-pin harness with stripped leads

• Female 3.5mm connector with stripped leads

SPDIF Interface: AXSP-HK interface

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

‡ Requires the AXSP-HK (sold separately)

† Non-ampliﬁed models only

APPLICATIONS

See inside front cover

CONNECTIONSAPPLICATIONS

From the 16-pin harness with stripped leads to the aftermarket radio:

• Connect the wire to the accessory wire.Red

• If the vehicle comes equipped with a factory ampliﬁer, connect the wire to the Blue/White

amp turn-on wire.

• Connect the wire to the right front positive speaker output.Gray

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the wire to the left front positive speaker output.White

• Connect the wire to the left front negative speaker output.White/Black

• Connect the wire to the reverse wire, and also to the wire from Green/Purple Blue/White

the AXCSD-6V.

The following (1) wire is only for a multimedia/navigation radio that requires this wire.

• Connect the wire to the parking brake wire.Light Green

• Tape off and disregard the following (8) wires, they will not be used in this application:

Blue/Pink Blue/White* Brown Green Green/Black Orange/White Purple Purple/Black , , , , , , ,

* Non-ampliﬁed models only

From the AXDIS-HK3 harness to the aftermarket radio:

• Connect the wire, the wire labeled “Camera Ground”, and also the wire Black Black Black

from the AXCSD-6V, to the ground wire.

•

Connect the wire labeled “Camera Power 6V”, to the wire from the Red Blue/Red AXCSD-6V

• Connect the Yellow wire to the battery wire.

• Connect the wire to the power antenna wire.Blue

• If the aftermarket radio has an illumination wire, connect the Orange wire to it.

Hyundai

Accent 2018-up(1)

Elantra 2019-up(2)

Elantra 2017-2018(4)

Elantra GT 2018-up

Ioniq 2018-up(3)

Kona 2018-up

Santa Fe 2019-up

Santa Fe XL 2019-up

Sonata 2018-up

Sonata 2017(3)

Kia

Forte 2019-up

Forte / Forte 5 2017-2018 (4)

Optima 2019(5)

Rio / Rio 5 2018(1)

Sedona 2017-2018(4)

Sorento 2019

Soul 2017-2019(4)

(1) With Android Auto / Apple CarPlay radio

(2) With Android Auto / Apple CarPlay radio or NAV

(3) Without NAV

(4) With Android Auto / Apple CarPlay radio, without NAV

(5) With manual climate control

Continued on the next page

REV. 12/19/22 INSTAXDIS-HK3

CONNECTIONS (CONT.)

The following (1) wire is only for a multimedia/navigation radio that requires this wire.

• Connect the wire to the VSS/speed sense wire.Blue/Pink

• If the factory AUX-IN jack is desired to be retained, connect the & RCA jacks to the Red White

audio AUX-IN jacks.

• Connect the Yellow RCA jack to the backup camera input.

For models equipped

without

a factory ampliﬁer:

• Connect the wire to the left rear positive speaker output.Green

• Connect the wire to the left rear negative speaker output.Green/Black

• Connect the wire to the right rear positive speaker output.Purple

• Connect the wire to the right rear negative output.Purple/Black

• Disregard the 14-pin connector, it will not be used in this application.

For models equipped

with

a factory ampliﬁer:

• Connect the AXSP-HK (sold separately) to the 14-pin connector.

• Tape off and disregard the following (4) wires, they will not be used in this application:

Green Green/Black Purple Purple/Black, , ,

3.5mm jack steering wheel control retention:

The 3.5mm jack is to be used to retain audio controls on the steering wheel control.

•

For the radios listed below:

Connect the

female 3.5mm connector with stripped leads

, to the male

3.5mm SWC jack from the

AXDIS-HK3 harness

Any remaining wires tape off and disregard

• Eclipse: Connect the steering wheel control wire, normally Brown Brown/White, to the

wire from the connector. Then connect the remaining steering wheel control wire,

normally Brown/White Brown, to the wire from the connector.

• Metra OE: Connect the steering wheel control Key 1 wire to the wire.(Gray) Brown

• Kenwood or select JVC with a steering wheel control wire: Blue/Yellow Connect the

wire to the wire.Brown

If the Note: Kenwood radio auto detects as a JVC, manually set the radio type to

Kenwood Changing Radio Type. See the instructions under .

• Connect the steering wheel control SWC-2 wire from the radio to the XITE: Brown wire.

• Parrot Asteroid Smart or Tablet:

Connect the 3.5mm jack to the AXSWCH-PAR (sold

separately). Then connect the 4-pin connector from the AXSWCH-PAR to the radio

The radio must be updated to rev. 2.1.4 or higher software.Note:

• Universal “2 or 3 wire” radio: Connect the steering wheel control wire, referred to as

Key-A or SWC-1, to the wire from the connector. Then connect the remaining Brown

steering wheel control wire, referred to as Key-B or SWC-2, to the wire Brown/White

from the connector. If the radio comes with a third wire for ground, disregard this wire.

Note:

After the interface has been programmed to the vehicle, refer to the manual provided with

the radio for assigning the SWC buttons. Contact the radio manufacturer for more information

• For all other radios: Connect the 3.5mm jack from the

AXDIS-HK3 harness

to the jack on

the radio designated for an external steering wheel control interface. Please refer to the

aftermarket radios manual if in doubt as to where the 3.5mm jack goes to.
