Seite 1/8
AXDIS-HK2
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 2/23/23 INSTAXDIS-HK2
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell caps, etc.)
TABLE OF CONTENTS
Connections: Amplified & Non-Amplified ........2-3
Installing the AXDIS-HK2 .......................................4
Programming the AXDIS-HK2 ...............................4
Steering Wheel Control Settings ...................... 5-8
- L.E.D. Feedback ............................................................ 5
- SWC Connections ......................................................... 5
- Changing Radio Type ..................................................6
-
Remapping the steering wheel control buttons
....6-7
-
Dual assignment instructions (long button press)
....
7-8
Troubleshooting .....................................................8
Hyundai Data Interface with SWC 2012-2016
APPLICATIONS
• Provides NAV outputs (parking
brake, reverse, speed sense)
• Retains audio controls on the
steering wheel
• Retains BlueLink
• Designed for amplified* and
non-amplified models
•
Retains the factory backup camera
• Retains balance and fade
• Micro-B USB updatable
HYUNDAI
Veloster (without NAV) ............................2016
Veloster ..............................................2012-2015
• AXDIS-HK2 interface
• AXDIS-HK2 harness
• 16-pin harness with stripped leads
• Female 3.5mm connector with stripped leads
* Requires the AXSP-HK (sold separately)
Visit AxxessInterfaces.com for more detailed information about the product and
up-to-date vehicle specific applications.
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights,
are plugged in before reconnecting the battery or
cycling the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
2

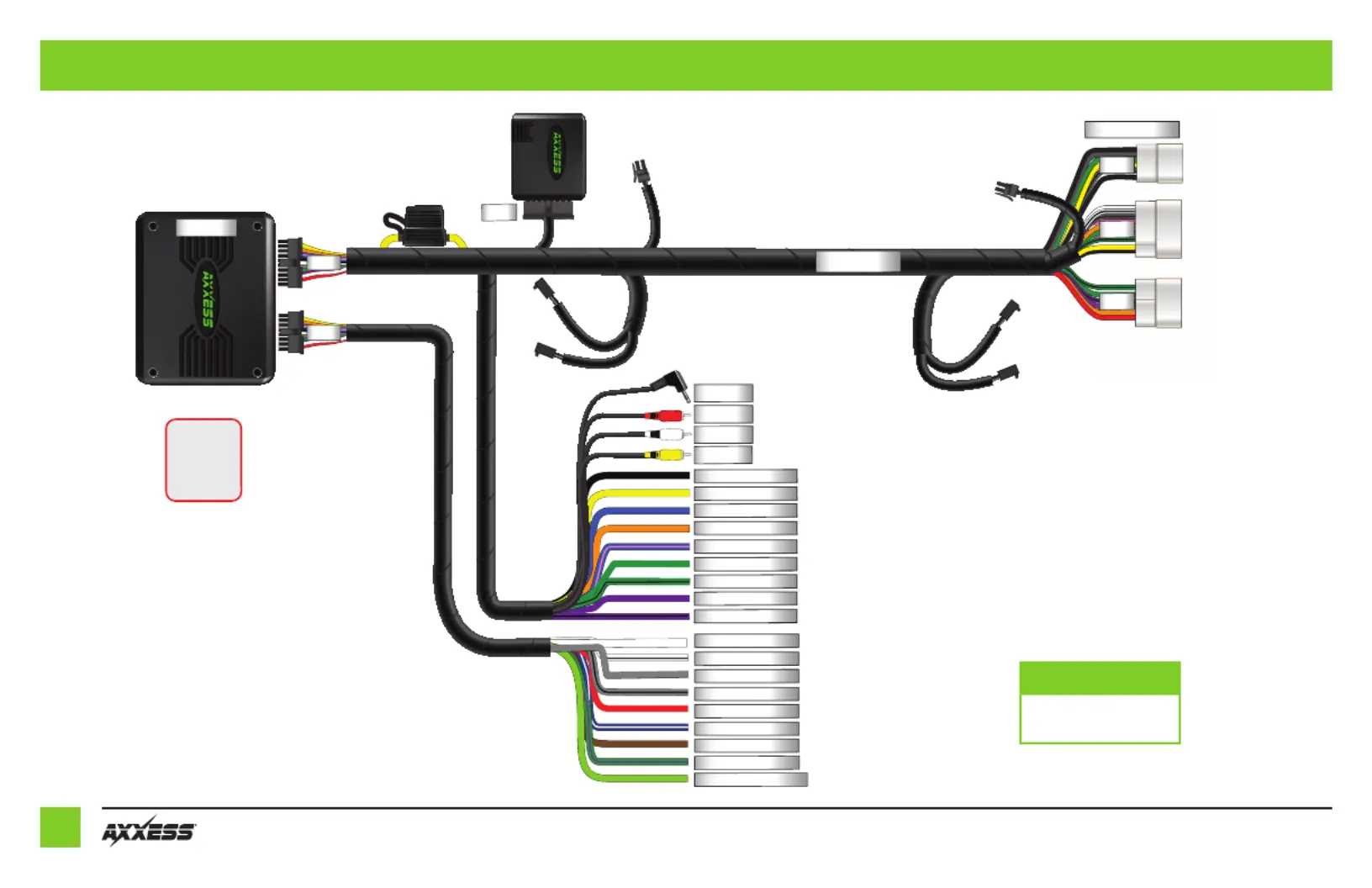

AMPLIFIED VEHICLE CONNECTIONS
Interface
Vehicle Connectors
SPDIF
14 Pin
18 Pin
24 Pin
(Sold Separately)
Gr eeen/Purple - Revers
Light Green - Parking Brake
16 Pin
16 Pin
22 Pin
# 2
# 1
A
J
B
F
Connections of
Two Pins
F to # 2
J to A
SWC Jack
Red
White
AUX IN RETENTION
}
CAMERA
Yellow
Black - Ground
Yellow - Constant
Blue - Power antenna
Orange - Illumination
Blue/Pink - SVS
Green - Left Rear (+)
Green/Black - Left Rear (-)
Purple - Right Rear (+)
Purple/Black - Left Rear
(-)
White - Left Front (+)
White/Black - Left Front (-)
Gr ont (+)ay - Right Fr
Gray/Black - Right Front (-)
Red - Accessory
Blue/White - Amp turn-on
Brown - Mute
LD-HYBL-25
Vehicles with Bristol Audio
systems are not covered.
IMPORTANT!
3
REV. 2/23/23 INSTAXDIS-HK2

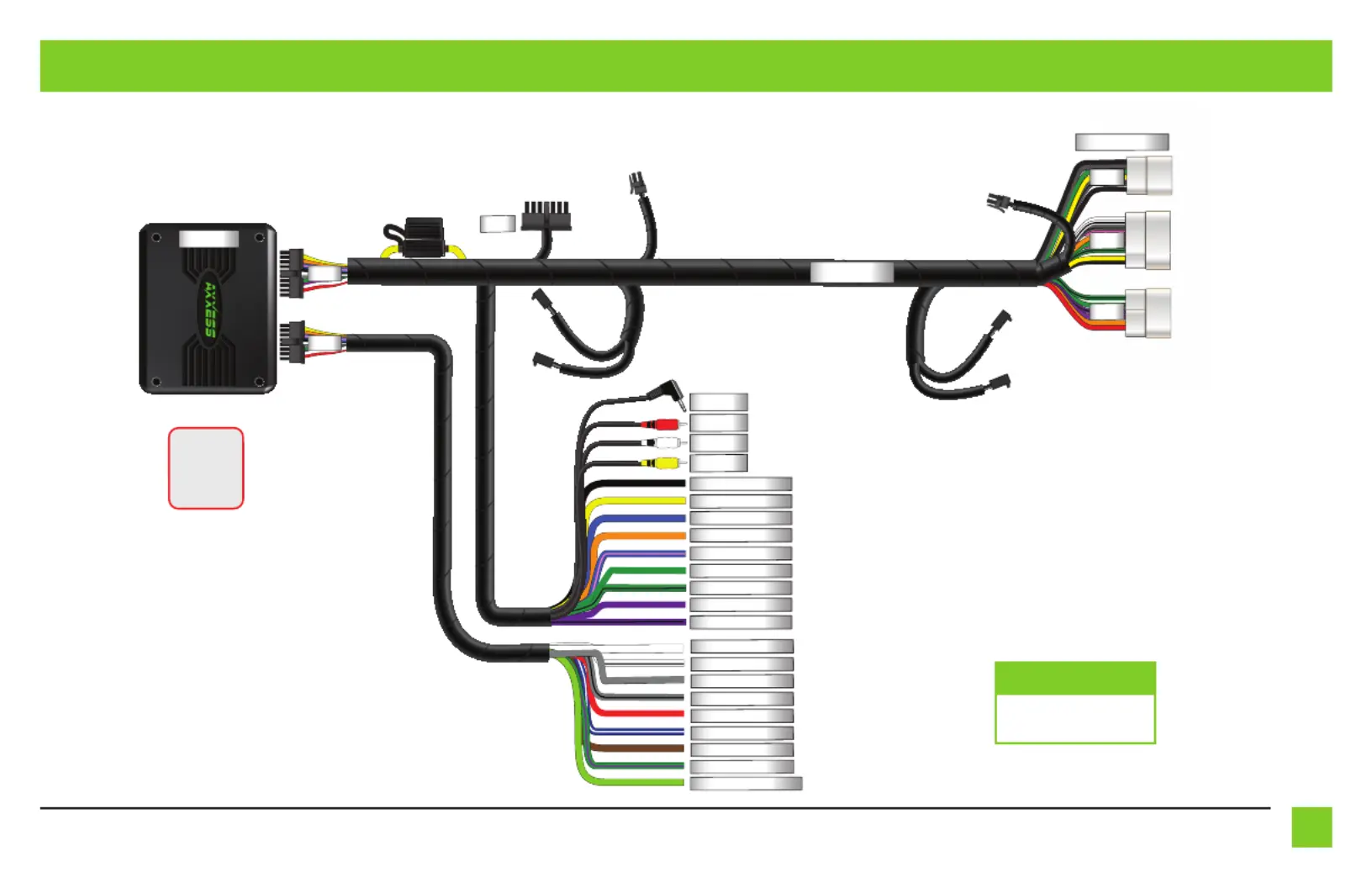

NON-AMPLIFIED VEHICLE CONNECTIONS
14 Pin
Interface
Vehicle Connectors
18 Pin
24 Pin
Gr eeen/Purple - Revers
Light Green - Parking Brake
16 Pin
16 Pin
22 Pin
# 2
# 1
A
J
B
F
SWC Jack
Red
White
AUX IN RETENTION
}
CAMERA
Yellow
Black - Ground
Yellow - Constant
Blue - Power antenna
Orange - Illumination
Blue/Pink - SVS
Green - Left Rear (+)
Green/Black - Left Rear (-)
Purple - Right Rear (+)
Purple/Black - Left Rear
(-)
White - Left Front (+)
White/Black - Left Front (-)
Gr ont (+)ay - Right Fr
Gray/Black - Right Front (-)
Red - Accessory
Blue/White - Amp turn-on
Brown - Mute
LD-HYBL-25
Connections of
Two Pins
F to # 1
J to A
Vehicles with Bristol Audio
systems are not covered.
IMPORTANT!
