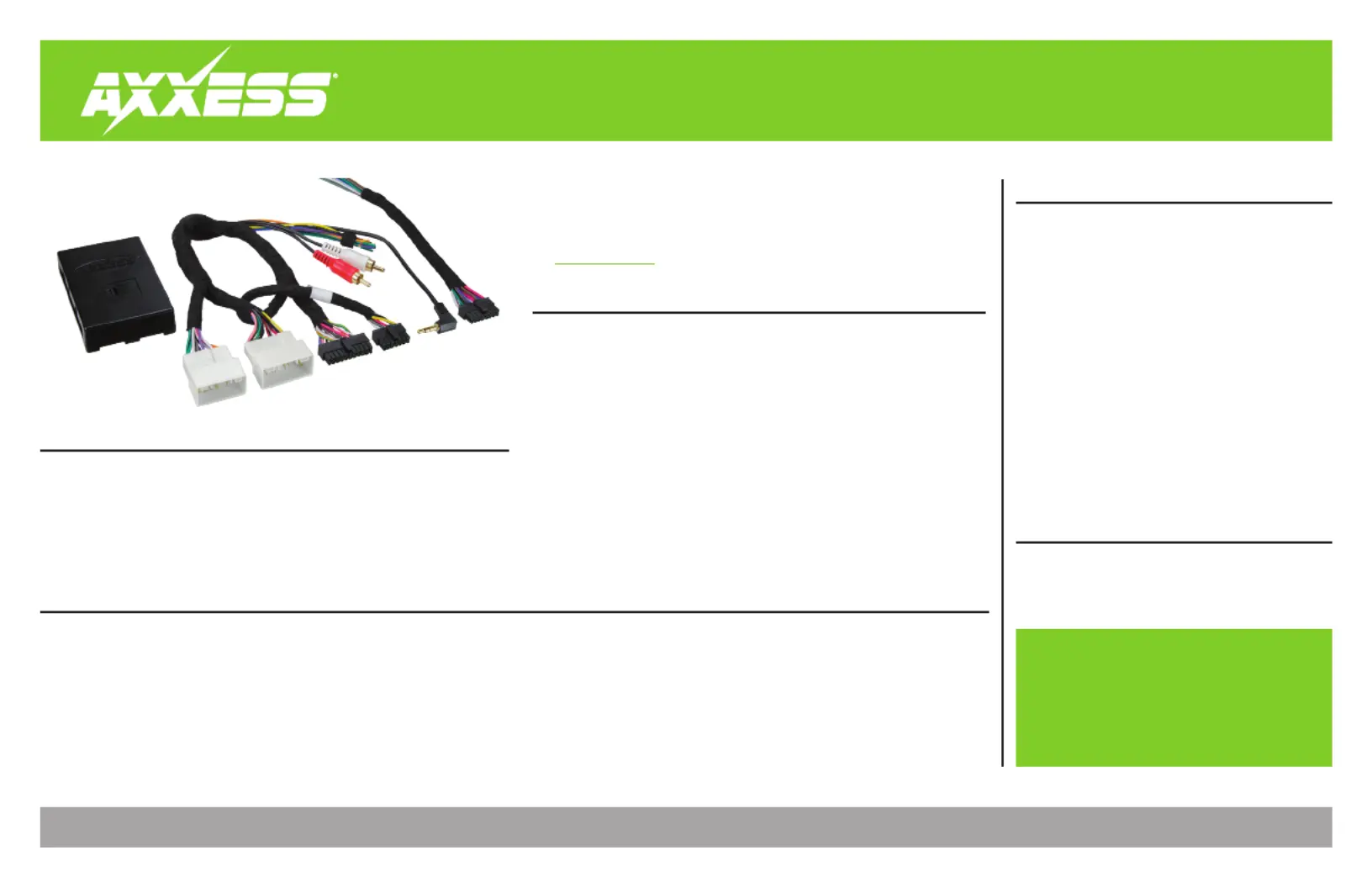

AXDIS-HK1
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/1/24 INSTAXDIS-HK1
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Connections 2-4 ........................................................
Installation 5 .............................................................
Programming 6 .........................................................
Steering Wheel Control Settings 7-9 ......................
LED feedback 5 .......................................................
Changing radio type 7 ...........................................
Remapping 7-8 ......................................................
Dual assignment 8-9 .............................................
Troubleshooting.....................................................9
Hyundai/Kia Data Interface with SWC
2010-2016
APPLICATIONS
INTERFACE FEATURES
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains BlueLink®
• Designed for amplified* and non-amplified models**
• Retains balance and fade†
• Micro-B USB updatable
HYUNDAI
Elantra * 2011-2016 .......................
Genesis Coupe * 2013-2016 ..........
Santa Fe * 2013-2016 ....................
Santa Fe Sport * 2014-2016 .........
Sonata * 2011-2016 .......................
Sonata Hybrid * 2011-2015 ...........
Tucson * 2010-2015 ......................
KIA
Optima * 2011-2015 ......................
Optima Hybrid * 2011-2016 ..........
Sorento (with UVO) * 2011-2013 ..
Sorento * 2014-2016 ....................
Soul *............................2012-2013
Sportage 2011-2016 ......................
INTERFACE COMPONENTS
• AXDIS-HK1 interface
• AXDIS-HK1 harness
• 16-pin harness with stripped leads
• Female 3.5mm connector with stripped leads
* Requires the AXSP-HK (sold separately)
** Bristol Audio Systems not covered
† Non-amplified models only
* Without NAV
Visit for more detailed information about the product and up-to-date AxxessInterfaces.com
vehicle specific applications
2
NON-AMPLIFIED VEHICLES
Interface
22 Pin
16 Pin
Vehicle Connectors
8 Pin
SWC Jack
Red
White
AUX IN RETENTION
14 Pin
18 Pin
24 Pin
}
DO NOT USE
USB RETENTION
Back-up Camera
Camera Power 6 Volt
Camera Ground
Back-up Camera
USB Cable
16 Pin
Connect for
Non-Amplified Vehicles
Black - Ground
Yellow - Constant
Blue - Power antenna
Orange - Illumination
Blue/Pink - SVS
Green - Left Rear (+)
Green/Black - Left Rear (-)
Purple - Right Rear (+)
Purple/Black - Left Rear
(-)
(A) DO NOT USE
(B) DO NOT USE
White - Left Front (+)
White/Black - Left Front (-)
Gr ont (+)ay - Right Fr
Gray/Black - Right Front (-)
Red - Accessory
Blue/White - Amp turn-on
Brown - Mute
Gr eeen/Purple - Revers
Light Green - Parking Brake
Gr eeen/Purple - Revers
Light Green - Parking Brake
Vehicles with Bristol Audio
systems are not covered.
IMPORTANT!
3
REV. 7/1/24 INSTAXDIS-HK1
AMPLIFIED VEHICLES WITHOUT NAVIGATION
Interface
22 Pin
16 Pin
Vehicle Connectors
(A) DO NOT USE
AXSP-HK
14 Pin
18 Pin
24 Pin
(B) Connect
Sold Separately
Green/Purple - Reverse
Light Green - Parking Brake
Back-up Camera
Camera Power 6 Volt
Camera Ground
Back-up Camera
16 Pin
8 Pin
DO NOT Connect
SWC Jack
Red
White
AUX IN RETENTION
}
USB RETENTION
USB Cable
Black - Ground
Yellow - Constant
Blue - Power antenna
Orange - Illumination
Blue/Pink - VSS
Green - Left Rear (+)
Green/Black - Left Rear (-)
Purple - Right Rear (+)
Purple/Black - Left Rear
(-)
White - Left Front (+)
White/Black - Left Front (-)
Gray - Right Front (+)
Gray/Black - Right Front (-)
Red - Accessory
Blue/White - Amp turn-on
Brown - Mute
Vehicles with Bristol Audio
systems are not covered.
IMPORTANT!
