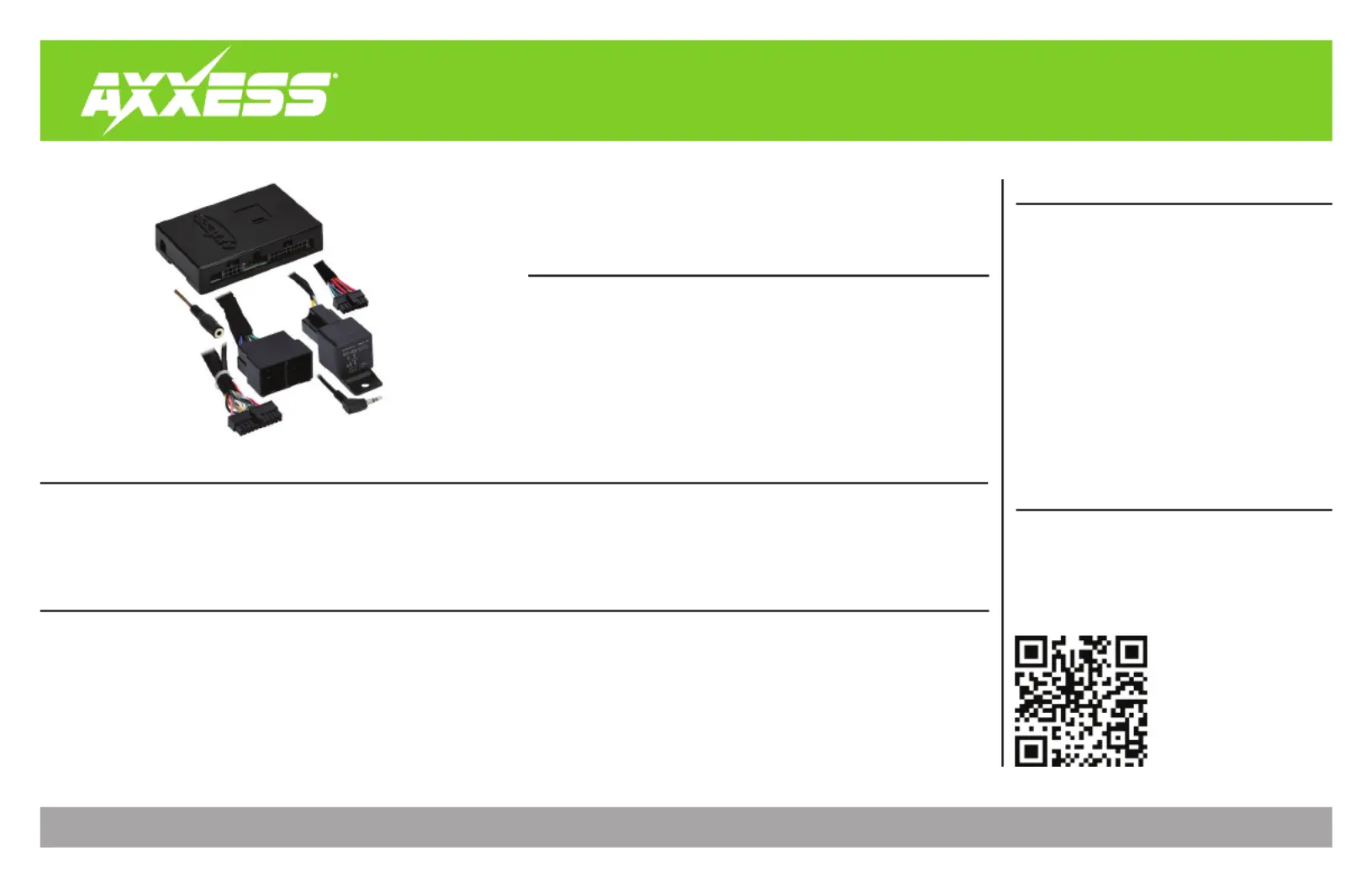

AXDIS-GMLN30
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 8/1/22 INSTAXDIS-GMLN30
Product Info
INTERFACE FEATURES
INTERFACE COMPONENTS
TABLE OF CONTENTS
Connections to be made ....................................2-3
- 3.5mm jack steering wheel control retention 3 ..
Installing the AXDIS-GMLN30 ................................3
Programming the AXDIS-GMLN30 ........................4
Steering wheel control settings ........................5-7
- L.E.D. feedback ....................................................5
- Changing radio type ...........................................5
- Remapping the steering wheel control buttons .. 6
- Dual assignment instructions ............................7
Troubleshooting .....................................................8
GM Data Interface with SWC 2019-Up
Provides accessory power
(12-volt 10-amp)
Retains R.A.P. (retained
accessory power)
Provides NAV outputs (parking
brake, reverse, speed sense)
Retains audio controls on the
steering wheel
Non-amplified models only
Retains balance and fade
Micro-B USB updatable
• AXDIS-GMLN30 interface • AXDIS-GMLN30 harness
• 16-pin harness with stripped leads
• Female 3.5mm connector with stripped leads
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.) • Small flat-blade screwdriver
APPLICATIONS
Chevrolet
Blazer (IOT, IOU) ** 2019-Up
Camaro (IOS, IOT) ** 2019-Up
Cheyenne (IOS, IOT) ** 2019-2021
Colorado (IOS, IOT) 2019-Up
Equinox (IOS, IOT) ** 2019-Up
Malibu (IOU, IOS) ** 2019-Up
Silverado (IOS, IOT) ** 2019-2021
Volt 2019-Up
GMC
Acadia (IOU) ** 2019-Up
Canyon (IOS, IOT) 2019-Up
Sierra 1500 (IOS, IOT) ** 2019-2021
Terrain (IOS, IOT, IOU) ** 2019-Up
** For extension, use AXEXH-GM30
2
CONNECTIONS TO BE MADE
From the 16-pin harness with stripped leads to the aftermarket radio:
Connect the wire to the accessory wire.Red
If the aftermarket radio has an illumination wire, connect the wire to it.Orange/White
Connect the wire to the right front positive speaker output.Gray
Connect the Gray/Black wire to the right front negative speaker output.
Connect the White wire to the left front positive speaker output.
Connect the White/Black wire to the left front negative speaker output.
The following (3) wires are only for multimedia/navigation radios that require these wires.
Connect the wire to the VSS/speed sense wire.Blue/Pink
Connect the wire to the reverse wire.Green/Purple
Connect the Light Green wire to the parking brake wire
Tape off and disregard the following (5) wires, they will not be used in this application:
Blue/White Green Green/Black Purple Purple/Black, , , and .
From the AXDIS-GMLN30 harness to the aftermarket radio:
Connect the wire to the ground wire.Black
Connect the Yellow wire to the battery wire.
Connect the wire to the left rear positive speaker output.Green
Connect the wire to the left rear negative speaker output.Green/Black
Connect the wire to the right rear positive speaker output.Purple
Connect the wire to the right rear negative speaker output.Purple/Black
Note:
The relay attached to the harness is only for audible turn signal clicks. No extra steps
are required to retain this feature, so leave the relay as-is.
Continue to 3.5mm jack steering wheel control retention
3
REV. 8/1/22 INSTAXDIS-GMLN30
3.5mm jack steering wheel control retention:
The 3.5mm jack is to be used to retain audio controls on the steering wheel.
For the radios listed below, connect the included
female 3.5mm connector with stripped leads
,
to the
male 3.5mm SWC jack from the AXDIS-GMLN30 harness. Any remaining wires tape off and disregard
.
Eclipse: Connect the steering wheel control wire, normally Brown Brown/White, to the
wire of the connector. Then connect the remaining steering wheel control wire, normally
Brown/White, to the wire of the connectorBrown
.
Metra OE:
Connect the steering wheel control Key 1 wire
(Gray)
to the
Brown
wire.
Kenwood or select JVC with a steering wheel control wire:
Connect the
Blue/Yellow
wire
to the
Brown
wire.
Note:
If your Kenwood radio auto detects as a JVC, manually set the radio type to
Kenwood. See the instructions under changing radio type.
XITE:
Connect the steering wheel control SWC-2 wire from the radio to the
Brown
wire.
Parrot Asteroid Smart or Tablet:
Connect the 3.5mm jack into the AXSWCH-PAR (sold
separately), and then connect the 4-pin connector from the AXSWCH-PAR into the radio
.
Note:
The radio must be updated to rev. 2.1.4 or higher software.
Universal “2 or 3 wire” radio:
Connect the steering wheel control wire, referred to as Key-A
or SWC-1, to the
Brown
wire of the connector. Then connect the remaining steering wheel
control wire, referred to as Key-B or SWC-2, to the
Brown/White
wire of the connector. If the
radio comes with a third wire for ground, disregard this wire
.
Note:
After the interface has been programmed to the vehicle, refer to the manual
provided with the radio for assigning the SWC buttons. Contact the radio manufacturer
for more information.
For all other radios: Connect the 3.5mm jack from the AXDIS-GMLN30 harness into the jack on
the aftermarket radio designated for an external steering wheel control interface. Please refer
to the aftermarket radios manual if in doubt as to where the 3.5mm jack goes to.
CONNECTIONS TO BE MADE INSTALLING THE AXDIS-GMLN30(CONT)
With the key in the off position:
Connect the 16-pin harness with stripped leads, and the AXDIS-GMLN30 harness, into the
interface.
Attention!
Do not connect the AXDIS-GMLN30 harness to the wiring harness in the vehicle just yet
.
Attention!
If retaining steering wheel controls, ensure that the jack/wire is connected to the
radio before proceeding. If this step is skipped, the interface will need to be reset for the steering
wheel controls to function.
