Seite 1/16
AXDIS-FD3
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 2/15/23 INSTAXDIS-FD3
INTERFACE FEATURES
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape
• Wire cutter
• Zip-ties
TABLE OF CONTENTS
Connections ........................................................ 2-4
Installation .............................................................4
Programming .........................................................4
Steering wheel control settings ........................5-7
- L.E.D. feedback ....................................................5
- Changing radio type ...........................................5
- Remapping ..........................................................6
- Dual assignment instructions ............................7
Troubleshooting .....................................................8
Ford Data Interface with SWC 2019-UP
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Designed for non-amplified models
• Retains balance and fade
• Micro-B USB updatable
Note: The AXDIS-FD3 does not retain SYNC.

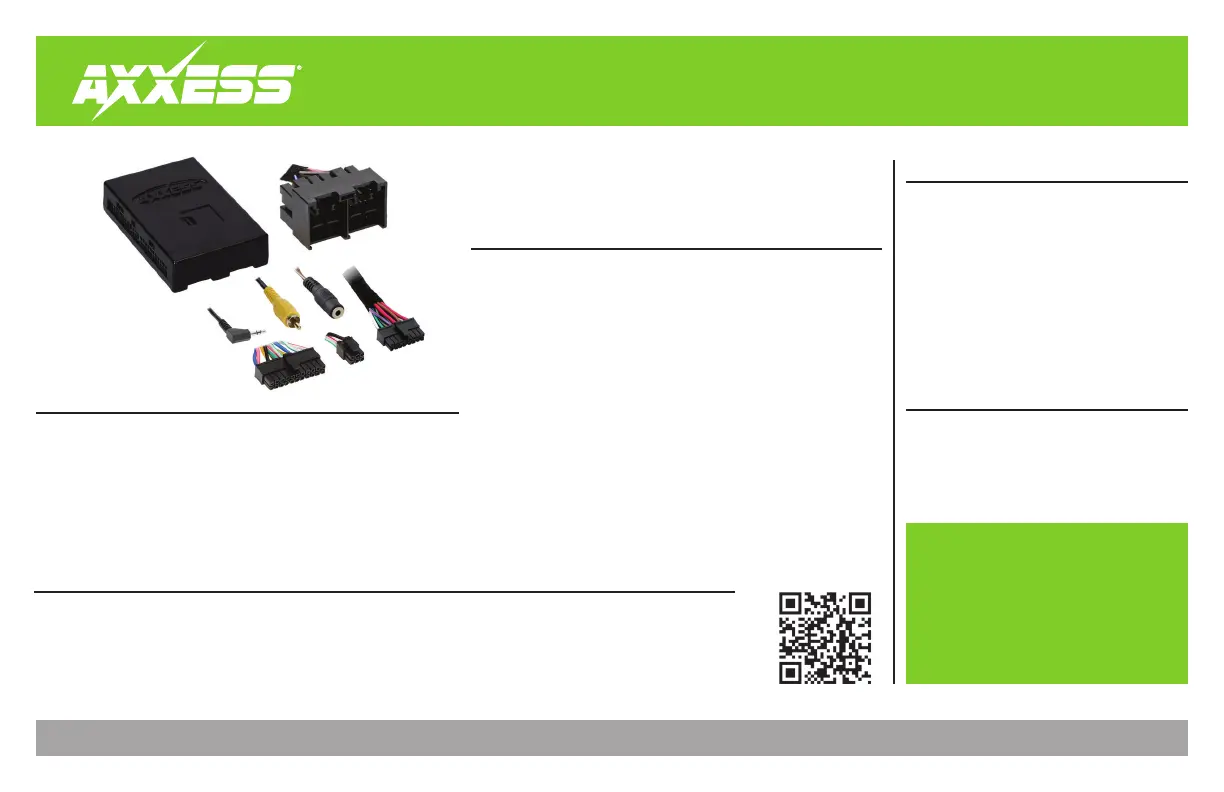

INTERFACE COMPONENTS
• AXDIS-FD3 interface
• AXDIS-FD3 harness
• 16-pin harness
• 3.5mm adapter
Ford
E Series 2021-Up
Eco Sport 2020-Up
Escape 2020-Up
F250/F350/F450/F550 2020-Up
Transit 2020-Up
Transit Connect 2019-Up
APPLICATIONS Product Info
Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
2
CONNECTIONS
From the 16-pin harness to the aftermarket radio, connect the:
• wire to the accessory wire.Red
•
Orange/White wire to the illumination wire (if applicable).
• Brown wire to the mute wire, only if equipped with SYNC (if applicable).
If the mute wire is not connected, the radio will turn off when SYNC is activated.Note:
• wire to the right front positive speaker output.Gray
•
Gray/Black wire to the right front negative speaker output.
• White wire to the left front positive speaker output.
•
White/Black wire to the left front negative speaker output.
The following (3) wires are only for multimedia/navigation radios that require these wires.
• wire to the VSS/speed sense wire.Blue/Pink
• Green/Purple wire to the reverse wire.
• Light Green wire to the parking brake wire
• Tape off and disregard the following (5) wires, they will not be used in this application:
Blue/White Green Green/Black Purple Purple/Black, , , , .
3
REV. 2/15/23 INSTAXDIS-FD3
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
This is to be done only in the Ford
Transit/Transit Connect 2019-Up
without SYNC. tain backup To re
camera in an ther application u yo yo
must purchase the AXBUCH-FD1.
Vehicle Connectors
CENTER
Interface
22-Pin
NOT USED IN
THIS APPLICATION
16-Pin
Red - Accessory po rwe
Orange/White - Illumination
Blue/Pink - S/Speed-SenseVS
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gr /Blackay - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - (NOT USED)
Green/Black - (NOT USED)
Purple - (NOT USED)
Purple/Black - (NOT USED)
Blue/White - Amp turn on from radio
Br now - (NOT USED)
Radio Connections
Yellow wir ee to the battery wir
Black wir ound wire e to the gr
Green wir ar positive speaker outpute to the left re
Green/Black wir e spea r outpute to the left ar negativre ke
Purple wir ear positive spea r outpute to the right r ke
Purple/Black wir e outpute to the right rear negativ
Br e own/Whit (NOT USED)
Blue Ground on Non-SYNC application for rse camera reve
From the AXDIS-FD3 harness to the aftermarket radio
CONNECTIONS (CONT)
