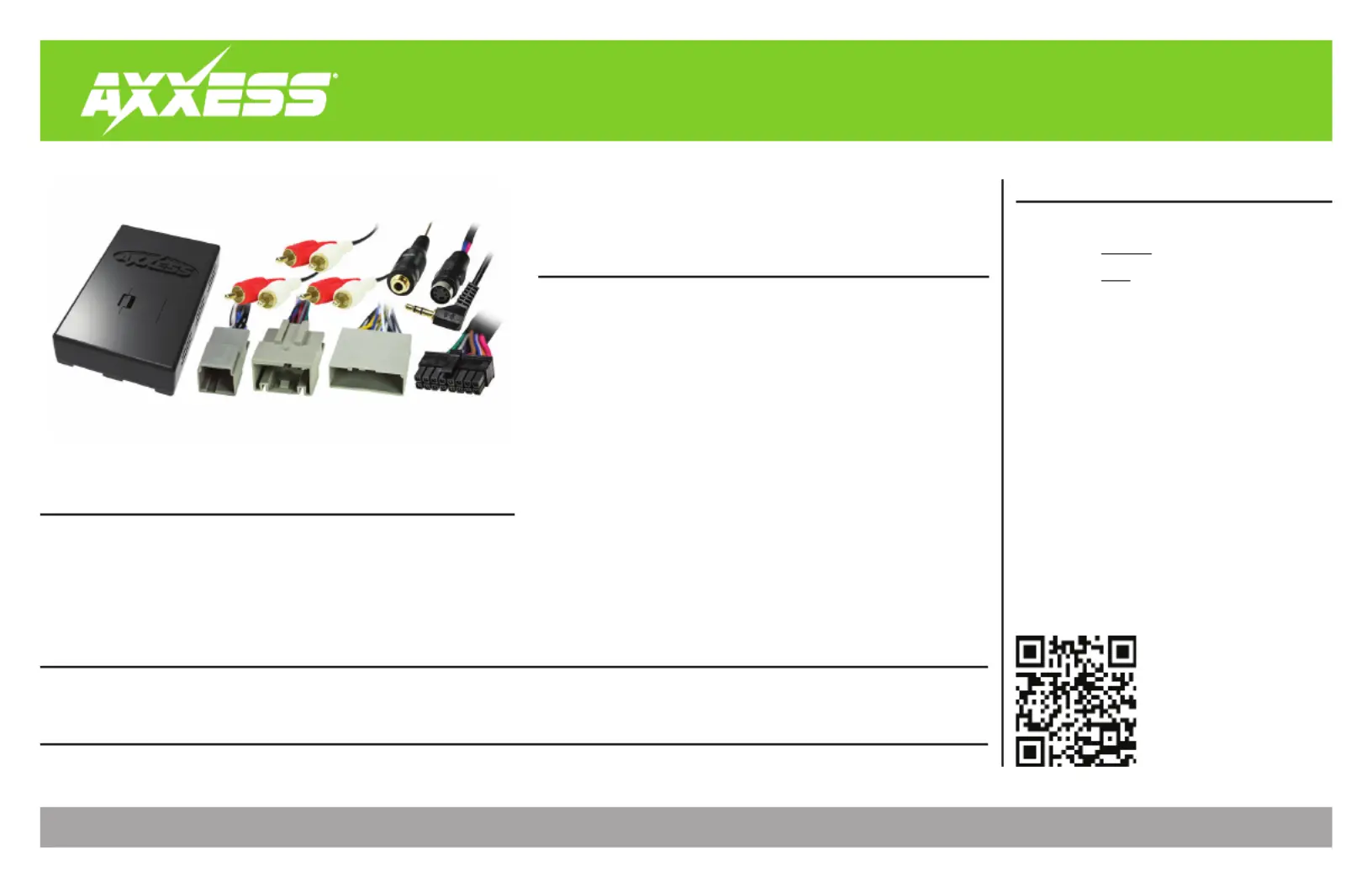

AXDIS-FD1
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 11/4/19 INSTAXDIS-FD1
Product Info
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape • Connectors (example: butt-connectors, bell caps, etc.) • Small flat-blade screwdriver
TABLE OF CONTENTS
Connections ........................................................ 3-5
- For models without a Sony/THX amplifier........4
- For models with a Sony/THX amplifier .............4
- 3.5mm jack steering wheel control retention ..5
Installation .............................................................5
Programming .........................................................6
Adjustments ...........................................................6
Extra features .........................................................7
Steering wheel control settings ......................7-10
- L.E.D. feedback ....................................................7
- Changing radio type ...........................................8
- Remapping ..........................................................8
- Dual assignment instructions .......................9-10
Troubleshooting ................................................... 10
Ford Data Interface with SWC 2007-Up
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
•
Retains audio controls on the steering wheel
• Retains RSE (rear seat entertainment)
• Retains SAT (satellite radio)
• Retains SYNC
• Retains the factory AUX-IN jack
• Can be used in both non-amplified and amplified models
(including Sony/THX)
• Retains balance and fade (excluding Sony/THX)
• Micro-B USB updatable
• AXDIS-FD1 interface
• AXDIS-FD1 harness
• 16-pin harness with stripped leads
• Female 3.5mm connector with stripped leads
APPLICATIONS
See inside front cover
2
APPLICATIONS
FORD
Econoline (w/ CD) 2009-up
Edge 2007-2010
Escape 2008-2012
Expedition 2007-2014
Explorer (w/ NAV) 2009-2010
FORD (CONT)
Explorer Sport Trac
(w/ NAV) 2009-2010
F-150 * 2009-2012
F-150 STX/FX2 base/XLT base
2013
F-150 STX/XLT base 2014
FORD (CONT)
F-250/350/450/550 2011-2012
F-250/350/450/550 XLT, XL
(w/ CD) 2013-2016
F-650/750 (w/ CD) 2016-up
Focus 2008-2011
Fusion 2010-2012
FORD (CONT)
Mustang 2009-2014
Taurus 2010-2012
LINCOLN
MKX 2007-2010
MKZ 2007-2009
Navigator 2007-2014
MAZDA
Tribute 2008-2011
MERCURY
Mariner 2008-2011
Milan 2010-2011
* XL models must be equipped with a CD player
3
REV. 11/4/2019 INSTAXDIS-FD1
CONNECTIONS
Attention! This interface will work with models that are either Sony/THX amplified, or non-
amplified. Please follow the instructions carefully for your model vehicle. Failure to do so will
result in either no sound, or low sound. If you are unsure if your vehicle is factory amplified or
not, please contact your local dealership.
For models
without
a Sony/THX amplifier:
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the wire to the accessory wire.Red
Note:
If installing an AX-LCD (sold separately), there will be an accessory wire there to connect
as well.
• If the vehicle is equipped with a factory subwoofer, connect the wire to the amp Blue/White
turn on wire.
• If the aftermarket radio has an illumination wire, connect the wire to it.Orange/White
•
If the aftermarket radio has a mute wire and the vehicle is equipped with SYNC, connect the
Brown wire to it. If the mute wire is not connected, the radio will turn off when SYNC is activated
.
• Connect the wire to the right front positive speaker output.Gray
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the wire to the left front positive speaker output.White
• Connect the wire to the left front negative speaker output.White/Black
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the wire to the VSS/speed sense wire.Blue/Pink
• Connect the wire to the reverse wire.Green/Purple
• Connect the Light Green wire to the parking brake wire
• Tape off and disregard the following (4) wires, they will not be used in this application:
Green Green/Black Purple Purple/Black, , , .
From the AXDIS-FD1 harness to the aftermarket radio:
• Connect the wire to the ground wire.Black
• Connect the Yellow wire to the battery wire.
• Connect the wire to the power antenna wire.Blue
• Tape off and disregard the wire, it will not be used in this application.Blue/White
• Connect the wire to the left rear positive speaker output.Green
• Connect the wire to the left rear negative speaker output.Green/Black
• Connect the wire to the right rear positive speaker output.Purple
• Connect the wire to the right rear negative output.Purple/Black
• If the vehicle is equipped with SYNC, connect the and RCA jacks labeled “RSE/Red White
SYNC/SAT” to the audio AUX-IN jacks.
• If the vehicle is equipped without SYNC, connect the and RCA jacks labeled “FROM Red White
3.5” to the audio AUX-IN jacks.
• The DIN jack is to be used with the optional AX-LCD (sold separately) to retain SYNC
information.
• Connect the wire to accessory power.Red
• If the vehicle is equipped with a factory subwoofer, connect the RCA jack labeled White
“SUBWOOFER” to the subwoofer out jack.
• Disregard the RCA jack labeled “CENTER CHANNEL”, it will not be used in this application.Red
Continue to 3.5mm jack steering wheel control retention
