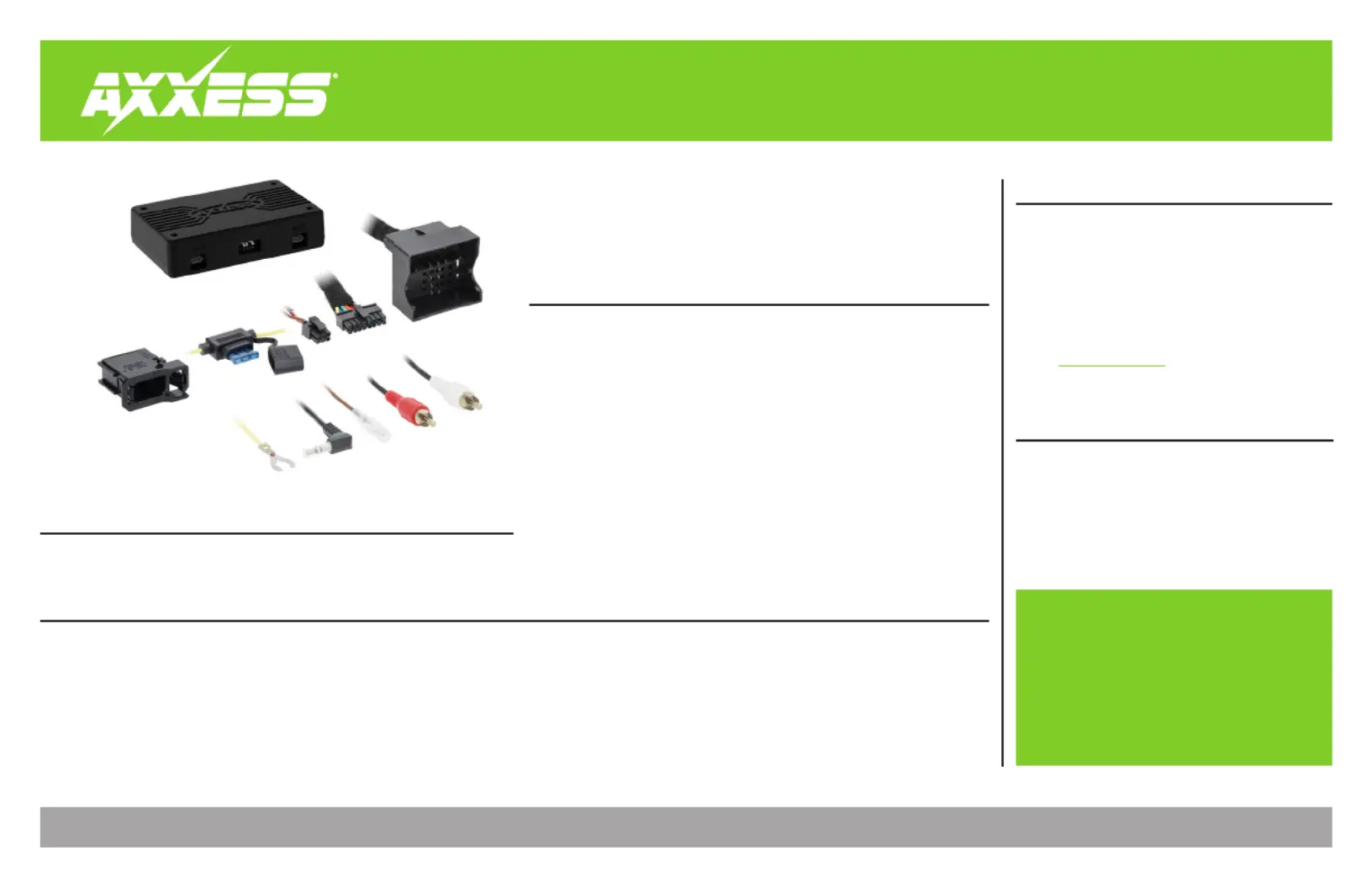

AXDIS-BW122
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/8/24 INSTAXDIS-BW122
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections: BLK-AXDIS-BW122 B Harness 2 .........
Steering Wheel Control (SWC) Chart 3 ...................
Installing the AXDIS-BW122 interface 4 ..................
Installing the Fiber Optic Cable.............................4
BMW (with MOST 25 amplifier)
Interface System 2004-2014
• Designed for MOST* 25 amplified systems
• Provides accessory power (12 volt)
• Retains audio controls on the steering wheel controls
• Easy to set Dipswitches for SWC configuration
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Micro-B USB updatable
• AXDIS-BW122 interface • BLK-AXDIS-BW122 B harness
APPLICATIONS
US Applications
BMW
1 Series (E82, E87, E88) 2008-2013 ................................
3 Series (E90, E91, E92, E93) 2006-2012 ........................
5 Series (E60, E61) 2004-2010 .......................................
X6 (E71) 2008-2014 .........................................................
World Applications
BMW
1 Series (E82, E87, E88) 2008-2013 ................................
3 Series (E90, E91, E92, E93) 2006-2012 ........................
5 Series (E60, E61) 2004-2010 ........................................
X6 (E71) 2008-2014 .........................................................
Note: Warning and parking sensor chimes are not retained
Backup Camera not retained if equipped.
* Media Oriented System Transport
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications.
2
CONNECTIONS: BLK-AXDIS-BW122 B HARNESS
Front
Rear
u
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Reverse
Orange - Illumination
Blue - AMP Turn On
Purple - E-Brake
Pink - VSS
6-Pin
To Battery
16-Pin
Vehicle Connector
Radio Connections
BLK-AXDIS-BW122 B
Brown - Wired SWC
“Kenwood/JVC”
3
REV. 4/8/24 INSTAXDIS-BW122
SWC CHART
Metra MOST Interface Dipswitch Table
MFR System
DIP Switch Sengs
Addional
Comments
1 2 3 4 5
RESERVED NA OFF OFF OFF OFF OFF SW UPDATE MODE
ALPINE IR DATA OFF OFF OFF OFFON
AXXERA 2 IR DATA OFF OFF OFFON ON
CLARION 1 IR DATA OFF OFF OFFON ON
CLARION 2 IR DATA OFF OFFON ON ON
DUAL Analog OFF OFF OFFON ON
GRUNDIG IR DATA OFF OFF OFFON ON
JENSEN Analog OFF OFF OFF ON ON
JVC IR DATA OFF OFF OFF OFF BROWN WIRED SWCON
KENWOOD 1 IR DATA OFF OFF OFF OFF BROWN WIRED SWCON
KENWOOD 2 IR DATA OFF OFF OFF BROWN WIRED SWCON ON
LG 1 Analog OFF OFF OFFON ON
LG 2 IR DATA OFF OFF OFFON ON
PHILIPS 1 IR DATA OFF OFFON ON ON
PHILIPS 2 IR DATA OFF OFF OFFON ON
PIONEER 1 Analog OFF OFF OFF ON ON MALE 3.5MM JACK
PIONEER 2 Analog OFF OFF OFF OFF MALE 3.5MM JACKON
SONY Analog OFF OFF OFFON ON MALE 3.5MM JACK
VALOR IR DATA OFF OFF OFFON ON
SPARE IR DATA OFF OFFON ON ON
SPARE Analog OFF OFFON ON ON
SPARE Analog OFFON ON ON ON
Press dipswitch in to the down position to turn ON.
Pioneer 1 example shown in the diagram.
