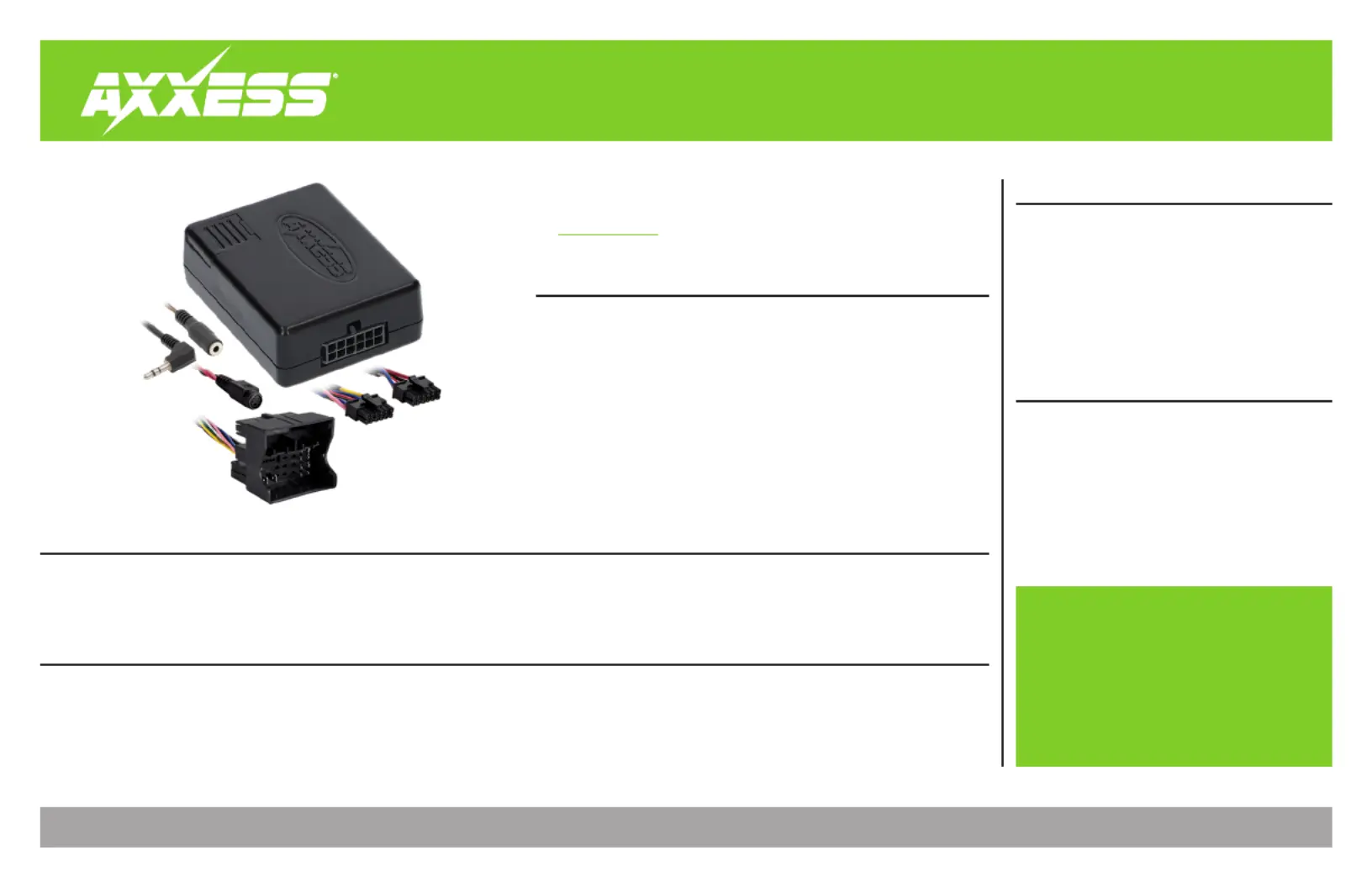

AXDI-VW2
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 9/27/23 INSTAXDI-VW2
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections: LD-XSVI-9006NAV 2 ...........................
Installation 3 .............................................................
Programming 3 .........................................................
Volkswagen Data Interface 2015-Up
APPLICATIONS
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Provides NAV outputs (parking brake, reverse, speed sense)
•
For use in non-amplified systems, or when replacing an amplified system
• 48-inch leads for remote tuner location
• Pre-wired AXSWC harness (AXSWC sold separately)
• Retains the factory backup camera
• Retains balance and fade
• Micro-B USB updatable
Volkswagen
Beetle 2016-2019 ................................................
Golf Series 2015-Up ...........................................
Jetta 2016-2019 ..................................................
Jetta GLI 2016-2018 ............................................
Passat...................................................2016-Up
Tiguan 2016-2017 ...............................................
• AXDI-VW2 interface
• LD-XSVI-9006NAV harness
Visit for more detailed information about the product and up-to-date
AxxessInterfaces.com
vehicle specific applications
2
CONNECTIONS: LD-XSVI-9006NAV
Steering Wheel
Control (AXSWC)
(Sold Separately)
Front
Rear
Sub
AUX-IN
Rear ewVi
SWC
Aftermarket Radio
(Your radio’s features may vary)
LD-XSVI-9006NAV
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple
- Reverse backup camera
Light Green - Parking brake
Orange - Illumination
Blue/White Amp turn on
Blue/Pink - VSS/Speed-Sense
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Purple - Rear right + speaker output
Purple/Black - Rear right - output
12-Pin
Vehicle Connector
Radio Connections
Interface
12-Pin
SWC Harness
3
REV. 9/27/23 INSTAXDI-VW2
With the key in the off position:
Connect the into the interface, and then to the wiring harness in the 1. AXDI-VW2 harness
vehicle.
The harness will connect to the harness removed from the disc drive located in the Note:
glove box for remote tuner applications.
If an (sold separately) will be used, do not connect it until the interface is 2. AXSWC
programmed and fully functional.
Attention! If the interface ever loses power, the following steps will need to be performed again.
Please ensure that the owner of the vehicle knows this.
1.
Turn the key (or push-to-start button) to the ignition position and wait until the radio comes on
.
If the radio does not come on within 60 seconds, turn the key to the off position, Note:
disconnect the interface, check all connections, reconnect the interface, and then try again.
2. Turn the key (or push-to-start button) to the off position, then to the accessory position.
Test all functions of the installation for proper operation, before reassembling the dash.
INSTALLATION PROGRAMMING
