Seite 1/4
AXDI-SP1
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 8/8/23 INSTAXDI-SP1
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket accessory
before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections 2-3 ........................................................
LD-AXVI-SP1 DIAGRAM 2 ......................................
LD-AXVI-SP2 DIAGRAM 3 .....................................
Installation 4 .............................................................
Programming 4 .........................................................
Dodge/Mercedes/Freightliner
Accessory and NAV Outputs 2007-UP
• Provides accessory (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
•
Provides wires for multimedia radios (park brake, reverse, speed sense)
• Prewired AXSWC harness included+ (AXSWC sold separately)
• High level speaker input
• USB updatable

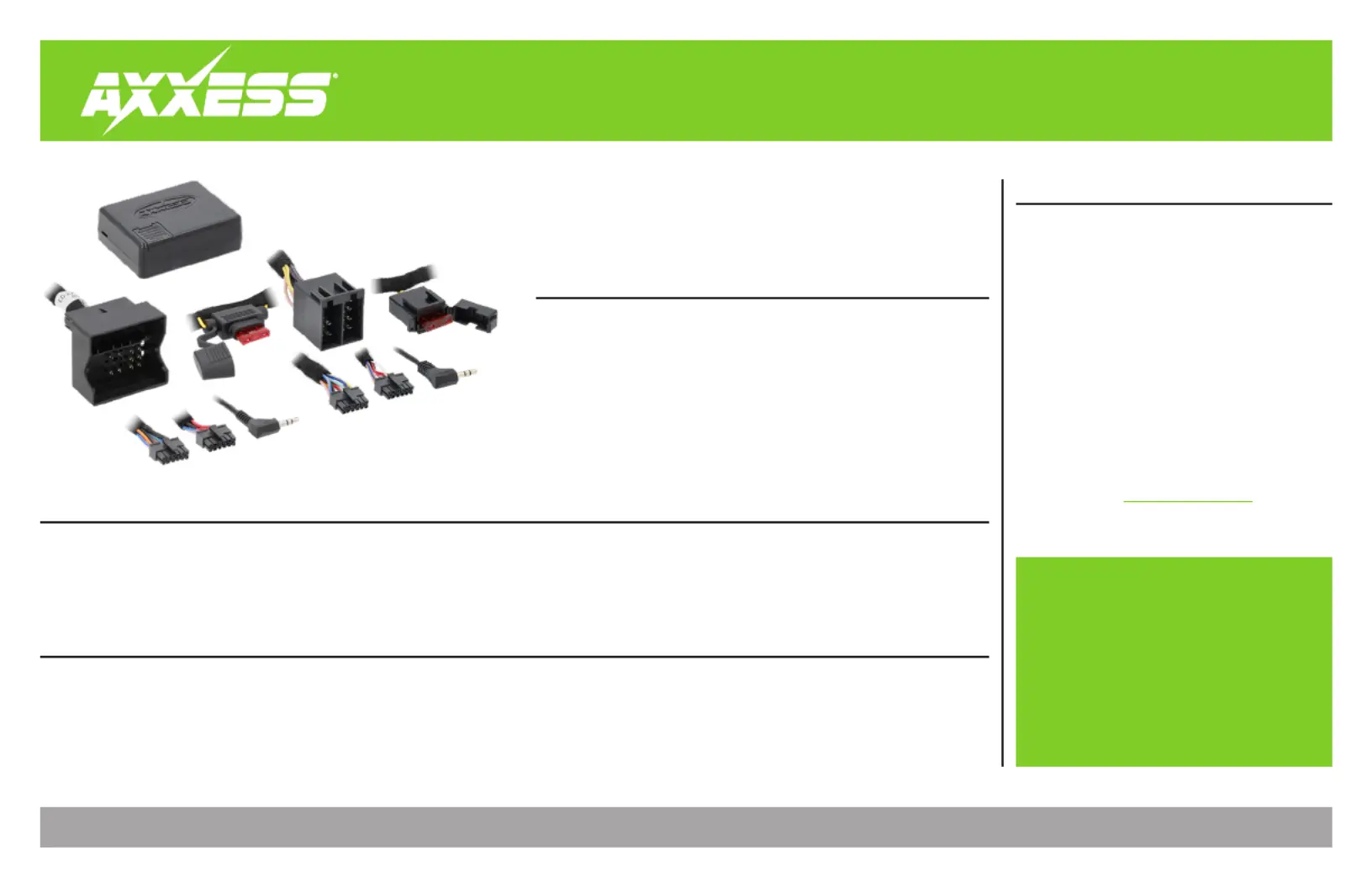

• AXDI-SP1 interface
• LD-AX-XSVI-SP1 harness
• LD-AX-XSVI-SP2 harness
APPLICATIONS
Dodge
Sprinter 2007 ....................................................
Sprinter (Sound 5 radio) 2008-2009 ...............
Mercedes
Sprinter (Sound 5 radio) 2010-2013 ................
Freightliner
Sprinter 2007 ....................................................
Sprinter (Sound 5 radio) 2008-UP ..................
Visit
AxxessInterfaces.com
for more detailed information about the product
and up-to-date vehicle specific applications
2

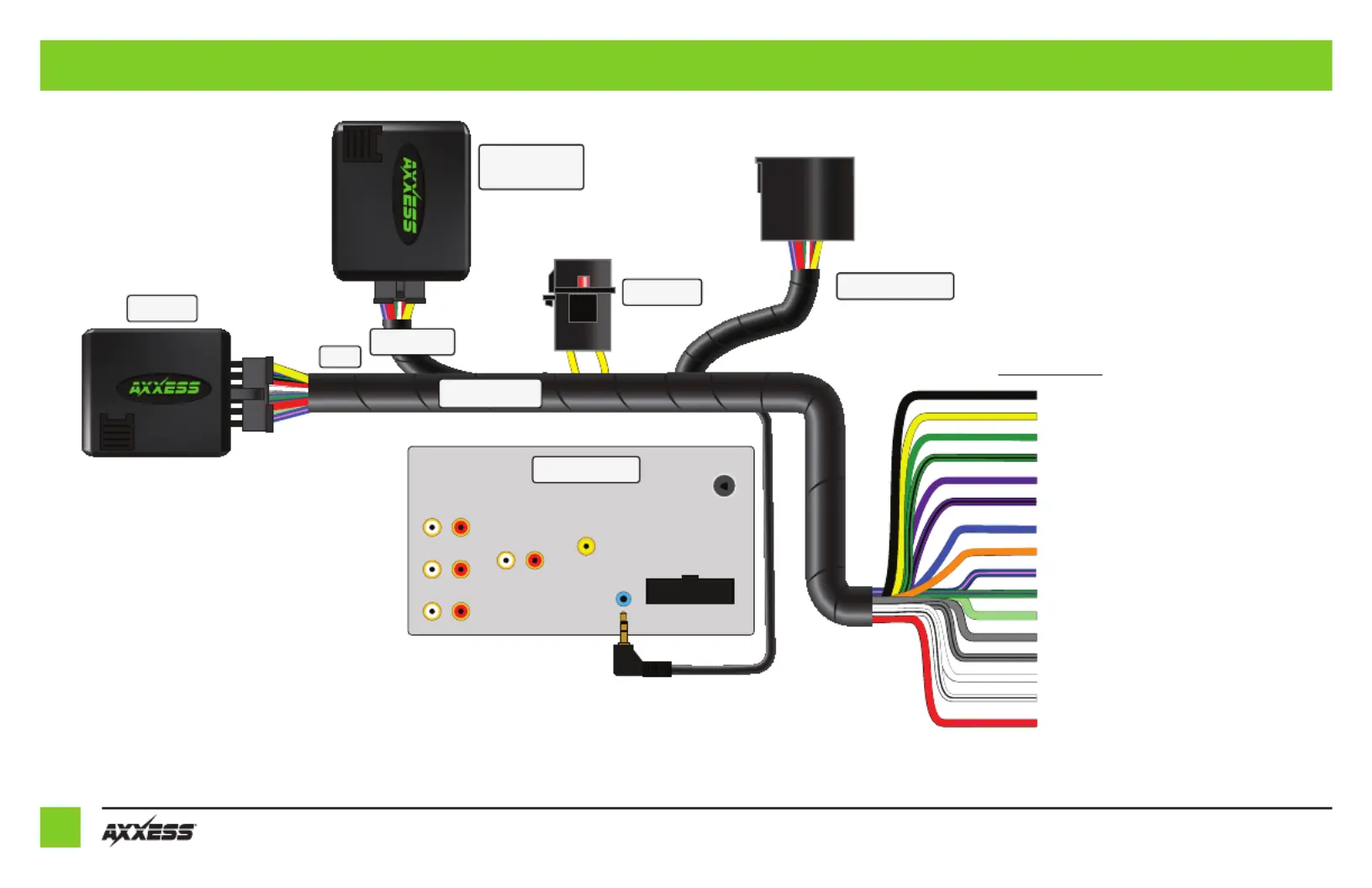

CONNECTIONS: LD-AXVI-SP1 DIAGRAM
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
12-Pin
Vehicle Connectors
SWC Harness
Steering Wheel
Control (AXSWC)
(Sold Separately)
Fuse Holder
LD-AXVI-SP1
Interface
Orange - Illumination
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Red - Accessory power
Radio Connections
Black - Ground wire
Yellow - Battery wire
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Blue - Antenna turn on
For Vehicles equipped
with a Single DIN CD Player
3
REV. 8/8/23 INSTAXDI-SP1

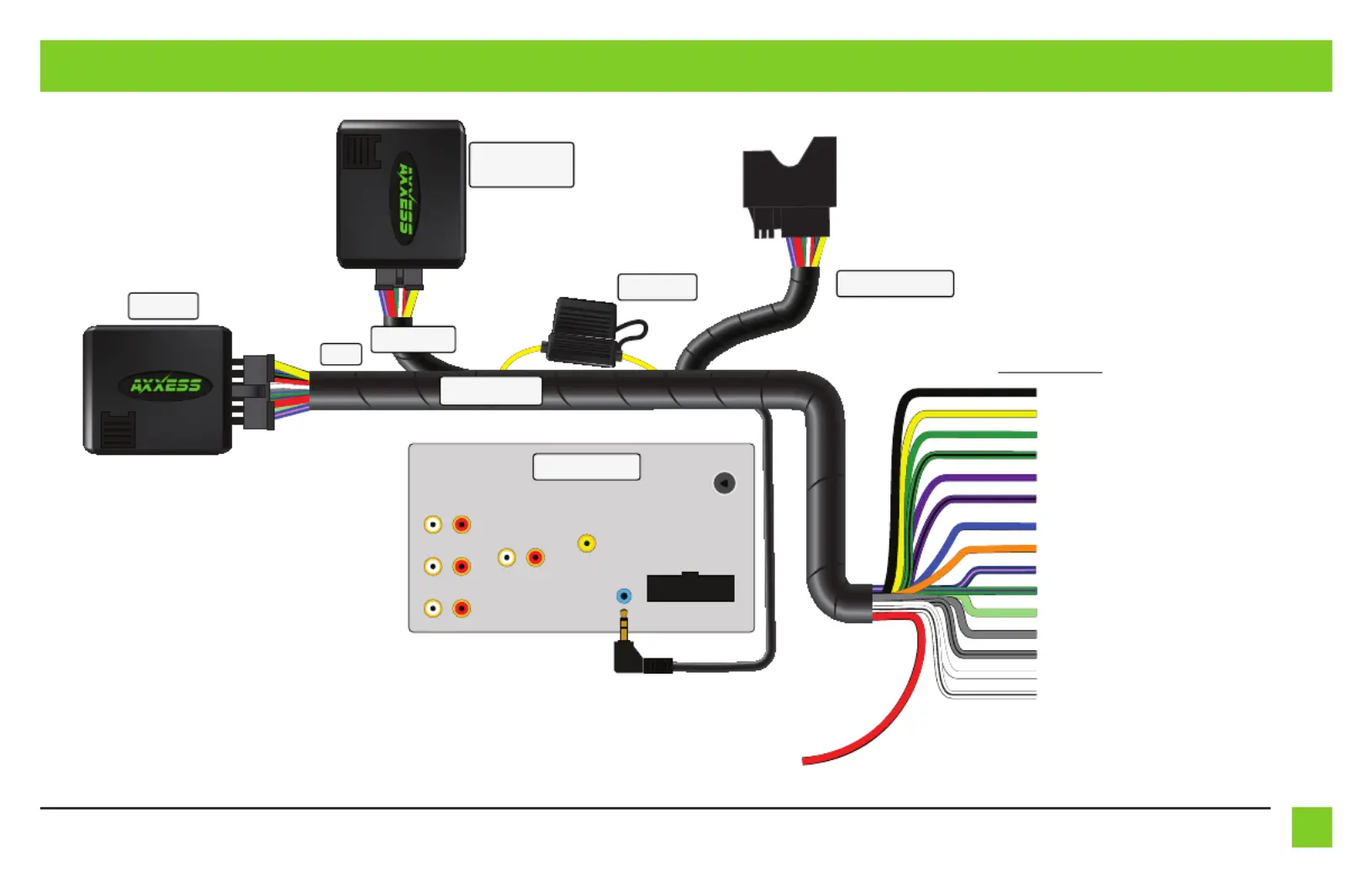

CONNECTIONS: LD-AXVI-SP2 DIAGRAM
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
12-Pin
Vehicle Connectors
Fuse Holder
SWC Harness
Steering Wheel
Control (AXSWC)
(Sold Separately)
LD-AXVI-SP2
Interface
Orange - Illumination
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Radio Connections
Black - Ground wire
Yellow - Battery wire
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Blue - Antenna turn on
Red - Accessory power
For Vehicles equipped
with a Double DIN CD Player
