AXDI-GMLN10
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 10/30/23 INSTAXDI-GMLN10
Product Info
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
OPTIONAL ACCESSORIES (sold separately)
Extension Harness: AXEXH-GM10
TABLE OF CONTENTS
Connections: LD-LCLAN-10 Harness 2 ......................
Installation 3 .............................................................
Programming 3 .........................................................
APPLICATIONS
INTERFACE COMPONENTS
• AXDI-GMLN10 interface • AXDI-GMLN10 harness
(1) (2) With RPO code I0B • With RPO code I0A
The , if applicable, are in the in the following locations: : Malibu IOA/IOB codes Service Parts Identification labels Rear Compartment Floor
Glovebox: Note: RPO (QR codes) “B Pillar” VIN Canyon/Colorado/Cruze/Equinox/Silverado/Sierra are in the driver door jam or on the label.
GM Data Interface 2016-2020
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
CHEVROLET
Colorado 2017-2019(1) ........................
Cruze 2016-2019(2) ..............................
Cruze Hatchback 2016-2019(2) ........
Equinox 2018(1) ...................................
Malibu 2016-2019(2) ............................
Silverado 2016-2018(1) .......................
Silverado LD 2019(1) ...........................
Trax 2017-2020(2) ...............................
GMC
Acadia 2017-2019(1) ....................
Canyon 2017-2019(1) ...........................
Sierra 2016-2018(1) ..............................
Sierra Limited 2019(1) .........................
Visit for more detailed AxxessInterfaces.com
information about the product and up-to-date
vehicle specific applications.
INTERFACE FEATURES
• Used in non-amplified models, or when bypassing a factory amp
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
•
Provides illumination, parking brake, reverse, and speed sense
outputs
• Used in models without OnStar
• Retains all warning chimes
• High level speaker input
• Retains balance and fade
• Retains factory backup camera
• USB Micro-B updatable
2

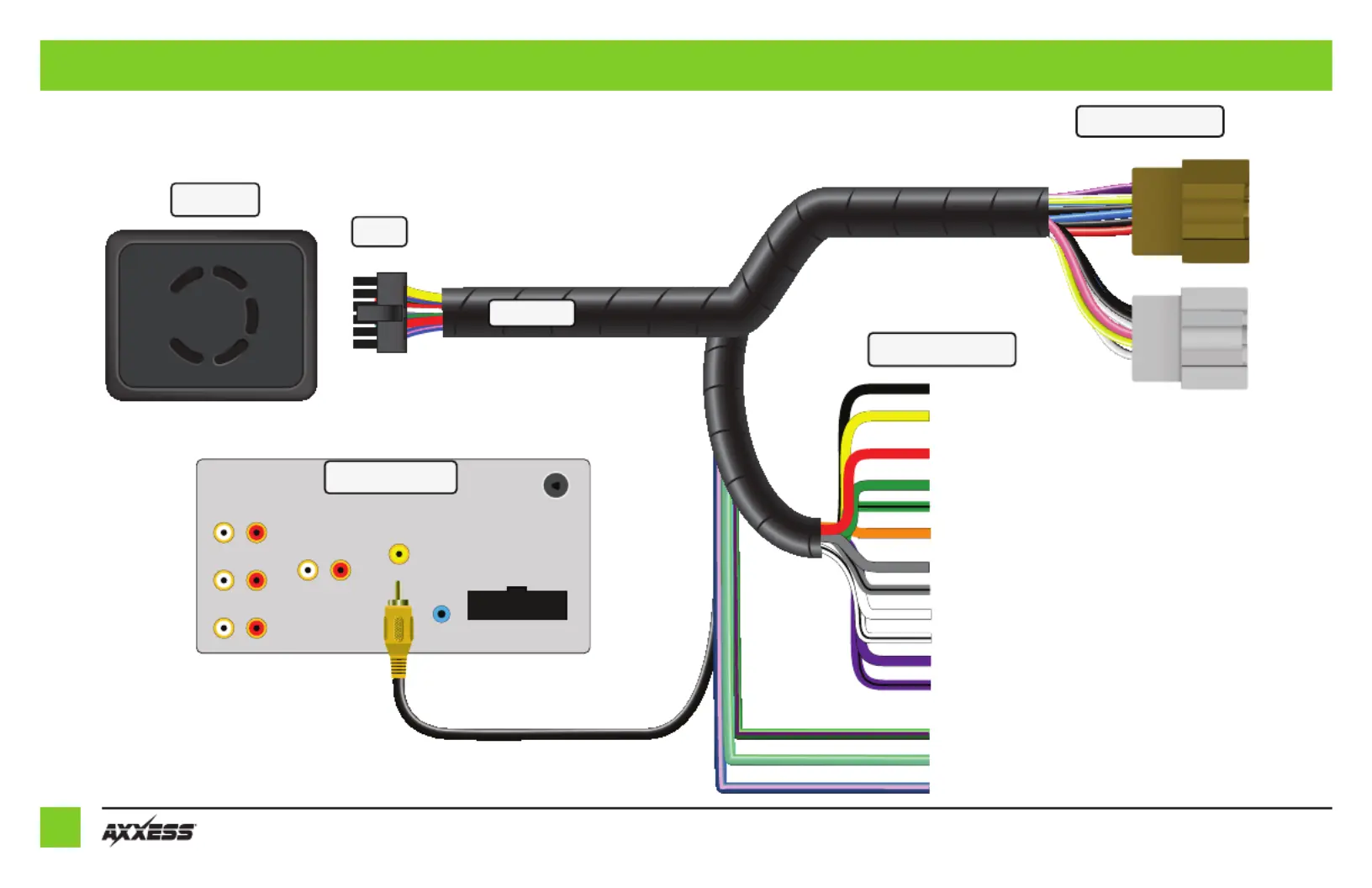

CONNECTIONS: LD-LCLAN-10 HARNESS
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Orange - Illumination
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
LD-LCLAN-10
Green/Purple - Reverse backup camera
Light Green - Parking brake
Blue/Pink - VSS/Speed-Sense
16-Pin
Vehicle Connectors
Radio Connections
Interface
3
REV. 10/30/23 INSTAXDI-GMLN10
INSTALLATION
PROGRAMMING
With the key in the off position:
1. Locate the factory radio harness in the vehicle and complete all necessary connections to the
aftermarket radio.
2. AXDI-GMLN10 harness AXDI-GMLN10 interface Connect the to the , and then to the factory
radio harness in the vehicle.
Note: AXEXH-GM10 For the Equinox and Malibu, use part number (sold separately) to extend the
wiring harness to the right of the glovebox where the radio brain is located.
Attention: If the interface loses power for any reason, the following steps will need to be
performed again.
1.
Turn the key (or push-to-start button) to the ignition position and wait until the radio comes on
.
If the radio does not come on within 60 seconds, turn the key to the off position, Note:
disconnect the interface, check all connections, reconnect the interface, and then try again.
2. Cycle the key off, then back on. If the driver’s door is closed, open and close the door.
3. Test all functions of the installation for proper operation, before reassembling the dash.
Note: The vehicle must be running for the factory camera to power on.
