AXDI-GM4
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 8/11/23 INSTAXDI-GM4
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket accessory
before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Cutting tool • Tape • Crimping tool
• Connectors (i.e. butt-connectors, bell caps, etc.)
TABLE OF CONTENTS
Connections
LD-LCGM-O4 DIAGRAM 2 .....................................
Installation 3 .............................................................
Programming 3 .........................................................
GM Chime Interface 2000-2005
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
•
Provides wires for multimedia radios (park brake, reverse, speed sense)
• Used in non-amplified models, or when bypassing a factory amplifier
• Used in models without OnStar® or when not retaining OnStar®
• Retains all warning chimes
• High level speaker input
• Retains balance and fade
• Micro “B” USB updatable
• AXDI-GM4 interface
• LD-LCGM-04 harness
APPLICATIONS
Buick
LeSabre 2000-2005 ...........................................
Oldsmobile
Aurora 2001-2003 ..............................................
Pontiac
Bonneville 2000-2005 ......................................
Visit
AxxessInterfaces.com
for more detailed information about the product
and up-to-date vehicle specific applications
2

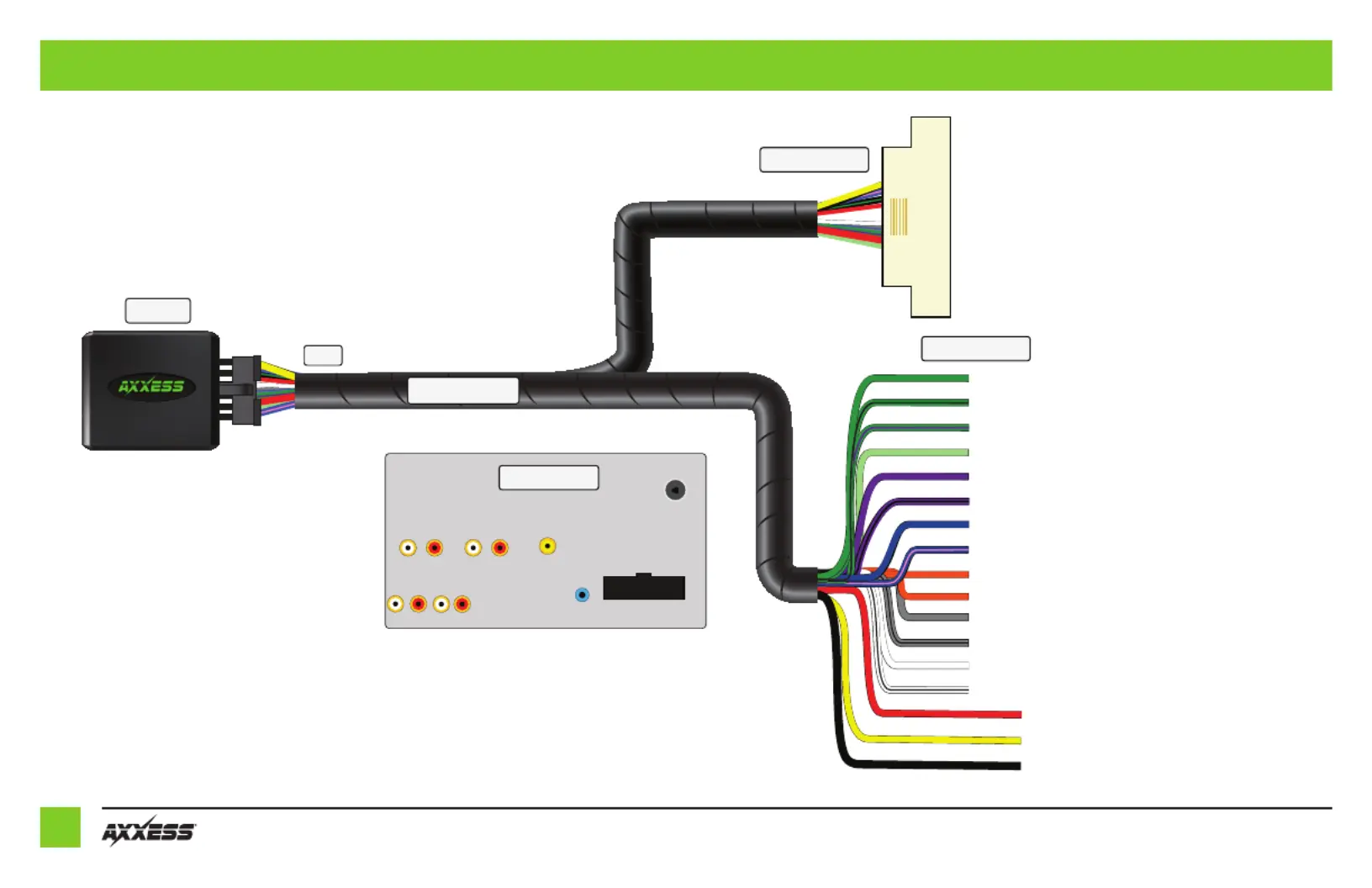

CONNECTIONS: LD-AXDI-GM4 DIAGRAM
12-Pin
AUX-IN Rear View
SWC
Aftermarket Radio
Front Rear
Sub
Vehicle Connector
Radio Connections
Interface
Blue - Antenna turn on
Blue/Pink - VSS/Speed-Sense
Orange - Illumination
Orange - No Connection
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Red - Accessory power
Yellow - Battery wire
Black - Ground wire
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple - Reverse backup camera
Light Green - Parking brake
Purple - Rear right + speaker output
Purple/Black - Rear right - output
(Your radio’s features may vary)
LD-LCGM-04
Note: Use either of the orange
wires and disregard the other one.
}
3
REV. 8/11/23 INSTAXDI-GM4
INSTALLATION
PROGRAMMING
With the key in the off position:
• Connect the harness into the interface, and then to the wiring harness in the vehicle.LD-LCGM-04
Attention! If the interface loses power for any reason, the following steps will need to be performed again. Also, if installing an
AXSWC connect it after you initialize and test the interface/radio, with the key in the off position.
• Turn the key (or push-to-start button) to the ignition position and wait until the radio comes on.
If the radio does not come on within 60 seconds, turn the key to the off position, disconnect the interface, check all Note:
connections, reconnect the interface, and then try again.
• Turn the key to the off position, and then to the accessory position. Test all functions of the installation for proper operation,
before reassembling the dash.
