AXDI-GM3
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 8/11/23 INSTAXDI-GM3
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket accessory
before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Cutting tool • Tape • Crimping tool
• Connectors (i.e. butt-connectors, bell caps, etc.)
TABLE OF CONTENTS
Connections
LD-LCGM-O3 DIAGRAM 2 ......................................
Installation 3 .............................................................
Programming 3 .........................................................
Cadillac Chime Interface 1996-2005
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
•
Provides NAV outputs (parking brake, reverse, and speed sense)
• Used in non-amplified models, or when bypassing a factory amplifier
• Used in models without OnStar® or when not retaining OnStar®
• Retains all warning chimes
• High level speaker input
• Retains balance and fade
• Micro “B” USB updatable
• AXDI-GM3 interface
• LD-LCGM-03 harness
APPLICATIONS
Cadillac
Catera 1997-2001 ...............................................
Deville 1996-1999 ..............................................
Deville* 2000-2005 ..........................................
Eldorado 1996-2002 ..........................................
Seville 1996-1997 ...............................................
Seville* 1998-2004 .............................................
Visit
AxxessInterfaces.com
for more detailed information about the product
and up-to-date vehicle specific applications
*Note: You must bypass the factory amp in these vehicles to use this interface
2

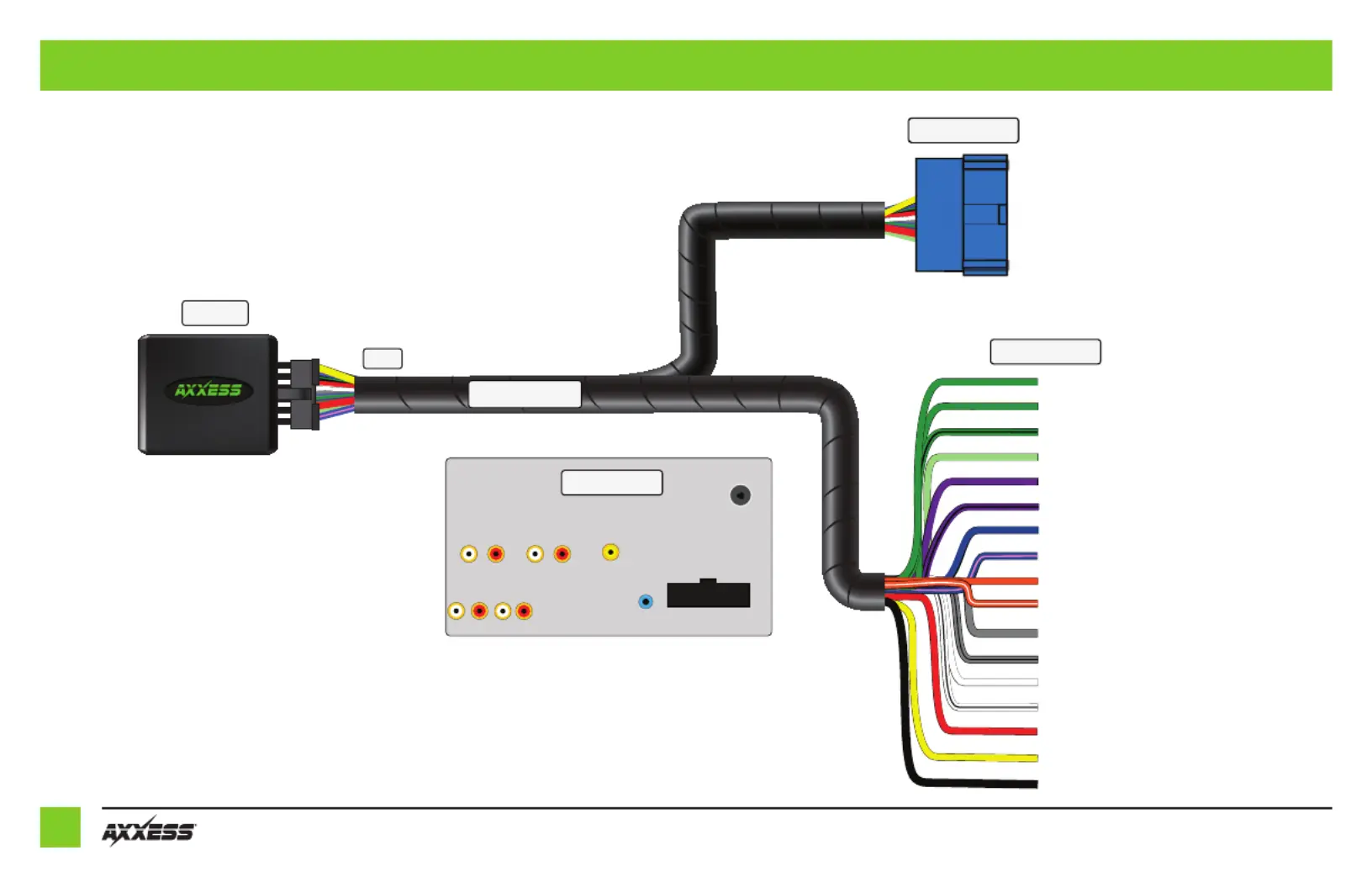

CONNECTIONS: LD-LCGM-03 DIAGRAM
12-Pin
AUX-IN Rear View
SWC
Aftermarket Radio
Front Rear
Sub
Radio Connections
Ve
hi
c
l
e Connecto
r
Interface
Blue - Antenna on
Blue/Pink - VSS/Speed-Sense
Orange - No Connection
Orange/White - Illumination
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Red - Accessory power
Yellow - Battery wire
Black - Ground wire
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple - Reverse backup camera
Light Green - Parking brake
Purple - Rear right + speaker output
Purple/Black - Rear right - output
(Your radio’s features may vary)
LD-LCGM-03
3
REV. 8/11/23 INSTAXDI-GM3
INSTALLATION
PROGRAMMING
With the key in the off position:
• Connect the harness into the interface, and then to the wiring harness in the vehicle.LD-LCGM-03
Attention! If the interface loses power for any reason, the following steps will need to be performed again. Also, if installing an
AXSWC connect it after you initialize and test the interface/radio, with the key in the off position.
• Turn the key (or push-to-start button) to the ignition position and wait until the radio comes on.
If the radio does not come on within 60 seconds, turn the key to the off position, disconnect the interface, check all Note:
connections, reconnect the interface, and then try again.
• Turn the key to the off position, and then to the accessory position. Test all functions of the installation for proper operation,
before reassembling the dash.
