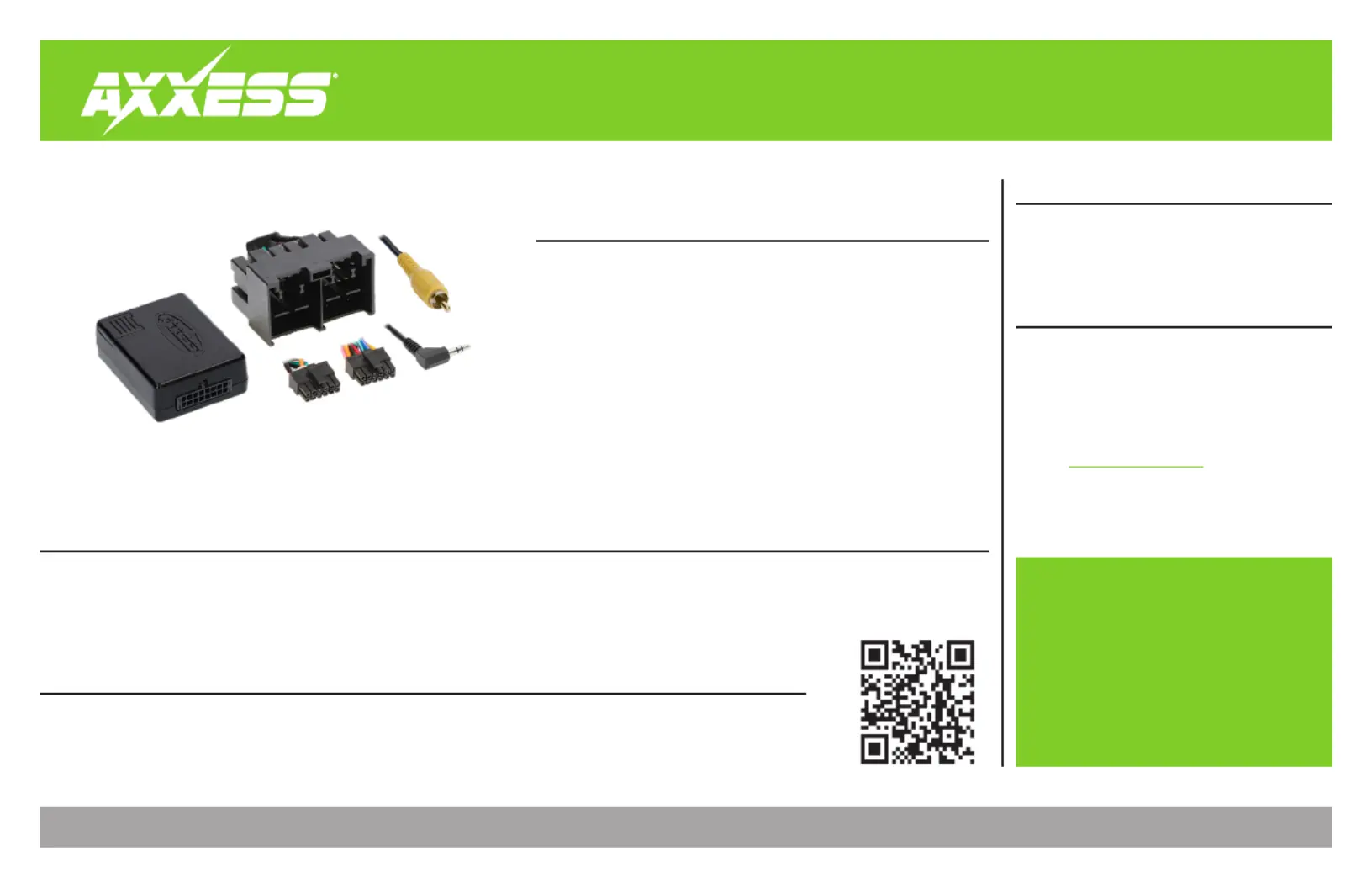

AXDI-FD3
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 9/8/23 INSTAXDI-FD3
Product Info
ATTENTION:
With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter tester
Ford Data Interface 2019-Up
•
Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Provides wires for multimedia radios (park brake, reverse, speed sense)
• Prewired AXSWC harness (AXSWC sold separately)
• Designed for non-amplified models
• Retains balance and fade
• Micro-B USB updatable
• Retains factory backup camera on (Transit/Transit Connect Vehicles w/SYNC)
NOTE: AXDI-FD3 does not retain SYNC
• AXDI-FD3 Interface
• AXDI-FD3 Harness
TABLE OF CONTENTS
Connections 2 ............................................................
Installation 3 .............................................................
Programming 3 .........................................................
APPLICATIONS
Ford
E Series 2021-Up ...........................
Eco Sport 2020-Up ........................
Escape 2020-Up ............................
F250/F350/F450/F550 2020-Up ...
Transit 2020-Up ............................
Transit Connect 2019-Up ..............
Visit for more detailed AxxessInterfaces.com
information about the product and up-to-date
vehicle specific applications.
2
LD-AX-XSVI-FT1
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple
-
Reverse backup camera
Light Green - Parking brake
Orange - Illumination
Blue/Orange Amp turn on
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Steering Wheel
Control (AXSWC)
(Sold Separately)
12-Pin
Vehicle Connector
Radio Connections
Interface
12-Pin
SWC Harness
3.5 AUX
BT/USB
Blue/White - Amp Turn on from radio
Fuse Holder
Vehicle Connector
From the AXDI-FD3 harness
to the aftermarket radio
CONNECTIONS
3
REV. 9/8/23 INSTAXDI-FD3
INSTALLATION
PROGRAMMING
With the key in the off position:
Connect the into the , and then to the wiring harness 1. AXDI-FD3 harness AXDI-FD3 interface
in the vehicle.
Note: If installing an AXSWC, connect it after you program and test the AXDI-FD3, with the
key in the off position.
Attention! If the interface loses power for any reason, the following steps will need to be
performed again.
Cycle the engine on.1.
Note: If the radio doesn’t come on within 60 seconds, turn the key to the off position,
disconnect the interface, check all connections, reconnect the interface, and then try again.
Cycle the ignition off, then back on.2.
Test all functions of the installation for proper operation.3.
