Seite 1/8

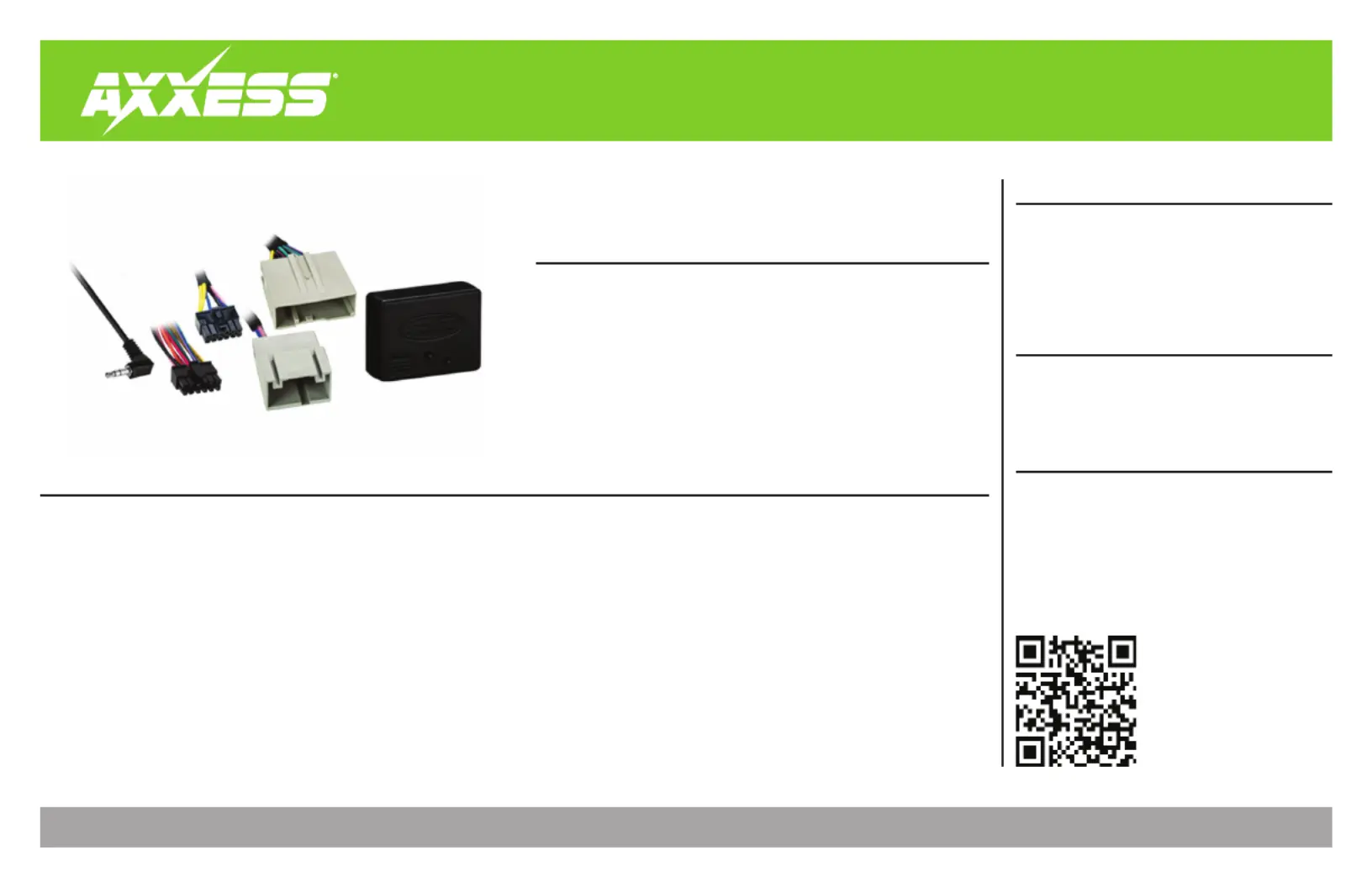

AXDI-FD1
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/23/20 INSTAXDI-FD1
Product Info
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming .........................................................3
Ford CAN Data Interface 2007-Up
APPLICATIONS
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Pre-wired AXSWC harness (AXSWC sold separately)
• Can be used in both non-amplified and amplified models
(including Sony/THX)
• Retains balance and fade (excluding Sony/THX)
• Micro-B USB updatable
Ford
Econoline (w/ CD) 2009-Up
Edge 2007-2010
Escape 2008-2012
Expedition 2007-2014
Explorer (with NAV) 2009-2010
Explorer Sport Trac (with NAV) 2009-2010
F-150 * 2009-2012
F-150 STX/FX2 base/XLT base 2013
F-150 STX/XLT base 2014
Ford (Cont)
F-250/350/450/550 2011-2012
F-250/350/450/550 XLT, XL (w/ CD) 2013-2016
F-650/750 (w/ CD) 2016-Up
Focus 2008-2011
Fusion 2010-2012
Mustang 2009-2014
Taurus 2010-2012
Lincoln
MKX 2007-2010
MKZ 2007-2009
Navigator 2007-2014
Mazda
Tribute 2008-2011
Mercury
Mariner 2008-2011
Milan 2010-2011
• AXDI-FD1 interface • AXDI-FD1 harness
• 8-pin sub/center harness
* XL models must be equipped with a CD player
2
CONNECTIONS
From the AXDI-FD1 harness to the aftermarket radio:
• Connect the wire to the ground wire.Black
• Connect the Yellow wire to the battery wire.
• Connect the wire to the accessory wire.Red
• Connect the wire to the power antenna wire.Blue
• For models equipped with a Sony/THX amplifier only: Blue/White Connect the wire from
the 12-pin connector to the amp turn on wire. This wire must be connected to hear sound
from the factory amplifier.
• For the Ford Expedition only: Connect the Blue/White wire from the 24-pin connector to the
amp turn on wire, if applicable. This wire must be connected to hear sound from the factory
amplifier, if applicable.
Only connect if a wire is populated on the factory side.Note:
• If the aftermarket radio has an illumination wire, connect the wire to it.Orange
• Connect the wire to the right front positive speaker output.Gray
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the wire to the left front positive speaker output.White
• Connect the wire to the left front negative speaker output.White/Black
• Connect the wire to the left rear positive speaker output.Green
• Connect the wire to the left rear negative speaker output.Green/Black
• Connect the wire to the right rear positive speaker output.Purple
• Connect the wire to the right rear negative speaker output.Purple/Black
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the wire to the VSS/speed sense wire.Blue/Pink
• Connect the wire to the reverse wire.Green/Purple
• Connect the wire to the parking brake wire.Light Green
12-pin pre-wired AXSWC harness:
• This harness is to be used along with the optional AXSWC (not included) to retain steering
wheel audio controls. If the AXSWC is not being used, disregard this harness. If it will be
used, please refer to the AXSWC instructions for radio connections and programming.
If the vehicle is not equipped with Bluetooth/Sync, cut the Note: Gray/Red wire and tape it off.
Disregard the harness that comes with the AXSWC.Note:
From the 8-pin sub/center harness to the aftermarket radio:
• Connect the (2) wires to the amp turn on wire. These wires must be connected Blue/White
to hear sound from the factory amplifier, if applicable.
• If the vehicle is equipped with a factory subwoofer, connect the RCA jack to the White
subwoofer out jack.
• If the vehicle is equipped with a SONY/THX amplifier, connect the RCA jack to the center Red
channel out jack on the aftermarket radio/processor.
If this jack is not present on the aftermarket radio, just leave be. Only the center Note:
channel speaker will be lost.
3
REV. 1/23/2020 INSTAXDI-FD1
INSTALLATION PROGRAMMING
Attention! If the interface loses power for any reason, the following steps will need to be
performed again. Also, if installing an AXSWC connect it after you initialize and test the interface/
radio, with the key in the off position.
• Turn the key (or push-to-start button) to the ignition position and wait until the radio comes on.
If the radio does not come on within 60 seconds, turn the key to the off position, Note:
disconnect the interface, check all connections, reconnect the interface, and then try again.
• Turn the key to the off position, and then to the accessory position. Test all functions of the
installation for proper operation, before reassembling the dash.
With the key in the off position:
•
Connect the AXDI-FD1 harness into the interface, and then to the wiring harness in the vehicle
.
Both connectors of the AXDI-FD1 harness must be connected to the vehicle.Note:
• Connect the 8-pin sub/center harness to the wiring harness in the vehicle.
If using the AXSWC, connect it after you initialize and test the AXDI-FD1, with the key Note:
in the off position.
