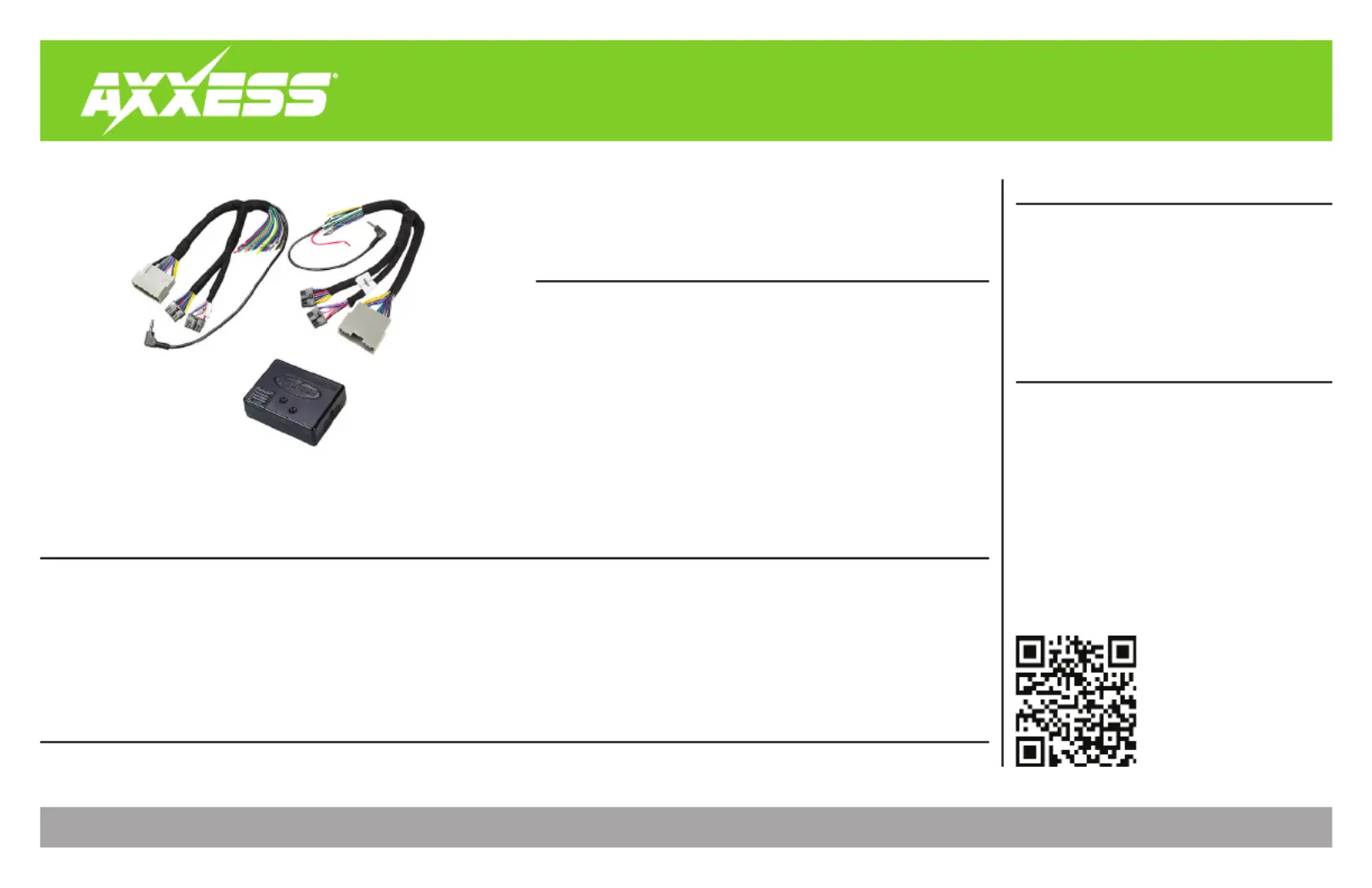

AXDI-CH13
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 9/11/19 INSTAXDI-CH13
Product Info
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections .........................................................2-3
Installation .............................................................3
Programming .........................................................3
Chrysler CAN Data Interface 2004-Up
APPLICATIONS
See inside front cover
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Prewired AXSWC harness (AXSWC sold separately)
• Can be used in both amplified and non-amplified models
• Retains balance and fade (non-amplified models only)
• Micro-B USB updatable
• AXDI-CH13 interface
• LD-BX-CH1 harness
• LD-BX-CH2 harness
2
From the LD-BX-CH1 OR LD-BX-CH2 harness to the aftermarket radio:
• Connect the wire to the ground wire.Black
• Connect the Yellow wire to the battery wire.
• Connect the wire to the accessory wire.Red
If installing an AXSWC (sold separately), there will be an accessory wire there to Note:
connect as well.
• If the aftermarket radio has an illumination wire, connect the Orange wire to it.
• If the vehicle is equipped with a factory amplifier, connect the Blue/White wire to the amp
turn on wire. This wire must be connected to hear sound from the factory amplifier.
• Connect the wire to the power antenna wire.Blue
• Connect the wire to the right front positive speaker output.Gray
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the wire to the left front positive speaker output.White
• Connect the wire to the left front negative speaker output.White/Black
• Connect the wire to the left rear positive speaker output.Green
• Connect the wire to the left rear negative speaker output.Green/Black
• Connect the wire to the right rear positive speaker output.Purple
• Connect the wire to the right rear negative speaker output.Purple/Black
Continued on the next page
APPLICATIONS CONNECTIONS
CHRYSLER
300 2005-2007
Aspen 2007
PT Cruiser 2006-2010
DODGE
Caliber 2007-2008
Charger 2006-2007
Dakota 2005-2007
Durango 2004-2007
Magnum 2005-2007
Ram 2500/3500 2009
Ram 2006-2008
Ram Chassis Cab 2006-2010
JEEP
Commander 2006-2007
Compass 2007-2008
Grand Cherokee 2005-2007
Patriot 2007-2008
MITSUBISHI
Raider 2006-2007
CHRYSLER
200 2011-2014
300 2008-2010
Aspen 2008-2009
Sebring 2007-2010
Town & Country 2008-2017
DODGE
Avenger 2008-2014
Caliber 2009-2012
Grand Caravan 2008-up
Challenger 2008-2014
Charger 2008-2010
Dakota 2008-2011
DODGE (CONT)
Durango 2008-2013
Journey 2009-2010
Magnum 2008-2009
Nitro 2007-2011
Ram 2010-2011
Ram 1500 2009
Ram Chassis Cab 2011
JEEP
Commander 2008-2010
Compass 2009-2017.5
Grand Cherokee 2008-2013
Liberty 2008-2012
JEEP (CONT)
Patriot 2009-2017
Wrangler 2007-2017
Wrangler (JK) 2018
Wrangler Unlimited 2007-2017
MITSUBISHI
Raider 2008-2009
RAM
1500/2500/3500 2012
Chassis Cab 2012
C/V Tradesman 2012-2015
VW
Routan 2009-2013
Applications below use the LD-BX-CH1 harness:
Applications below use the LD-BX-CH2 harness:
3
REV. 9/11/2019 INSTAXDI-CH13
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the wire to the VSS/speed sense wire.Blue/Pink
• Connect the wire to the reverse wire.Green/Purple
• Connect the wire to the parking brake wire.Light Green
12-pin pre-wired AXSWC harness:
• This harness is to be used along with the optional AXSWC (not included) to retain steering
wheel audio controls. If the AXSWC is not being used, disregard this harness. If it will be
used, please refer to the AXSWC instructions for radio connections and programming.
Disregard the harness that comes with the AXSWC.Note:
With the key in the off position
• Connect either the LD-BX-CH1 or LD-BX-CH2 harness into the interface, and then to the wiring
harness in the vehicle.
If using the AXSWC, connect it after you initialize and test the AXDI-CH13, with the key Note:
in the off position.
Attention! If the interface loses power for any reason, the following steps will need to be
performed again. Also, if installing an AXSWC connect it after you initialize and test the interface/
radio, with the key in the off position.
• Turn the key (or push-to-start button) to the ignition position and wait until the radio comes on.
If the radio does not come on within 60 seconds, turn the key to the off position, Note:
disconnect the interface, check all connections, reconnect the interface, and then try again.
• Turn the key to the off position, and then to the accessory position. Test all functions of the
installation for proper operation, before reassembling the dash.
CONNECTIONS (CONT.)
INSTALLATION
PROGRAMMING
