Seite 1/4
AXDI-A12
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 8/2/23 INSTAXDI-A12
ATTENTION:
With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip-ties
TABLE OF CONTENTS
Connections 2-3 ........................................................
LD-AX-XSVI-AU1 Diagram 2 .................................
LD-AX-XSVI-AU2 Diagram 3 ................................
Installation 4 .............................................................
Programming 4 .........................................................
Audi Data Interface 2002-2013
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
•
Provides wires for multimedia radios (park brake, reverse, speed sense)
• Prewired AXSWC harness (AXSWC sold separately)
• Retains balance and fade
• Micro-B USB updatable

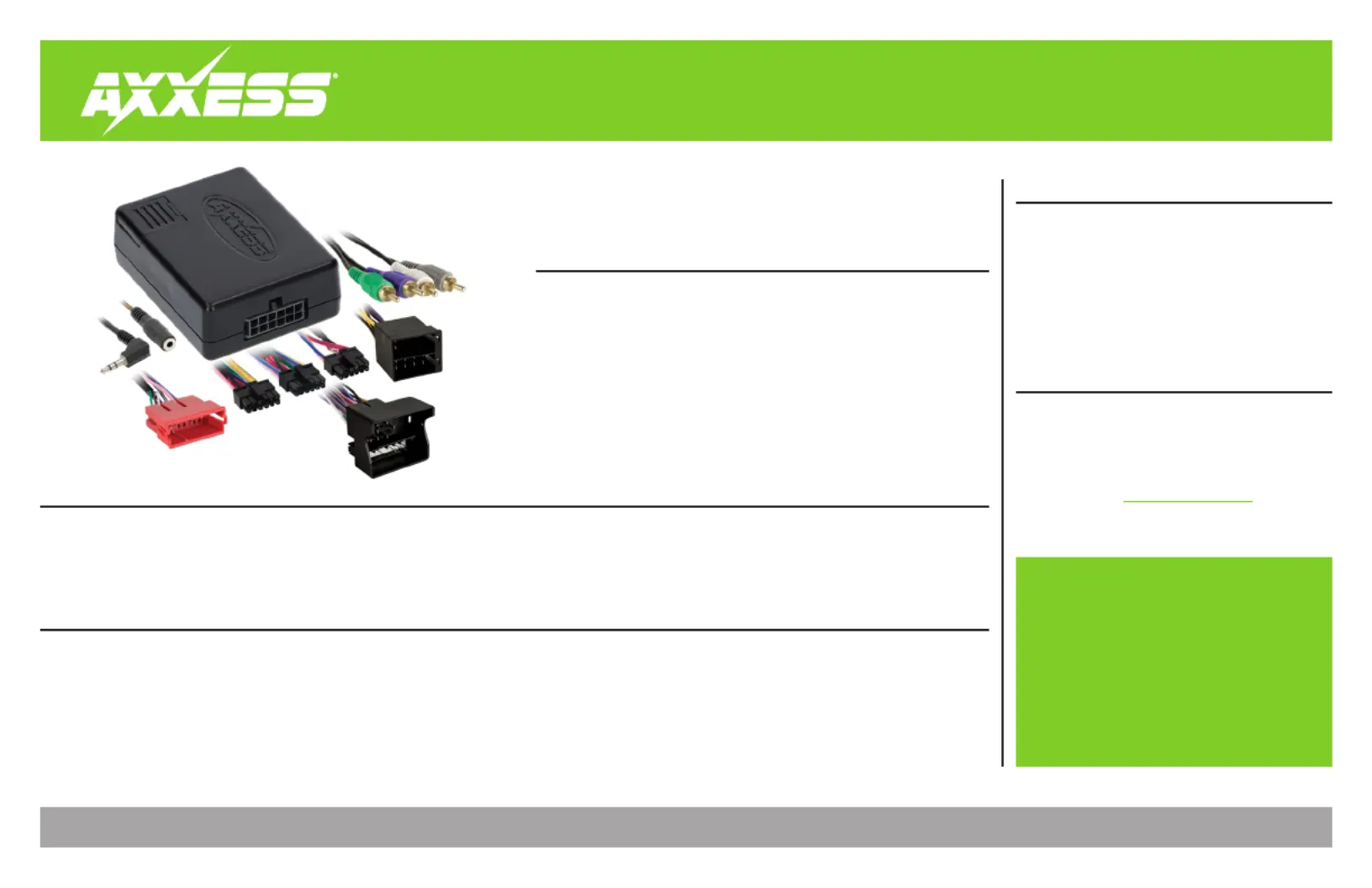

• AXDI-A12 interface
• LD-AX-XSVI-AU1 harness
• LD-AX-XSVI-AU2 harness
APPLICATIONS
LD-AX-XSVI-AU1 Harness:
A3 2006-2013(1) ...............................................
A4/RS 4/S4 (with NAV) 2005-2008 .................
A4/RS 4/S4 2007-2008 .....................................
A4/RS 4/S4 2006 ...............................................
TT 2008-2013 ......................................................
LD-AX-XSVI-AU2 Harness:
A3 2006-2007(2) ..............................................
A4/S4 2002-2006(3) ........................................
A6 2004 ..............................................................
Allroad 2004-2005 ............................................
TT 2002-2006 .....................................................
(1) With either Symphony Plus or NAV radio.
(2) With Concert radio (without NAV)
(3) With Symphony radio (without NAV)
Visit
AxxessInterfaces.com
for more detailed information about the product
and up-to-date vehicle specific applications
2

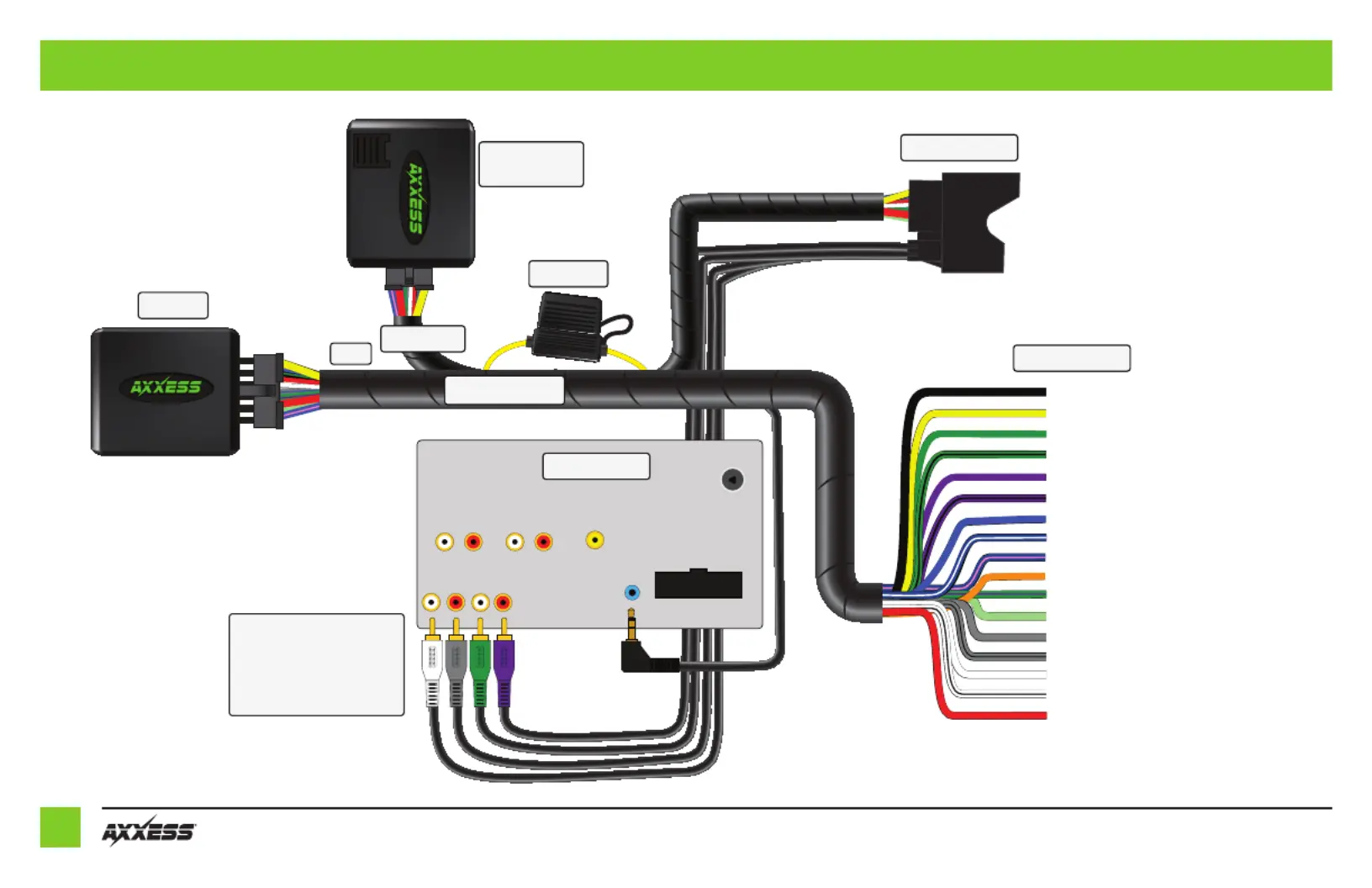

CONNECTIONS: LD-AX-XSVI-AU1 DIAGRAM
12-Pin
AUX-IN Rear View
SWC
Aftermarket Radio
Front Rear
Sub
Vehicle Connectors
Fuse Holder
Radio Connections
SWC Harness
Steering Wheel
Control (AXSWC)
(Sold Separately)
LD-AX-XSVI-AU1
Interface
RCAs
Blue/White - Amp turn on
Blue/Pink - VSS/Speed-Sense
Orange - Illumination
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Red - Accessory power
Black - Ground wire
Yellow - Battery wire
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Blue - Antenna turn on
(Your radio’s features may vary)
White RCA Jack – Front left output
Gray RCA Jack – Front right output
Green RCA Jack – Rear left output
Purple RCA Jack – Rear right output
3
REV. 8/2/23 INSTAXDI-A12

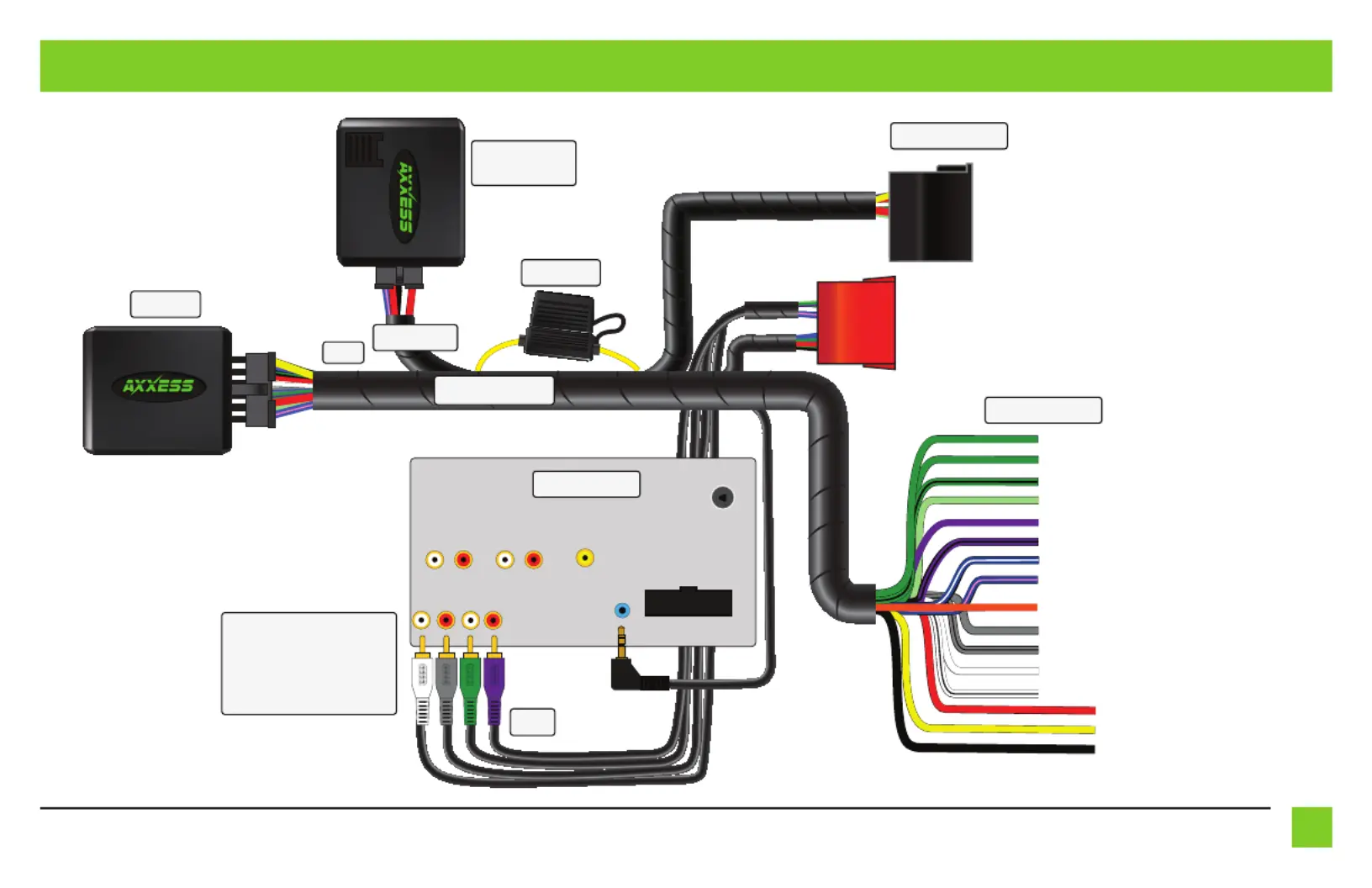

CONNECTIONS: LD-AX-XSVI-AU2 DIAGRAM
12-Pin
AUX-IN Rear View
SWC
Aftermarket Radio
Front Rear
Sub
Vehicle Connectors
Fuse Holder
Radio Connections
SWC Harness
Steering Wheel
Control (AXSWC)
(Sold Separately)
Interface
RCAs
Blue/White - Amp turn on
Blue/Pink - VSS/Speed-Sense
Orange - Illumination
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Red - Accessory power
Yellow - Battery wire
Black - Ground wire
Green - Rear left speaker + output
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Light Green - Parking brake
Purple - Rear right + speaker output
Purple/Black - Rear right - output
(Your radio’s features may vary)
LD-AX-XSVI-AU2
RCAs
White RCA Jack – Front left output
Gray RCA Jack – Front right output
Green RCA Jack – Rear left output
Purple RCA Jack – Rear right output
