Seite 1/8

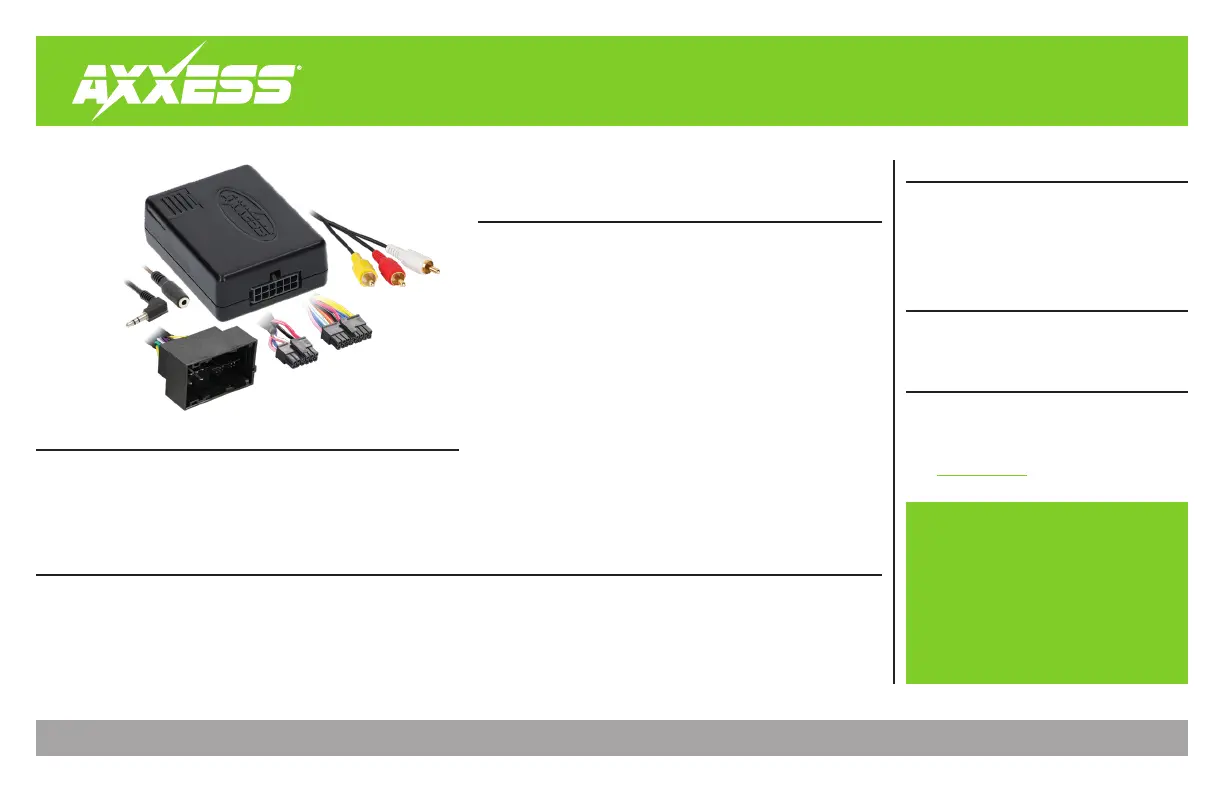

AXDI-6524
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 5/16/24 INSTAXDI-6524
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections 2-3 ........................................................
Installation 3 .............................................................
Programming 3 .........................................................
App Instructions 4-5 .................................................
Jeep/Ram Select Models Data Interface 2014-Up
• Designed for non-amplified systems
• Provides accessory power (12-volt 10-amp)
• Retains R.A. (Retained Accessory Power)P.
•
Provides wires for multimedia radios (park brake, reverse, speed sense)
• Pre-wired AXSWC harness (AXSWC sold separately)
•
Retains the factory backup camera (Not retained on Wrangler JL
or Gladiator)
• Retains balance and fade
• Retains the factory AUX-IN jack
• Allows retention and adjustment of the Personalization Options
• Adjust Personalization Options through a wireless application
• Smartphone application offering full control from either Android
or Apple mobile devices
• Micro-B USB updatable
• AXDI-6524 interface
• LD-AX-XSVI-CH3BT Harness
• 2-pin CAN harness
OPTIONAL ACCESSORIES
(sold separately)
Steering Wheel Control Interface:
AXSWC OBD T-Harness: AX-IL-OBD2
APPLICATIONS
Jeep
Gladiator* 2020-Up ....................................................................................
Renegade 2015-2017 ..................................................................................
Renegade Sport 2018 .................................................................................
Wrangler* JL (Base model) 2018-Up .........................................................
Ram
Promaster (w/color screen) 2014-Up .......................................................
Promaster City 2015-Up .............................................................................
* Factory Backup Camera will not be retained on Wrangler JL or Gladiator
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the
ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
Visit for more detailed information about AxxessInterfaces.com
the product and up-to-date vehicle specific applications
2
CONNECTIONS: LD-AX-XSVI-CH3BT DIAGRAM
Steering Wheel
Control (AXSWC)
(Sold Separately)
Refer to
page 3
for 2-Pin
Connection
Front
Rear
Sub
AUX-IN
Rear ewVi
SWC
Aftermarket Radio
(Your radio’s features may vary)
LD-AX-XSVI-CH3BT
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple
- Reverse backup camera
Light Green - Parking brake
Orange - Illumination
Blue/White NOT USED-
Blue/Pink - VSS/Speed-Sense
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Purple - Rear right + speaker output
Purple/Black - Rear right - output
16-Pin
Vehicle Connector
Radio Connections
Interface
12-Pin
2-Pin
3
REV. 5/16/24 INSTAXDI-6524
CAN connections to the vehicle: (
See page 2 for Diagram)
• Disconnect the from the .2-pin connector AXDI-6524 harness
• Connect the
2-pin CAN harness AXDI-6524 harness to the .
• Route the harness to the vehicles OBD port located under the driver’s side dash.
Option 1 (excluding Wrangler)
• Connect the wire to the CAN-HI wire. (Figure A)White/Red
• Connect the wire to the CAN-LO wire. (Figure A)White/Green
With the key in the off position:
1. AXDI-6524 harness AXDI-6524 interface Connect the to the , and then to the wiring
harness in the vehicle.
2. AXSWC AXDI-6524 If an (sold separately) will be used, do not connect it until the is
programmed and fully functional.
CONNECTIONS (CONT.) INSTALLATION
(Figure A)
Attention!
If the interface ever loses power, the following steps will need to be performed
again. Please ensure that the owner of the vehicle knows this.
1. Turn the key (or push-to-start button) to the ignition position and wait until the radio
comes on.
Note: If the radio doesn’t not come on within 60 seconds, turn the key to the off
position, disconnect the interface, check all connections, reconnect the interface, and
then try again.
2. Turn the key (or push-to-start button) to the off position, then open and close the
driver’s door.
3. Wait 5 minutes for the vehicle to fully go to sleep.
4. Start the vehicle, then test all functions of the installation for proper operation.
PROGRAMMING
12-pin pre-wired AXSWC harness:
This harness is to be used along with the (sold separately) to retain steering wheel audio AXSWC
controls. If the is not being used, disregard this harness. If it is to be used, please refer to the AXSWC
AXSWC instructions for radio connections and programming. Disregard the harness that comes with
the .AXSWC
