AXBUCH-T16V
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 10/31/22 INSTAXBUCH-T16V
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
INTERFACE FEATURES
INTERFACE COMPONENTS TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Cutting tool • Tape • Crimping tool
TABLE OF CONTENTS
Connections ............................................................2
Toyota Select Models 2012-2015
Toyota Backup Camera Retain/Add-On
• Retains the factory backup camera to an aftermarket radio
• Allows an aftermarket camera to be added to the factory screen*
• Includes the AXCSD-6V 12-volt to 6-volt converter
* Display and navigation model radios only

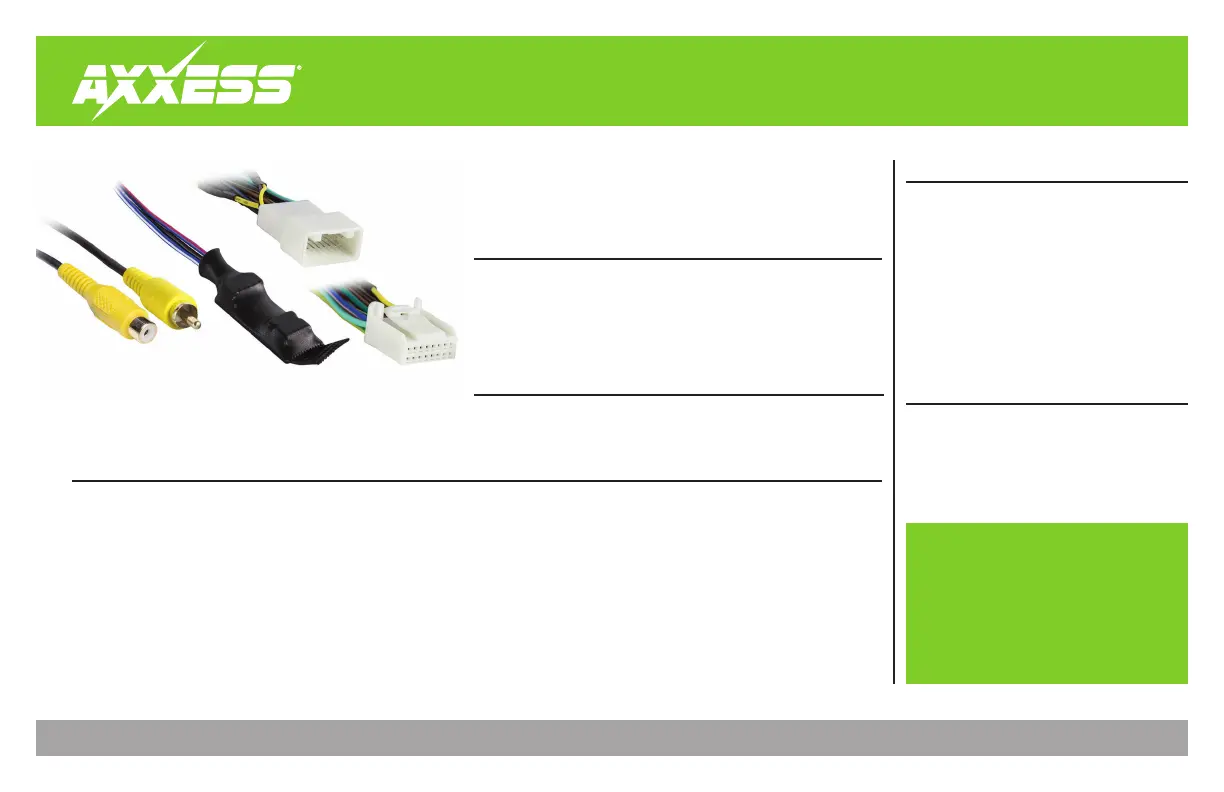

• AXBUCH-T16V harness
• AXCSD-6V 12-volt to 6-volt converter
For refer to Enter the year, make, and model of the vehicle in theDash Disassembly Instructions, metraonline.com. Vehicle Fit Guide for Radio Install kits.
APPLICATIONS
Scion
FRS 2013-2015
iQ 2014-2015
tC 2014-2015
xB 2014-2015
xD 2014
Toyota
4-Runner
(w/o factory amp) 2012-2013
Avalon 2013-2014
Camry 2012-2013
Highlander 2013
Prius 2012-2015
Prius PHV 2012-2015
Prius V 2012-2014
Rav-4 (before build
date Nov. 2013) 2014
Rav-4 2013
Sequoia 2013
Tacoma (w/NAV) 2012-2013
Venza 2013-2014
2
CONNECTIONS
The AXBUCH-T16V can be connected two different ways:
To retain the factory backup camera to an aftermarket radio, connect as indicated:
• wire to chassis ground, and also to the wire of the AXCSD-6V.Black Black
• Yellow wire to the wire of the AXCSD-6V.Blue/Red
• Reverse wire from the aftermarket radio, to the reverse signal in the vehicle, and also to
the wire of the AXCSD-6V.Blue/White
• Yellow RCA jack (male) to the rear camera input of the aftermarket radio.
• Disregard the loose wire, it will not be used in this application. Green/Purple
To allow an aftermarket camera to be added to the OEM screen:
• wire to the ground wire of the aftermarket camera.Black
• Power wire of the aftermarket camera to accessory power.
• Tape off and disregard the Yellow wire, it will not be used in this application.
• Yellow RCA (female) jack to the aftermarket camera.
• The AXCSD-6V 12-volt to 6-volt converter will not be used in this application.
14 13 12 11 10 9 8 7 6 5 3 2 4 1
28 27 26 25 24 23 22 21 20 19 18 17 16 15
The following (2) steps are only required if a wire is not present in the factory harness.
*Except Avalon 2013-2014 and Venza 2013-2014
• If a wire is not present in pin-2 of the 28-pin connector of the factory radio, unplug the
connector, then insert the metal pin of the loose wire into it.Green/Purple Connect the
harness back into the radio.
• Connect the other end of the loose wire to the reverse wire of the vehicle.Green/Purple
This is the wire view of the connector in the vehicle.
28 Pin Harness
3
REV. 10/31/22 INSTAXBUCH-T16V
