AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/28/20 INSTAXBUCH-LX6V
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/28/20 INSTAXBUCH-LX6V
I N S TA L L AT I O N I N S T R U C T I O N S
I N S TA L L AT I O N I N S T R U C T I O N S
AXBUCH-LX6V
AXBUCH-LX6V
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
INTERFACE FEATURES
INTERFACE FEATURES
INTERFACE COMPONENTS
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections ............................................................2
TABLE OF CONTENTS
Connections ............................................................2
Lexus Backup Camera Retention/Add-On
2014-Up
Lexus Backup Camera Retention/Add-On
2014-Up
APPLICATIONS
APPLICATIONS
• Retains the factory backup camera
• Allows an aftermarket camera to be added to the factory screen †
• Includes an AXCSD-6V 12V-to-6V step-down for the factory camera
• Retains the factory backup camera
• Allows an aftermarket camera to be added to the factory screen †
• Includes an AXCSD-6V 12V-to-6V step-down for the factory camera
† Display and navigations model radios only
† Display and navigations model radios only
Lexus
ES300h 2015-2018
ES350 2015-2018
GS F 2016-Up
GS200T 2016-2017
GS300 2018-Up
GS350 2015-Up
GS450h 2015-Up
GX460 2016-Up
IS200t 2016-2017
IS250 2014-2015
IS300 2016-Up
IS350 2014-Up
LC500 2018-Up
LC500h 2018-Up
LS460 2015-2017
NX300 2018-Up
NX300h 2015-Up
NX200t 2015-2017
RC F 2015-Up
RC200t 2016-2017
RC300 2016-Up
RC350 2015-Up
RX350 2016-Up
RX450h 2016-Up
Lexus
ES300h 2015-2018
ES350 2015-2018
GS F 2016-Up
GS200T 2016-2017
GS300 2018-Up
GS350 2015-Up
GS450h 2015-Up
GX460 2016-Up
IS200t 2016-2017
IS250 2014-2015
IS300 2016-Up
IS350 2014-Up
LC500 2018-Up
LC500h 2018-Up
LS460 2015-2017
NX300 2018-Up
NX300h 2015-Up
NX200t 2015-2017
RC F 2015-Up
RC200t 2016-2017
RC300 2016-Up
RC350 2015-Up
RX350 2016-Up
RX450h 2016-Up

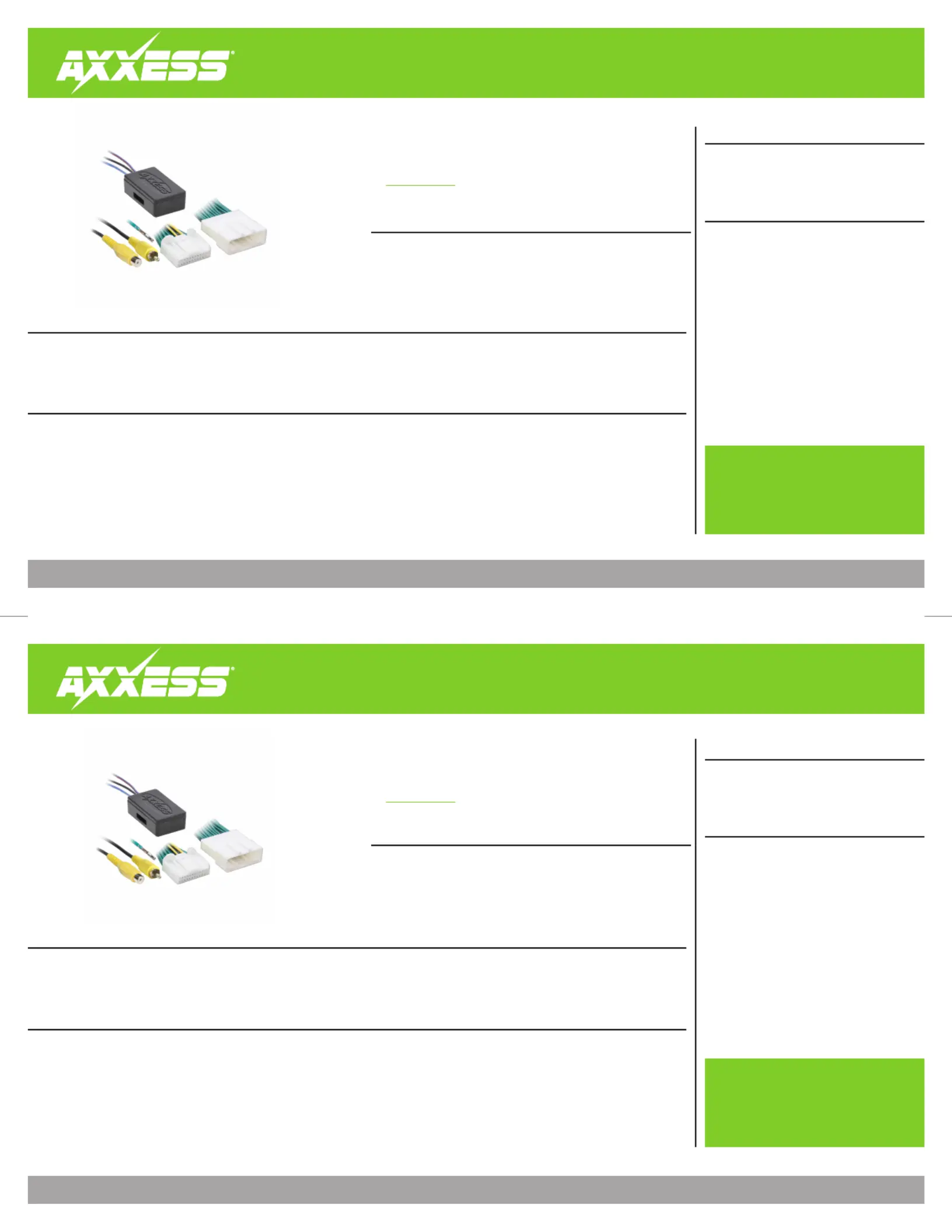

• AXBUCH-LX6V harness
• AXCSD-6V 12-volt to 6-volt step-down
• Green/Purple wire with terminal
• AXBUCH-LX6V harness
• AXCSD-6V 12-volt to 6-volt step-down
• Green/Purple wire with terminal
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/28/20 INSTAXBUCH-LX6V
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/28/20 INSTAXBUCH-LX6V
I N S TA L L AT I O N I N S T R U C T I O N S
I N S TA L L AT I O N I N S T R U C T I O N S
AXBUCH-LX6V
AXBUCH-LX6V
To retain the factory backup camera to an aftermarket radio:
• Connect the wire to chassis ground, and also to the wire from the AXCSD-6V.Black Black
• Connect the Yellow Blue/Red wire to the wire from the AXCSD-6V.
• Connect the reverse wire from the aftermarket radio, to the reverse signal in the vehicle, and
also to the wire from the AXCSD-6V.Blue/White
• Connect the
male
Yellow RCA jack to the backup camera input from the aftermarket radio.
• Disregard the
Green/Purple wire with terminal
, it will not be used in this application.
To allow an aftermarket camera to be added to the OEM screen:
• Connect the ground wire from the aftermarket camera to chassis ground.
• Connect the power wire from the aftermarket camera to accessory power.
• Connect the
female
Yellow RCA jack to the aftermarket camera.
• Tape off and disregard the following (2) wires, they will not be used in this application;
Black, Yellow
• The AXCSD-6V will not be used in this application.

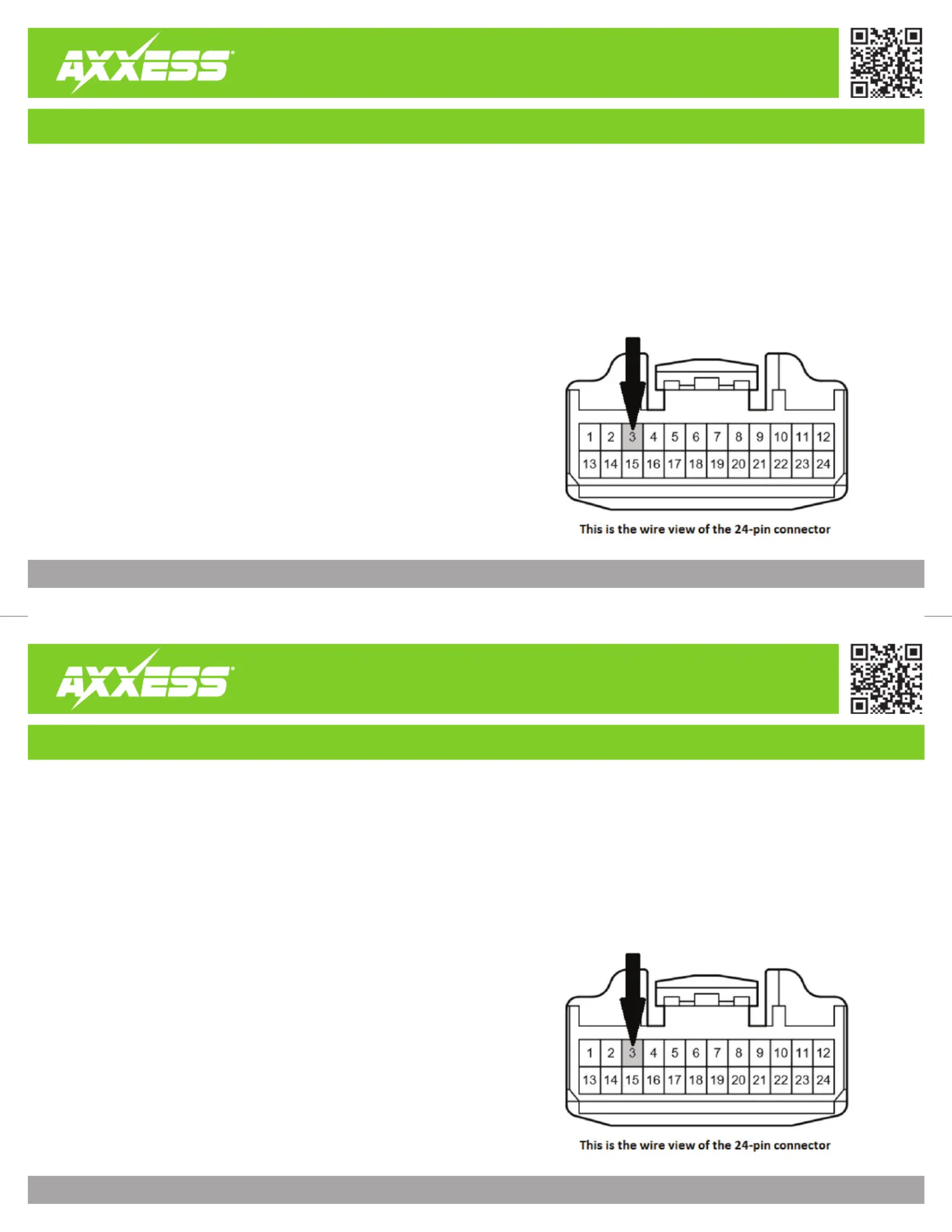

• Looking at the 24-pin connector from the factory radio, If a wire is not present in pin-3,
follow these steps;
1. From the male connector from the AXBUCH-LX6V harness, locate pin-3.
2. Insert the
Green/Purple
wire with terminal into pin-3.
3. Locate a reverse wire from the vehicle, then attach the
Green/Purple wire with terminal
to that wire.
• Remove the 24-pin connector from the factory radio, then install the
AXBUCH-LX6V harness
in between.
CONNECTIONS
CONNECTIONS
To retain the factory backup camera to an aftermarket radio:
• Connect the wire to chassis ground, and also to the wire from the AXCSD-6V.Black Black
• Connect the Yellow wire to the wire from the AXCSD-6V.Blue/Red
• Connect the reverse wire from the aftermarket radio, to the reverse signal in the vehicle, and
also to the wire from the AXCSD-6V.Blue/White
• Connect the
male
Yellow RCA jack to the backup camera input from the aftermarket radio.
• Disregard the
Green/Purple wire with terminal
, it will not be used in this application.
To allow an aftermarket camera to be added to the OEM screen:
• Connect the ground wire from the aftermarket camera to chassis ground.
• Connect the power wire from the aftermarket camera to accessory power.
• Connect the
female
Yellow RCA jack to the aftermarket camera.
• Tape off and disregard the following (2) wires, they will not be used in this application;
Black, Yellow
• The AXCSD-6V will not be used in this application.
• Looking at the 24-pin connector from the factory radio, If a wire is not present in pin-3,
follow these steps;
1. From the male connector from the AXBUCH-LX6V harness, locate pin-3.
2. Insert the
Green/Purple
wire with terminal into pin-3.
3. Locate a reverse wire from the vehicle, then attach the
Green/Purple wire with terminal
to that wire.
• Remove the 24-pin connector from the factory radio, then install the
AXBUCH-LX6V harness
in between.
