Seite 1/4
AXBUC-VW92
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 3/28/24 INSTAXBUC-VW92
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections: BLK-AXBUC-VW92 2 ...........................
Installing the Interface 3 ..........................................
Dip Switch Settings 3 ................................................
Volkswagen/Skoda 2008-2015*
Camera Retention Interface
APPLICATIONS
• Allows the factory camera to be used with an aftermarket radio.
• Plug-and-play, no cutting of wires required.
Volkswagen
Amarok 2010-2014 ............................................
EOS 2009-2014 ..................................................
Golf 2008-2014 ..................................................
Jetta 2009-2014 ................................................
Passat 2010-2015 ...............................................
Polo 2008-2014 .................................................
Scirocco 2008-2015 ...........................................
Touran 2010-2015 ..............................................
Transporter 2009-2014 .....................................
Skoda
Octavia 2009 .....................................................
Superb 2008-2015 ............................................

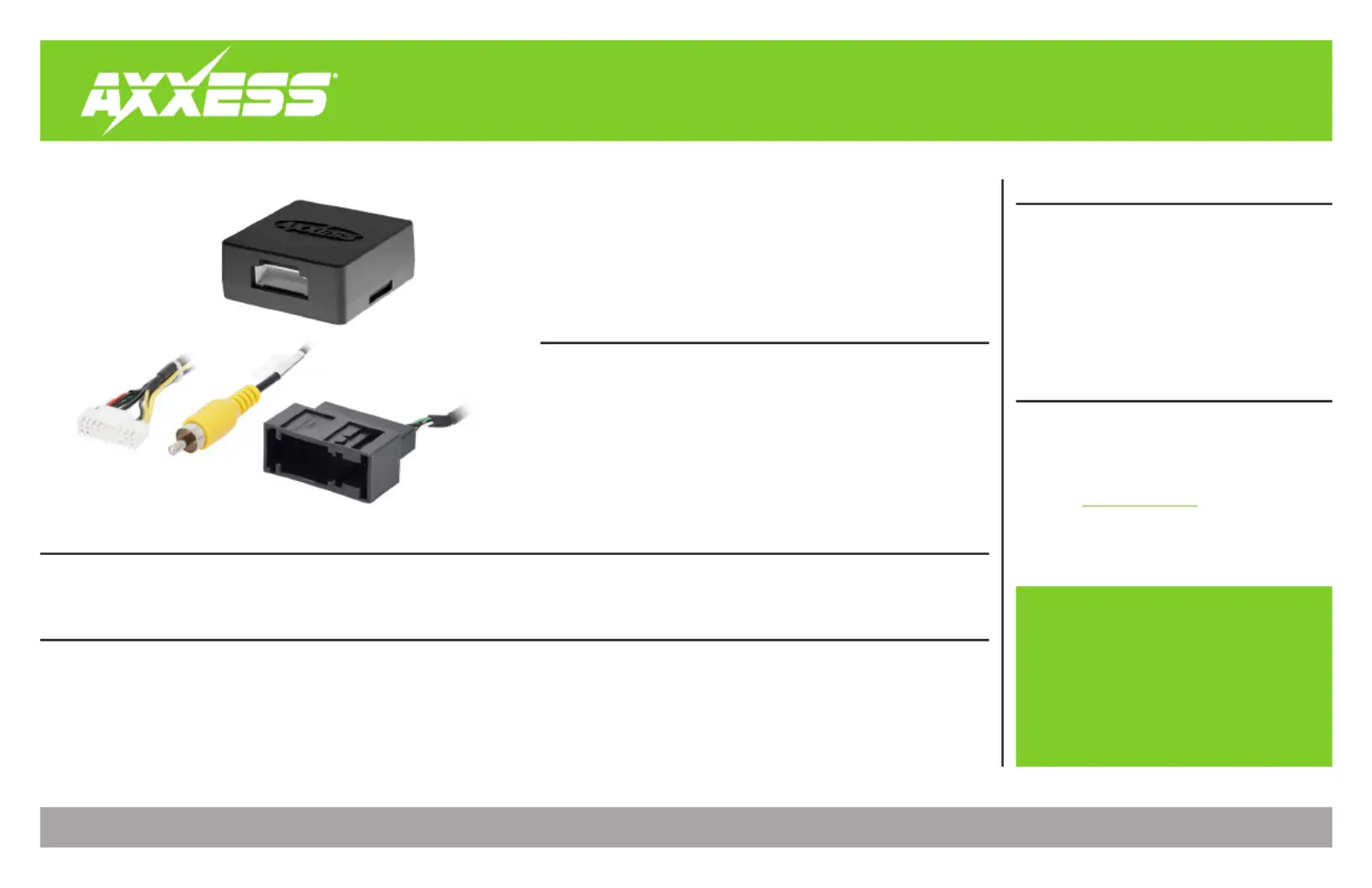

• AXBUC-VW92 interface • BLK-AXBUC-VW92 harness
* For vehicles equipped with RNS510 (MFD3), RNS315, Columbus (Skoda), or RCD510
(with 26-pin connector)
Visit for more detailed
AxxessInterfaces.com
information about the product and up-to-date
vehicle specific applications
NOTE: If your vehicle has a motorized OE camera door you will need an interface that
can enable the camera door to open, the will not retain this function. The AXBUC-VW2
AXBUC-VW2 will only retain the camera.
2
CONNECTIONS: BLK-AXBUC-VW92
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Black - Ground wire
Yellow - Battery wire
Purple - Reverse
Interface End View
Interface Vehicle Connector
Radio Connections
BLK-AXBUC-VW92
CAM OUT
ON VE

2 3 4
Dipswitch
See Dipswitch Settings
on the next page
3
REV. 3/28/24 INSTAXBUC-VW92
• Connect the AXBUC-VW92 to the wiring harness in the vehicle located at the radio location
(26-pin connector).
INSTALLING THE INTERFACE & DIP SWITCH SETTINGS
Installation Steps
1. Connect Ground wire from the VW92 to the aftermarket radio’s ground wire.
2. Yellow wire Yellow wire Connect the from the VW92 to the of your aftermarket radio.
3. Purple is a Reverse input, connect the reverse trigger from your vehicle or interface to
this wire. Do not connect this wire to the vehicle’s BCM for the reverse signal. VW uses
PWM circuitry, if connected to the BCM, the backup camera will flicker while the vehicle
is running. You must find a dedicated reverse signal or use an interface that provides a
reverse output.
4. CAM OUT Video cable Plug in the into the rear view camera input of your aftermarket radio.
5. White connector Plug in the into the interface box.
6. Plug in the vehicle connector and test.
Dip Switch Settings
If after the is installed your screen quickly flashes the backup camera, or is displaying a AXBUC-VW2
blank screen when you put the vehicle into reverse, you will need to adjust the dip switches on the
side of the interface.
If screen is blank or flashing while in reverse, try this sequence.
Interface End View
ON VE

2 3 4
Dipswitch Detail
ON VE

2 3 4
Step 1 Dip Switch 3 - Set to OFF. - If not working go to step 2.
Step 2 Dip Switches - Move all to OFF - If not working go to step 3.
Step 3 Dip Switch 3 - Flip ON, leaving 1,2,4 OFF.
