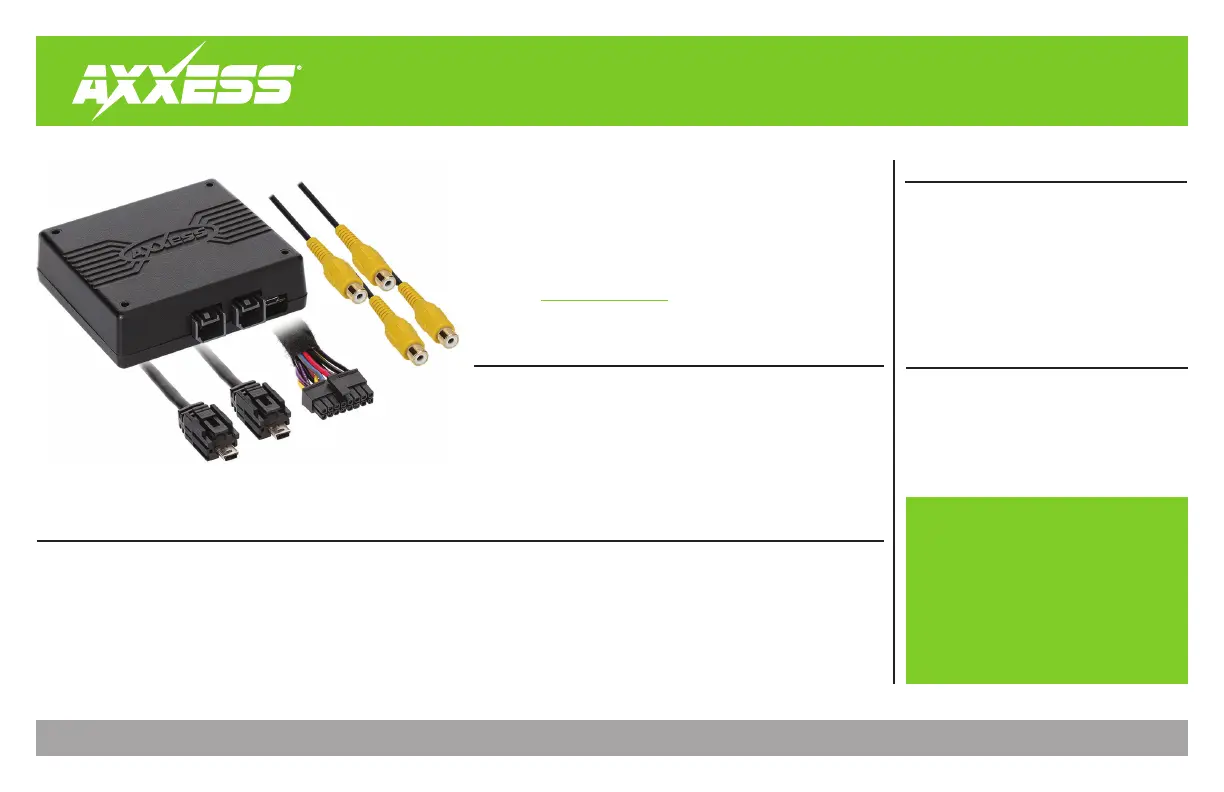

AXAC-GM2
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 11/30/22 INSTAXAC-GM2
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket accessory
before installing this device.
REQUIRED ITEMS
Update Cable: AXUSB-MCBL (sold separately)
AXXESS Updater Program
TABLE OF CONTENTS
Connections .........................................................2-3
AXAC-GM2 Layout ..............................................4
Add Cam Configuration
from AXXESS Updater ................................... 5-6
INTERFACE FEATURES
• Required when adding cameras to an OEM screen
• (4) Camera inputs • Micro-B USB updatable • Retains backup camera
• Programmable 12V, 5-amp switched output (configured through the
Axxess Updater program)
•
Reverse signal trigger generated via CAN bus communication of
the vehicle
• Turn signal trigger generated via CAN bus communication of the vehicle
• Programmable camera control wire (configured through the Axxess
Updater program)
• VSS (Vehicle Speed Sense) trigger generated via CAN bus
communication of vehicle
†
Intended for 7" inch screens, the GM LVDS2 interface will allow your factory screen to enable a
Camera or add multiple cameras to your factory screen. It can also be used as a “Baby Monitor”
or
“Monitor for your Trailer Hitch”
GM† LVDS Camera
2014-2018
APPLICATIONS (7" IOB MyLink screen)
Chevrolet
Colorado 2014-2018
Silverado 1500/2500/3500 2014-2018
GMC
Canyon 2014-2018
Sierra 1500/2500/3500 2014-2018
Note: Only compatible with NTSC cameras.
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications.
2

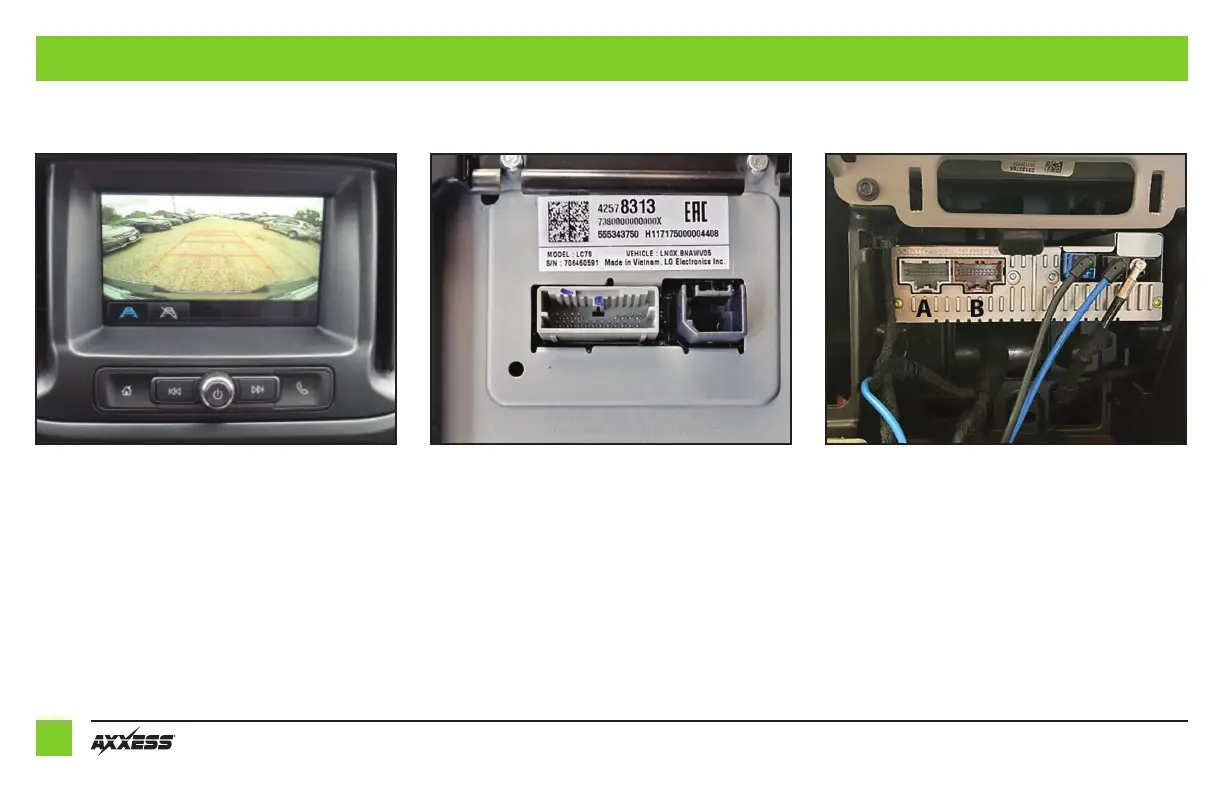

CONNECTIONS
1. Disconnect the factory Gray 20-pin connector that plugs
into the factory Radio Control Module.
2. Connect the (A) LD-GMLVDS2-AC (B) LD-GMLVDS3-and
AC into the factory connector that was removed and
connect the other end into the . Radio Control Module
3. Disconnect the LVDS connection from the factory screen,
connect that cable into the LVDS input side of the board.
4. Connect the LVDS output side of the interface into the
factory screen.
5. Connect the 6-pin connector from the LD-GMLVDS-AC2 to
the 6-pin from the (B) LD-GMLVDS3-AC harness.
6. Connect the 4-pin connector from the LD-GMLVDS-AC2 to
the 4-pin from the (A) LD-GMLVDS2-AC harness.
AXAC-GM2 CONNECTIONS
3
REV. 11/30/22 INSTAXAC-GM2
CONNECTIONS CONT.
16-pin Connector: Plugs into interface
Gray/Blue wire: Is the control wire that can be configured to
accept a Positive or Negative input, that can be used to
trigger the video output.
Red wire*: Will provide 12v(5a) as long as the vehicle is awake
for the aftermarket cameras.
