AXAC-CH7
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/25/24 INSTAXAC-CH7
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights,
are plugged in before reconnecting the battery or
cycling the ignition to test this product.
NOTE:
Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES
TOOLS REQUIRED
REQUIRED ITEMS
TABLE OF CONTENTS
Introduction 2 ...........................................................
Configuration 2-4 .....................................................
Connections 4-5 ........................................................
Installation 5-6 .........................................................
Programming 7 .........................................................
Rebooting the U-Connect Radio 7 ..........................
• (4) Camera inputs
• (1) Programmable camera control wire
• Micro-B USB updatable
• Reverse signal trigger generated via CAN bus communication of
the vehicle
• Turn signal trigger generated via CAN bus communication of the
vehicle
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
• AXAC-CH7 interface
• AXAC-CH7 interface harness
• AXAC-CH7 vehicle harness
Update Cable: AXUSB-MCBL (sold separately)
Axxess Updater Program
Jeep/Ram* Camera Interface With Pre-
Wired Harness 2018.5-2023
APPLICATIONS
Jeep
Wrangler JL 2018.5-2023 .............................................
Jeep Gladiator JT 2020-2023 .......................................
Ram
1500 (DT) (with 8.4" U-Connect) 2019-2021 ...............
1500 Classic (with 8.4" U-Connect) 2019-2023 ...........
Note: Only compatible with NTSC cameras.
Visit for more detailed information
AxxessInterfaces.com
about the product and up-to-date vehicle specific applications

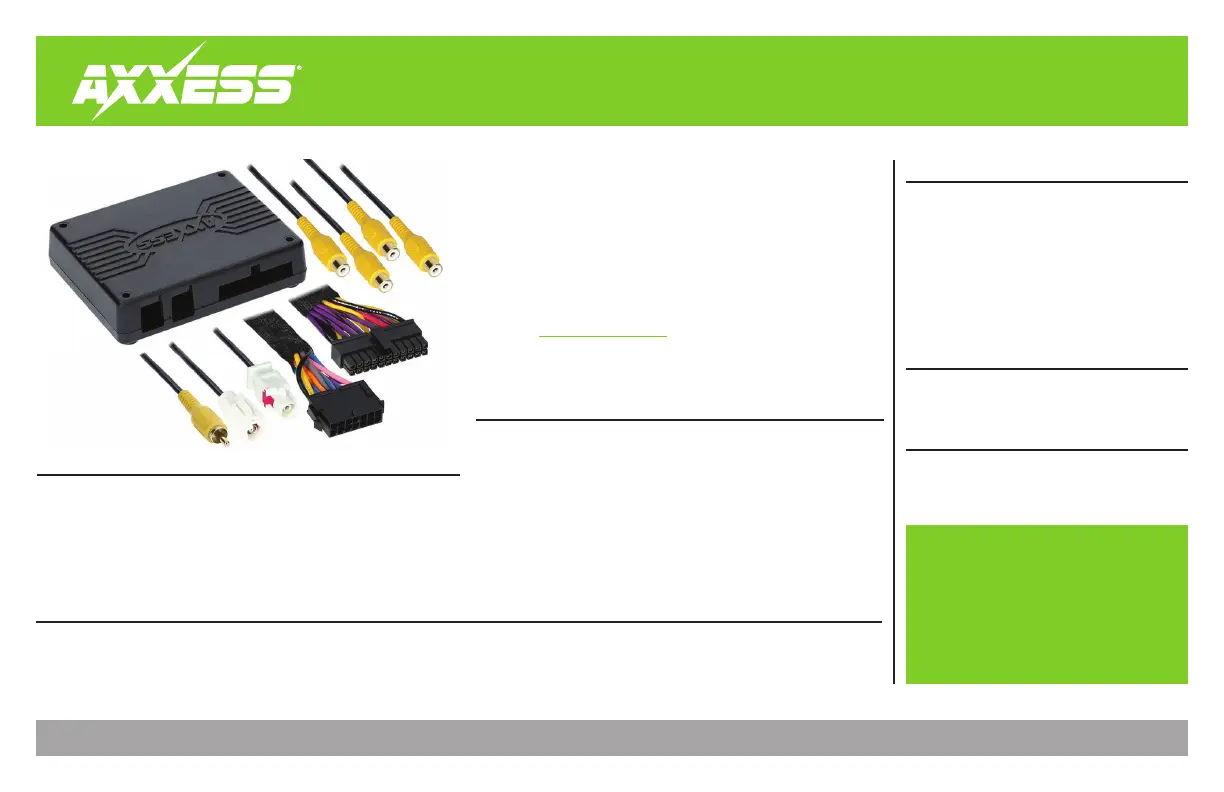

INTERFACE COMPONENTS
* With 8.4-inch U-Connect radio
2
CONFIGURATION
• Download and install the Axxess Updater available at: AxxessInterfaces.com
• Connect the update cable (sold separately) between the interface and the computer. AXUSB-MCBL
The cable will connect into the micro-B USB port in the interface.

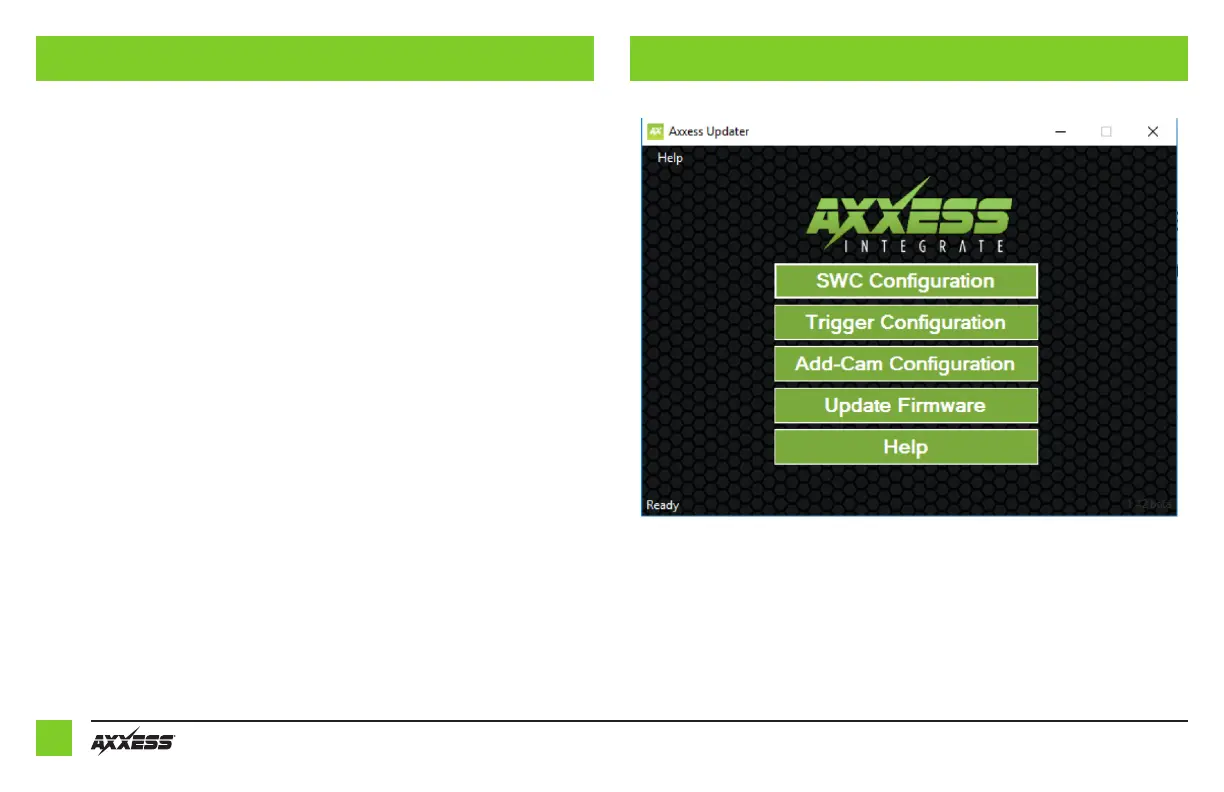

• Open the Axxess Updater and wait until the word is listed in the bottom left of the screen.Ready
• Select Add-Cam Configuration.
Continued on the next page
INTRODUCTION
The is a camera switching interface that provides: AXAC-CH7
• A front camera, and/or side cameras that an be added to the factory radio.
• Up to (3) additional camera inputs to the factory radio, while still retaining the factory camera.
• Automatic camera function, no human interaction is required, unless desired.
• Up to (4) cameras, if the vehicle doesn’t come equipped with a backup camera.
Note: iBEAM Axxess recommends cameras from the product line for best results.
3
REV. 7/25/24 INSTAXAC-CH7
• Under Configuration, configure the (4) video trigger inputs to the desired settings. *
• Once all selections have been configured, press to save the settings.Write Configuration
• Unplug the update cable from the interface and computer.
* Refer to the following page for more information.
CONFIGURATION (CONT.)
Continued on the next page
• Select the vehicle in the drop down list. A tab labeled will appear after the Configuration
vehicle has been selected.
