AXAC-CH6
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/25/24 INSTAXAC-CH6
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights,
are plugged in before reconnecting the battery or
cycling the ignition to test this product.
NOTE:
Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES
TOOLS REQUIRED
INTERFACE COMPONENTS
REQUIRED ITEMS
TABLE OF CONTENTS
Introduction 2 ...........................................................
Configuration 2-4 .....................................................
Connections 5 ............................................................
Installation 6 .............................................................
Programming 6 .........................................................
Rebooting the U-Connect Radio 7 ..........................
• (4) Camera inputs
• Reverse signal trigger generated via CAN bus communication of
the vehicle
• Turn signal trigger generated via CAN bus communication of
the vehicle
• (4) Programmable camera control wires
• Micro-B USB updatable
• Crimping tool and connectors, or solder gun,
solder, & heat shrink • Tape • Wire cutter • Zip
ties

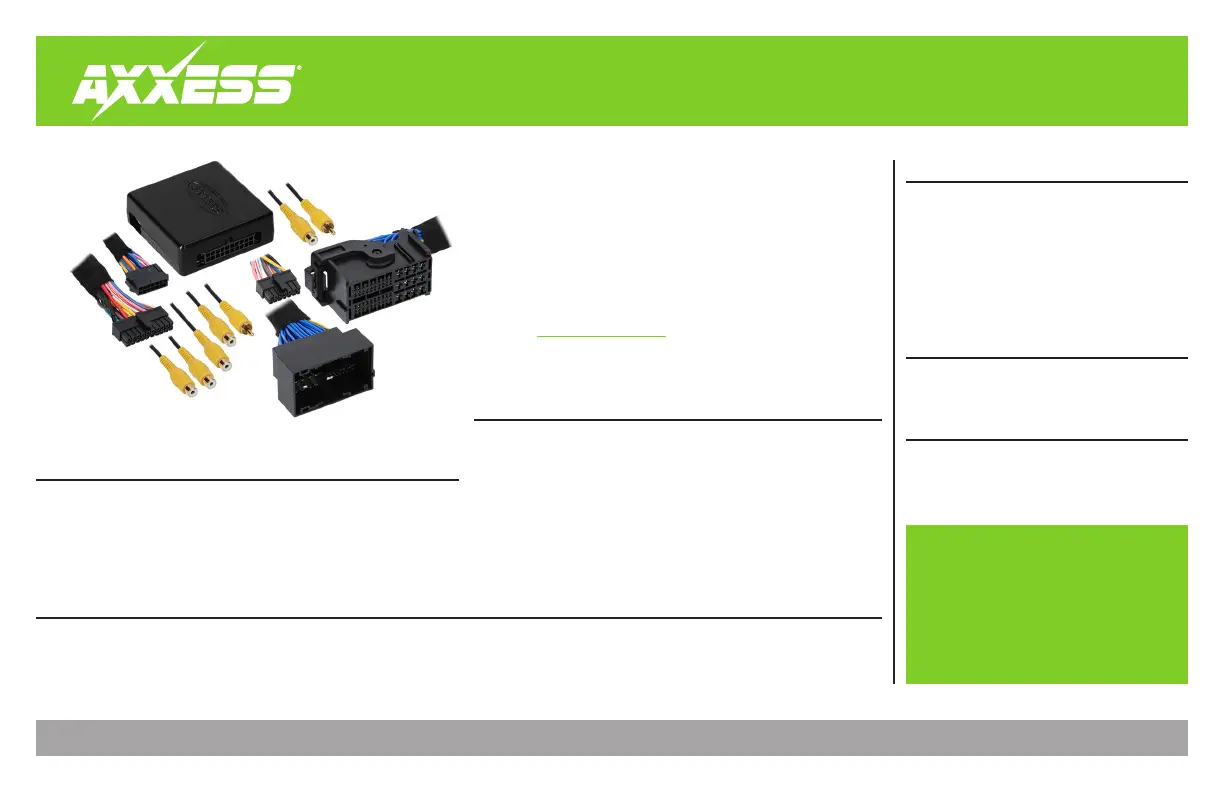

• AXAC-CH6 interface
• AXAC-CH6 interface harness
• AXAC-CH6 vehicle harness
Update Cable: AXUSB-MCBL (sold separately)
Axxess Updater Program
* With 5-inch U-Connect radio
Jeep/Ram* Camera Interface With
Pre-Wired
Harness
2014-Up
APPLICATIONS
Jeep
Renegade 2015-2018 .......................................................................
Ram
Promaster 2014-Up .........................................................................
Promaster City 2015-2017 ...............................................................
Note: Only compatible with NTSC cameras.
Visit for more detailed information
AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
2
CONFIGURATION

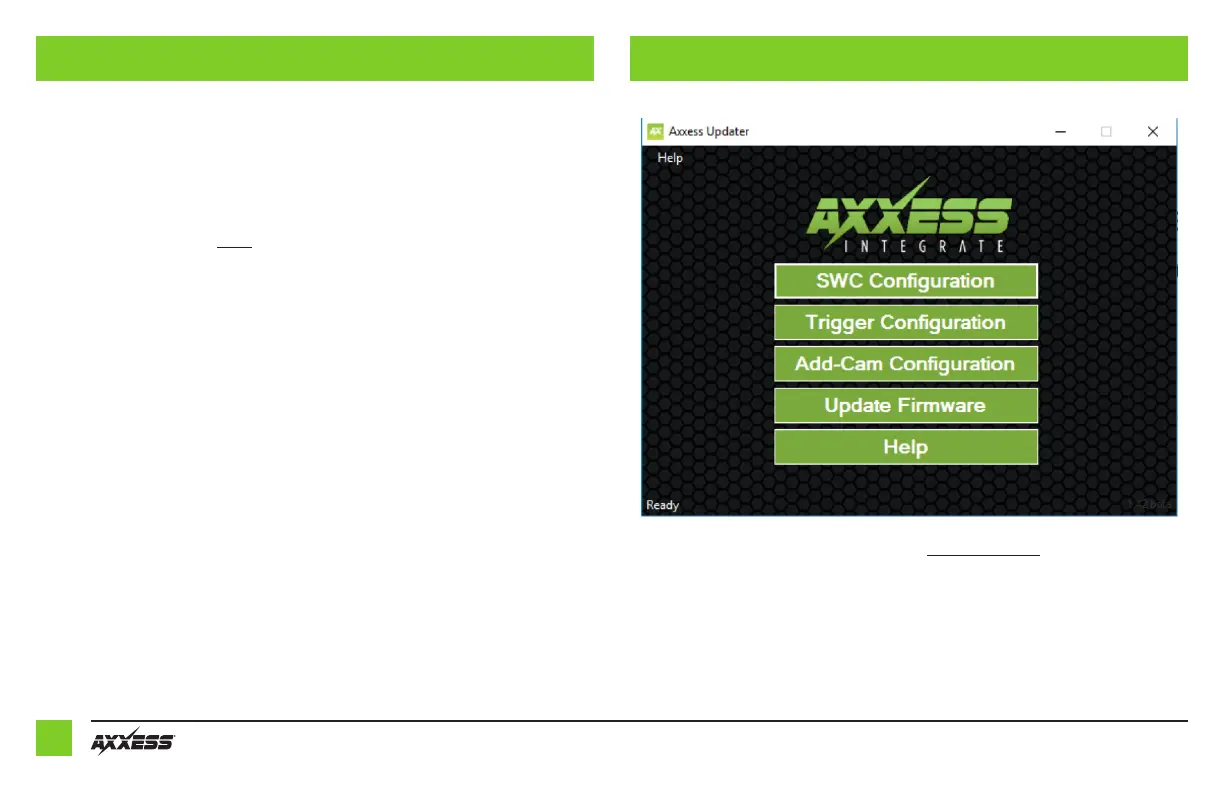

• Download and install the Axxess Updater available at: AxxessInterfaces.com
• Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer.
The cable will connect into the micro-B USB port in the interface.
• Open the Axxess Updater and wait until the word is listed in the bottom left of the screen.Ready
• Select Add-Cam Configuration.
Continued on the next page
INTRODUCTION
The AXAC-CH6 is a camera switching interface that provides up to (3) additional camera inputs
to the factory radio, while still retaining the factory camera. With this interface a front camera,
and/or side cameras, can be added to the factory radio. The cameras function automatically, no
human interaction required, unless desired to do so. The interface can also be used if the vehicle
doesn’t come equipped with a backup camera, adding up to (4) cameras in this scenario. Axxess
recommends cameras from the iBEAM product line for best results.
3
REV. 7/25/24 INSTAXAC-CH6
• Under Configuration, configure the (4) video trigger inputs to the desired settings. *
• Once all selections have been configured, press to save the settings.Write Configuration
• Unplug the update cable from the interface and computer.
* Refer to the following page for more information.
CONFIGURATION (CONT.)
Continued on the next page
• Select the vehicle in the drop down list. A tab labeled will appear after the Configuration
vehicle has been selected.
