CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
AXABH-TY1
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 11/25/20 INSTAXABH-TY1
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Amplifier Location .................................................2
Connections
- Toyota ............................................................... 3-5
- Lexus ....................................................................6

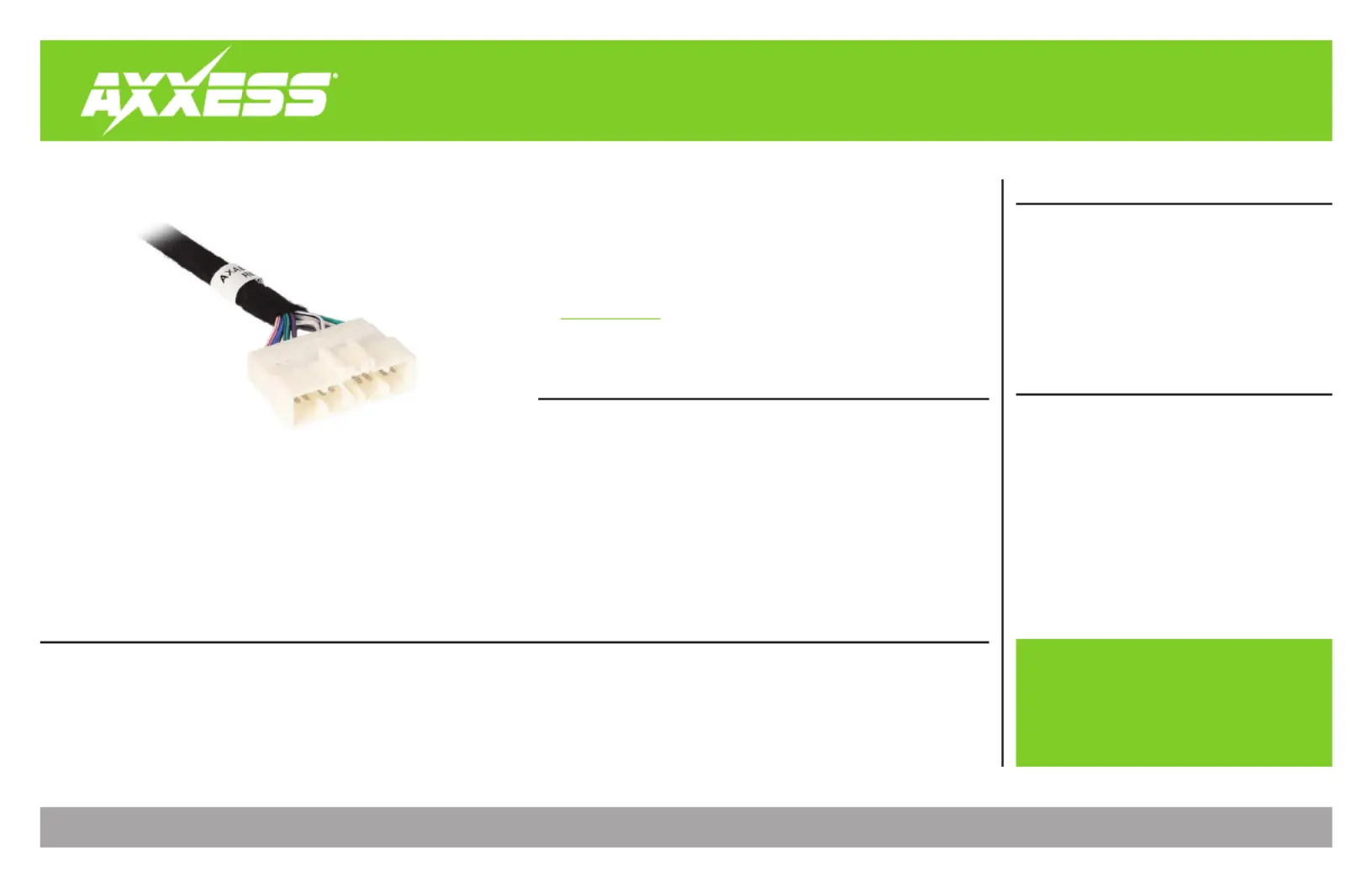

Toyota / Lexus Amplifier Bypass Harness
2003-2010
• Amplifier bypass harness
• Vehicle-specific harness to bypass the factory amplifier
• Allows loose wires to wire to an aftermarket amplifier
• Saves the installer unnecessary labor and wire
Always verify speaker output by testing with a tone generator, or similar device before making
connections. The output locations follow the manufacturers’ terminology for the speakers.
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications
APPLICATIONS
Toyota
4Runner 2003-2009
Matrix 2003-2010
Prius 2004-2005
Sequoia 2005-2007
Sienna 2004-2010
Solara 2005-2008
Tacoma 2005-2008
Tundra 2005-2006
Lexus
RX330
(excluding Mark Levison audio) 2004-2006
INTERFACE FEATURES
2
AMPLIFIER LOCATIONS
Toyota Years Location
4Runner 2003-2009 Passenger side of trunk, behind power outlet panel
Matrix 2003-2010 Below center console
Prius 2004-2005 Below driver’s seat
Sequoia 2005-2007 Below driver’s seat
Sienna 2004-2010 Behind glove compartment
Solara 2005-2008 Behind glove compartment
Tacoma 2005-2008 Passengers side behind rear seat
Tundra 2005-2006 Below passengers seat
Lexus
RX330 2004-2006 Behind rear seat in luggage compartment
3
REV. 11/25/2020 INSTAXABH-TY1
CONNECTIONS
Green/White Rear hatch speaker pair (+)
White/Red Rear hatch speaker pair (-)
Brown/White Center speaker (+)
Blue/Pink Center speaker (-)
Green Left rear door speaker (+)
Green/Black Left rear door speaker (-)
Purple Right rear door speaker (+)
Purple/Black Right rear door speaker (-)
White Left front door speaker (+)
White/Black Left front door speaker (-)
Gray Right front door speaker (+)
Gray/Black Right front door speaker (-)
Pink Left subwoofer (+)
White/Blue Left subwoofer (-)
Yellow/Brown Right subwoofer (+)
Green/Purple Right subwoofer (-)
4Runner 2003-2009
Green/White Subwoofer coil 2 (+)
White/Red Subwoofer coil 2 (-)
Brown/White Subwoofer coil 1 (+)
Blue/Pink Subwoofer coil 1 (-)
Green Left rear door speaker (+)
Green/Black Left rear door speaker (-)
Purple Right rear door speaker (+)
Purple/Black Right rear door speaker (-)
White Left tweeter (+)
White/Black Left tweeter (-)
Gray Right tweeter (+)
Gray/Black Right tweeter (-)
Matrix 2003-2010
Brown/White Center speaker (+)
Blue/Pink Center speaker (-)
Green Left rear door speaker (+)
Green/Black Left rear door speaker (-)
Purple Right rear door speaker (+)
Purple/Black Right rear door speaker (-)
White Left front tweeter (+)
White/Black Left front tweeter (-)
Gray Right front tweeter (+)
Gray/Black Right front tweeter (-)
Pink Left front door speaker (+)
White/Blue Left front door speaker (-)
Yellow/Brown
Right front door speaker (+)
Green/Purple
Right front door speaker (-)
Prius 2004-2005
