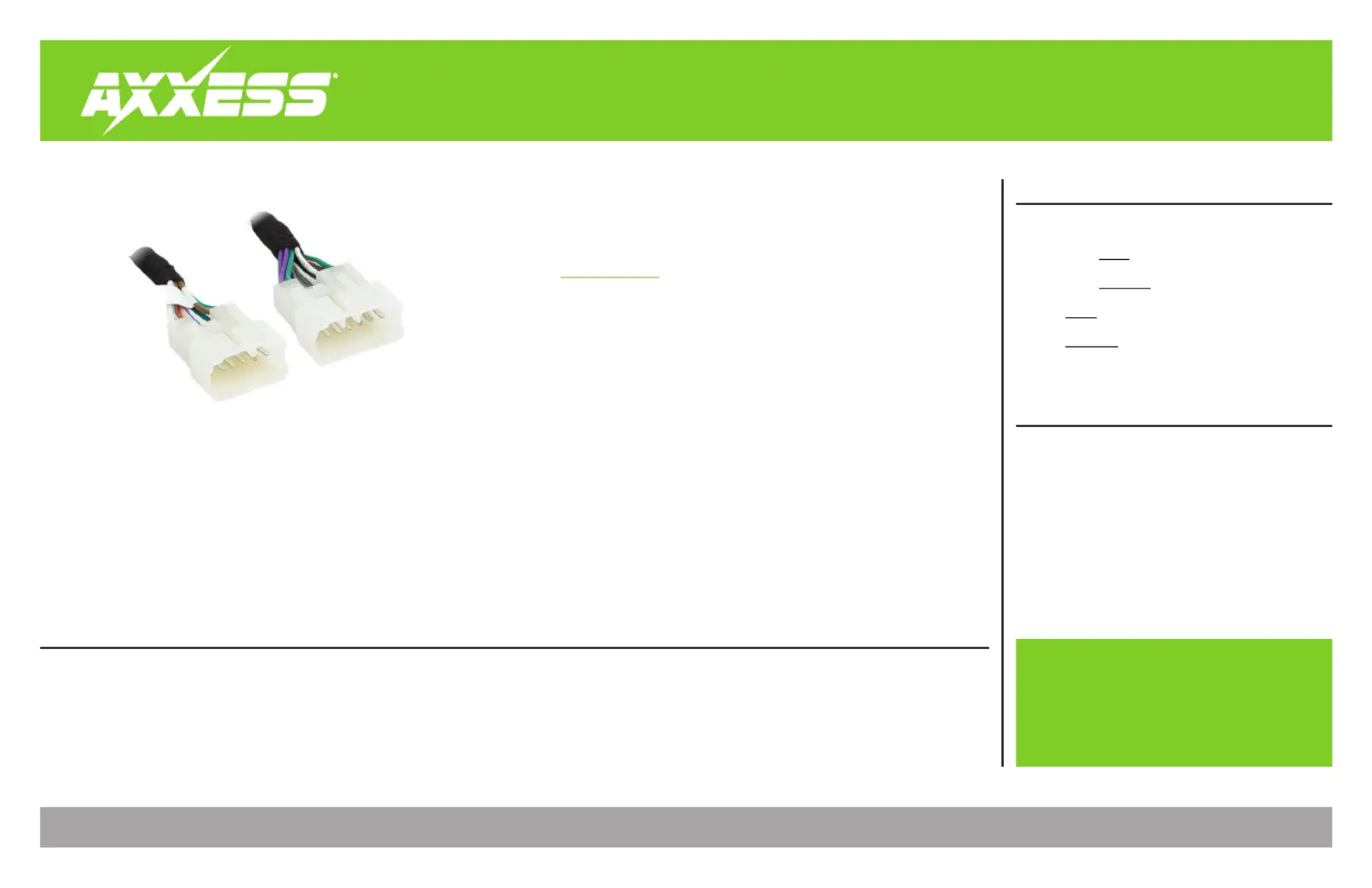

AXABH-LX3
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com Ā© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 7/15/20 INSTAXABH-LX3
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
TOOLS REQUIRED
ā€¢ Crimping tool and connectors, or solder gun,
solder, and heat shrink
ā€¢ Tape ā€¢ Wire cutter ā€¢ Zip ties
TABLE OF CONTENTS
Ampliļ¬er Location & Connections
-Convertible
With
Mark Levinson .........................2
-Convertible
Without
Mark Levinson ...................3
-Sedan
With
Mark Levinson ..................................4
-Sedan
Without
Mark Levinson ............................5
Lexus IS Series
Ampliļ¬er Bypass Harness
2010-2015
Factory amp must stay plugged into vehicle in order for your factory
HVAC to work. When using the bypass harness only unplug connectors
that correspond with the amp bypass being used. All other remaining
plugs must stay plugged in with amp and remain in vehicle.
Refer to the following pages for the vehicle speciļ¬c instructions for
wiring connections. Wiring connections vary per ampliļ¬er design.
If itā€™s uncertain whether the vehicle contains a speciļ¬c speaker or not,
test the wires with a tone generator, or check to see if the factory
wires are populated on the vehicle side. Alternatively, the wires can
be tested for impedance with a multimeter.
APPLICATIONS
Lexus
IS250 2010-2013
IS350 2010-2013
IS250C 2010-2015
IS350C 2010-2015
Note: For navigation models 2013-Up, use part number AXABH-LX1
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle speciļ¬c applications
2
AMPLIFIER LOCATION & CONNECTIONS
Convertible Models
(
with
Mark Levinson sound system)
10-Pin Connector:
Brown/White Front Left Door Midrange/Tweeter +
Blue/Pink Front Left Door Midrange/Tweeter -
White Front Right Door Midrange/Tweeter +
White/Black Front Right Door Midrange/Tweeter ā€“
Pink Center Channel +
White/Blue Center Channel -
Green/White Subwoofer +
Yellow/Brown Subwoofer -
White/Red Not Used
Green/Purple Not Used
12-Pin Connector:
White Front Left Door Woofer +
White/Black Front Left Door Woofer -
Gray Front Right Door Woofer +
Gray/Black Front Right Door Woofer -
Green Rear Left Woofer/Tweeter +
Green/Black Rear Left Woofer/Tweeter -
Purple Rear Right Woofer/Tweeter +
Purple/Black Rear Right Woofer/Tweeter -
Green/Orange Not Used
Green/Red Not Used
Black/Yellow Not Used
Black/Green Not Used
Ampliļ¬er Location: Right Rear of Trunk
3
REV. 7/15/2020 INSTAXABH-LX3
AMPLIFIER LOCATION & CONNECTIONS
Convertible Models
(
without
Mark Levinson sound system)
10-Pin Connector:
Green/White Front Left Door Midrange/Tweeter +
White/Red Front Left Door Midrange/Tweeter -
Yellow/Brown Front Right Door Midrange/Tweeter +
Green/Purple Front Right Door Midrange/Tweeter -
Brown/White Not Used
Blue/Pink Not Used
White Not Used
White/Black Not Used
Pink Not Used
White/Blue Not Used
12-Pin Connector:
White Front Left Door Woofer +
White/Black Front Left Door Woofer -
Gray Front Right Door Woofer +
Gray/Black Front Right Door Woofer -
Green Rear Left Full Range +
Green/Black Rear Left Full Range -
Purple Rear Right Full Range +
Purple/Black Rear Right Full Range -
Green/Orange Not Used
Green/Red Not Used
Black/Yellow Not Used
Black/Green Not Used
Ampliļ¬er Location: Right Rear of Trunk
