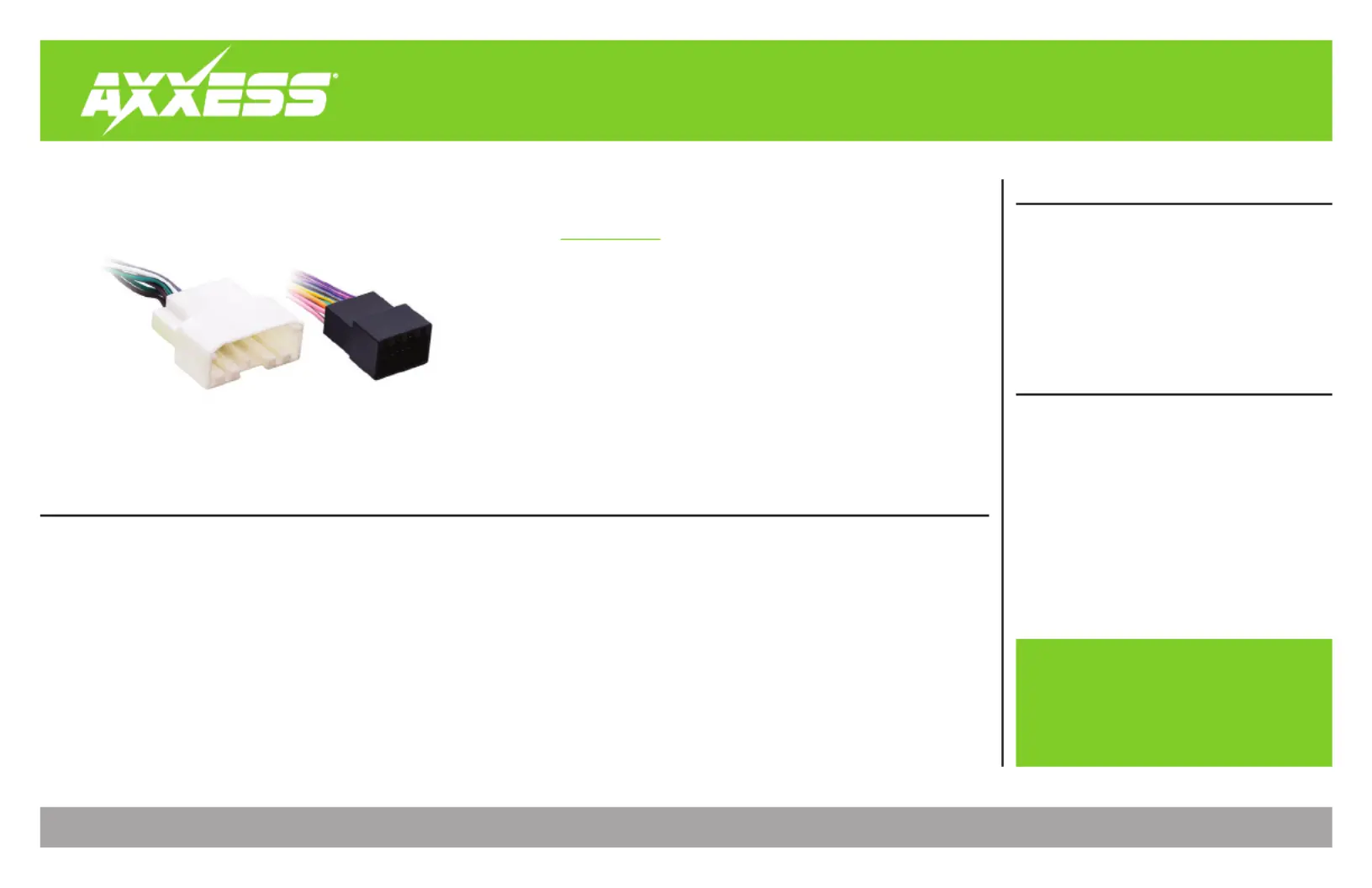

AXABH-CH2
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/30/20 INSTAXABH-CH2
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Connections
White 22-Pin Harness ......................................2-3
Black 16-Pin Harness.......................................3-6
Chrysler Amplifier Bypass Harness 2007-Up
Refer to the following pages for the vehicle specific instructions
for wiring connections. Wiring connections vary per vehicle. Please
note that there are (2) different wiring harnesses included, and the
instructions for each harness will be on a different page.
If it’s uncertain whether the vehicle contains a specific speaker or not,
test the wires with a tone generator, or check to see if the factory
wires are populated on the vehicle side. Alternatively, the wires can
be tested for impedance with a multimeter.
APPLICATIONS
Chrysler
200 2015-2017
300 (Base Amp) 2011-Up
Town & Country 2008-2017
Dodge
Challenger (Base Amp) 2015-Up
Charger (Base Amp) 2011-Up
Dart 2013-2016
Durango 2011-2017
Durango (excluding SRT) 2018-Up
Grand Caravan 2008-Up
Journey 2009-2018
Nitro 2007-2011
Jeep
Cherokee 2014-2018
Cherokee
†
2019-Up
Compass 2017.5-Up
Grand Cherokee
(Base Amp) 2011-2017
Liberty 2008-2012
Wrangler 2007-2017
Wrangler (JK body type) 2018
Ram
1500/2500/3500 2013-2018
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications
†
Without Active Noise Control (ANC)
2
CONNECTIONS
CHRYSLER
200 2015-2017
Town & Country 2008-2017
DODGE
Dart 2013-2016
Durango 2011-2017
Durango (excluding SRT) 2018-Up
(Grand) Caravan 2008-Up
JEEP
Cherokee 2014-2018
Cherokee
†
2019-Up
Compass 2017.5-Up
Grand Cherokee (Base Amp) 2011-2017
Gray/Black To Right Instrument Panel Speaker -
White/Black To Left Instrument Panel Speaker -
Green To Left Rear Speaker/Tweeter +
Brown To Center Instrument Panel Speaker +
Gray To Right Instrument Panel Speaker +
White To Left Instrument Panel Speaker +
Green/Black To Left Rear Speaker/Tweeter -
Brown/Black To Center Instrument Panel Speaker -
White 22-Pin harness:
DODGE
Journey 2009-2018
Nitro 2007-2011
JEEP
Liberty 2008-2012
Wrangler 2007-2017
Wrangler (JK body type) 2018
RAM
1500/2500/3500 2009-2018
Gray/Black To Right Instrument Panel Speaker -
White/Black To Left Instrument Panel Speaker -
Green To Left Rear Speaker/Tweeter +
Brown To Subwoofer +
Gray To Right Instrument Panel Speaker +
White To Left Instrument Panel Speaker +
Green/Black To Left Rear Speaker/Tweeter -
Brown/Black To Subwoofer -
White 22-Pin harness:
†
Without Active Noise Control (ANC)
3
REV. 1/30/2020 INSTAXABH-CH2
CONNECTIONS (CONT.)
CHRYSLER
Town & Country 2008-2017
DODGE
Grand Caravan 2008-Up
Nitro 2007-2011
JEEP
Liberty 2008-2012
Wrangler 2007-2017
Wrangler (JK body type) 2018
Purple/White To Subwoofer 3 -
Red/White To Right Rear Tweeter -
Purple To Subwoofer2 +
Gray/Blue To Right Rear Speaker +
Yellow/Blue To Left Rear Speaker -
Green/Black To Subwoofer 1 -
Orange To Right Front Speaker +
Pink To Left Front Speaker +
White/Purple To Subwoofer 3 +
White/Red To Right Rear Tweeter +
Purple/Black To Subwoofer2 -
Gray/Red To Right Rear Speaker -
Yellow/Red To Left Rear Speaker +
Green To Subwoofer 1 +
Orange/Black To Right Front Speaker -
Pink/Black To Left Front Speaker -
CHRYSLER
300 (Base Amp) 2011-Up
DODGE
Challenger (Base Amp) 2015-Up
Charger (Base Amp) 2011-Up
Gray/Black To Right Instrument Panel Speaker -
White/Black To Left Instrument Panel Speaker -
Green To Center Instrument Panel Speaker +
Gray To Right Instrument Panel Speaker +
White To Left Instrument Panel Speaker +
Green/Black To Center Instrument Panel Speaker -
Brown NOT USED
Brown/Black NOT USED
Black 16-Pin harness:
White 22-Pin harness:
