CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.

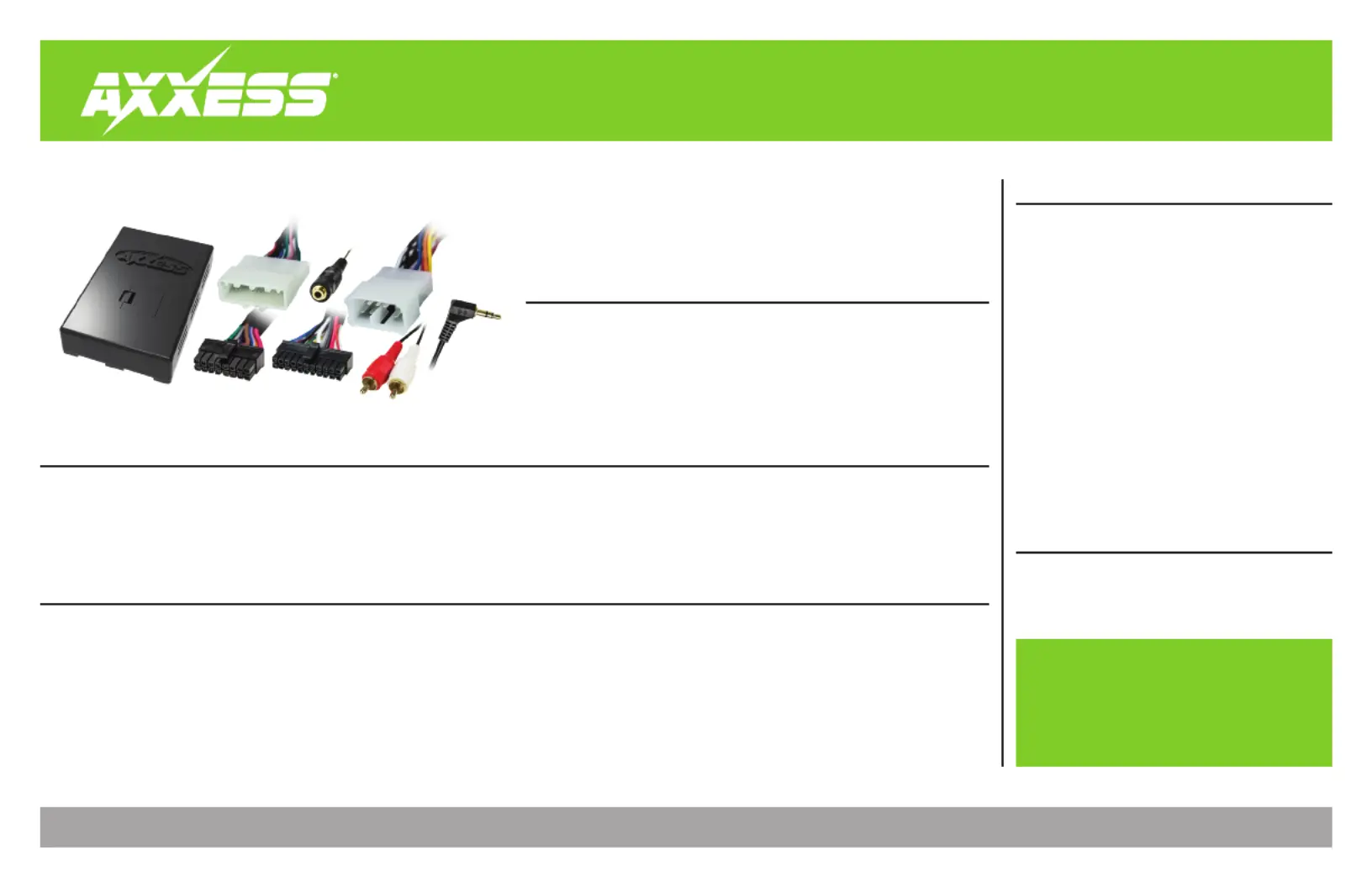

AX-TYAMP2-SWC
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 7/24/18 INSTAX-TYAMP2-SWC
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.) • Small flat-blade screwdriver
TABLE OF CONTENTS
Connections to be made ....................................2-3
- 3.5mm jack steering wheel control retention
...3
Installing the AX-TYAMP2-SWC .............................3
Programming the AX-TYAMP2-SWC......................4
Adjusting the AX-TYAMP2-SWC .............................4
Steering wheel control settings ........................5-7
- L.E.D. feedback ....................................................5
- Changing radio type ...........................................5
- Remapping the steering wheel control buttons ...6
- Dual assignment instructions (long button press)
... 7
Troubleshooting .....................................................8
Toyota Amp Interface with SWC 2012-up*
APPLICATIONS
• Retains audio controls on the
steering wheel
• Provides NAV outputs (reverse)
• Retains the factory AUX-IN jack
• Designed for amplified models
• Retains balance
• Micro “B” USB updatable
TOYOTA
Avalon * 2013-up
4-Runner 2014-up
Camry 2014-2017
Camry (w/ nav) 2012-2013
Highlander 2014-up
Prius 3rd Gen (w/ nav) 2012-2015
Plug-In (PHV) (w/ nav) 2012-2015
Prius V 2012-2017
Rav-4 2014.5-up
Sequoia 2014-up
Sequoia (w/ nav) 2013
Sienna 2015-up
Tacoma 2014-up
Tundra * 2014-up
Venza 2015
Venza (w/ HDD based nav) 2013-2014
• AX-TYAMP2-SWC interface
• AX-TYAMP2-SWC harness
• Female 3.5mm connector with stripped lead
*Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
* Only for models with a JBL amplifier
2
CONNECTIONS TO BE MADE
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the wire to the amp turn on wire. This wire must be connected to hear Blue/White
sound from the factory amplifier.
• Connect the wire to the right front positive speaker output.Gray
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the wire to the left front positive speaker output.White
• Connect the wire to the left front negative speaker output.White/Black
• Connect the wire to the left rear positive speaker output.Green
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the wire to the right rear positive speaker output.Purple
• Connect the wire to the right rear negative speaker output.Purple/Black
• Tape off and disregard the following (6) wires, they will not be used in this application:
Blue/Pink Brown Green/Purple Light Green Orange/White, , , , , Red.
From the AX-TYAMP2-SWC harness to the aftermarket radio:
• Connect the wire to the ground wire.Black
• Connect the Yellow wire to the battery wire.
• Connect the wire to the accessory wire.Red
• Connect the wire to the power antenna wire.Blue
• If the aftermarket radio has an illumination wire, connect the wire to it.Orange
The following (1) wire is for an aftermarket multimedia/navigation radio that requires this wire.
If not required, tape it off and disregard it.
• Connect the Green/Purple wire to the reverse wire.
• If retaining the factory AUX-IN jack, connect the & RCA jacks to the AUX input.Red White
Continue to 3.5mm jack steering wheel control retention
3
REV. 7/24/2018 INSTAX-TYAMP2-SWC
CONNECTIONS TO BE MADE INSTALLING THE AX-TYAMP2-SWC(CONT)
3.5mm jack steering wheel control retention:
• The 3.5mm jack is to be used to retain audio controls on the steering wheel.
• For the radios listed below, connect the included
female 3.5mm connector with stripped leads,
to
the male 3.5mm SWC jack from the AX-TYAMP2-SWC. Any remaining wires tape off and disregard
.
•
Eclipse: Connect the steering wheel control wire, normally Brown Brown/White, to the
wire of the connector. Then connect the remaining steering wheel control wire, normally
Brown/White, to the wire of the connectorBrown
.
•
Metra OE:
Connect the steering wheel control Key 1 wire
(Gray)
to the
Brown
wire.
•
Kenwood or select JVC with a steering wheel control wire:
Connect the
Blue/Yellow
wire
to the
Brown
wire.
Note:
If your Kenwood radio auto detects as a JVC, manually set the radio type to
Kenwood. See the instructions under changing radio type.
•
XITE:
Connect the steering wheel control SWC-2 wire from the radio to the
Brown
wire.
•
Parrot Asteroid Smart or Tablet:
Connect the 3.5mm jack into the AX-SWC-PARROT (sold
separately), and then connect the 4-pin connector from the AX-SWC-PARROT into the radio
.
Note:
The radio must be updated to rev. 2.1.4 or higher software.
•
Universal “2 or 3 wire” radio:
Connect the steering wheel control wire, referred to as Key-A
or SWC-1, to the
Brown
wire of the connector. Then connect the remaining steering wheel
control wire, referred to as Key-B or SWC-2, to the
Brown/White
wire of the connector. If the
radio comes with a third wire for ground, disregard this wire
.
Note:
After the interface has been programmed to the vehicle, refer to the manual
provided with the radio for assigning the SWC buttons. Contact the radio manufacturer
for more information.
• For all other radios: Connect the 3.5mm jack from the AX-TYAMP2-SWC harness into the jack on
the aftermarket radio designated for an external steering wheel control interface. Please refer to
the aftermarket radios manual if in doubt as to where the 3.5mm jack goes to.
With the key in the off position:
• Connect the 16-pin harness with stripped leads, and the AX-TYAMP2-SWC harness, into the
interface.
Attention!
Do not connect the AX-TYAMP2-SWC harness to the wiring harness in the vehicle just yet.
Attention!
If retaining steering wheel controls, ensure that the jack/wire is connected to the radio
before proceeding. If this step is skipped, the interface will need to be reset for the steering wheel
controls to function.
