Seite 1/28

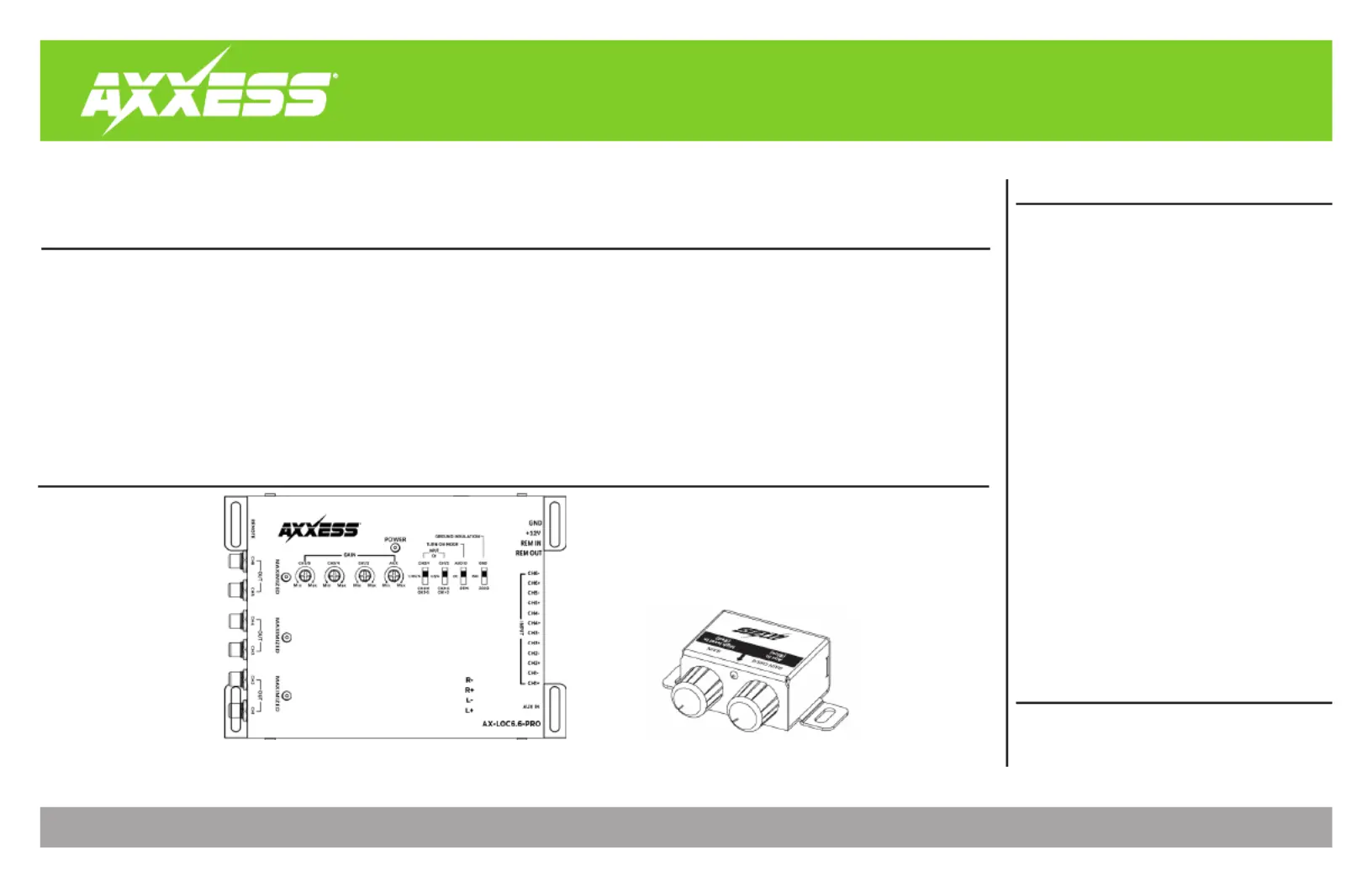

AX-LOC6.6-PRO
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 8/22/23 INSTAX-LOC6.6-PRO
TABLE OF CONTENTS
Quick Start Guide
Things to Know 2 .................................................
Quick Reference 3 ................................................
Feature Breakdowns 4 .............................................
Internal Jumper 5 .....................................................
Input/Output Setting Switches 6 .............................
Connections/Setup 7 ................................................
Diagrams 8-12 ...........................................................
6 Channel High Level Input w/Summing 8 .........
4 Channel High Level Input/6 Ch. Summed 9 ....
4 Channel High Level Input/6 Ch. Output 10 .....
2 Channel High Level Input/6 Ch. Output 11 ......
Multi-Function Remote 12 ........................................
Gain Setup
Basic Setup 13 .......................................................
Advanced Setup ..............................................13
Specifications 14 .......................................................
Premium Advanced LOC
TOOLS RECOMMENDED
• Digital Multi-meter
• Test Tones
Multi-Function Remote with 6 ft Cable
AX-LOC6.6-PRO Line Out Converter (LOC)
COMPONENTS
AX-LOC6.6-PRO
Introducing the This advanced LOC is a game-changer for your vehicle’s audio system. With its powerful audio processing Axxess AX-LOC6.6-PRO!
capabilities, it takes your music to a new level. The enables seamless integration by summing OEM audio signals, delivering a AX-LOC6.6-PRO
full-range output that captures every detail and nuance of your favorite tracks. Experience enhanced clarity, depth, and balance as you enjoy your
music like never before. Elevate your driving experience with the and immerse yourself in the true essence of high-Axxess AX-LOC6.6-PRO
quality sound. Upgrade your car audio system today and unleash the full potential of your music!
2
THINGS TO KNOW
1. This is an active LOC and MUST have constant 12 volt and a good ground to operate
properly. Having a poor ground can induce noise into your system, use the same
gauge wire as the 12 volt line.
2. The AX-LOC6.6-PRO enables connections for up to six channels of speaker-level input
from the source. It supports input signals ranging from 2Vrms to 20Vrms, resulting
in an RCA output that can range from a maximum to minimum gain of up to 10Vrms.
However, in cases where factory amplifiers generate signals exceeding 20Vrms or if
the output is too high for the connected aftermarket amplifier(s) AX-LOC6.6-PRO’s
even with all gains at minimum, internal jumpers (Figure A) are available.
These jumpers allow for the reduction of input sensitivity range by half (-6dB),
accommodating input signals from 4Vrms up to 40Vrms.
3. The 3.5mm auxiliary input jack allows you to connect portable devices and other low-
level sources using an adapter. It can be selected as a separate source via the remote
or programmed as the primary source for standalone systems. Input signals from
0.5Vrms to 5Vrms produce up to 10Vrms RCA output at the maximum to minimum
gain setting. The input is differential by default but can be set to unbalanced using
internal jumpers if required. (BAL/UNBAL)
4. When ready to mount your LOC check under your selected mounting location to make
sure it is clear of any wiring harnesses, fuel or brake lines or anything else that may
affect the vehicle safety.
QUICK START GUIDE

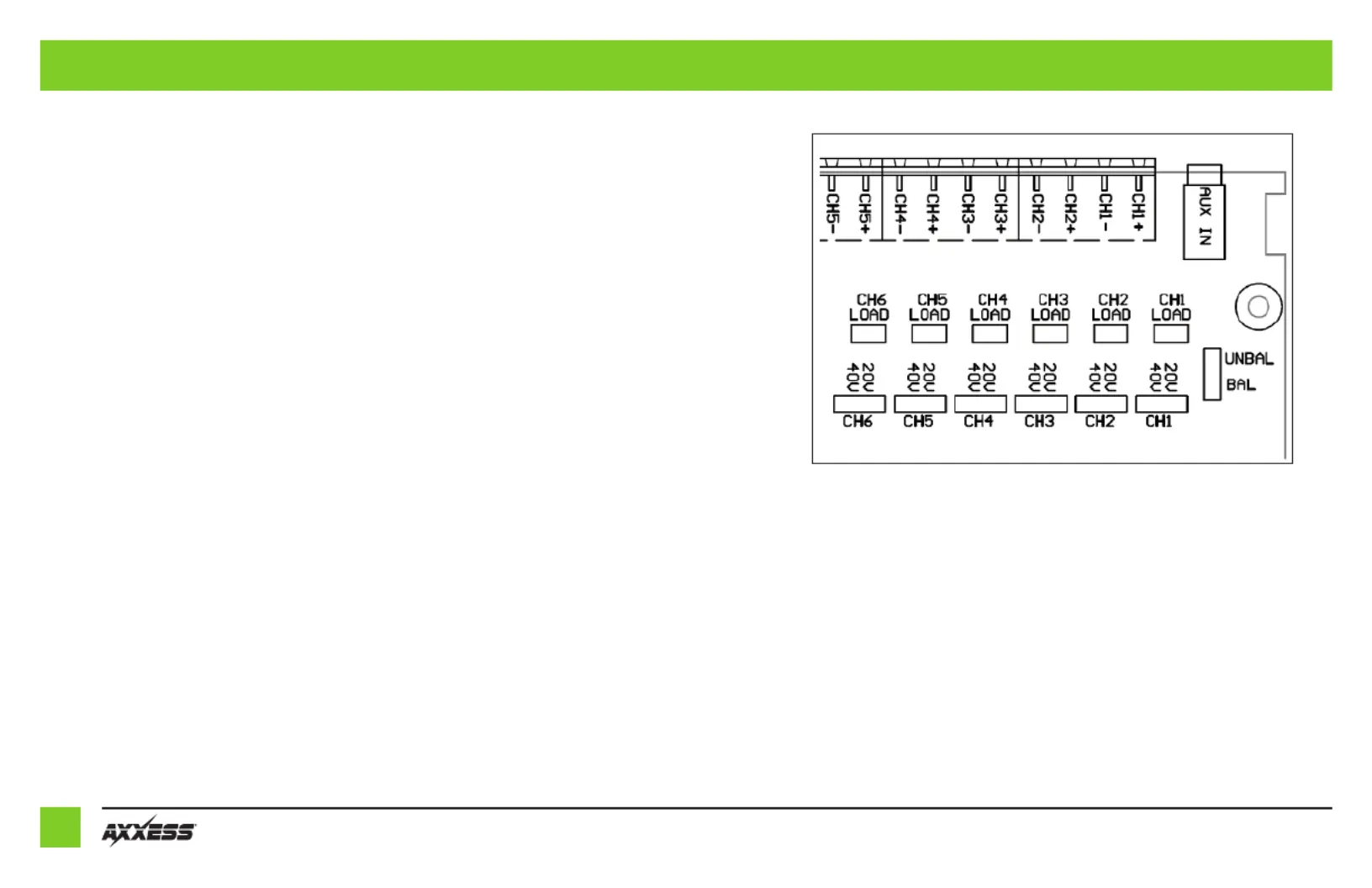

Figure A
3
REV. 8/22/23 INSTAX-LOC6.6-PRO
AX-L0C6.6-PRO
GROUND INSULATION
TURN ON MODE
INPUT
CH
GAIN
CH5/6 CH3/4 CH1/2 AUX
CH5/6
CH3/4 CH1/2
C3/4
DC
ISO
AUDIO GND
CH4+6
CH 3+5 CH2+4
CH 1+3 REM
CH6-
CH6+
CH5-
CH5+
CH4-
CH4+
CH3-
CH3+
CH2-
CH2+
CH1-
CH1+
R-
R+
L-
L+
INPUT
OUT OUTOUT
CH5 CH4CH6 CH3 CH2 CH1
AUX IN
REMOTE
Turn on mode - Selectable three position switch that will
control when the LOC turns on. Settings are REM, DC, and
Audio. Refer to the feature detail for additional information.
REM Out - Remote turn on output. Depend-
ing on the Turn on Mode switches position
the AX-LOC6.6-PRO will provide a remote
output signal. Refer to the feature detail for
additional information.
REM In - Remote turn on input or true Igni-
tion, may dier if DC or Audio is selected on
the Turn on Mode switch.
+12 Volt - Connect to constant 12 volt source.
GND - Connect to chassis ground
Speaker Input - Speaker level input. Feed left
and right speaker wires from the head unit or
amplier to the respective terminals.
Ground Isolation - Three selections : 200 Ohm,
ISO, GND. Refer to the feature detail for addi-
tional information. Default setting: ISO
Multi-Function Remote Jack
RCA OUTPUTS
Maximized - While adjusting the
MAIN LEVEL the Maximized LED
may light up meaning a clipped
signal is detected. Reduce the
MAIN LEVEL adjustment until
the LED is no longer lit.
LEVEL Adjustments - Adjusts
the output level of the RCAs.
Auxiliary Input -AUX input is for the
connection of a portable device.
AUX Gain Adjustment - This adjustment
sets the gain for all output channels from
a low level source connected to the AUX
input jack. Power Indicator - When lit
the AX-LOC6.6-PRO is on.
Input Control Switches- Detail switch settings
are shown on the pages to follow.
6.5”
4.75”

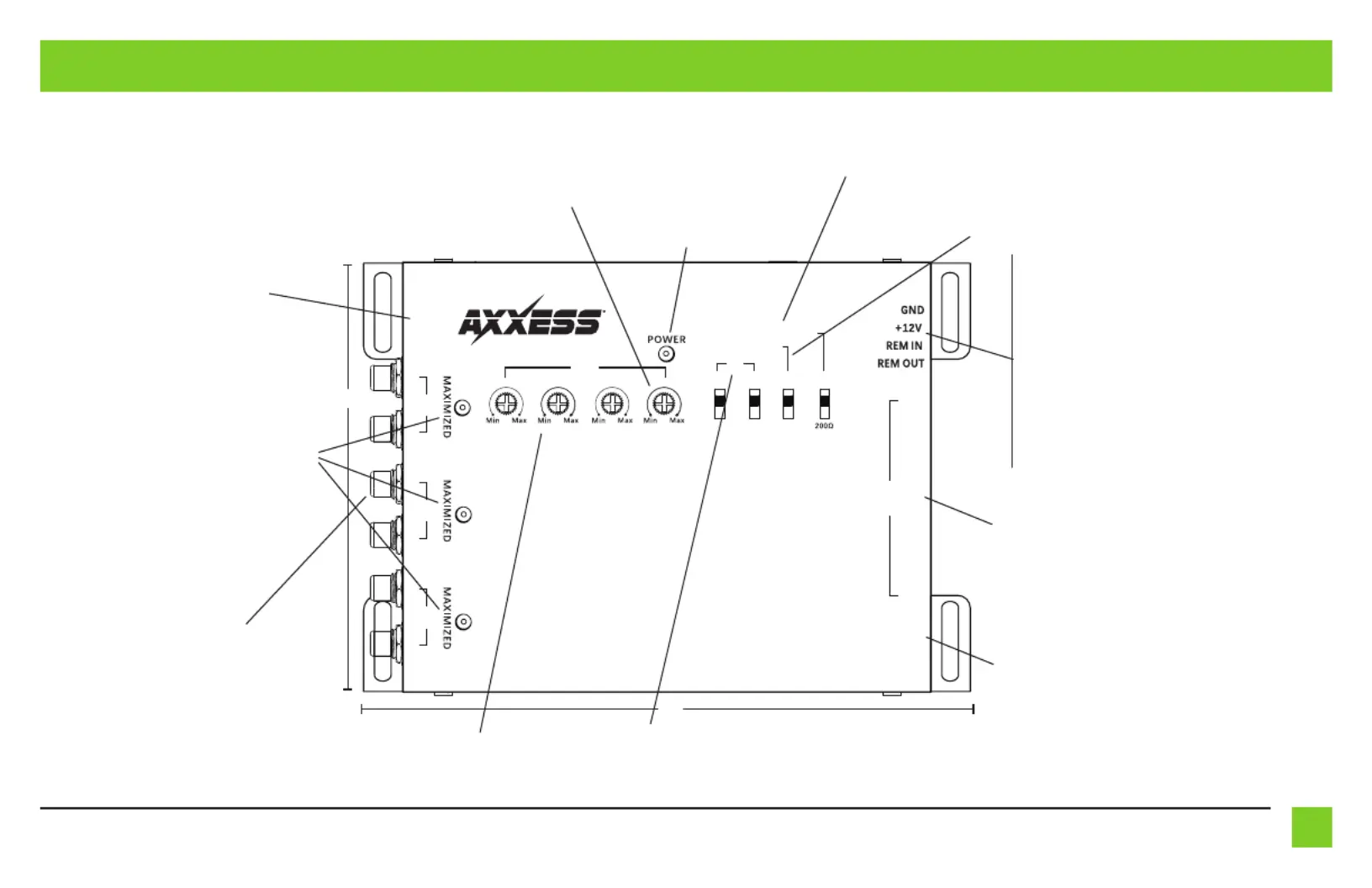

QUICK REFERENCE: AX-LOC6.6-PRO
