AX-LOC2.2PRO/AX-LOC2.4PRO/AX-LOC4.4PRO
I N S TA L L AT I O N I N S T R U C T I O N S
MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 5/8/23 INSTAX-LOC2.2PRO/AX-LOC2.4PRO/AX-LOC4.4PRO
TABLE OF CONTENTS
Components 2 ...........................................................
Quick Start Guide
Things to Know 3 .................................................
Connections .......................................................3
Gain setup
Basic setup 4 .........................................................
Advanced Setup 4 ................................................
Feature Breakdowns 5 .............................................
Quick Reference: AX-LOC2.2PRO 6 ...........................
Diagram: AX-LOC2.2PRO 7 ........................................
Quick Reference: AX-LOC2.4PRO...........................8
Diagram: AX-LOC2.4PRO 9 .......................................
Quick Reference: AX-LOC4.4PRO 10 ........................
Diagram: AX-LOC4.4PRO 11 ......................................
Specifications 12 ........................................................
Premium Active LOC (Line Output Converter)
AX-LOC2.2PRO 2 IN - 2 OUT with Max Input 40v
AX-LOC2.4PRO 2 IN - 4 OUT with Max Input 40v
AX-LOC4.4PRO 4 IN - 4 OUT with Max Input 40v
TOOLS RECOMMENDED
• Digital Multi-meter
• Test Tones
Premium Active LOCs
Metra Electronics High-Voltage Active Line Output Converters Axxess has launched a full series of under its brand name, enabling installers to
add aftermarket amplifiers to OEM source units and make your factory system sound great! This premium line showcases advanced technology by
featuring incredible input power capabilities, load selector, clip indicator, enhanced output controls, and noise isolation countermeasures. Want
to add an external Bass knob? The will directly plug into select PRO LOCs and offer that additional Subwoofer level adjustment Axxess AX-RM-1
customers are looking for. (AX-RM-1 sold separately)
2

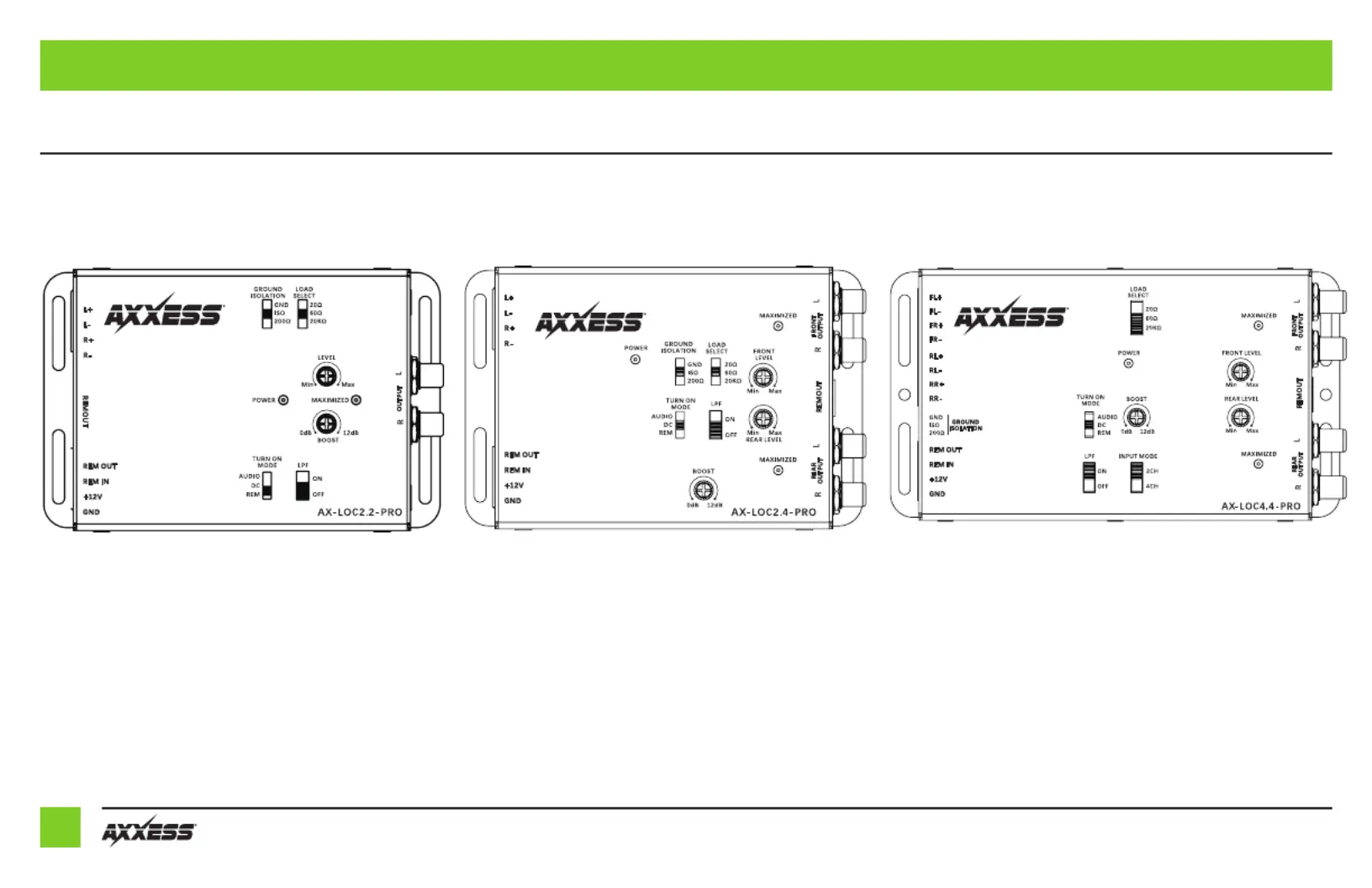

COMPONENTS
AX-LOC4.4PRO
Line Out Converter (LOC)
AX-LOC2.4PRO
Line Out Converter (LOC)
COMPONENTS
AX-LOC2.2PRO
Line Out Converter (LOC)
3
REV. 5/8/23 INSTAX-LOC2.2PRO/AX-LOC2.4PRO/AX-LOC4.4PRO
QUICK START GUIDE
THINGS TO KNOW
1. This is an active LOC and MUST have constant 12 volt and a good ground to operate properly.
Having a poor ground can induce noise into your system, use the same gauge wire as the
12 volt line.
2. Determine a suitable mounting location. Make sure you can access all controls and
connections.
3. When ready to mount your LOC check under your selected mounting location to make sure
it is clear of any wiring harnesses, fuel or brake lines or anything else that may affect the
vehicle safety.
CONNECTIONS
1. Connect your 12 volt and ground wires to the terminals. 14-16 gauge wire is recommended.
2. Turn On Mode DC Offset By default the LOCs is set to . Other turn on options are available
and described in the portion of this manual.Turn On Signal Feature Breakdown
3.
Connecting your can happen in a few different places based on your Speaker Input
factory system.
If your vehicle doesn’t have an OE amplifier your best option is to use the speaker wires a.
located behind the radio. Your LOC only requires two inputs, we recommend a left
and right full range signal.
If your vehicle has an OE amplifier your best option is to use the speaker wires on b.
the output side of your factory amplifier, look for a full range signal.
4. Connect your RCAs. RCA’s are for the right channel. are for the Red Black, Gray, or White
left channels. An explanation of the RCAs and are described in the Main Output Bass Output
Feature Breakdown portion of this manual.
5. AX-RM-1 If the customer would like to control the Bass level remotely the can be purchased
separately and plugs directly into the LOC.
