AX-DSPHNS
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 11/2/18 INSTAX-DPSHNS
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
TABLE OF CONTENTS
20-Pin Harness Pinout...........................................2
Additional Wiring & Notes ....................................3
AX-DSP T-Harness
The Axxess T-harness is a basic and simple plug-n-play harness for easy installation of the AX-DSP (sold separately) for vehicle
specific applications. Most T-harnesses created by Axxess will either have a 4-pin or 8-pin harness, with the speaker wires pinned.
If you are installing a 4-channel amplifier with the AX-DSP, leave these connectors disconnected. The only reason for connecting
these harnesses together would be if the AX-DSP is being used for adding a subwoofer amplifier only. Some T-harnesses require
additional wiring and/or installation steps. Refer to the following page for a pinout legend for the 20-pin harness, and also
additional wiring and notes.
2
20-PIN HARNESS PINOUT
Pin-1 Accessory PowerRed
Pin-2 Brown Not Applicable
Pin-3 CAN-HI (CAN +)Pink
Pin-4 Black/Yellow Future Use
Pin-5 Front Left Speaker (-)White/Black
Pin-6 Gray/Black
Front Right Speaker (-)
Pin-7 Rear Left Speaker (-)Green/Black
Pin-8 Purple/Black
Rear Right Speaker (-)
Pin-9 RCA Input 5 (-)
Pin-10 RCA Input 6 (-)
Pin-11 Yellow Battery Power
Pin-12 Control Wire for the AX-BASSKNOBOrange
Pin-13 CAN-LO (CAN -)Blue/Pink
Pin-14 GroundBlack
Pin-15 Front Left Speaker (+)White
Pin-16 Front Right Speaker (+)Grey
Pin-17 Rear Left Speaker (+)Green
Pin-18 Rear Right Speaker (+)Purple
Pin-19 RCA Input 5 (+)
Pin-20 RCA Input 6 (+)

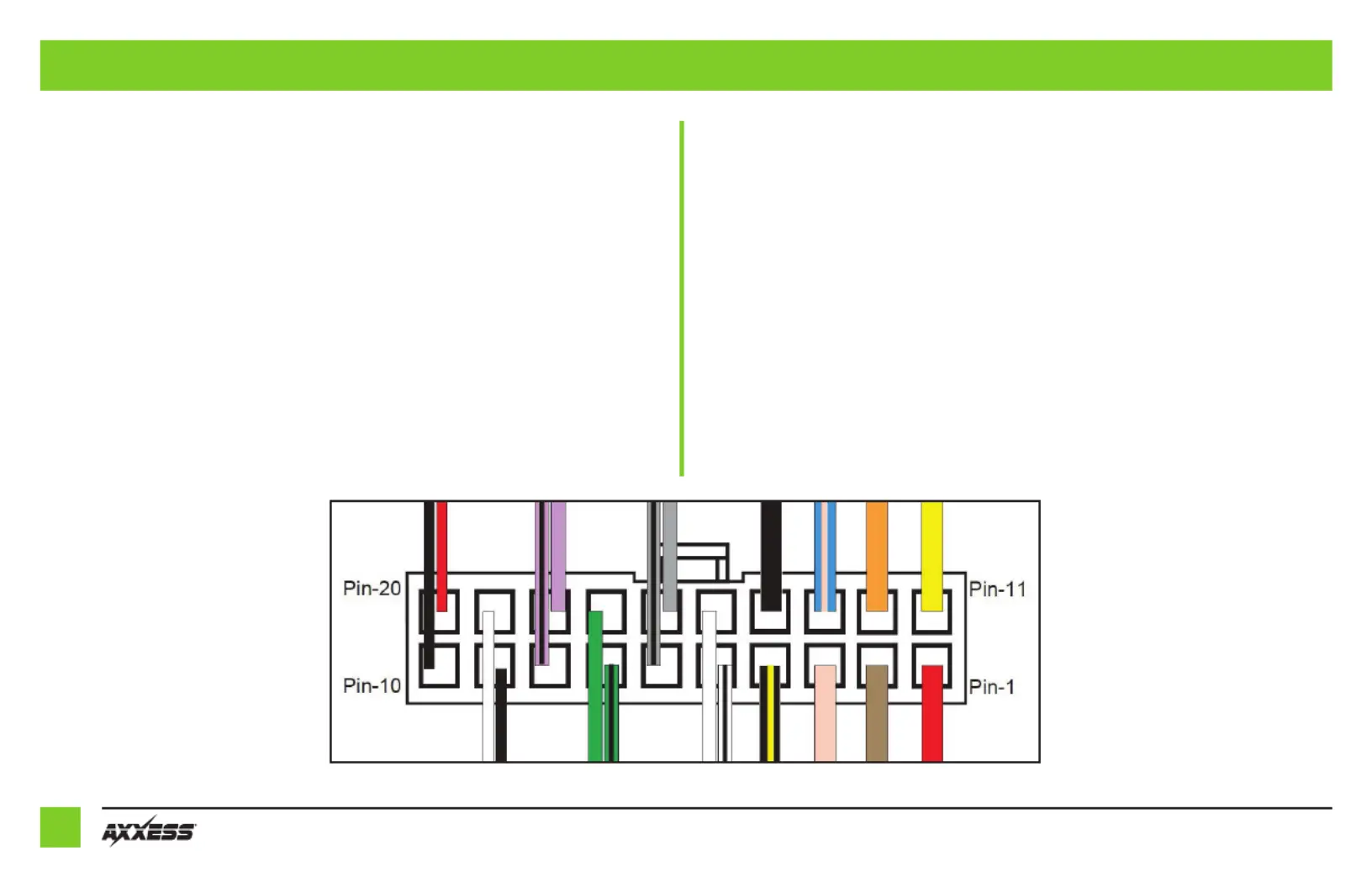

Wire View of Harness
3
REV. 11/2/2018 INSTAX-DSPHNS
ADDITIONAL WIRING & NOTES
AX-DSP-CH5: There will be an extra harness included that will need to be connected to allow
audio from the radio when installing the AX-DSP and a 4-channel amplifier. Newer Chrysler
radios need a load on the speaker lines to provide audio out. This extra harness provides that
resistor load.
AX-DSP-FD2: If the vehicle is equipped with navigation and/or SYNC 3, connect the White and
White/Black wires from the 54-pin harness, (normally found at the LCD screen), to the White
and wires from the 20-pin harness. Then connect the 54-pin harness to the wiring White/Black
harness in the vehicle.

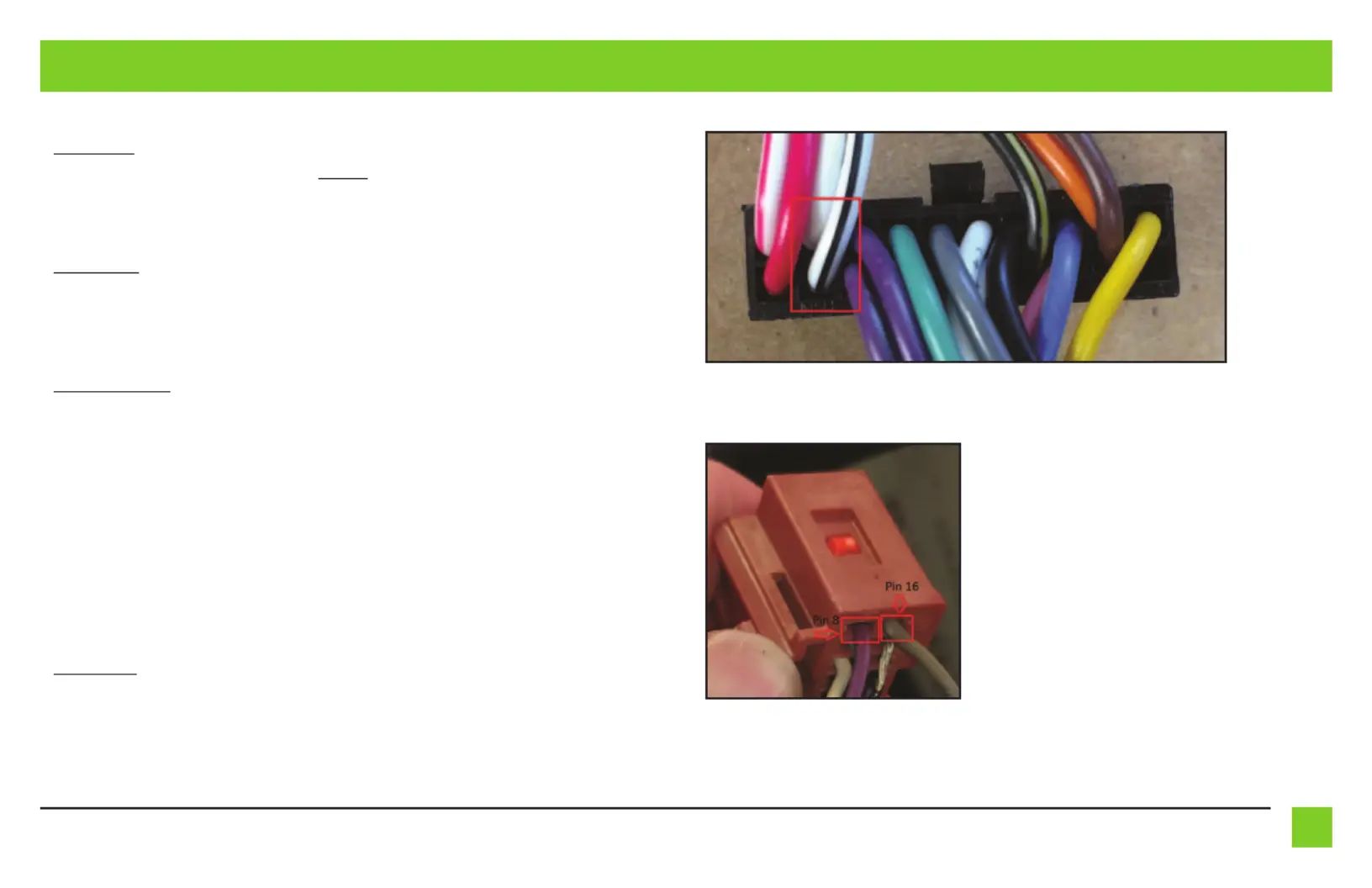

AX-DSP-GMLAN01: Some extra wiring to the factory harness will be required. The and White
White/Black wires from the 20-pin connector on the T-harness will need to be spliced into the
factory wiring. The splicing will be done at the Brown connector behind the radio, on the back
side of the connector (where the wires insert into the it). The wire cavities will be numbered.
Bear in mind that the colors from the connector may not exactly match the picture.Brown
Connect the wire from the 20-pin T-harness to pin-8 from the White Brown factory
connector. (Figures A & B)
Connect the wire from the 20-pin T-harness to pin-16 from the White/Black Brown factory
connector. (Figures A & B)
AX-DSP-HD2: Harley Davidson radios come pre-programmed with a preset EQ that cannot
be changed without flashing the radio. Only an authorized Harley Davidson Dealer can flash
the radio and flatten the factory EQ curve. Ask the Dealer to flash the radio to a flat EQ curve.
Without performing this task, the AX-DSP will not sound proper, and be very distorted.
(Figure A)
(Figure B)
