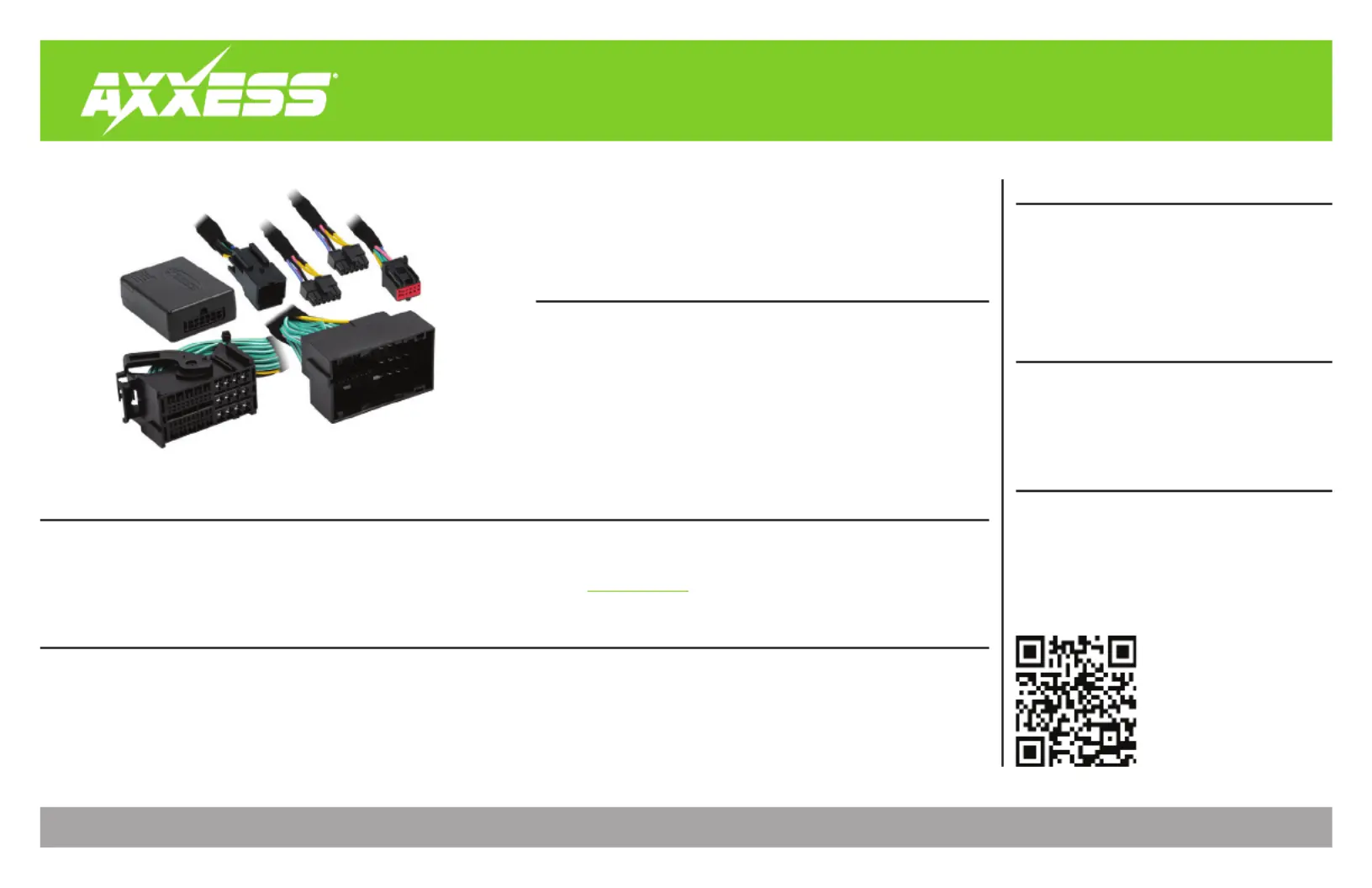

AX-CH-SSO
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com Š COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 2/24/20 INSTAX-CH-SSO
Product Info
INTERFACE FEATURES
INTRODUCTION
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Zip ties • Cutters (for zip ties)
• Micro-B USB cable
(Axxess part number )USB-MINI-CAB
TABLE OF CONTENTS
Programming .........................................................2
Connections ............................................................3
Operation ................................................................4
Chrysler Stop/Start Override Interface
2015-Up
APPLICATIONS
• Allows the override of the STOP/START engine feature
• The factory STOP/START button can resume the STOP/START feature
• Can be used with either a factory or aftermarket radio
•
Vehicle type congured through the Axxess Updater software program
• Simple plug n’ play installation, no wiring required
The AX-CH-SSO is designed to disengage the STOP/START feature of the vehicle, and keep that feature disengaged even after the key has been
cycled. The AX-CH-SSO will work with either an aftermarket radio, or a factory radio. A simple plug n’ play installation is all that is required to install
the device in the vehicle, and programming through a Windows 10 computer via the Axxess Updater software program.
Chrysler
Pacica 2018-Up
Dodge
Durango 2016-Up
Jeep
Cherokee 2016-Up
Grand Cherokee 2015-Up
Wrangler (JK) 2018-Up
Wrangler (JL) 2018
• AX-CH-SSO interface
• AX-CH-SSO harness (qty. 2)
2
PROGRAMMING

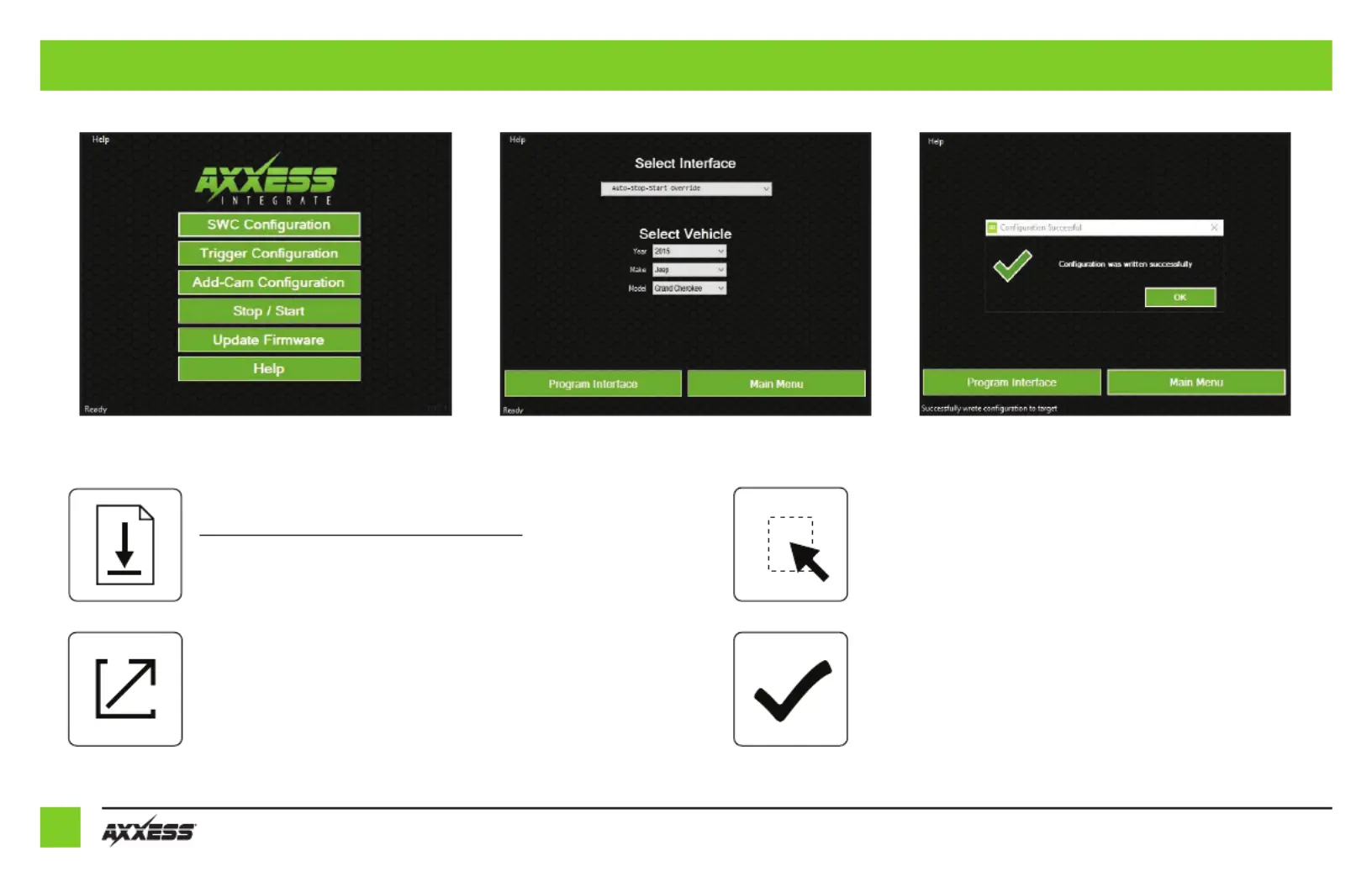

(Figure A) (Figure B) (Figure C)
1.
2.
3.
4.
Download and install the Axxess Updater software program from:
axxessinterfaces.com/resources/updater-software
On the next screen that opens, select the year, make, and model of the
vehicle, then press Program Interface. (Figure B)
Connect the micro-B USB cable (sold separately) to the computer and
AX-CH-SSO interface. Open the Axxess Updater software program and
wait until the word is shown in the bottom left of the screen. Ready
Select . (Figure A)Stop / Start
When the Conguration Successful box pops up, the programming
process is complete. (Figure C)
Continue to Installation
3
REV. 2/24/2020 INSTAX-CH-SSO
INSTALLATION
These vehicles will connect to the wiring harness located at the radio location
.
Chrysler
Pacifica 2017
• Disassembly instructions: metraonline.com/part/99-6543HG
Dodge
Durango 2016-up
• Disassembly instructions: metraonline.com/part/99-6537B
Jeep
Cherokee 2016-up
• Disassembly instructions: metraonline.com/part/99-6518B
Grand Cherokee 2015-up
• Disassembly instructions: metraonline.com/part/99-6536S
Wrangler (JK) 2018
• Disassembly instructions: metraonline.com/part/95-6511

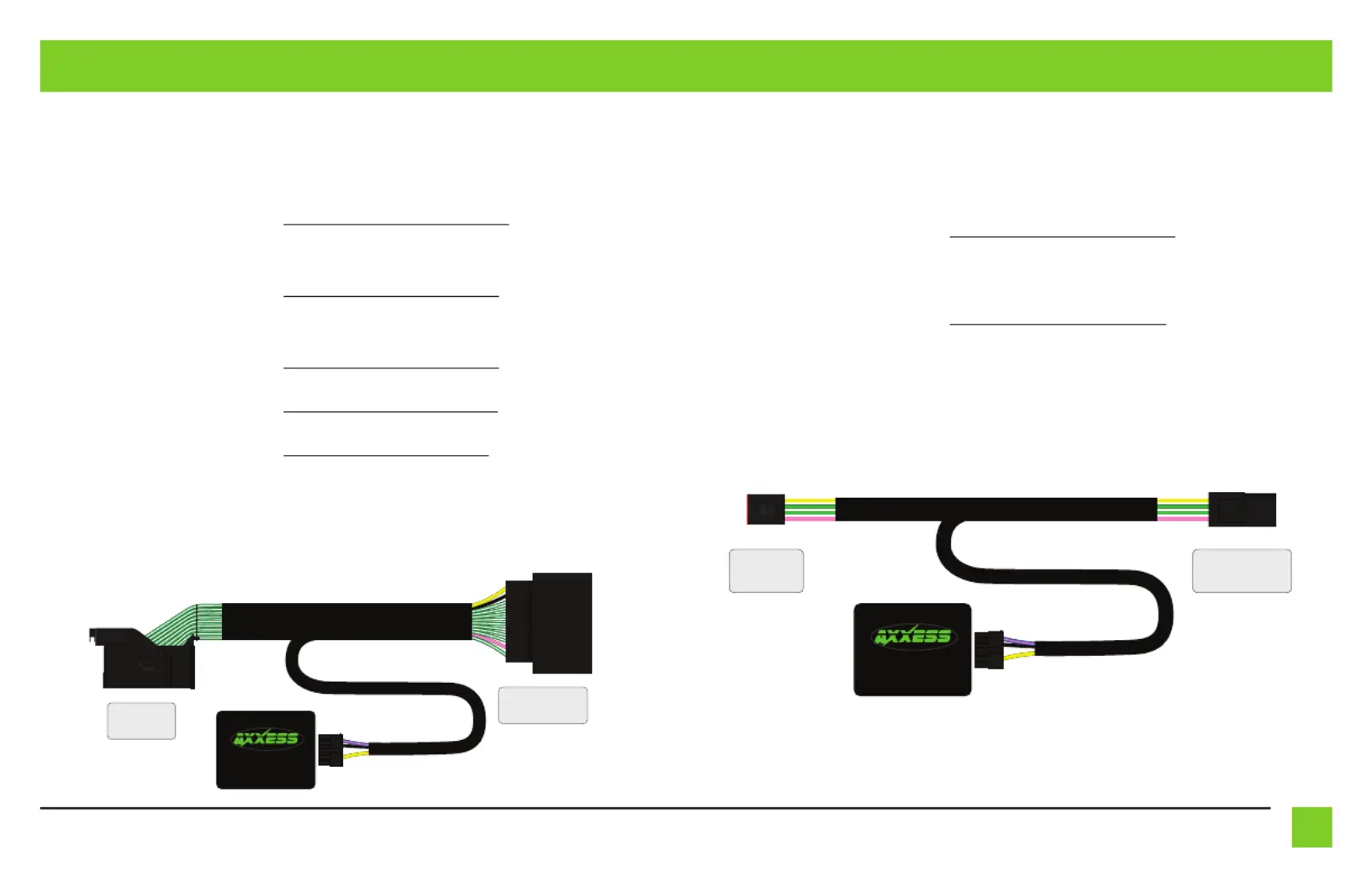

From the wiring harness in the vehicle behind the radio:
1. Unplug the main connector from the radio.
2.
Plug the AX-CH-SSO harness in between the and .radio radio harness
3. Plug the AX-CH-SSO harness into the AX-CH-SSO interface.
These vehicles will connect to the hazard switch in the dashboard.
Chrysler
Pacifica 2018-up
• Disassembly instructions:
metraonline.com/part/99-6543HG
Jeep
Wrangler (JL) 2018-up
• Disassembly instructions:
metraonline.com/part/107-CH3B
From the hazard switch:
1. Unplug the connector from the hazard switch.
2. hazard switch Plug the AX-CH-SSO harness in between the
and .hazard switch harness
3. Plug the AX-CH-SSO harness into the AX-CH-SSO interface.
To Hazard
Switch
To Hazard
Switch Harness
To
Radio
To Radio
Harness
