AX-BRC-PRO
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 9/6/23 INSTAX-BRC-PRO
TABLE OF CONTENTS
Quick Start Guide
Things to Know 2 .................................................
Connections .......................................................2
Quick Reference .....................................................3
Feature Breakdowns...........................................4-6
Gain Setup
Basic Setup 7 ........................................................
Advanced Setup 7-8 ............................................
Diagrams 9-10 ...........................................................
Specifications 11 ........................................................
Visit for more detailed information about AxxessInterfaces.com
the product and up-to-date vehicle specific applications.
TOOLS RECOMMENDED
• Digital Multi-meter
• Test Tones

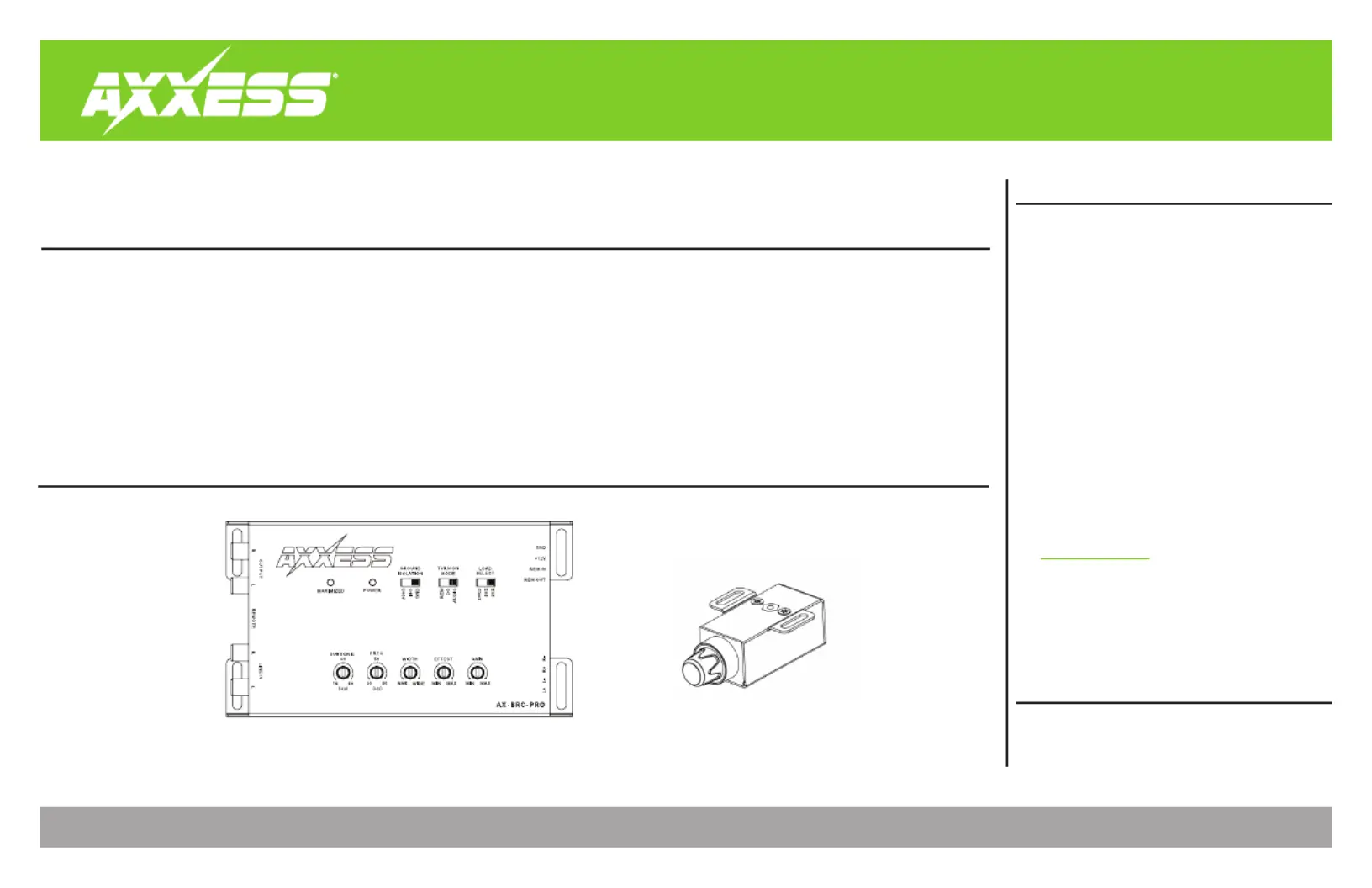

Bass Knob
AX-BRC-PRO Line Out Converter (LOC)
COMPONENTS
Premium Active LOC with Bass Enhancement 2 IN - OUT, Input Of 400 Watts Per Channel, 40v 2
Max
Introduction
Introducing the by Axxess – a pinnacle of audio innovation that redefines the in-car listening experience. Merging advancedAX-BRC-PRO
technology with a passion for audio excellence, the stands as a testament to Axxess’s unwavering commitment to elevatingAX-BRC-PRO
every note, every beat, and every journey. Crafted for those who demand nothing short of sonic perfection, this remarkable device seamlessly
integrates into your vehicle’s audio system, effortlessly breathing new life into your favorite tracks. With its precision bass sculpting, adaptable
activation modes, and cutting-edge features, the marks the dawn of a new era in car audio – where sound becomes an immersiveAX-BRC-PRO
masterpiece, and every drive transforms into an auditory adventure.
2
THINGS TO KNOW
1.
This is an active LOC and MUST have constant 12volt and a good ground to operate properly.
Having a poor ground can induce noise into your system, use the same gauge wire as
the 12 volt line.
2. The AX-BRC-PRO gives you two audio input options: 2-channel speaker-level inputs and
2 channels of line level or RCA inputs. These choices enable you to connect your audio
sources effectively.
Speaker-Level Inputs: For devices like OE radios or amplifiers, opt for speaker-level a.
inputs. They can handle input signals ranging from 4Vrms to 40Vrms. Perfect for
maintaining compatibility with different setups.
RCA (Low-Level) Inputs: If you’re using sources other than OE radios or amplifiers, b.
RCA inputs are your go-to. These inputs accept signals within the range of 1Vrms to
10Vrms, ensuring adaptability to various audio devices.
3. Remote Level Control Jack: This RJ45 jack is for connecting the remote level control to
the main unit with the supplied cable.
QUICK START GUIDE
1. Connect your 12 volt and ground wires to the terminals. 14-16 gauge wire is recommended.
2. By default the LOC’s Turn on mode is set to DC offset. Other turn on options are available
and described in the Turn on Signal Feature Breakdown portion of this manual.
3. If using your SPEAKER Level Inputs there are a few different places to get audio into your
LOC based on your factory system.
If your vehicle doesn’t have an OE amplifier your best option is to use the speaker a.
wires located behind the radio. Your LOC only requires two inputs, we recommend a
left and right signal full range signal.
If your vehicle has an OE amplifier your best option is to use the speaker wires on b.
the output side of your factory amplifier, look for a full range signal.
4. AX-BRC-PRO If adding the to your aftermarket radio to improve your bass levels us the
RCA outputs from the aftermarket radio plugging into the LINE IN of the LOC.
5. Black, Gray, White Connect your RCA’s. Red RCA’s are for the right channel. or RCA’s are
for the left channels to your aftermarket amplifier.
6. It is recommend that the included bass knob be installed where the customer can reach
it easily. The bass knob will give them the ability to control the output levels of the
AX-BRC-PRO.
CONNECTIONS
3
REV. 9/6/23 INSTAX-BRC-PRO

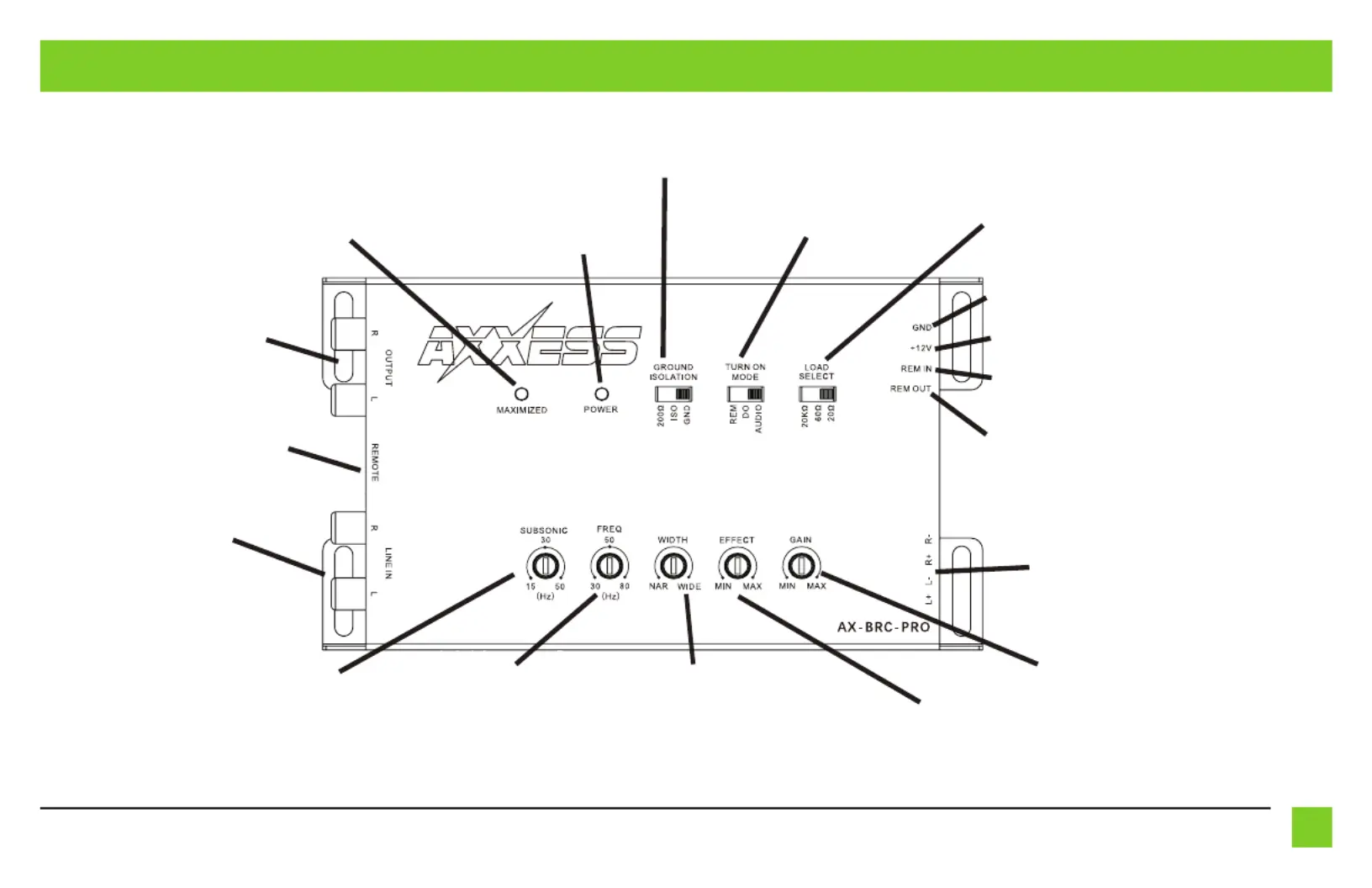

Frequency - This control sets the central
frequency within the range (30Hz to
80Hz) that the AX-BRC-PRO's
enhancement process targets.
Speaker Input - Speaker level input. Feed le ft
and right speaker wires from the head unit or
amplifier to the respective terminals.
Maximized - While adjusting the MAIN LEVEL
the Maximized LED may light up meaning a
clipped signal is detected. Reduce the MAIN
LEVEL adjustment until the LED is no longer lit.
LEVEL justments - justs the output Ad Ad
level of the RCA’s
Eect - This adjustment allows you to
control the maximum boost applied by the
AX-BRC-PRO' ature details s. Refer to the fe
fo for additional in rmation.
Width - justing this determines the range of Ad
frequencies that the bass enhancement process
focuses on. A wider setting incorporates more
surrounding frequencies, delivering comprehensive
bass enhancement.
Subsonic This adjustment sets the Control -
cut-o point (F) r the subsonic filte fo r.
Frequencies below this point are filtered out.
RCA OUTPUTS
REM Out - Remote turn on output.
Depending on the rn on Mode switches Tu
position the AX-BRC-PRO will provide a
remote output signal. Re r to the fe feature
detail r additional in fo formation.
REM In - Remote turn on input or true
Ignition, may dier if DC or dio is sele ed Au ct
on the rn on Mode switch.Tu
+12 Volt - Connect to constant 12 volt source.
GND - Connect to chassis ground
Multi- nction Remote JackFu
LINE LEVEL
OUTPUTS
Load Select - Three selectable ohm load
options, 20k, 60, and 20. Adjust resistance
loads to keep OE equipment producing
audio. Re ature detail for fer to the fe
additional information.
Turn on mode - Selectable three
position switch that will control
when the LOC turns on. Settings
are REM, DC, and di Au o. Refer to
the ature detail r additional fe fo
information.
Ground Isolation - Three selections : 200
Ohm, IS GND ature detail O, . Refer to the fe
fo for additional in rmation. Default setting:
ISO
Power Indicator - When lit the
AX-BRC-PRO is on
QUICK REFERENCE: AX-BRC-PRO
