AxxessInterfaces.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 1/8/19 INSTAX-ADDCAM-MAZ1
I N S TA L L AT I O N I N S T R U C T I O N S
AX-ADDCAM-MAZ1
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
INTERFACE FEATURES
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................2
• “Plug & Play” harness for the AX-ADDCAM interface (sold separately)
• Reverse signal trigger generated via CAN bus communication of the vehicle
• Turn signal trigger generated via CAN bus communication of the vehicle
• (4) Programmable camera control wires (configured through the Axxess Updater program)
INTERFACE COMPONENTS

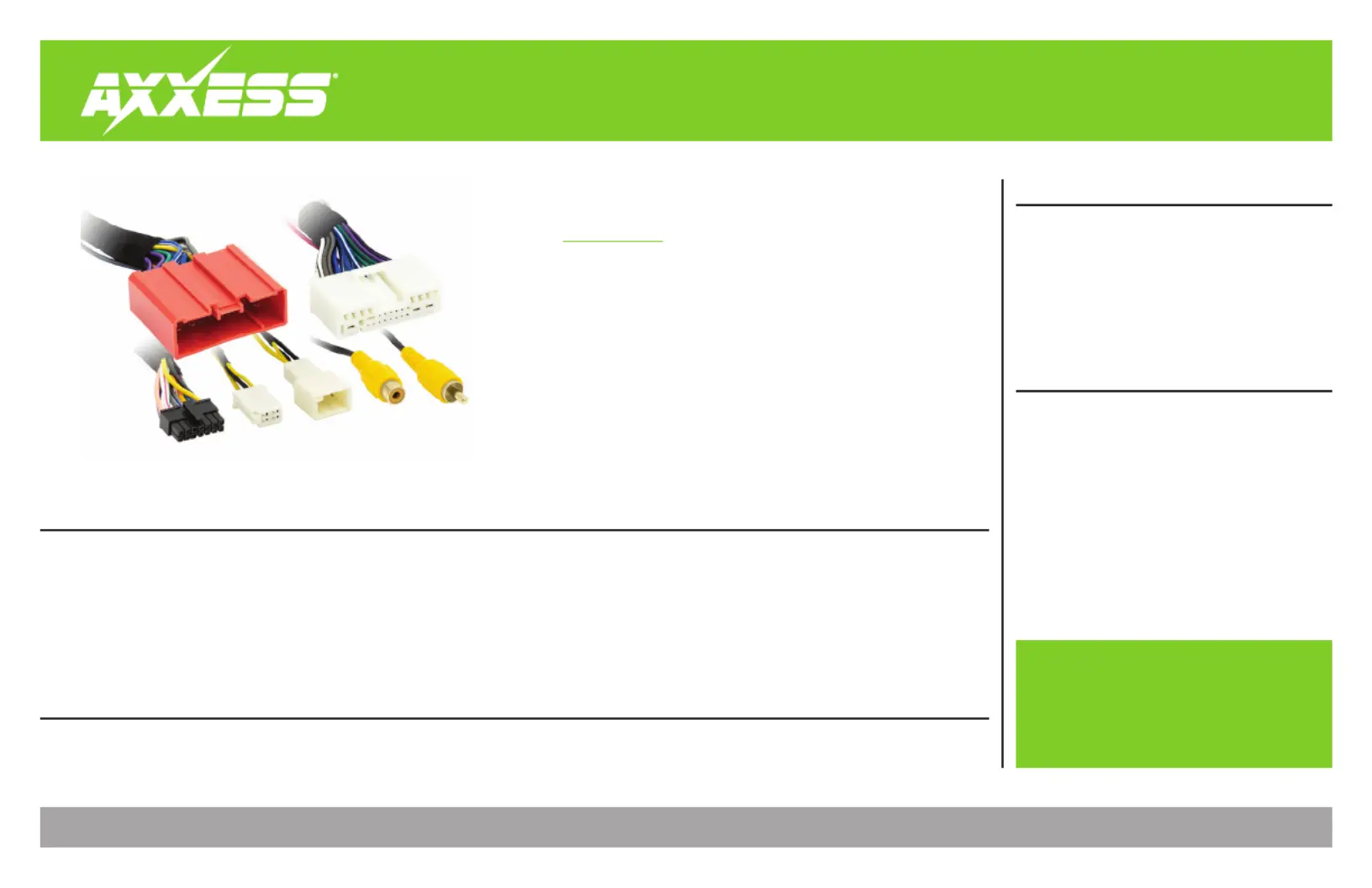

• AX-ADDCAM-MAZ1 main harness
• AX-ADDCAM-MAZ1 camera harness
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications
Mazda (with full color LCD screen) 2013-up
AxxessInterfaces.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 1/8/19 INSTAX-ADDCAM-MAZ1
I N S TA L L AT I O N I N S T R U C T I O N S
AX-ADDCAM-MAZ1
CONNECTIONS
For vehicles
with
a factory camera:
The camera signal will need to be interrupted and connected to the corresponding input/output
RCA jacks from the AX-ADDCAM interface.
• Connect the RCA jack from the AX-ADDCAM-MAZ1 camera harness labeled “Camera output”,
to the RCA jack from the AX-ADDCAM interface labeled “Camera 1”.
• Connect the RCA jack from the AX-ADDCAM-MAZ1 camera harness labeled “Camera input”,
to the RCA jack from the AX-ADDCAM interface labeled “Camera output”.
•
Connect the Gray/Blue wire from the AX-ADDCAM-MAZ1 main harness (female side) labeled “Reverse”,
to the Gray/Blue wire from the 14-pin connector from AX-ADDCAM main harness labeled “Control 1”.
• Connect the wire from the AX-ADDCAM-MAZ1 main harness (male side) labeled Red
“Camera 12V”, to the wire from AX-ADDCAM interface labeled “Camera 12V”.Red
For vehicles
without
a factory camera:
• Connect the RCA jack from the AX-ADDCAM-MAZ1 camera harness labeled “Camera input”,
to the RCA jack from the AX-ADDCAM interface labeled “Camera output”.
• Disregard the RCA jack labeled “Camera output” from the AX-ADDCAM-MAZ1 camera
harness, it will not be used in this application.
•
Connect the Gray/Blue wire from the AX-ADDCAM-MAZ1 main harness (female side) labeled “Reverse”,
to the Gray/Blue wire from the 14-pin connector from AX-ADDCAM main harness labeled “Control 1”.
• Connect the wire from the AX-ADDCAM-MAZ1 main harness (male side) labeled Red
“Camera 12V”, to the wire from AX-ADDCAM interface labeled “Camera 12V”.Red
CONNECTIONS (cont.)
Analog control trigger wires:
•
The optional analog control wires can be activated with either a negative or positive trigger,
depending on how they are configured in the Axxess Updater program. These wires will only be
used if manual control of the cameras will be desired. Otherwise tape off and disregard these wires
.
INSTALLATION
• Configure the AX-ADDCAM interface following the installation instructions included with
the AX-ADDCAM interface. Failure to configure the interface will result in the interface not
functioning properly.
• Remove the main harness from the factory radio, then install the AX-ADDCAM-MAZ1
main harness in between.
• Remove the 4-pin harness from the factory radio, then install the AX-ADDCAM-MAZ1
camera harness in between.
Control Wire Number Control Wire Color
Control 1 (reserved) Gray/Blue
Control 2 Gray/Red
Control 3 Orange
Control 4 Orange/White
AxxessInterfaces.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 1/8/19 INSTAX-ADDCAM-MAZ1
I N S T R U C C I O N E S D E I N S TA L A C I Ó N
AX-ADDCAM-MAZ1
CARACTERÍSTICAS DE LA INTERFASE
HERRAMIENTAS REQUERIDAS
• Ponchadora y conectores, o pistola de soldadura
,
soldadura y encogimiento de calor
• Cinta • Cortacables • Zip lazos
INDICE
Conexiones .............................................................2
Instalación ..............................................................2
Mazda (con pantalla LCD a todo color) 2013 y mas

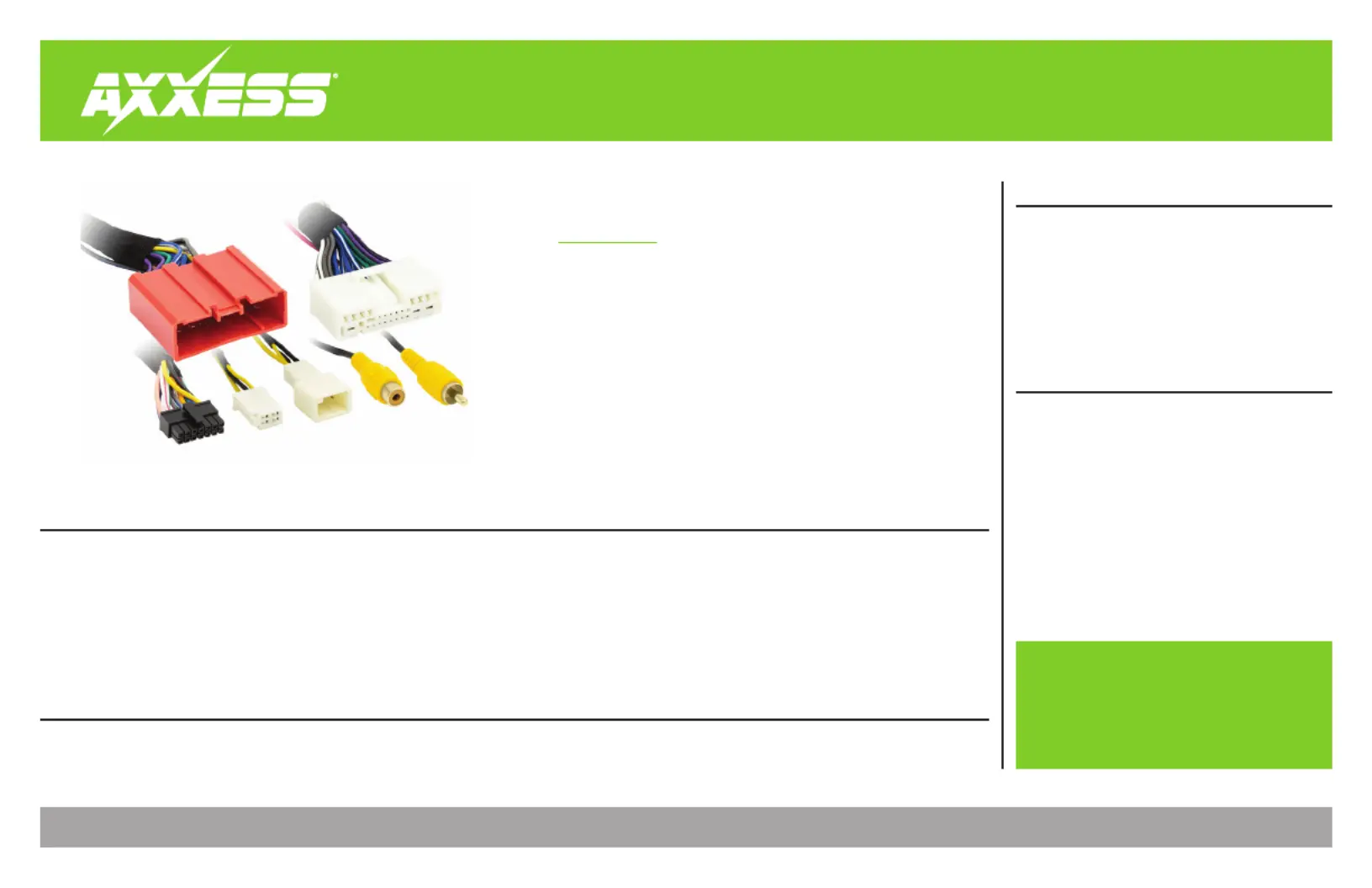

• Arnés “Plug & Play” para la interfaz AX-ADDCAM (se vende por separado)
• Disparo de señal inversa generado a través de la comunicación de bus CAN del vehículo
• Activador de señal de giro generado a través de la comunicación de bus CAN del vehículo
• (4) Cables programables de control de la cámara (configurados a través del programa Axxess Updater)
COMPONENTES DEL KIT
• Arnés principal AX-ADDCAM-MAZ1
• Arnés de la cámara AX-ADDCAM-MAZ1
¡PRECAUCIÓN! Todos los accesorios, interruptores,
paneles de controles de clima y especialmente las
luces del indicador de las bolsas de aire deben estar
conectados antes ciclar la ignición. Además, no
quite el radio de fábrica con la llave en la posición o
de encendido ni con el vehículo funcionando.
Visite AxxessInterfaces.com para obtener información más detallada sobre el producto y
aplicaciones actualizadas específicas para vehículos.
