Seite 1/8
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
AX-ADDCAM
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com Š COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 5/3/18 INSTAX-ADDCAM
INTERFACE FEATURES
TOOLS REQUIRED
INTERFACE COMPONENTS
TABLE OF CONTENTS
Introduction............................................................2
Connections to be made .......................................2
Conguring the AX-ADDCAM ............................. 3-5
Installing the AX-ADDCAM .....................................5
Programming the AX-ADDCAM .............................6
Connector pin-out (20-pin) ..................................7
AX-ADDCAM
• (4) Camera inputs
• Programmable 12V 5-amp switched output (configured through the Axxess Updater program)
• Reverse signal trigger generated via CAN bus communication of the vehicle
• Turn signal trigger generated via CAN bus communication of the vehicle
• (4) Programmable camera control wires (configured through the Axxess Updater program)
• Can also be manually controlled, and used along with an aftermarket radio
• VSS (Vehicle Speed Sense) input and output
• Micro “B” USB updatable
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell caps, etc.)
• AX-ADDCAM interface
• AX-ADDCAM harness
2
INTRODUCTION CONNECTIONS TO BE MADE
The Axxess AX-ADDCAM interface is a camera switching interface that will provide up to (3)
additional camera inputs to the factory radio, while still retaining the factory camera. With this
interface a front camera, and also side cameras can be added to the factory radio. The cameras
function automatically*, no human interaction required, unless desired to do so. Axxess has also
created a line of vehicle specific “Plug & Play” harnesses for the AX-ADDCAM. These harnesses must
be used along with the AX-ADDCAM. The AX-ADDCAM can also be used if the factory system does
not originally come equipped with a backup camera, adding up to (4) cameras in this instance. In
addition, the AX-ADDCAM can be used along with an aftermarket radio as well. Pending that the
aftermarket radio has an input designated for a backup camera
.
* Only applicable vehicles listed in the drop down menu in the Axxess Updater program will
retain this feature.
Note:
Some vehicles may not have the turn signal, and/or reverse signal available on the vehicles
CAN-bus. For vehicles that do not have those signals available, or when an aftermarket radio will be
used instead of the factory radio, the interface will need to be manually controlled by analog triggers.
12-volt switched output
The wire labeled “Camera 12V” will be used in applications where a 12-volt switched Red
output is required. In the Axxess Updater there are two options for this feature, “CAN
Detection”, or “Camera Active”. If an aftermarket radio will be used instead of a factory radio,
this wire must be connected to the wire designated for a reverse trigger
.
• Will provide a 12-volt switched output when the interface detects a CAN bus Accessory Out:
signal. Pending that the vehicle is supported under vehicle selection.
• Camera Active: Will provide a 12-volt switched output if a camera has been activated.
Camera input/output
The RCA jacks labeled “Camera 1 – 4” are the camera inputs. The RCA jack labeled “Camera
output” will go to the factory radio (or aftermarket radio). Camera 1 should only be used for a
backup camera as it takes priority over the other cameras. Camera 2 and 3 can be used for either
a left side camera, or a right side camera, as they are programmable within the Axxess Updater
program. Camera 4 is only for use with a front camera due to how the camera switching functions.
Analog control wires
(available with the “Plug & Play” harness)
There are (4) control wires for activating the cameras manually. The control wires can be
congured in the Axxess Updater for either a negative or positive trigger. The control wires can
also be assigned to any camera
.
VSS (vehicle speed sense)
(available with the “Plug & Play” harness)
The AX-ADDCAM will generate a VSS signal for applicable vehicles listed in the drop down menu in
the Axxess Updater. Pending that the vehicles CAN bus has that signal available. For vehicles that
do not have that signal available, the VSS wire will need to be manually wired to the vehicle. But
only if that feature is required.
• Blue/Green - VSS in.
• - VSS out.Green/Blue
3
REV. 5/3/2018 INSTAX-ADDCAM
CONFIGURING THE AX-ADDCAM
Continued on the next page

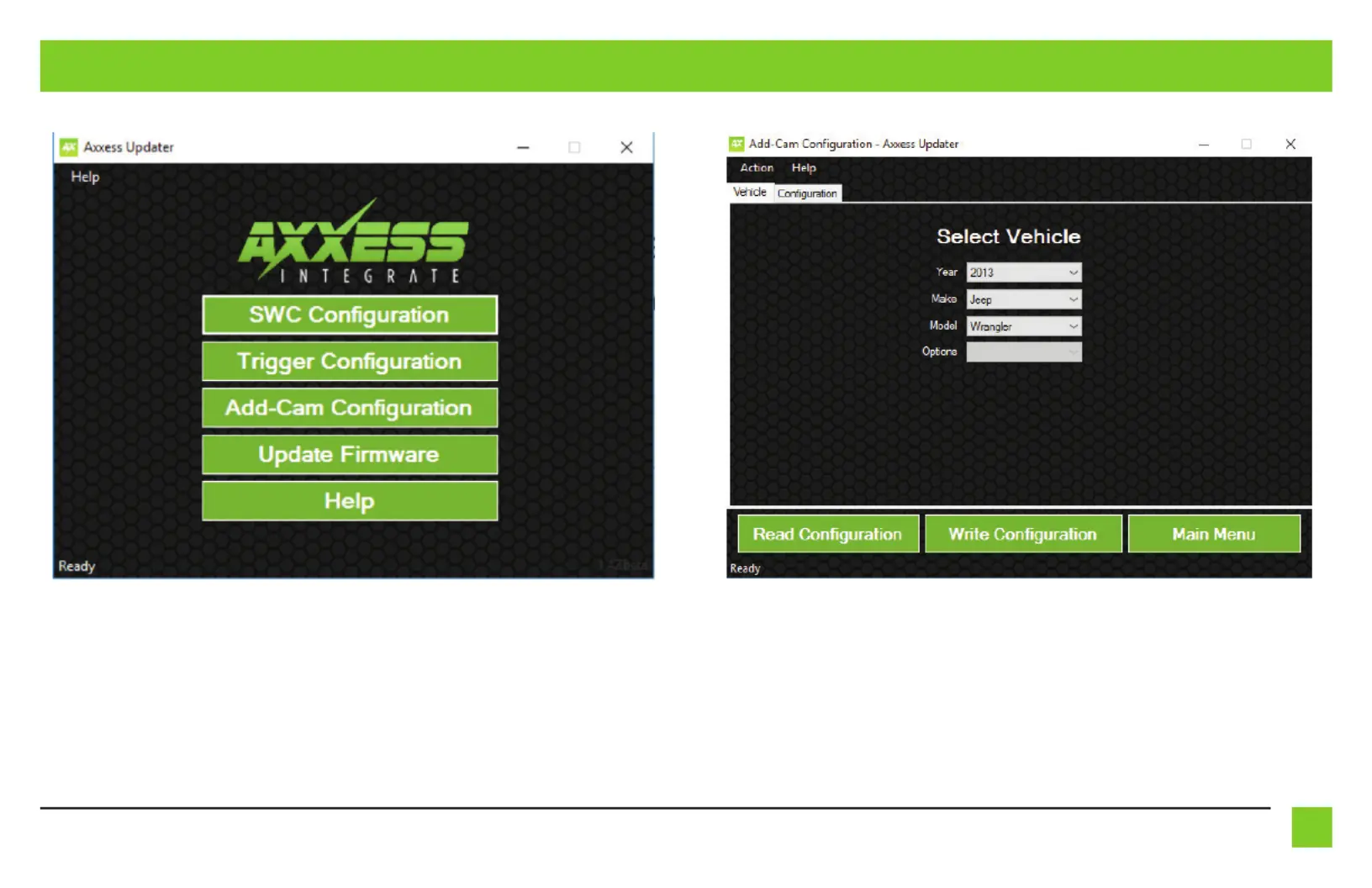

• Download and install the Axxess Updater program available at: axxessinterfaces.com
• Open the Axxess Updater and wait until the word “Ready” is listed in the bottom left of the screen.
• Select “Add-Cam Configuration.
• Select the vehicle in the drop down list. If the vehicle is applicable, a tab labeled
“Configuration” will appear.
•
Under “Make” and “Model”, there will be an option labeled “Other (Generic)”. This option is for
aftermarket radio installations where the AX-ADDCAM will be controlled via analog triggers
.
