CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
AX-AB-FD1
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 11/7/18 INSTAX-AB-FD1
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Amplifier locations ................................................2
Connections ............................................................3

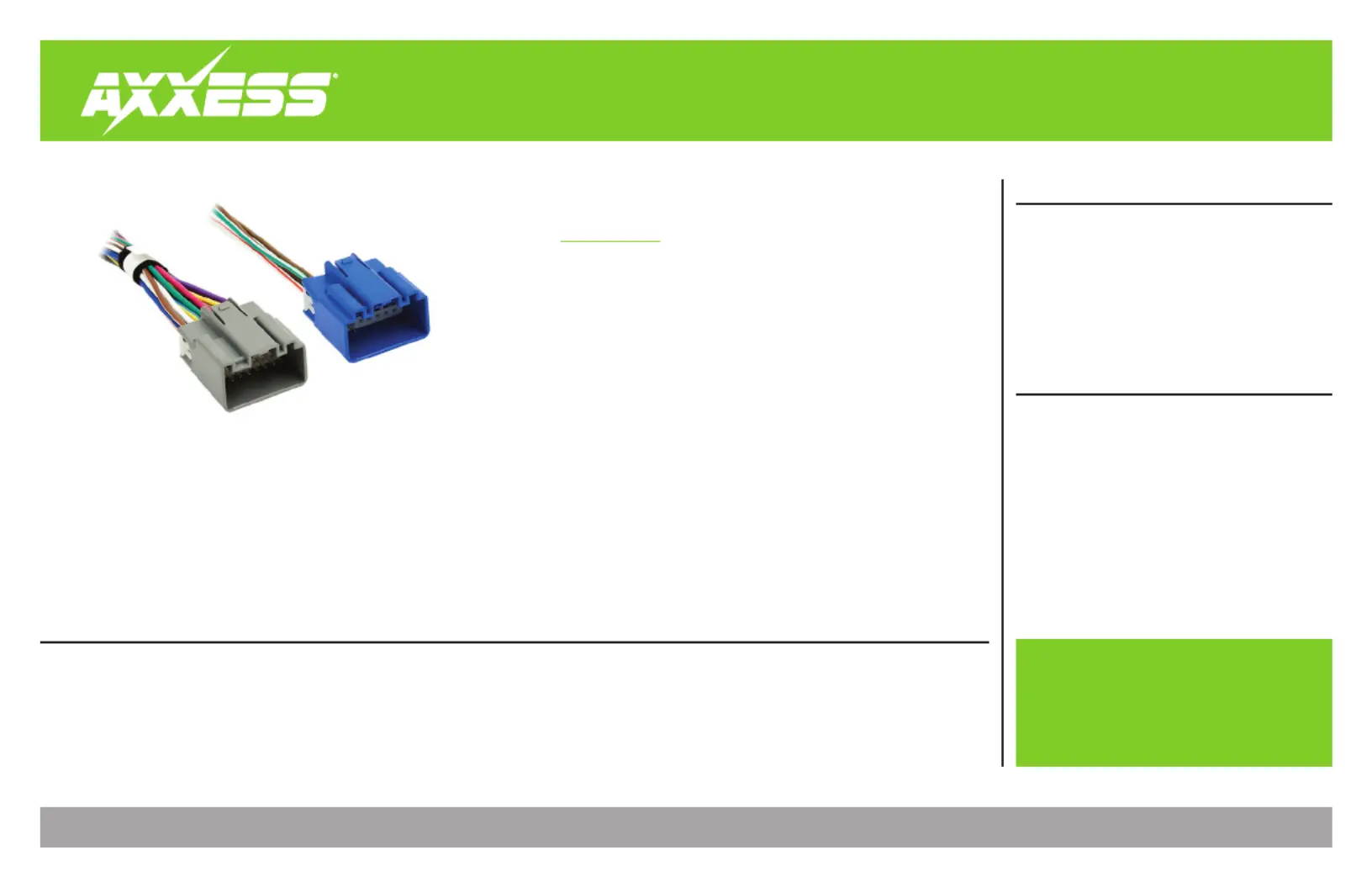

Ford Amplifier Bypass Harness 2011-2017
• Amplifier bypass harness
• Vehicle-specific harness to bypass the factory amplifier
• Allows loose wires to wire to an aftermarket amplifier
• Saves the installer unnecessary labor and wire
APPLICATIONS
Ford
Edge 2011-2017
Escape 2013-2016
Expedition 2015-2017
Explorer 2011-2017
F-150 2013-2017
F-250 2013-2017
F-350 2013-2017
Flex 2013-2017
Focus 2012-2017
Fusion 2013-2016
Taurus 2013-2017
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications
2
AMPLIFIER LOCATIONS
Make/Model Amp Location
Ford
Edge 2011-2014 Right C-Pillar
Edge 2015-2017 Left Rear Quarter Panel
Escape 2013-2016 Left Front of Luggage Compartment
Expedition 2015-2017 Behind Left Rear Quarter Panel
Explorer 2011-2017 Right Base of C-Pillar
F-150 2013-2014 Under Center Console
F-150 Regular Cab 2015-2017 Base of Left B-Pillar (behind left rear seat)
F-150 Supercab / Crew Cab 2015-2017 Base of Left C-Pillar (behind left rear seat)
F-250 Crew Cab 2013-2017 Base of Left C-Pillar
F-250 Supercab 2013-2017 Rear Center of Floor
F-350 Crew Cab 2013-2017 Base of left C-Pillar (behind left rear seat)
F-350 Supercab 2013-2017 Rear Center of Floor
Flex 2013-2017 Behind Right Rear Quarter Panel
Focus 2012-2017 Left Rear of Luggage Compartment
Fusion 2013-2016 Right Front of Luggage Compartment
Taurus 2013-2017 Left Front of Luggage Compartment
3
REV. 11/7/2018 INSTAX-AB-FD1
CONNECTIONS
Gray Front Right Speaker +
Gray/Black Front Right Speaker -
White Front Left Speaker +
White/Black Front Left Speaker -
Green Rear Left Speaker +
Green/Black Rear Left Speaker -
Purple/White Rear Right Speaker +
Purple/Black Rear Right Speaker -
Yellow/Red Front Right Tweeter +
Yellow/Orange Front Right Tweeter -
Yellow/Green Front Left Tweeter +
Yellow/Black Front Left Tweeter -
Brown/White Front Center Channel Speaker +
Blue/Pink Front Center Channel Speaker -
Red
Rear Center Channel Speaker +
Red/Black
Rear Center Channel Speaker -
Gray 16-Pin Harness:
Green/White
Subwoofer Coil 1 +
White/Red
Subwoofer Coil 1 -
Brown/Yellow
Subwoofer Coil 2 +
Brown/Blue
Subwoofer Coil 2 -
Blue 16-Pin Harness:
Rear mono tweeter in: Edge, Expedition and Explorer
No rear center channel speaker in: Escape, F-150/250/350, Focus
