CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
AX-AB-CH3
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 8/17/18 INSTAX-AB-CH3
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Connections
Chrysler 300 2014-2015 .......................................2
Dodge Charger 2014-2015 ...................................2
Dodge Challenger 2014-2015 .............................. 3
Dodge Viper 2013-2015 ....................................... 3
Fiat 500X 2015-2017.............................................4
Jeep Grand Cherokee (SRT) 2014 .......................3
Jeep Renegade 2015-up .....................................4

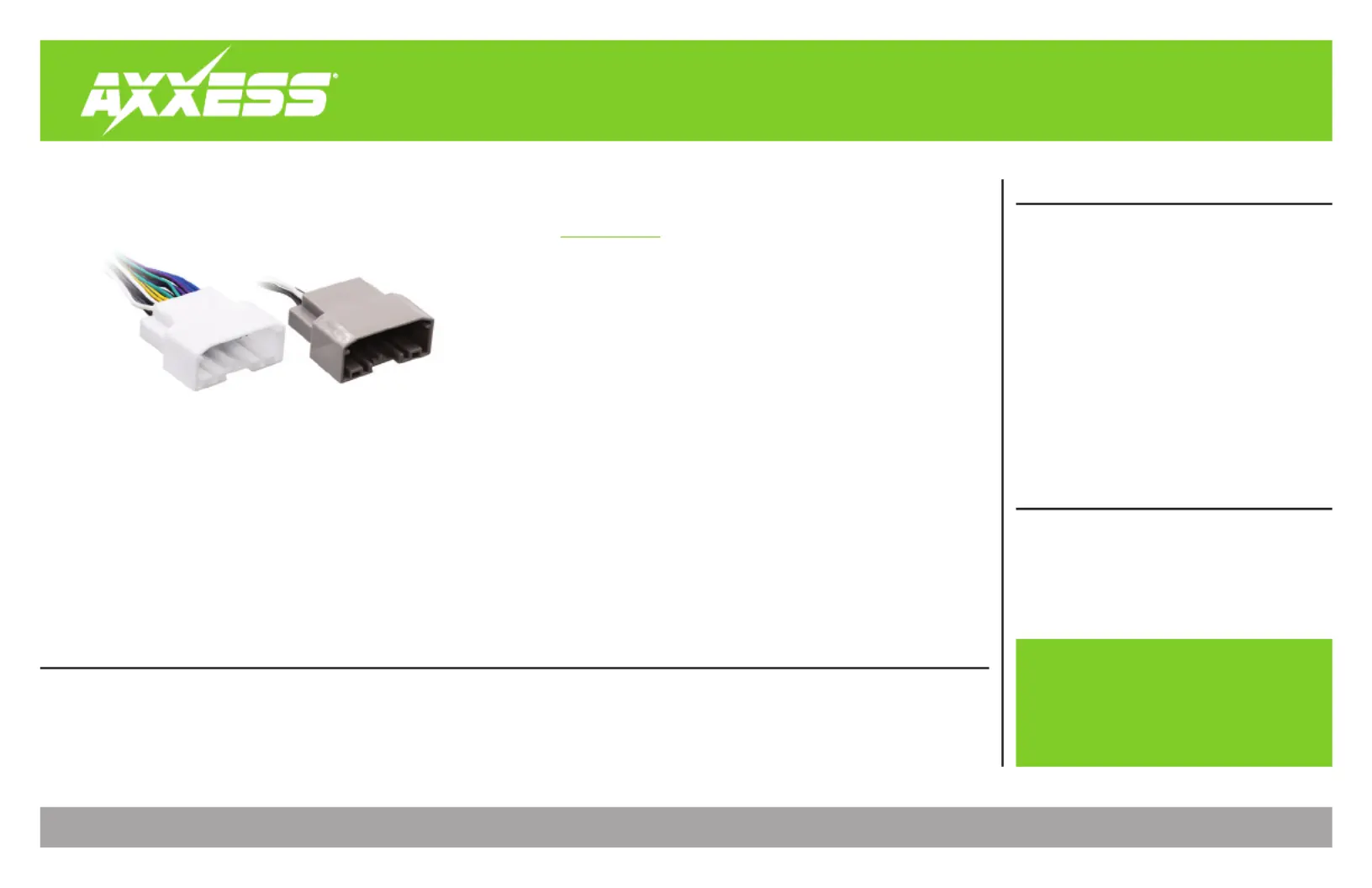

Chrysler Amplifier Bypass Harness 2013-up
Refer to the following pages for the vehicle specific instructions for
wiring connections. Wiring connections vary per vehicle.
If it’s uncertain whether the vehicle contains a specific speaker or not,
test the wires with a tone generator, or check to see if the factory
wires are populated on the vehicle side. Alternatively, the wires can
be tested for impedance with a multimeter.
APPLICATIONS
Chrysler
300 2014-2015
Dodge
Charger 2014-2015
Challenger 2014-2015
Viper 2013-2015
Fiat
500X 2015-2017
Jeep
Grand Cherokee (SRT) 2014
Renegade 2015-up
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications
2
CONNECTIONS
White 22-Pin harness:Gray 22-Pin harness:
Gray To Right Rear Speaker +
Gray/Black To Right Rear Speaker –
White To Left Rear Tweeter –
White/Black To Left Rear Tweeter +
Chrysler
300 2014-2015
Dodge
Charger 2014-2015
Orange To Left Rear Speaker +
Orange/Black To Left Rear Speaker –
Red To Right Rear Tweeter +
Red/Black To Right Rear Tweeter –
Brown To Left Instrument Panel Speaker +
Brown/Black To Left Instrument Panel Speaker –
Black To Right Instrument Panel Speaker +
Black/White To Right Instrument Panel Speaker –
Gray To Right Front Speaker +
Gray/Black To Right Front Speaker
Blue To Subwoofer +
Blue/Black To Subwoofer –
Purple To Right Rear Speaker +
Purple/Black To Right Rear Speaker –
Green To Left Rear Speaker +
Green/Black To Left Rear Speaker –
Yellow To Center Channel Speaker +
Yellow/Black To Center Channel Speaker –
White To Left Front Speaker +
White/Black To Left Front Speaker –
3
REV. 8/17/2018 INSTAX-AB-CH3
CONNECTIONS (CONT.)
Gray 22-Pin harness:
Dodge
Challenger 2014-2015
Viper 2013-2015
Jeep
Grand Cherokee (SRT) 2014
Gray To Subwoofer +
Gray/Black To Subwoofer –
White To Left Rear Speaker +
White/Black To Left Rear Speaker -
Black 16-Pin harness:
Orange To Left Rear Twiddler Speaker +
Orange/Black To Left Rear Twiddler Speaker –
Red To Right Rear Speaker +
Red/Black To Right Rear Speaker -
Brown To Left Instrument Panel Speaker +
Brown/Black To Left Instrument Panel Speaker –
Black To Right Instrument Panel Speaker +
Black/White To Right Instrument Panel Speaker -
Gray To Right Front Door Speaker +
Gray/Black To Right Front Door Speaker –
Blue To Subwoofer 2 +
Blue/Black To Subwoofer 2 -
Purple To Right Rear Twiddler Speaker +
Purple/Black To Right Rear Twiddler Speaker –
Green To Subwoofer 2 +
Green/Black To Subwoofer 1 -
Yellow To Center Channel Speaker +
Yellow/Black To Center Channel Speaker –
White To Left Front Door Speaker +
White/Black To Left Front Door Speaker -
