Seite 1/12
Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 3/1/19 INST99-7388HG
I N S TA L L AT I O N I N S T R U C T I O N S
99-7388HG
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
Kia Soul
(with NAV)
2014-2019
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specic applications

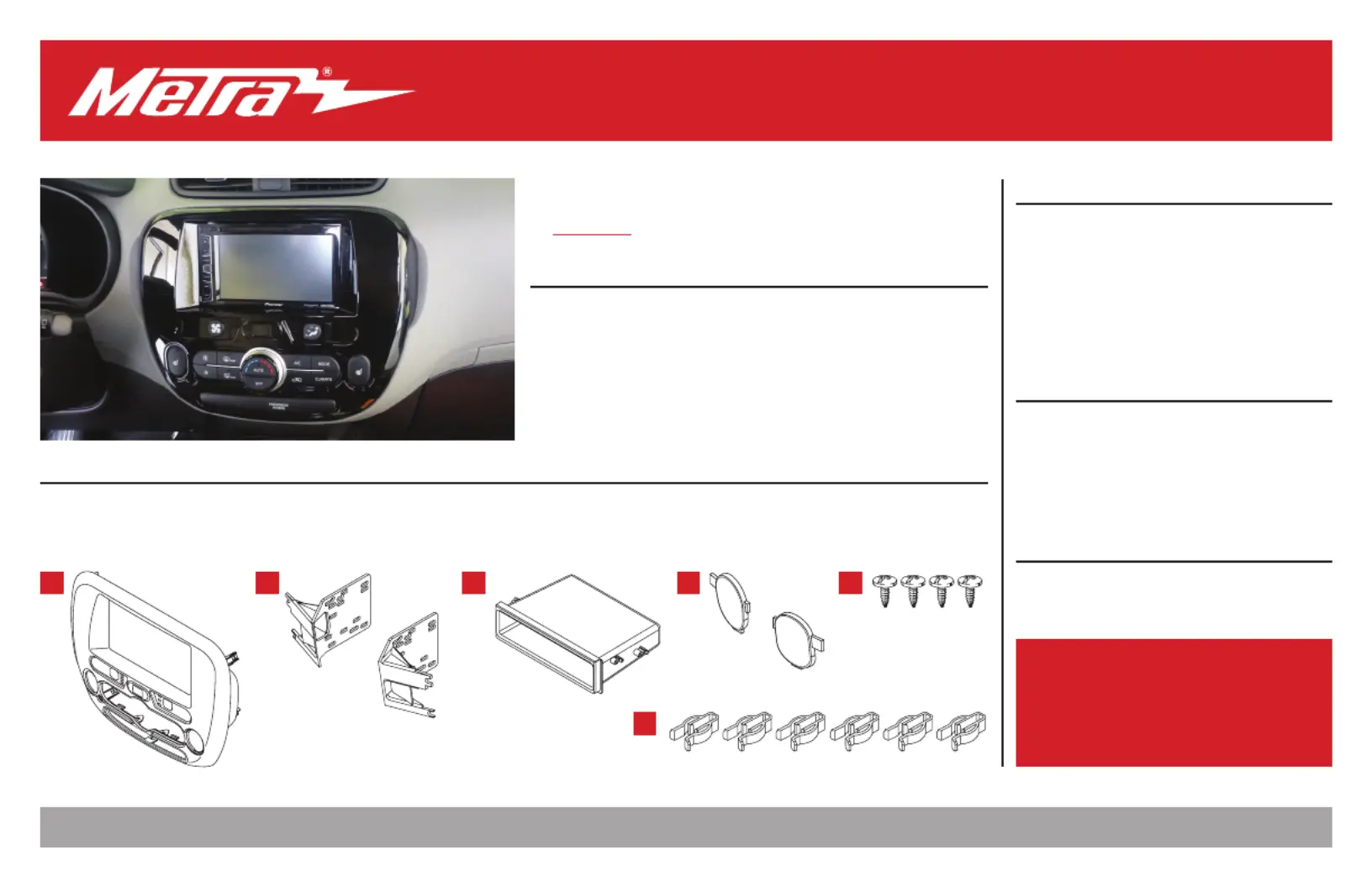

KIT COMPONENTS
• A) Radio/climate trim panel with climate display • B) Radio brackets • C) Pocket • D) Heated seat blank plugs • E) (4) #8 x 3/8” Phillips screws
• F) (6) Panel clips • G) Axxess interface and wiring harness (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
TABLE OF CONTENTS
Dash Disassembly...................................................2
Kit Preparation .......................................................2
Kit Assembly
–ISO DIN radio provision with pocket...................3
–ISO DDIN radio provision......................................3
Axxess Interface Installation .............................4-11
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring harness: Included with kit
Antenna adapter: Included with kit
Steering wheel control interface: Included with kit
12v to 6v camera step-down: AX-CAM6V Included with kit
A B C D E
F
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Includes climate display for fan speed, mode, and temp, which was
displayed on the factory radio
• Includes an Axxess interface and wiring harness
• Includes an AX-CAM6V and antenna adapter for a complete installation
• Painted high gloss black
1.800.221.0932
|
MetraOnline.com
2

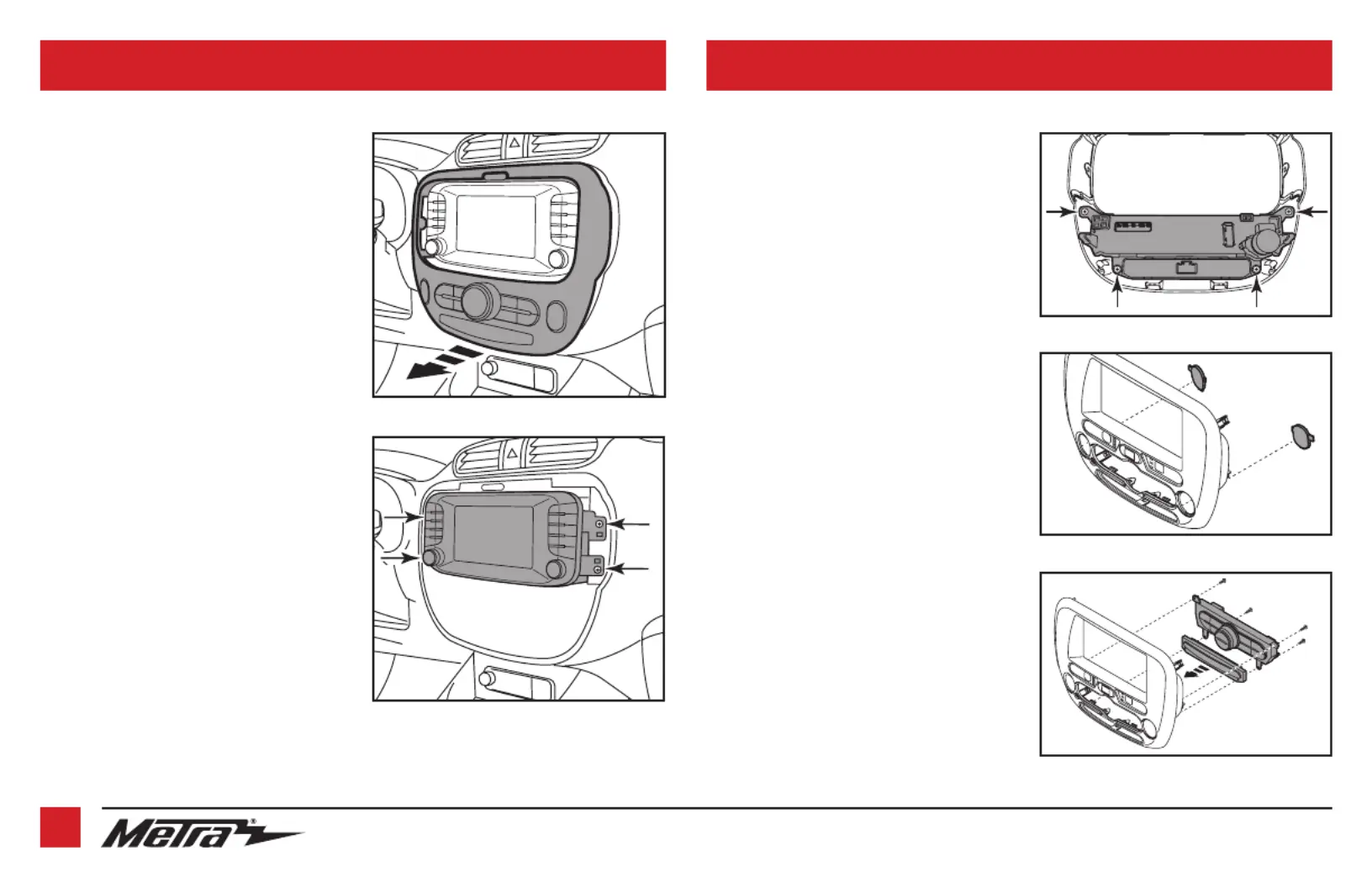

DASH DISASSEMBLY KIT PREPARATION
1. Unclip the climate panel surrounding the
radio and set to the side. (Figure A)
2. Remove (4) Phillips screws securing the
radio. Slide the radio out, then unplug
and remove the radio. (Figure B)
Continue to Kit Preparation
(Figure B)
(Figure A)
From the factory climate panel:
1. Remove (4) Phillips screws securing
the climate controls and passenger
airbag switch panel, then remove the
components. (Figure A)
To the 99-7388HG radio/climate trim panel
with climate display:
2. If the vehicle is not equipped with
heated seats, snap in the heated seat
blank plugs. (Figure B)
3. Secure the climate controls and
passenger airbag switch panel using the
factory screws. (Figure C)
Continue to Kit Assembly
(Figure A)
(Figure B)
(Figure C)
REV. 3/1/2019 INST99-7388HG 3

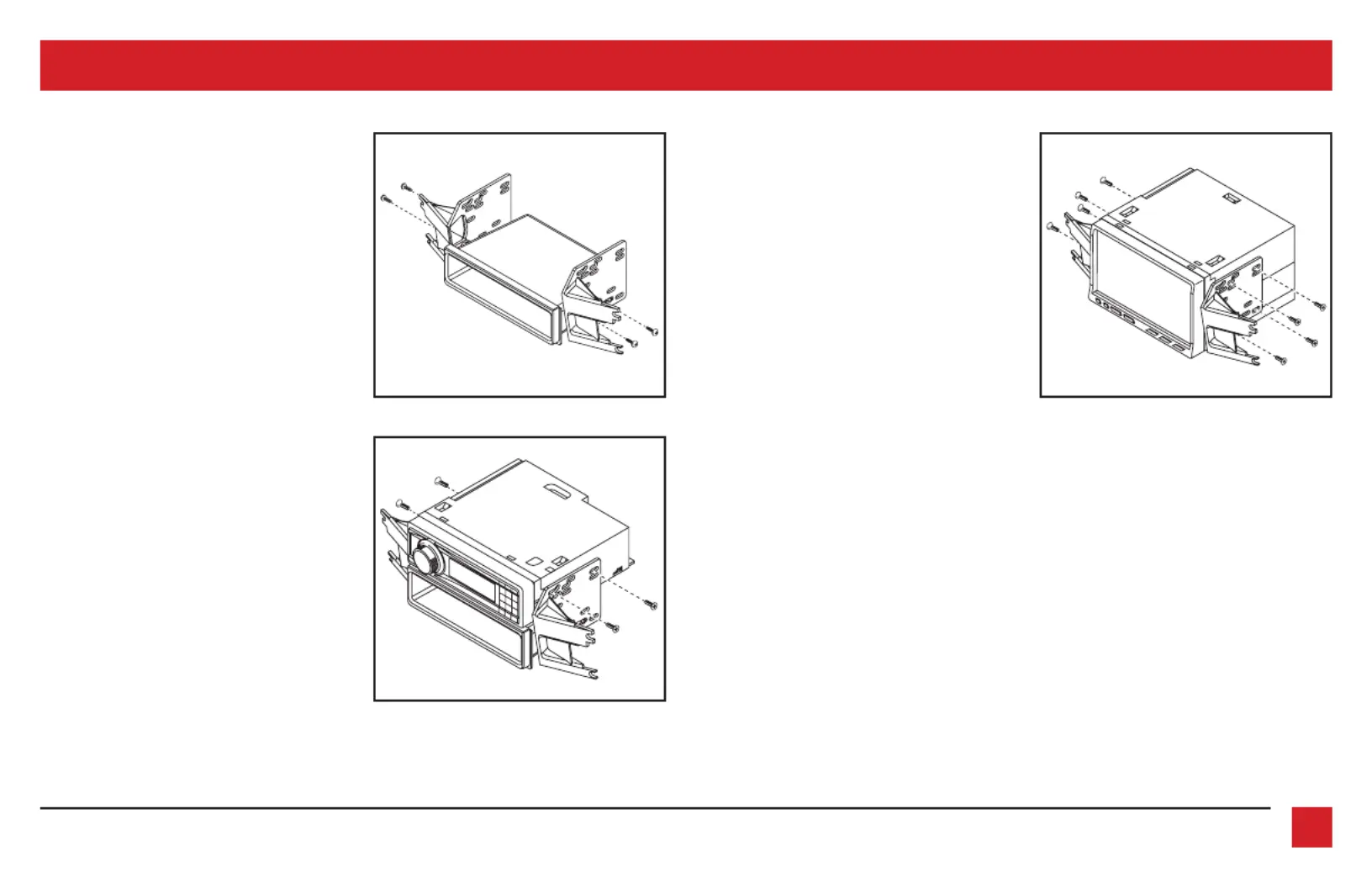

KIT ASSEMBLY
ISO DIN radio provision with pocket
1. Secure the
radio brackets
to the
pocket
using the (4) #8 x 3/8” Phillips screws
provided. (Figure A)
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio into the bracket/pocket
assembly, then secure it to the assembly
using the screws supplied with the
radio. (Figure B)
Continue to Axxess Interface
Installation
(Figure B)
(Figure A)(Figure A)
ISO DDIN radio provision
1. Secure the
radio brackets
to the radio
using the screws supplied with the
radio. (Figure A)
Continue to Axxess Interface
Installation
