I N S TA L L AT I O N I N S T R U C T I O N S
99-6543HG
Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 11/16/23 INST99-6543HG
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this
product. Ensure that all installation connections,
especially the air bag indicator lights, are plugged in
before reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen display for climate and personalization features
• Painted high gloss black
Note:
Does not support surround camera (360) switching.
Note:
Does not support front dash control/visual of rear seat entertainment.
Interior car audio of rear seat entertainment is also lost.

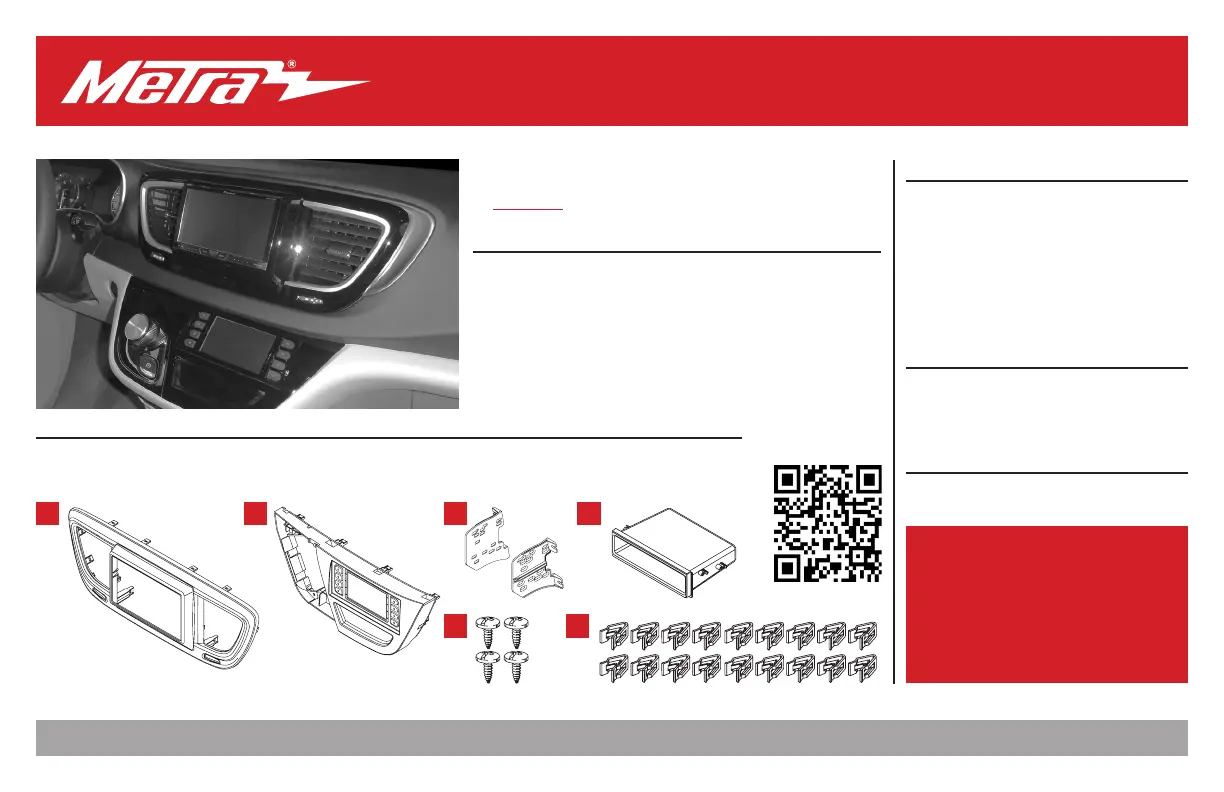

KIT COMPONENTS
• A) Radio trim panel • B) Climate control panel with touchscreen display • C) Radio brackets • D) Pocket
• E) (4) #8 x 3/8" Phillips screws • F) (18) panel clips • G) Antenna adapter (not shown) TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Cutting tool
TABLE OF CONTENTS
Dash Disassembly 2 ..................................................
Kit Preparation 3 .......................................................
Kit Assembly
– ISO DIN radio provision with pocket 4 .................
– ISO DDIN radio provision 4 ...................................
Axxess Interface Installation 5-13 ...........................
Final Assembly 9 .......................................................
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into
touchscreen
Antenna Adapter: Included with kit
A B C D
FE
Chrysler Pacifica (Limited, Touring) 2017
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
Product Info
2386.257.1187
|
MetraOnline.com

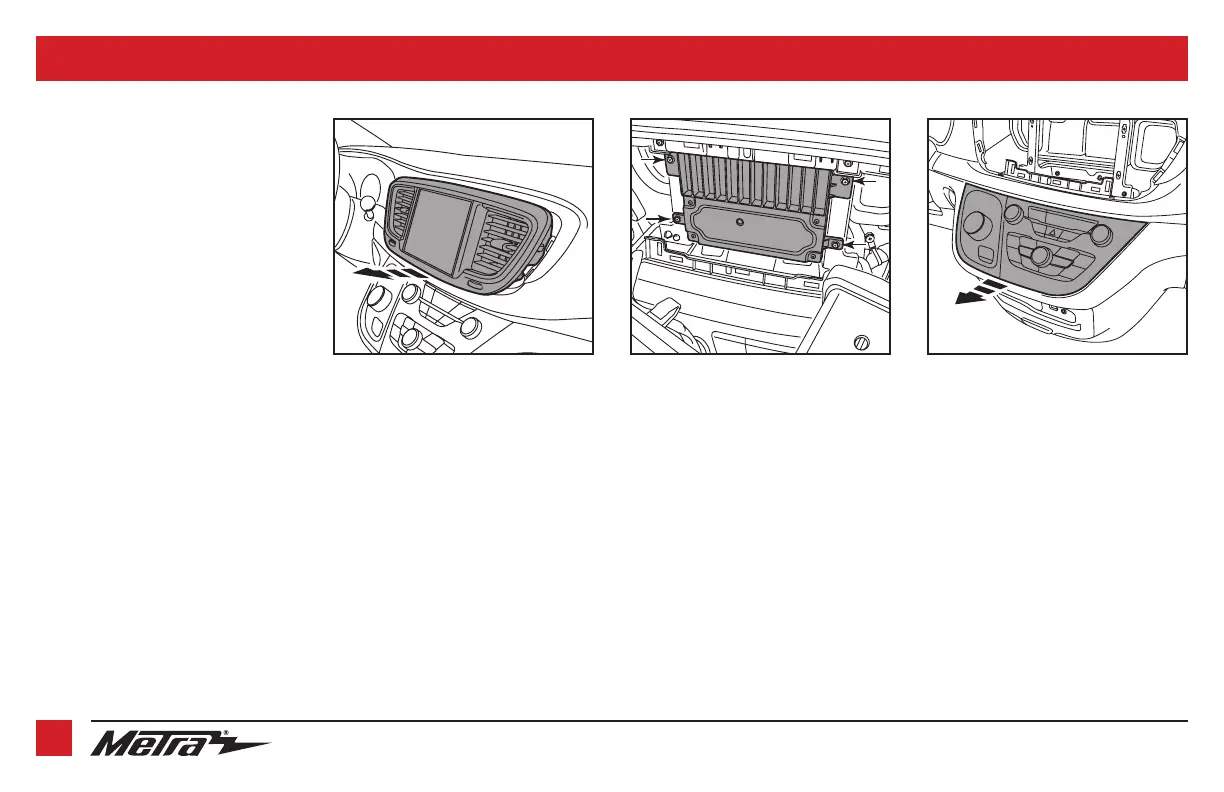

DASH DISASSEMBLY
1. Unclip and remove the trim panel
surrounding the radio/screen including
the A/C vents, and then unplug and
remove. (Figure A)
2. Remove the (4) Phillips screws securing
the radio chassis, and then unplug and
remove. (Figure B)
3. Unclip and remove the climate control
panel, and then unplug and remove.
(Figure C)
Continue to Kit Preparation
(Figure B)(Figure A) (Figure C)
REV. 11/16/23 INST99-6543HG 3
KIT PREPARATION
(Figure B) (Figure D)
(Figure A) (Figure C)
1. Depending on the depth of the
aftermarket radio, the sub-dash of the
vehicle may need to be cut. If so, cut the
plastic from the sub-dash of the vehicle.
(Figure A)
From the factory climate control panel:
1. Remove the (4) Phillips screws securing
the gear selector/parking brake panel,
and then remove. (Figure B)
To the 99-6543HG climate control panel
with touchscreen:
1. Secure the gear selector/parking brake
panel to the panel using the factory
hardware. (Figure C)
2. Attach the (7)
panel clips
to the panel.
From the factory radio/screen panel with
A/C vents:
1.
Remove the (4) Phillips screws securing
each A/C vent, and then remove. (Figure D)
To the 99-6543HG radio trim panel:
1. Secure the A/C vents to the panel using
the factory hardware.
2. Attach the (11)
panel clips
to the panel.
Continue to Kit Assembly
Remove
shaded area
