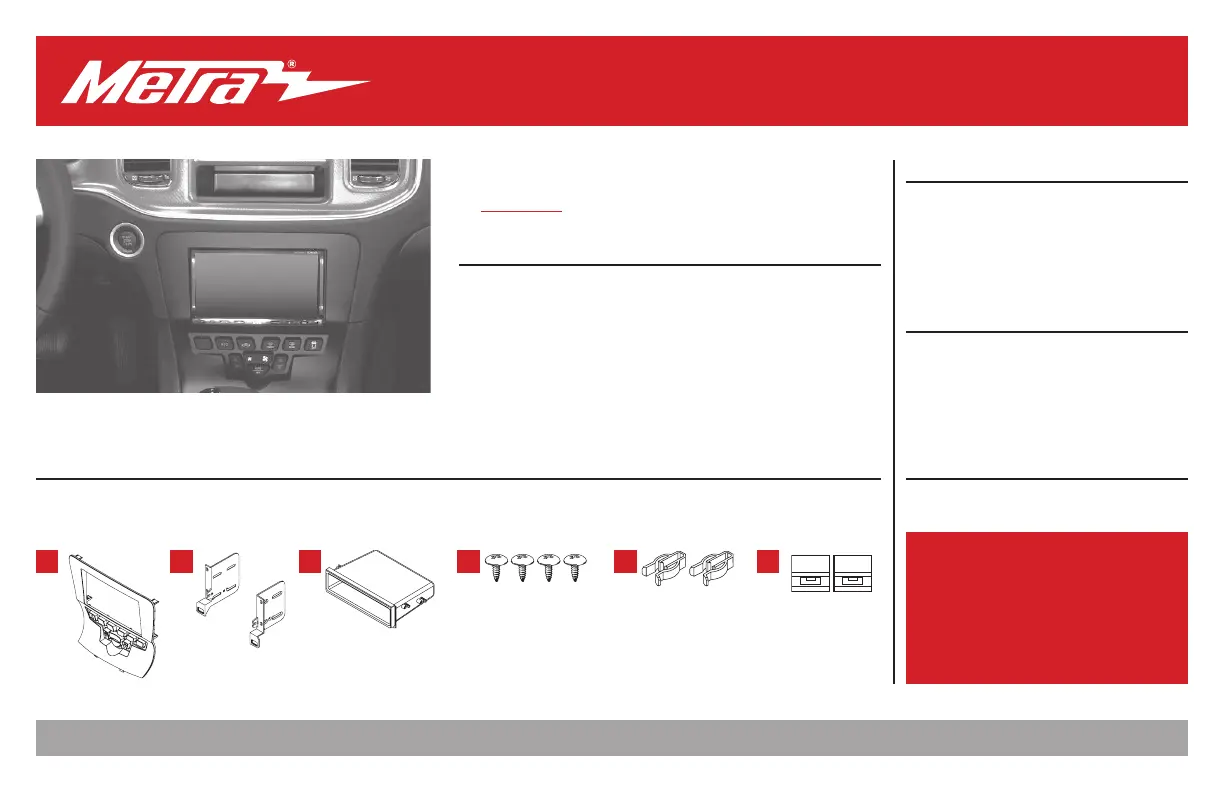

The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 8/30/23 INST99-6514B
I N S TA L L A T I O N I N S T R U C T I O N S
99-6514B
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air bag
indicator light, must be secure before cycling
the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Included interface retains factory screen
• Painted matte black to match factory finish
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) #8 x 3/8” Phillips screws (4) • E) Plastic panel clips (2) • F) Metal panel clips (2)
• AXXESS interface and harness (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• T-30 Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly 2 ..................................................
Kit Assembly
– ISO DIN radio provision with pocket 3 .................
– ISO DDIN radio provision 3 ...................................
AXXESS Interface Installation........................... 4-11
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Interface and harness included
Antenna Adapter: 40-EU55 (sold separately)
AXXESS steering wheel control interface
(sold separately)
Backup camera retention: AXBUCH-CH1
A B C D E F
Dodge Charger 2011-2014
Visit for more detailed information about the product and up-to-date MetraOnline.com
vehicle specific applications
Note: Driver Convenience Group.• Does not retain sound from
• Track and launch control features from will be lost. SRT Package
• Reference the section for factory items known Troubleshooting
to be no longer functional.
386-257-1187
|
MetraOnline.com
2

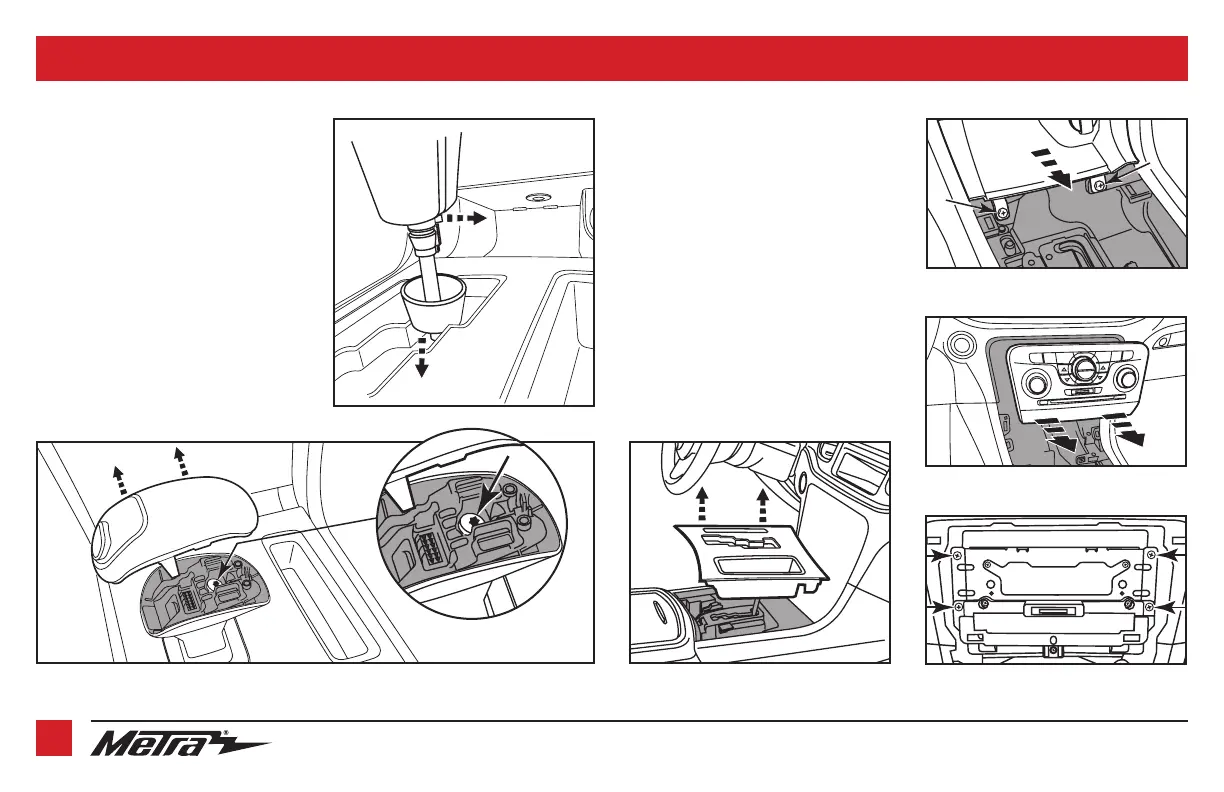

DASH DISASSEMBLY
1. For vehicles
with
an 8 speed
transmission:
Unclip and remove the top of the shift
knob assembly. Next, remove the (1)
exposed T-30 Torx screw from the shift
knob and then pull up on the knob to
remove. (Figure A)
For vehicles
without
an 8 Speed
transmission:
Push the collar down at the base of the
shift knob and remove the pin then pull
up on shift knob to remove. (Figure B)
(Figure A)
(Figure D)
(Figure B)
(Figure E)
(Figure F)(Figure C)
2. Unclip and remove the shifter trim
panel. (Figure C)
3.
Remove (2) Phillips screws securing the
pocket below the climate controls then
unclip and remove the pocket. (Figure D)
4. Unclip, unplug, and remove the factory
radio/climate control panel. (Figure E)
5. Remove (4) Phillips screws securing
the radio chassis, and then unplug and
remove the chassis. (Figure F)
Continue to Kit Assembly
REV. 8/30/23 INST99-6514B 3
KIT ASSEMBLY
(Figure A)
(Figure B)
(Figure C)
ISO DIN radio provision with pocket
1. Attach the provided clips to the
radio
trim panel
(metal clips at top and plastic
at the bottom). (Figure A)
2. Secure the
pocket
to the
radio brackets
with the (4) #8 x 3/8” Phillips pan head
screws supplied. (Figure B)
3. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
4. Slide the radio into
radio brackets
and
secure with the screws supplied with the
radio. (Figure C)
Continue to Axxess Interface Installation
ISO DDIN radio provision
1. Attach the provided clips to the
radio
trim panel
(metal clips at top and plastic
at the bottom). (Figure A)
2. Secure the radio to the
radio brackets
using the screws supplied with the
radio. (Figure B)
Continue to Axxess Interface Installation
(Figure A)
(Figure B)
Clip
locations
Clip
locations
