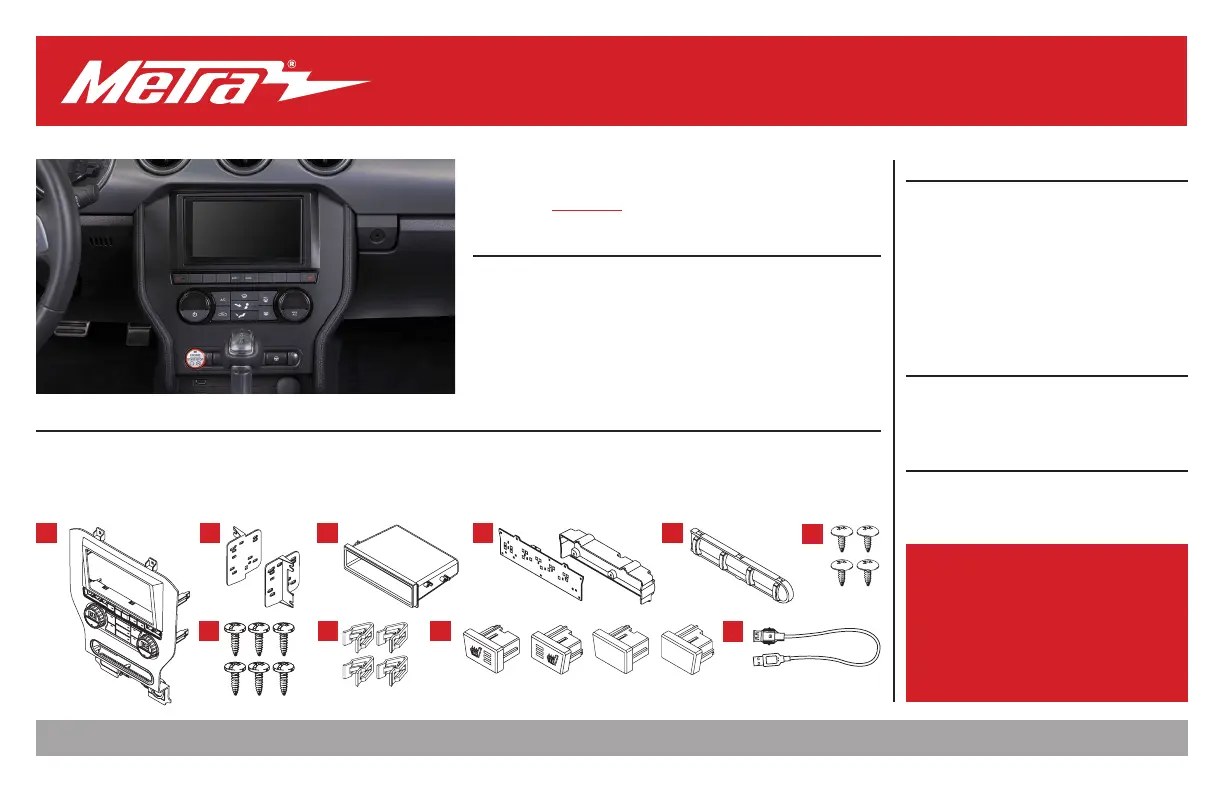

I N S TA L L AT I O N I N S T R U C T I O N S
99-5865CH
The World’s best kits.® metraonline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 1/25/24 INST99-5865CH
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
KIT COMPONENTS
• A) Radio trim panel with tactile display • B) Radio brackets • C) Pocket • D) Engine start/stop circuit board and cover • E) Engine start/stop trim
• F) #8 x 3/8” Phillips truss-head screws (4) • G) #4 x 1/2” Phillips pan-head screws (6) • H) Panel clips (4) • I) Blank panels (2), Heated seat buttons (L & R)
• J) USB cable • K) HVAC interface and wiring harness (not shown) • L) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Cutting tool
• Torx T-10 screwdriver
TABLE OF CONTENTS
Dash Disassembly 2-3 ..............................................
Kit Preparation 4-5 ...................................................
Kit Assembly
–ISO DIN radio provision with pocket 6 ..................
–ISO DDIN radio provision 6 ....................................
Axxess Interface installation 7-18 ...........................
Final Assembly 10 .....................................................
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface and
harness included
Antenna Adapter: Included in kit
A B C ED
Ford Mustang
(with manual climate controls)
2015-2023
G
F
HJ
I
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
• Factory-style hard buttons with laser
etched graphics to retain and control
most climate functions normally lost
when removing factory radio
• Easy to use rotary knobs with LCD status
displays for temp and fan speed
• Retains steering wheel functionality - no
need to purchase and install a separate
steering wheel control interface.
• Parts included for installation of
Single-DIN and Double-DIN radios
• Integrated hazard button and passenger
airbag indicator
• Painted to match the factory finish
Please visit or for more harness and interface options.metraonline.com axxessinterfaces.com
386.257.1187
|
MetraOnline.com

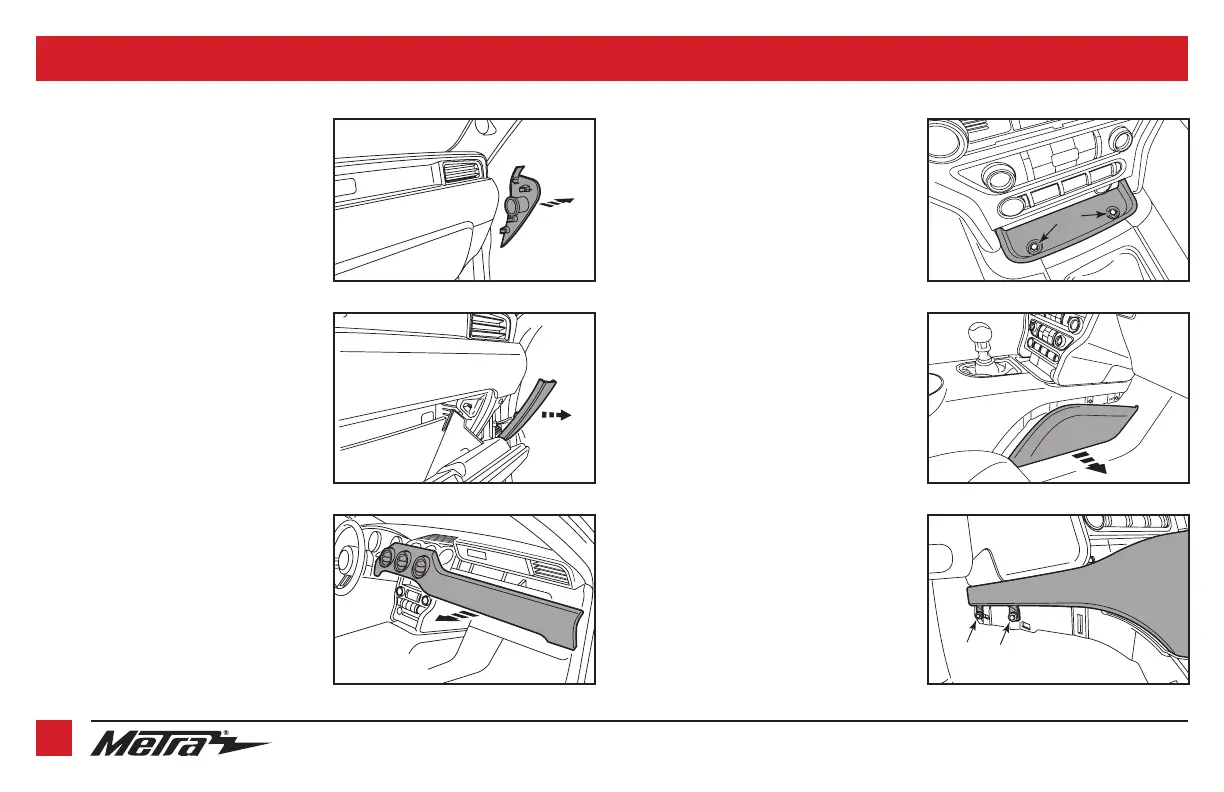

1. Open the passenger door and remove
the trim panel from the side of the dash.
(Figure A)
2. Open the glove box and remove the
trim panel on the right side. (Figure B)
3. Unclip and remove the trim/vent dash
panel. (Figure C)
DASH DISASSEMBLY
2
4. Remove the rubber tray cover in front
of the shifter, and then remove the (2)
9/32” screws exposed. (Figure D)
5. Unclip and remove the front side panels
from each side of the center console.
(Figure E)
6. Remove the (2) 9/32” screws from each
side of the center console. (Figure F)
Continued on the next page
(Figure A) (Figure D)
(Figure B) (Figure E)
(Figure C) (Figure F)
REV. 1/25/2024 INST99-5865CH
DASH DISASSEMBLY (CONT.)
3
(Figure I)
(Figure H) (Figure J)
(Figure G)
7. Unclip the shifter trim bezel and slightly
pull it up to clear the center console trim
bezel removal.
8. Open the center console storage
compartment. Unclip the center console
trim bezel, then slide it toward the rear
of the vehicle to remove it. (Figure G)
The complete center console Note:
does not need to be removed. but if it
is desired to be removed, the Push-to-
Start module must be connected when
testing the kit.
9. Remove the plastic tray in front
of the shifter.
10. Remove the center plastic trim
(knockout) between the power outlet
and USB jack. (Figure H)
Ensure that the vehicle is completely
off before proceeding onto the
following (3) steps:
11. Remove the (4) 9/32” screws securing
the radio/climate control panel, and then
unclip, unplug, and remove. (Figure I)
12. Remove the (4) 9/32” screws securing
the display screen, then unplug and
remove. (Figure J)
13. Remove the (4) 9/32” screws securing
the radio chassis, then unplug and
remove. (Figure J)
Continue to Kit Preparation
