Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 2/19/24 INST99-5858CH

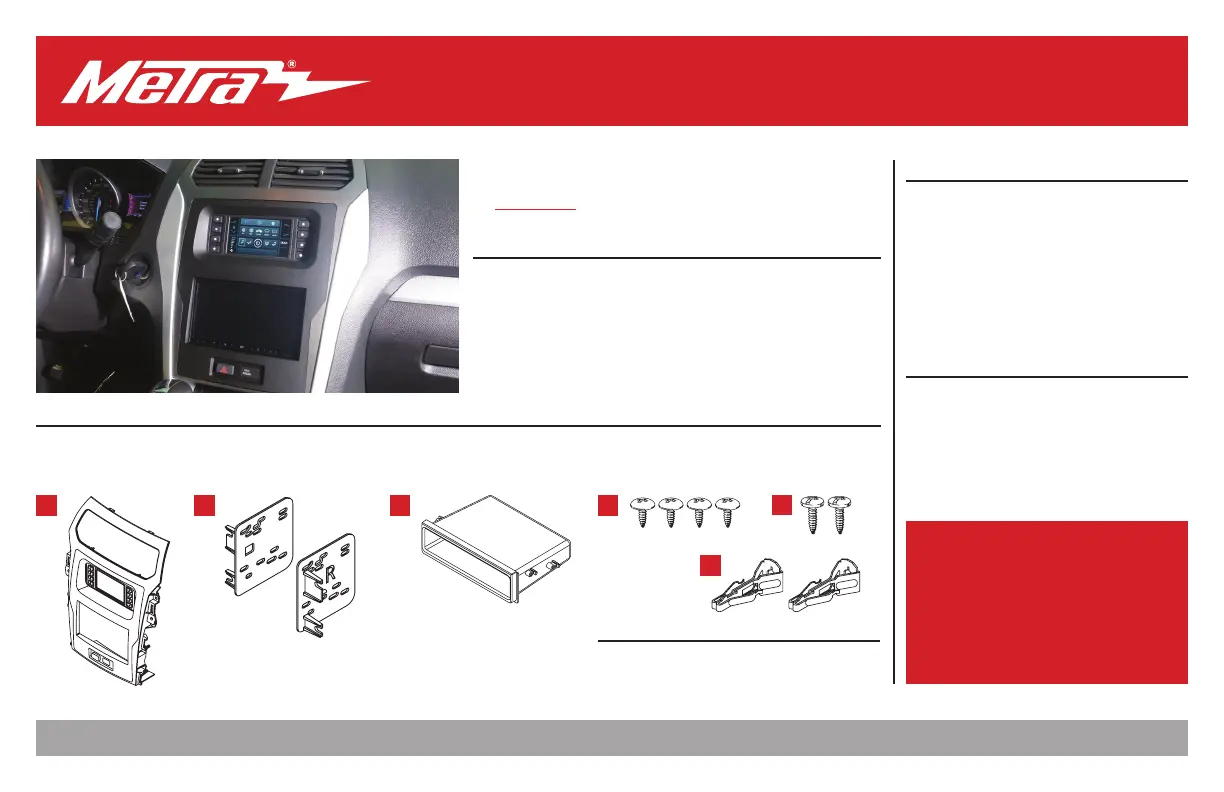

I N S TA L L AT I O N I N S T R U C T I O N S
99-5858CH
Patent # 10,579,232
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen display for climate and
most personalization features
• Included interface for climate and
steering wheel functions
• Integrated hazard switch and
passenger airbag indicator
• Painted charcoal to match the
factory finish
KIT FEATURES
KIT COMPONENTS
• A) Radio bezel (w/airbag light, hazard switch and touchscreen) • B) Radio brackets • C) Pocket • D) #8 x 3/8” Phillips screws (4)
• E) #4 x 1/2” Phillips screws (2) • F) Panel clips (2) • G) Axxess interface and wiring harness (not shown) • H) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” Socket wrench • Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly 2 ..................................................
Kit Preparation 3 .......................................................
Kit Assembly
–ISO DIN radio provision with pocket 4 ..................
–ISO DDIN radio provision 4 ....................................
Final Assembly 9 .......................................................
Axxess Interface Installation 5-14 ...........................
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into kit
• Antenna Adapter: Included with kit
• USB retention sold separately. AX-FDUSBAUX
for 2015-2019, AXFD-USB3 for 2011-2014.
Ford Explorer (with 8-inch touchscreen & Sony audio) 2011-2019
A B C D E
F
Visit for more detailed information about the product and up-to-date MetraOnline.com
vehicle specific applications
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
386.257.1187
|
MetraOnline.com
2

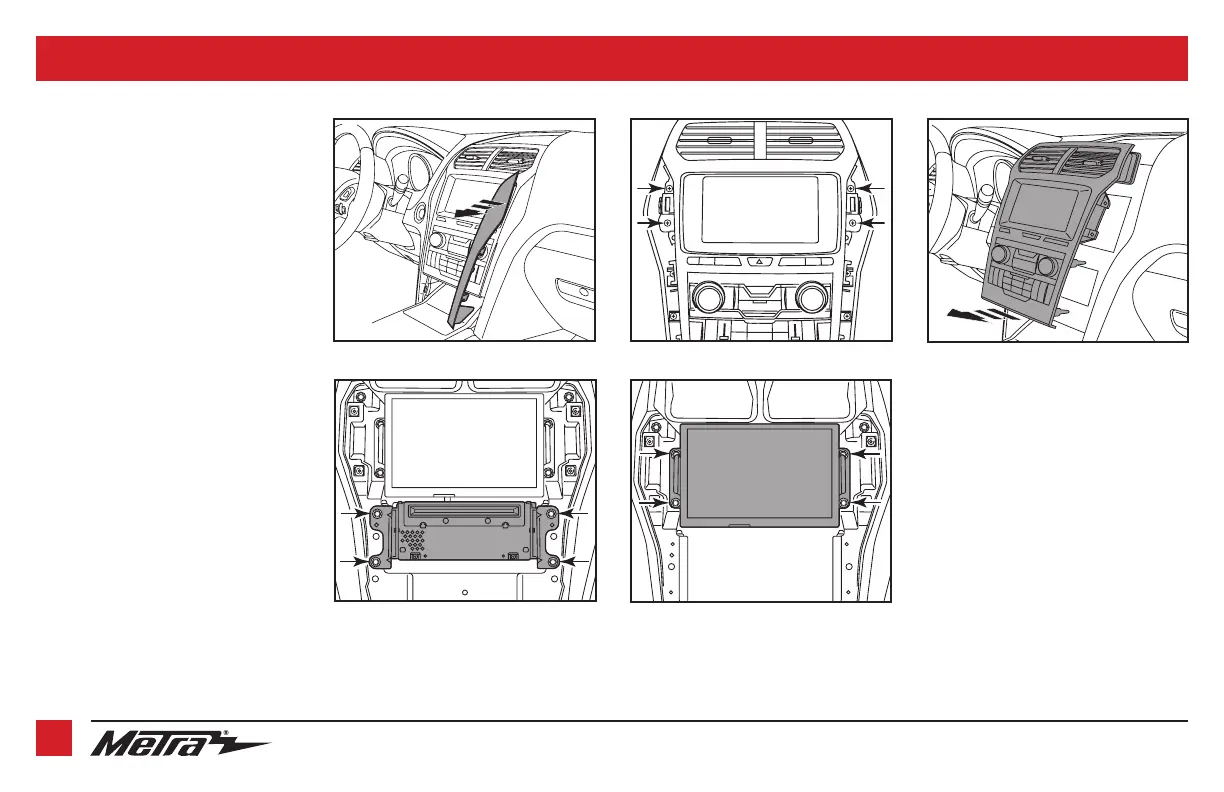

DASH DISASSEMBLY
1. Unclip and remove the trim panels to the
left and right of the climate and radio
control panel. (Figure A)
2. Remove (4) 9/32” screws securing the
climate and radio control panel, then
remove. (Figure B)
3. Unclip, unplug, and remove the climate
and radio control panel. (Figure C)
4. Remove (4) 9/32” screws securing the
radio chassis. Slide the chassis out, then
unplug and remove. (Figure D)
5. Remove (4) 9/32” screws securing the
radio display, then unplug and remove.
(Figure E)
Continue to Kit Preparation
(Figure B)
(Figure E)(Figure D)
(Figure A) (Figure C)
REV. 2/19/24 INST99-5858CH 3
KIT PREPARATION
From the factory climate & radio
control panel:
1. Remove (2) panel clips. (Figure A)
2. Remove (2) Torx screws securing the
a/c vents, then unclip and remove the
vents. (Figure A)
To the 99-5858CH radio bezel:
3. Clip the a/c vents in, then secure using
(2) #4 x 1/2” Phillips screws provided.
(Figure B)
4. Attach (2) factory panel clips. New panel
clips have been provided if the factory
clips are missing or damaged. (Figure B)
Sub-dash modification
5. Cut the shaded area as shown to allow
room for the aftermarket radio.
(Figure C)
Continue to Kit Assembly
(Figure A)
(Figure B)
(Figure C)
Cut shaded areas
