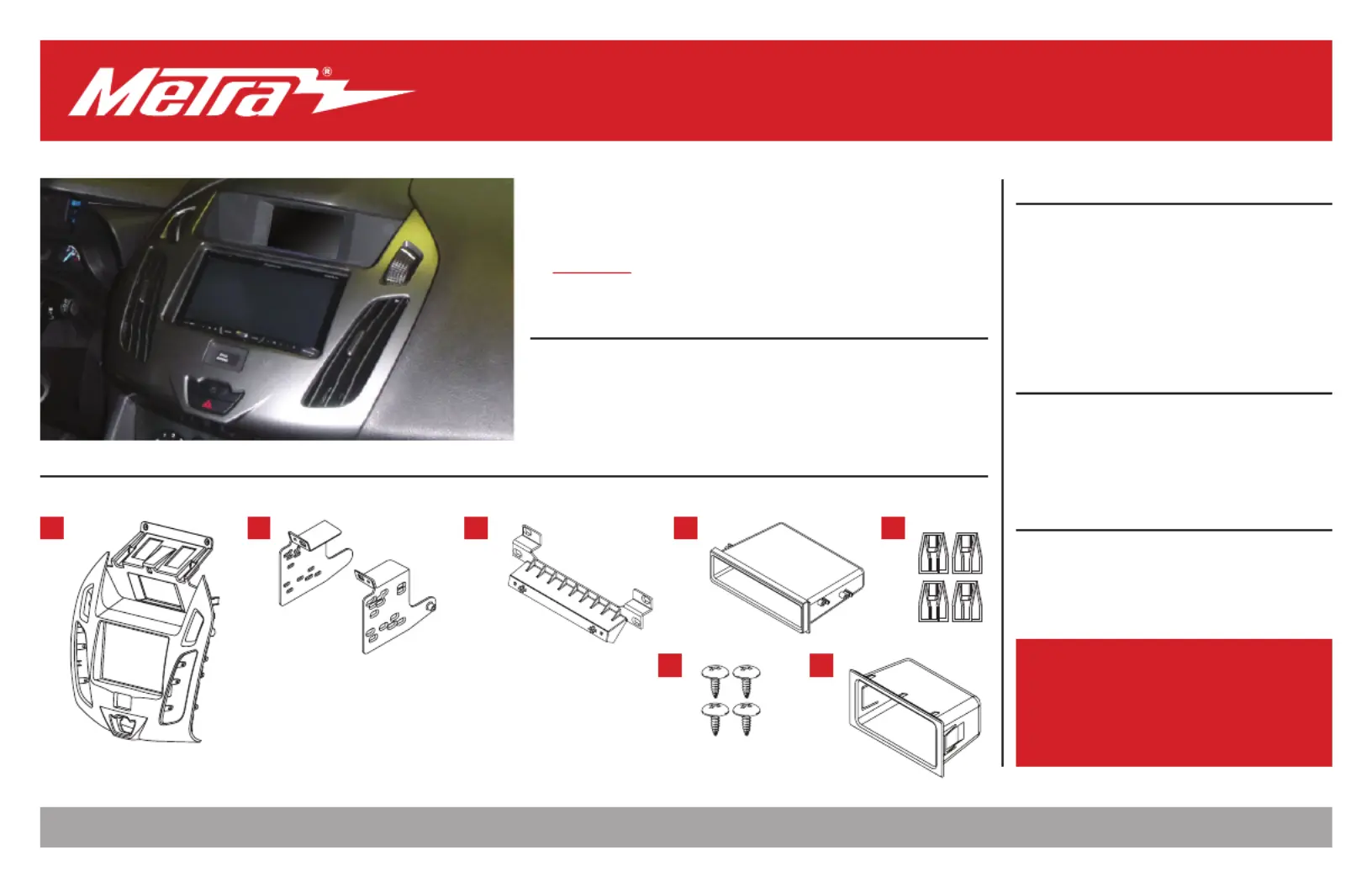

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 9/30/20 INST99-5856B
I N S TA L L AT I O N I N S T R U C T I O N S
99-5856B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Passenger airbag indicator
• Painted scratch resistant matte black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Sub-dash bracket • D) ISO-DIN pocket • E) (4) Panel clips • F) (4) #8 x 3/8” Phillips screws • G) Upper pocket
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• T-15 Torx driver • T-20 Torx driver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly
–ISO DIN radio provision with pocket ..................3
–ISO DDIN radio provision .....................................3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: 70-5524
Antenna Adapter: 40-EU10
Ford Transit Connect (with AM/FM only radio)
2014-2018
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specic applications
A B C D
G
E
F
2386.257.1187
|
MetraOnline.com
DASH DISASSEMBLY
1. Remove the top panel above the
storage pocket. (Figure A)
2. Remove (2) T-15 Torx screws above the
display/radio panel. (Figure B)
3. Unplug and remove the display/radio
panel. (Figure C)
4. Remove the A/C vents and hazard switch
from the panel and set aside for kit
assembly.
5. Remove (4) T-20 Torx screws and remove
the shaded factory sub-dash bracket.
(Figure D)
Continue to Kit Assembly
(Figure A) (Figure C)
(Figure B) (Figure D)
REV. 9/30/2020 INST99-5856B 3
KIT ASSEMBLY
(Figure A) (Figure A)
(Figure B)
ISO DIN radio provision with pocket
1. Secure the sub-dash bracket into the dash
opening with either the factory screws or
the included screws.
2. Secure the pocket radio brackets to the
using the (4) #8 x 3/8” Phillips screws
supplied. (Figure A)
3. Remove the metal “DIN” sleeve and
trim ring from the aftermarket radio.
4.
Slide the radio into the bracket/pocket
assembly, then secure the radio using the
screws supplied with the radio. (Figure B)
5. Snap the hazard switch into the radio trim
panel from the front.
6. Snap the A/C vents into the radio trim
panel from the back.
7. Plug in the passenger airbag light and
hazard connections.
8.
Locate the factory wiring harness and antenna
connector in the dash, and complete all necessary
connections to the radio. Metra recommends using the
proper mating adapter from Metra and/or AXXESS.
9.
Attach (4) to the , panel clips radio trim panel
then reassemble the dash in reverse order of
disassembly, using the .99-5856B radio trim panel
10. upper pocket Snap in the to complete the
installation.
ISO DDIN radio provision
1. Secure the sub-dash bracket into the
dash opening with either the factory
screws or the included screws.
2. Secure the radio brackets to the radio
using the screws supplied with the
radio. (Figure A)
3. Snap the hazard switch into the radio
trim panel from the front.
4. Snap the A/C vents into the radio trim
panel from the back.
5. Plug in the passenger airbag light and
hazard connections.
6. Locate the factory wiring harness and
antenna connector in the dash, and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra and/
or AXXESS.
7. Attach (4) to the panel clips radio trim
panel, then reassemble the dash in
reverse order of disassembly, using the
99-5856B radio trim panel.
8. upper pocket Snap in the to complete
the installation.
