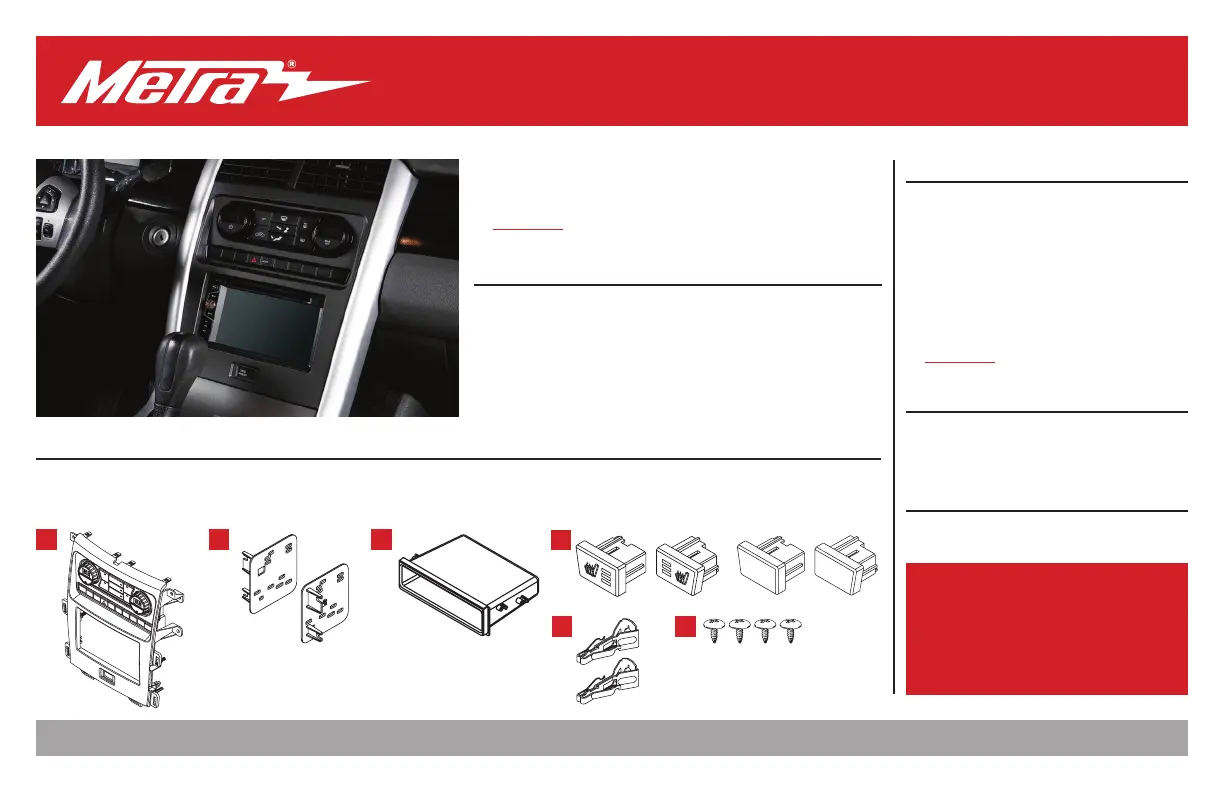

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 6/27/22 INST99-5855CH
I N S TA L L AT I O N I N S T R U C T I O N S
99-5855CH
Attention: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets •C) Pocket • D) Heated seat buttons (L & R) Blank panels • E) Panel clips (2)
• F) #8 x 3/8" Phillips truss-head screws (4) • Not shown: Wiring harness, Antenna adapter
KIT FEATURES
• Built-in control panel and interface for climate & steering wheel functions
• Painted charcoal w/matte black control panel
• Retains the factory backup camera
• Includes USB replacement harness and panel
• ISO DDIN radio provision
• ISO DIN radio provision with pocket
Ford with 4.2" screen (Edge †) 2011-2014
† With single zone, manual climate control
Visit for more detailed information about the product and up-to-date vehicle
MetraOnline.com
specic applications
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation .......................................................3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................4
Axxess Interface Installation .............................5-11
Final Assembly .......................................................8
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into kit
Antenna Adapter: Included with kit
Steering Wheel Control Interface: Included with
kit
A B C
FE
D
Visit for audio/video and steering wheel control MetraOnline.com
interface options.
386.257.1187
|
MetraOnline.com
2
DASH DISASSEMBLY
1. Unclip and remove the (2) trim panels
from the left and right side of the
factory radio. (Figure A)
2. Remove (4) T-20 Torx screws securingthe
trim panel around the gear shifter, then,
using the panel removal tool, unclip and
remove the panel. (Figure B)
3. Remove (6) 9/32” screws securing the
radio/climate control panel to the dash.
(Figure C)
Continued on the next page
(Figure A) (Figure B) (Figure C)
REV. 6/27/22 INST99-5855CH 3
4. Using the panel removal tool, carefully
unclip, unplug, and remove the factory
radio/climate control panel. (Figure D)
5. Remove (4) 9/32" screws securing the
radio chassis, disconnect the wiring, and
then remove the radio. (Figure E)
6. Remove (4) 9/32" screws securing
the factory display, then unplug and
remove. (Figure E)
Continue to Kit Preparation
DASH DISASSEMBLY KIT PREPARATION(CONT)
(Figure E) (Figure B)
(Figure D) (Figure A)
1. Attach (2) panel clips provided with this
kit on to the . (Figure A)radio trim panel
2. For models with heated seats: Clip in
the heated seat buttons. (Figure B)
3. For models without heated seats:
Clip in the . (Figure B)blank panels
Continue to Kit Assembly
