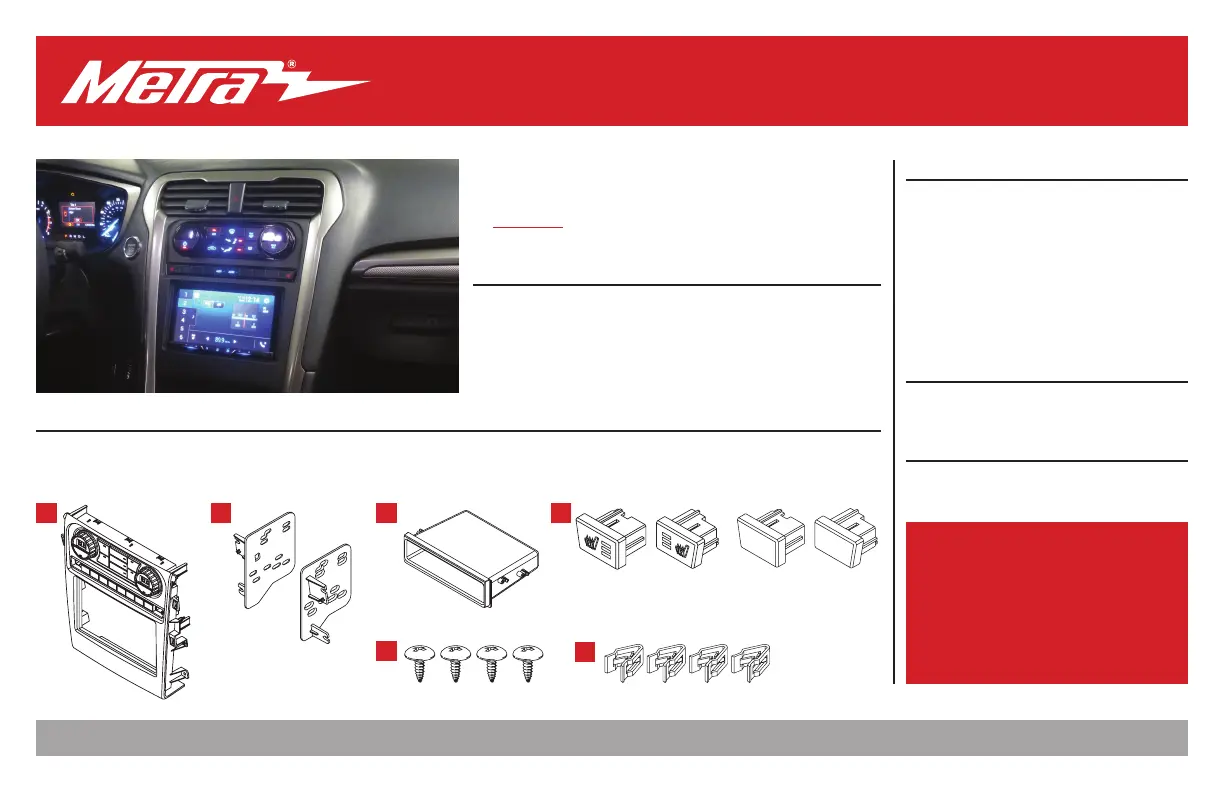

The World’s best kits.® metraonline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 5/22/24 INST99-5854B
I N S TA L L AT I O N I N S T R U C T I O N S
99-5854B
Patent # D912,037
Attention! With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator
lights, are plugged in before reconnecting
the battery or cycling the ignition to test this
product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Included interface for climate and steering wheel functions
• Painted black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket •
D) Heated seat buttons (L & R) Blank panels
• E) #8 x 3/8” Phillips screws (4)
• F) Panel clips (4)• G) HVAC interface and wiring harness (not shown) • H) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Cutting tool
TABLE OF CONTENTS
Dash Disassembly 2-3 ..............................................
Kit Preparation 4 .......................................................
Kit Assembly
–ISO DIN radio provision with pocket 5 ..................
–ISO DDIN radio provision 5 ....................................
Axxess Interface Installation 6-13 ...........................
Final Assembly 10 .....................................................
A B C
E
D
F
Ford Fusion* 2013-2019
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
* With manual climate control
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into kit
Antenna Adapter: Included with kit
386.257.1187
|
MetraOnline.com
For 2013-2016 models only:
1. Unclip the trim from around the shifter.
(Figure A)
2. Unclip the U-shaped trim from the rear
of the shifter. (Figure B)
For 2017-2019 models only:
3. Unclip and remove the left and right
side panels from the center console,
then remove the (2) 9/32” screws
exposed. (Figure C)
Continued on the next page
DASH DISASSEMBLY
2
(Figure B)(Figure A) (Figure C)
REV. 5/22/24 INST99-5854B
All models:
4. Unclip the trim surrounding the center
dash. (Figure D)
5. Remove (2) 9/32” screws securing the
radio/climate control panel, then unclip,
unplug, and remove the panel.
6. Remove (4) 9/32” screws securing the
display screen, and then unplug
and remove the screen.
7. Remove (2) 9/32” screws securing the
radio chassis, then unplug and remove
the chassis.
Continue to Kit Preparation
DASH DISASSEMBLY (CONT.)
3
(Figure D)
