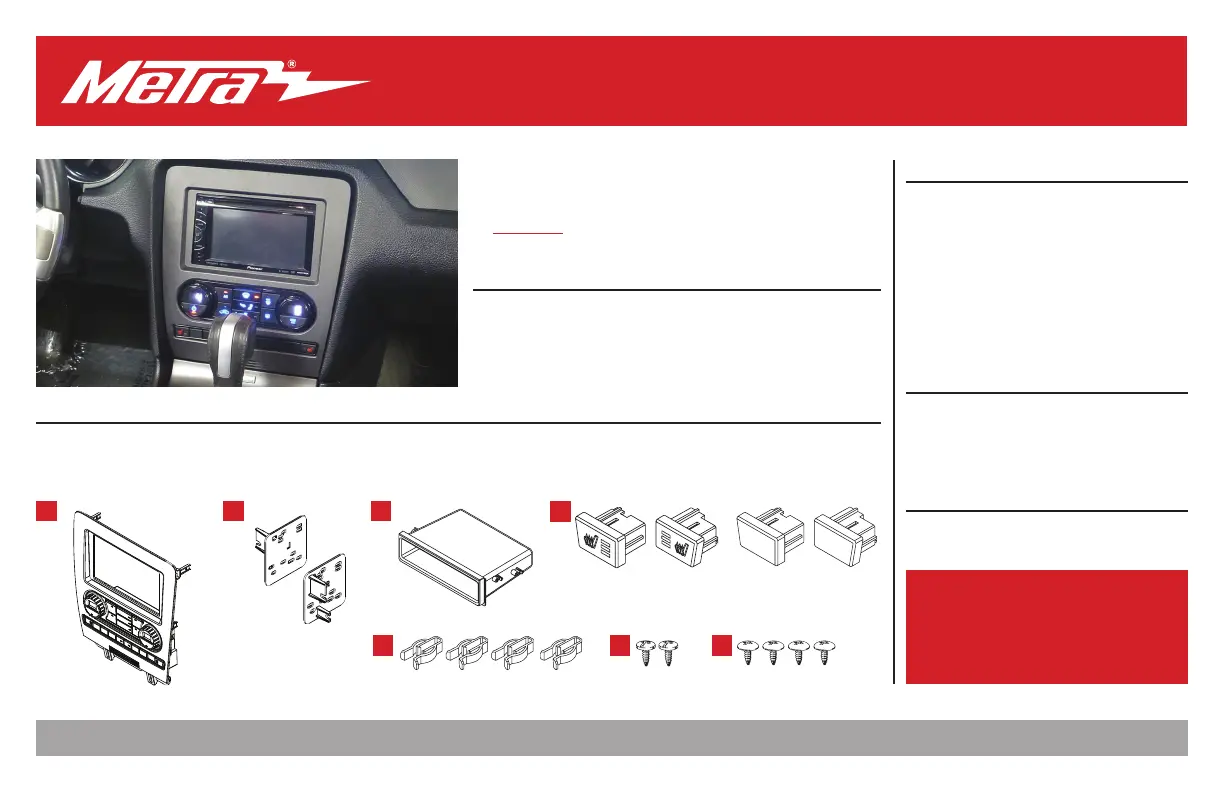

I N S TA L L AT I O N I N S T R U C T I O N S
99-5853CH
Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 6/22/21 INST99-5853CH
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Included interface for climate and steering wheel functions
• Painted charcoal with a matte black center
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets
•C) Pocket •
D) Heated seat buttons (L & R) Blank panels
• E) (4) Panel clips • F) (2) #8 x 3/8” Phillips
pan-head screws • G) (4) #8 x 3/8” Phillips truss-head screws • H) Wiring harness (not shown) • I) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
–ISO DIN radio provision with pocket ..................3
–ISO DDIN radio provision .....................................4
Axxess Interface Installation .............................5-11
Final Assembly .......................................................9
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into kit
Antenna Adapter: Included with kit
Steering wheel control interface: Included with kit
A B C
G
FE
Ford (Mustang †) 2010-2014
† With single zone, manual climate control
Visit for more detailed information about the product and up-to-date vehicle
MetraOnline.com
specic applications
D
2386.257.1187
|
MetraOnline.com

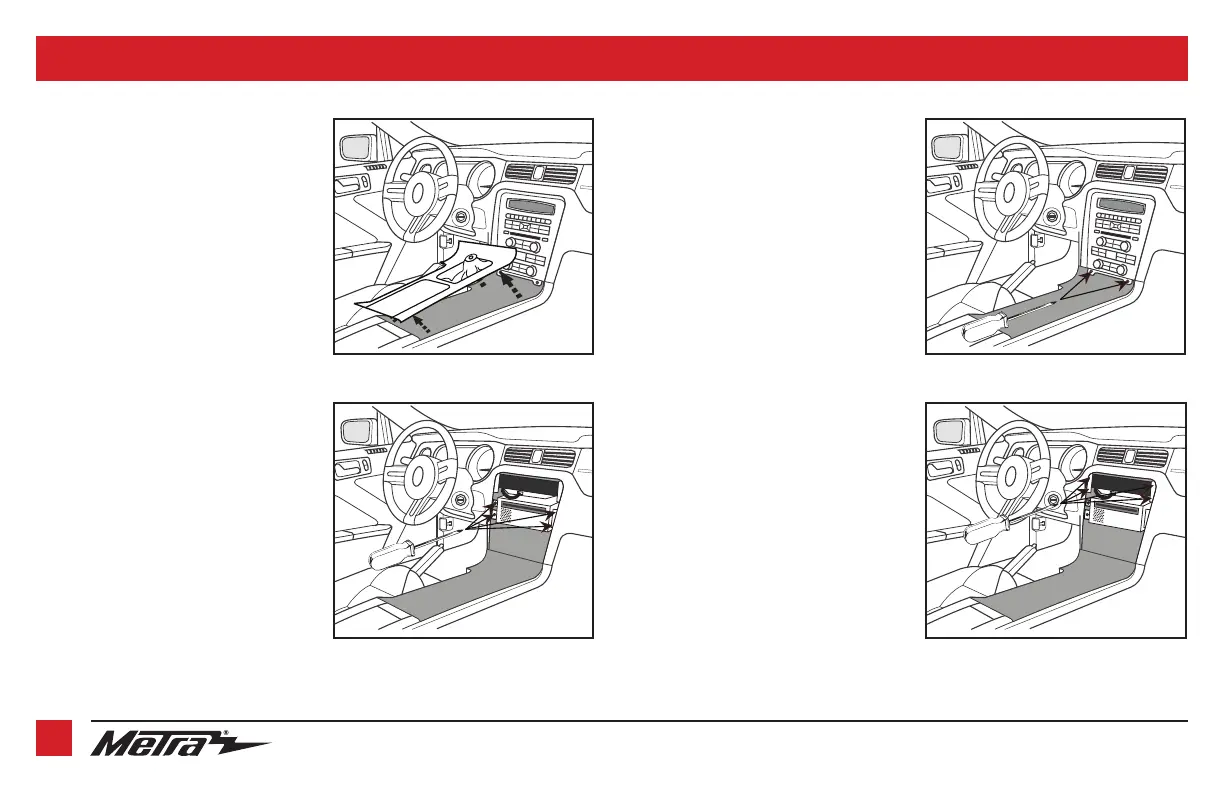

DASH DISASSEMBLY
1. Unclip and remove the trim panel
surrounding the shifter, including the
cup holders. (Figure A)
2. Remove (2) 9/32” screws from the
bottom of the radio/climate control
panel, then unclip and remove the
panel. (Figure B)
(Figure C) (Figure D)
(Figure B)(Figure A)
3. Remove (4) Phillips screws securing the
radio chassis to the vehicle. Slide the
chassis out, then unplug and remove.
(Figure C)
4. Remove (4) Phillips screws securing the
radio display to the vehicle. Slide the
display out, then unplug and remove.
(Figure D)
Continue to Kit Assembly
3
REV. 6/22/2021 INST99-5853CH
(Figure B)
(Figure A)
KIT ASSEMBLYKIT PREPARATION
ISO DIN radio provision with pocket
1. Attach the to the pocket radio brackets
using (4) #8 x 3/8” Phillips truss-head
screws provided. (Figure A)
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio into the bracket/pocket
assembly, then secure it using screws
supplied with the radio. (Figure B)
Continue to Axxess
Interface Installation
(Figure B)
(Figure A)
1. Attach (4) provided on to the panel clips
radio trim panel. (Figure A)
2. For models with heated seats:
Clip in the heated seat buttons.
(Figure B)
For models without heated seats:
Clip in the . (Figure B)blank panels
Continue to Kit Assembly
