I N S TA L L AT I O N I N S T R U C T I O N S
99-5852CH
Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2021 METRA ELECTRONICS CORPORATION REV. 6/22/21 INST99-5852CH
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.

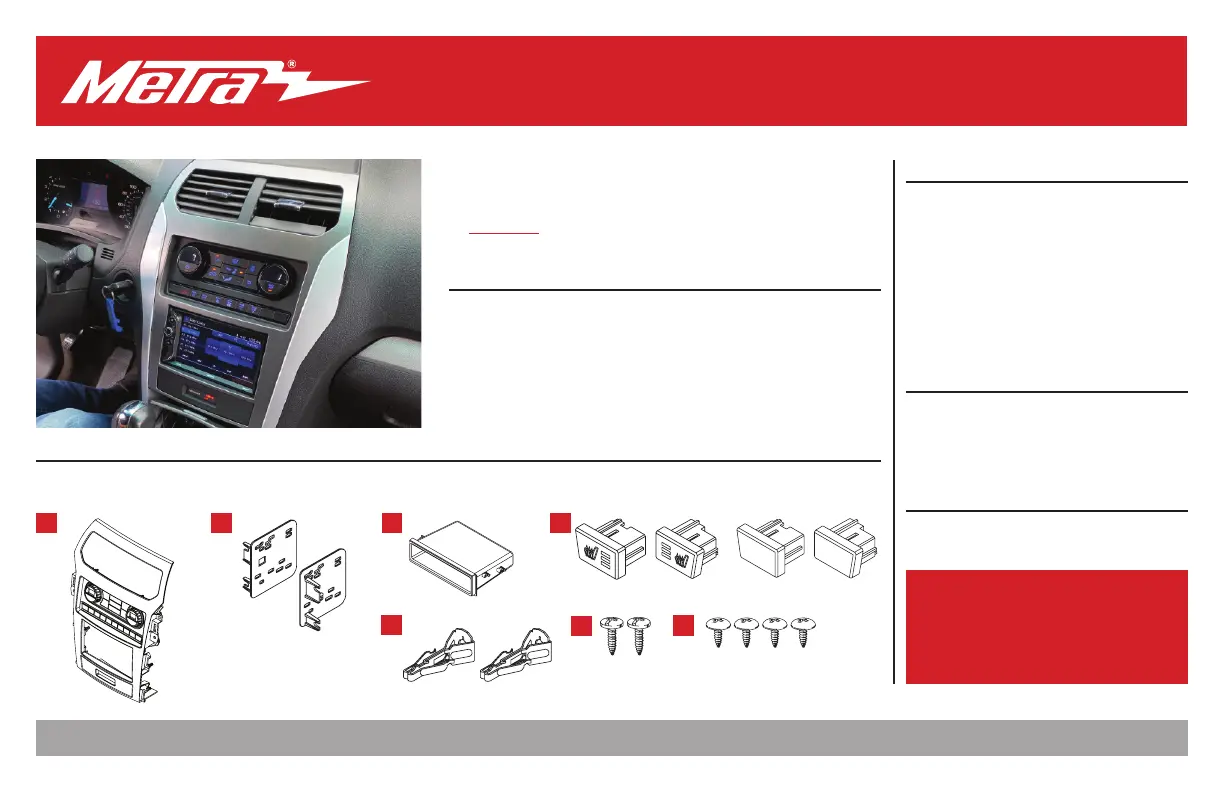

KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Included interface for climate and steering wheel functions
• Retains factory USB and back-up camera (if equipped)
• Painted charcoal with a matte black center
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets
• C) Pocket •
D) Heated seat buttons (L & R) Blank panels
• E) (2) Panel clips • F) (2) #4 x 1/2” Phillips
pan-head screws • G) (4) #8 x 3/8” Phillips truss-head screws • H) Wiring harness (not shown) • I) Antenna adapter (not shown) TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................4
Axxess Interface Installation .............................5-11
Final Assembly .......................................................9
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into kit
Antenna Adapter: Included with kit
Steering wheel control interface: Included with kit
A B C
E
Ford (Explorer †) 2011-2015
† With single zone, manual climate control
Visit for more detailed information about the product and up-to-date vehicle specic
MetraOnline.com
applications
FG
D
2386.257.1187
|
MetraOnline.com

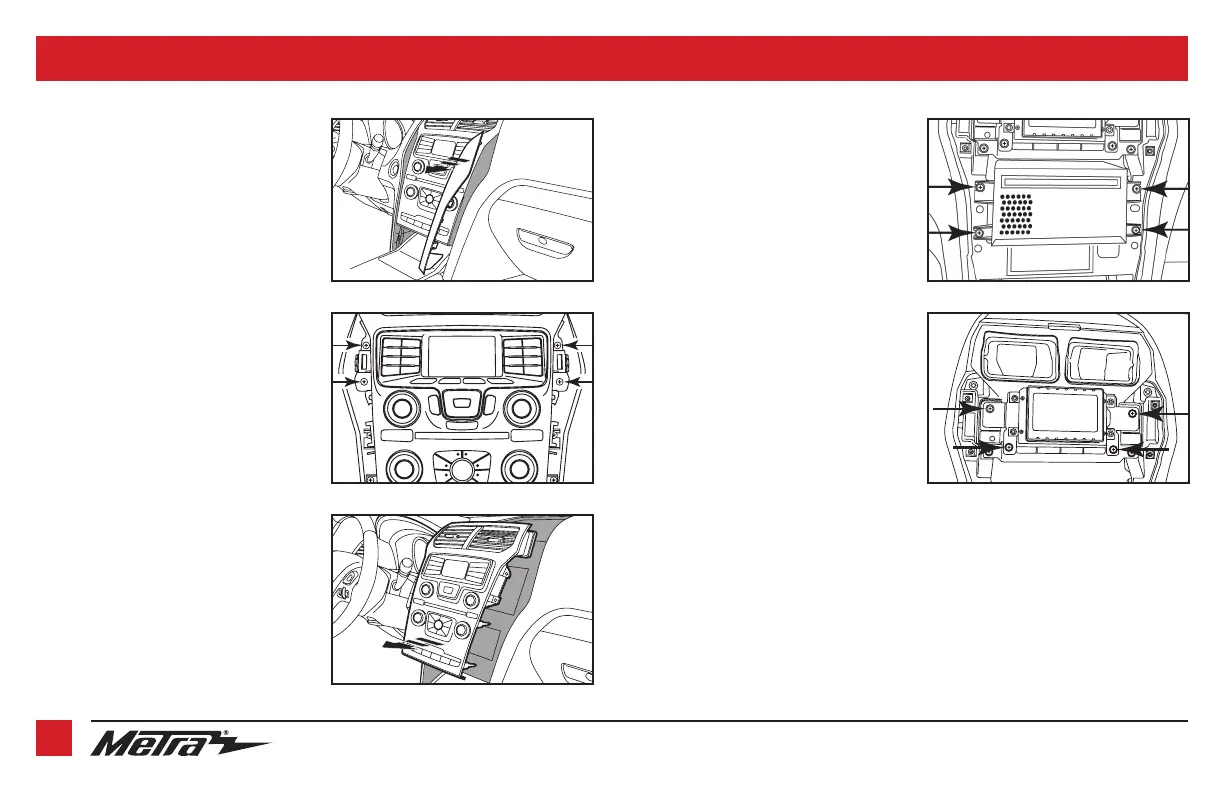

DASH DISASSEMBLY
1. Unclip and remove the (2) trim panels
from the left and right side of the factory
radio. (Figure A)
2. Remove (4) 9/32” screws securing the
radio/climate control panel to the dash.
(Figure B)
3. Unclip, unplug, and remove the factory
radio/climate control panel. (Figure C)
(Figure A) (Figure D)
(Figure B) (Figure E)
(Figure C)
4. Remove (4) 9/32” screws securing the
radio chassis, then unplug and remove.
(Figure D)
5. Remove (4) 9/32” screws securing
the factory display, then unplug and
remove. (Figure E)
Continue to Kit Preparation
3
REV. 6/22/2021 INST99-5852CH
KIT PREPARATION
1. Remove (2) Torx screws securing the a/c
vents to the factory radio/climate control
panel, then unclip and remove them
from the panel. (Figure A)
2. Attach the a/c vents to the radio trim
panel using the (2) #4 x 1/2” Phillips
screws provided with the kit. (Figure B)
3. panel clips Attach the provided with
the kit onto the . The radio trim panel
factory clips may also be used if desired.
(Figure C)
Continue to Kit Assembly
(Figure A) (Figure B) (Figure C)
