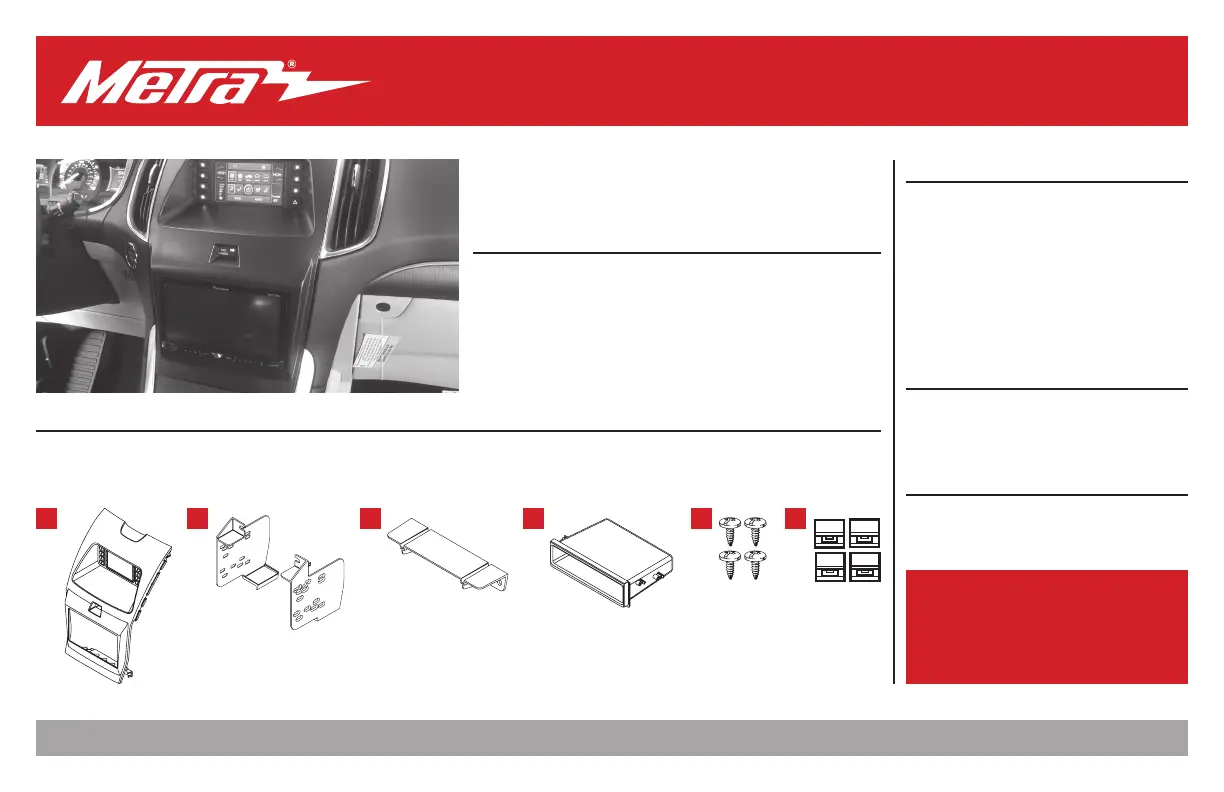

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 12/8/22 INST99-5851CH
I N S TA L L AT I O N I N S T R U C T I O N S
99-5851CH
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
Patent # 10,579,232
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen display for climate and personalization features
• Included interface for climate and steering wheel functions
• Integrated hazard button and passenger airbag indicator
• Painted charcoal
Note: The self parking feature is not supported at this time.
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Lower radio bracket • D) Pocket • E) (4) Phillips screws • F) (4) Panel clips
• G) HVAC interface and wiring harness (not shown) • H) Antenna adapter (not shown) TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” Socket wrench • 5.5mm Socket wrench
• Cutting tool
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................2
Kit Assembly
–ISO DIN radio provision with pocket ..................3
–ISO DDIN radio provision .....................................3
Axxess interface installation ............................4-14
Final assembly .......................................................9
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into
touchscreen
Antenna Adapter: Included with kit
A B D
C
Ford Edge 2015-2020
E F
*Visit for up-to-date vehicle specic applications.MetraOnline.com
2386.257.1187
|
MetraOnline.com

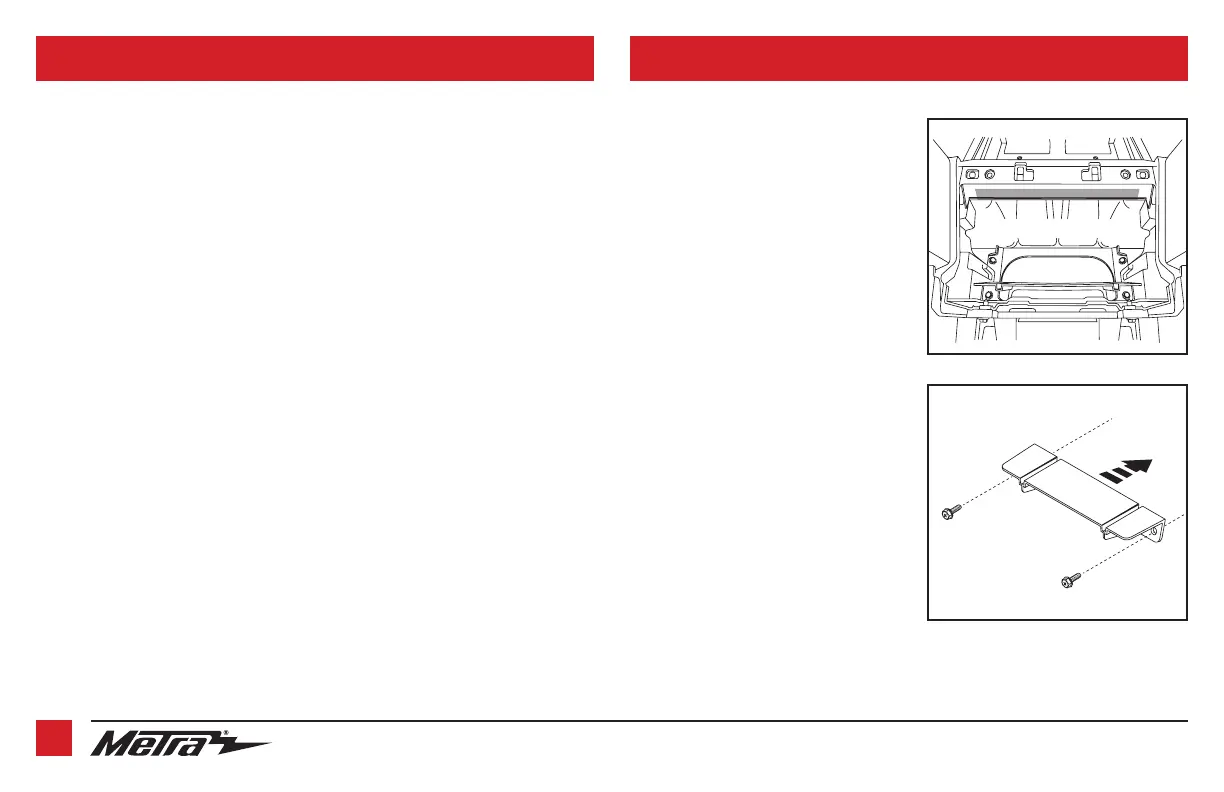

1. Unclip and remove the trim panels from
the sides of the center console.
2. Unclip, unplug, and remove the center
console trim panel. Be careful not to
scratch the radio with the front clips.
3. Remove (4) 5.5mm screws securing the
storage compartment in the front of the
center console, then move it aside.
4. Remove (6) 9/32” screws securing the
shifter housing, then unclip it by pulling
back and up to release the clips in the
front of the housing. The housing does
not need to be removed, just pulled
back during disassembly.
5. Remove (2) 9/32”screws securing the
bottom of the radio/climate control
panel.
DASH DISASSEMBLY KIT PREPARATION
1. Unclip and remove the A/C vent
assembly from each side of the radio/
climate control panel.
2. Clip the vent assemblies onto the radio
trim panel.
3. Cut the sub-dash where highlighted.
(Figure A)
4. Secure the lower radio bracket to the
sub-dash using the factory screws.
(Figure B)
5. Attach the (4) to the radio panel clips
trim panel.
Continue to Kit Assembly
6. Starting from the bottom of the radio/
climate control panel, unclip the panel,
pulling towards the back of the vehicle
to release the clips. Unplug and remove
the panel.
Note: Use caution when removing this
panel. The top of the panel above the
vents can break off easily.
7. Remove (4) screws securing the radio
display, then unplug and remove.
8. Remove (2) screws securing the radio
chassis, then unplug and remove.
Continue to Kit Preparation
(Figure B)
(Figure A)
Remove shaded area
REV. 12/8/2022 INST99-5851CH 3
KIT ASSEMBLY
ISO DIN radio provision with pocket
1. Secure the radio brackets to the pocket
using the (4) Phillips screws provided.
(Figure A)
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio into the bracket/pocket
assembly, then secure it using the screws
supplied with the radio. (Figure B)
Continue to Axxess
Interface Installation
ISO DDIN radio provision
1. Secure the the radio brackets to the
radio using the screws supplied with the
radio. (Figure A)
Continue to Axxess
Interface Installation
(Figure A)
(Figure B)
(Figure A)
