I N S TA L L AT I O N I N S T R U C T I O N S
99-5849CH
The World’s best kits.® MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 9/12/23 INST99-5849CH
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket radio.

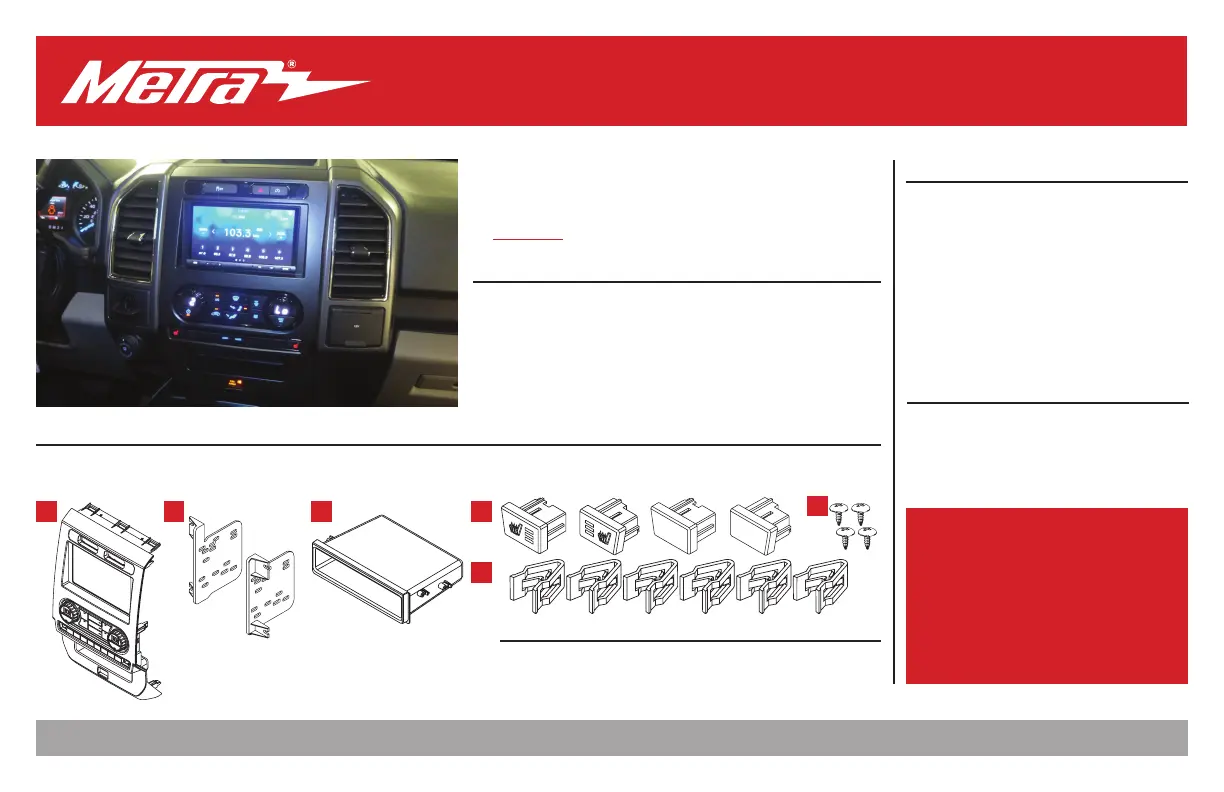

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) Heated seat buttons (L & R) Blank panels • E) #8 x 3/8” Phillips screws
(4)
• F) Panel clips (6)
• G) HVAC interface and wiring harness (not shown) • H) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” Socket wrench • Cutting tool
TABLE OF CONTENTS
Dash Disassembly 2-3 ..............................................
Kit Preparation 4 .......................................................
Kit Assembly
– ISO DIN radio provision with pocket 5 .................
– ISO DDIN radio provision 5 ...................................
Axxess Interface Installation 6-10 ...........................
Final Assembly 11 ......................................................
Configuration 12-14 ...................................................
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into kit
Antenna Adapter: Included with kit
USB Replacement Hubs: #AXFD-USB or
#AXFD-USB2 (sold separately)
Ford F150 2015-2020*
F250/350/450/550 XL 2020-2022*
Visit for more detailed information about
MetraOnline.com
the product and up-to-date vehicle specific applications
* Models equipped
with 4.2-inch color
screen and single
zone climate controls
A B C D
F
E
KIT FEATURES
• ISO DIN radio provision with pocket • ISO DDIN radio provision
• Integrated passenger airbag indicator • Painted charcoal
• Included interface for climate and steering wheel functions
Note: This kit will not support the Pro Trailer Backup Assist™ feature, nor the
massaging seats.
Note: Factory B&O amplified sound systems require an additional interface,
sold separately. Part # AXA2B-FD1.
2386.257.1187
|
MetraOnline.com

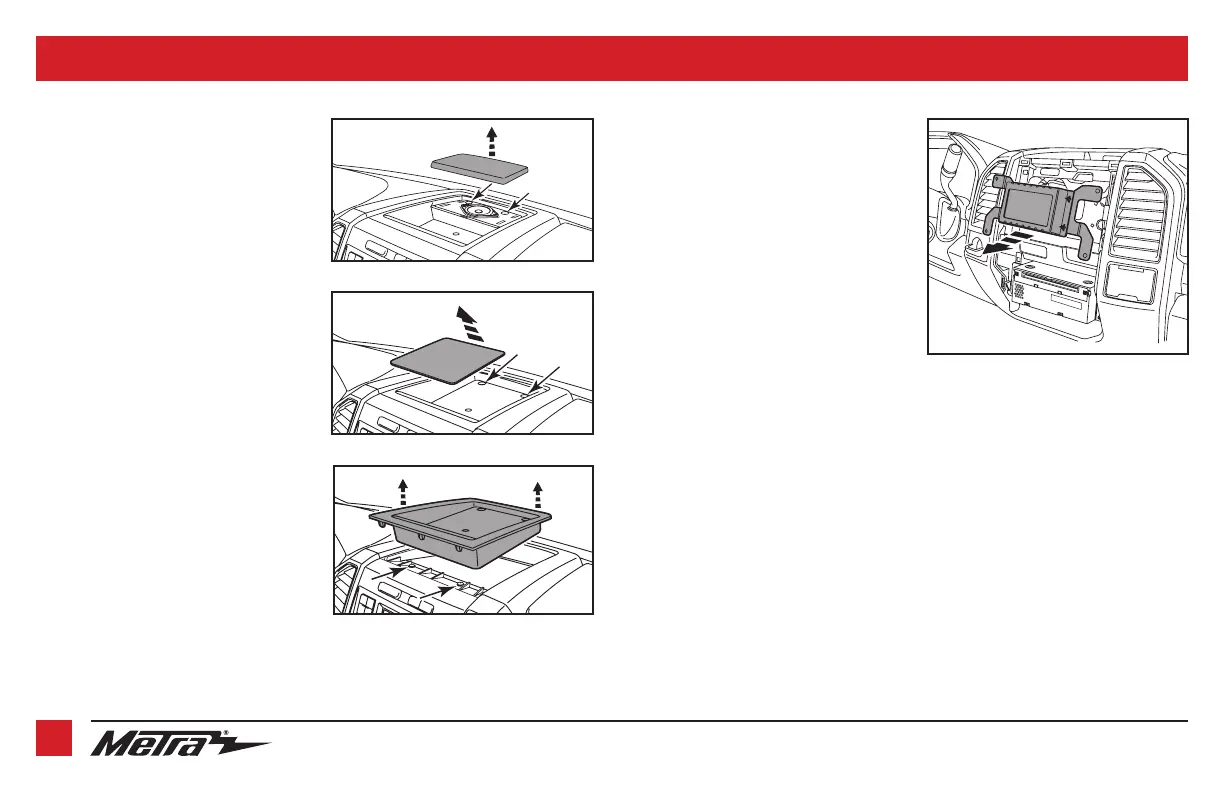

DASH DISASSEMBLY
1. For vehicles with a center channel
speaker: Unclip and remove the speaker
grille in the center of the dash above the
radio/climate control panel, and then
remove the (2) 9/32” screws exposed.
(Figure A)
2. For vehicles without a center channel
speaker: Remove the rubber pad in the
shallow pocket above the radio/climate
control panel, and then remove the (2)
9/32” screws exposed. (Figure B)
3. Unclip and remove the panel above the
radio/climate control panel, and then
remove the (2) 9/32” screws from the
top of the radio/climate control panel.
(Figure C)
Ensure that the vehicle is completely off before
proceeding onto the following (5) steps
4. Using the panel removal tool, carefully
unclip, unplug, and remove the radio/
climate control panel.
5. Remove the 9/32” Phillips screws securing
the display screen:
(4) for the 4.2-inch display screen models,
(6) for 8-inch display screen models, then
unplug and remove the screen. (Figure D)
Continued on the next page
(Figure D)
(Figure C)
(Figure A)
(Figure B)
3
REV. 9/12/23 INST99-5849CH
DASH DISASSEMBLY (CONT.)
(Figure G)
(Figure H)
(Figure F)
6. For models with a 4.2-inch display
screen and SYNC®: Remove (2) 9/32”
screws securing the SYNC® module, then
unplug and remove. (Figure F)
7. Remove (4) 9/32” screws securing the
radio chassis, disconnect the wiring, and
then remove the factory radio. (Figure G)
8. For models equipped with a factory
backup camera: Remove the (2) 10mm
nuts located at the top of the camera
module. Loosen the bottom nut and
reposition the module down onto the
lower stud, then re-secure using just (1)
10mm nut. (Figure H)
Continue to Kit Preparation
